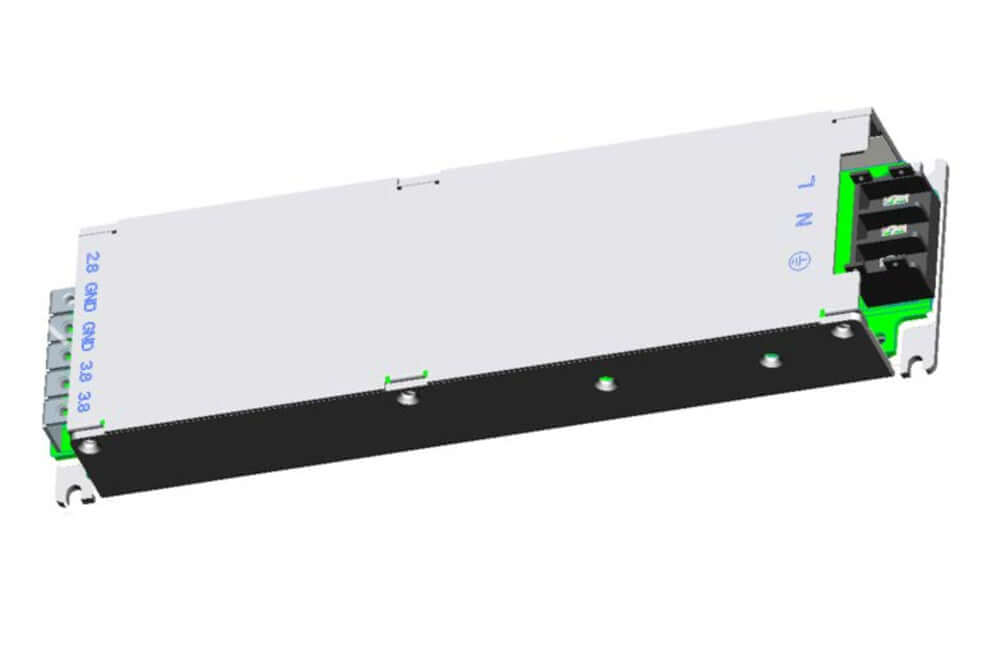

LaitePower T200V3.8-2.8A1 LED Screen Power Supply
$ 33.20
10000 in stock
LaitePower T200V3.8-2.8A1 LED Screen Power Supply has the following features:
● (input voltage)90Vac to 264Vac，（Applicable to global voltage range）
● (Protection function): (SCP, OCP， OTP)
● (Operation temperature range): -30℃ to +70℃(-40℃ can start up)
● (High Efficiency, long life and high reliability)
● PCB (PCB using conformal coating process)
LaitePower T200V3.8-2.8A1 LED Screen Power Supply Parameter
| INPUT | |
| Input Voltage Range | 90Vac to 264Vac |
| Rated Input Voltage | 100Vac to 240Vac |
| Input Frequency Range | 47Hz to 63Hz |
| Rated Input Frequency | 50Hz to 60Hz |
| Input Current | Max. 3.5A at 90Vac input at Full Load |
| Inrush Current | 60A (TYP. peak) at 240Vac |
| Power Factor | ≧0.99at 100Vac, ≧0.96 at 230Vac |
| Efficiency | 83% min@220Vac ,Full Load |
| OUTPUT | |||
| Output Power | 200W | ||
| Output Channel | Rated Output Voltage | Voltage | Rated Current |
| CON5/6(+)(-) | +3.8Vdc | ±5% | 100Vac to 240Vac； 0A-30A |
| CON2(+)(-) | +2.8Vdc | ±5% | 100Vac to 240Vac； 0A-30A |
| Dimensions | 210.0mm x 58.0mm x 26.0mm±0.5mm |
Download Specification
LaitePower T200V3.8-2.8A1 LED Screen Power Supply Specification
| Weight | 0.6 kg |
|---|
