Linsn TS902 LED Sending Card | HDMI & DVI Inputs
$ 190.00
Linsn TS902 sending card with HDMI/DVI inputs and RCG/CON configuration functions. View V1.1 specifications and important port-count and pixel-load version notes.
10000 in stock
Product overview

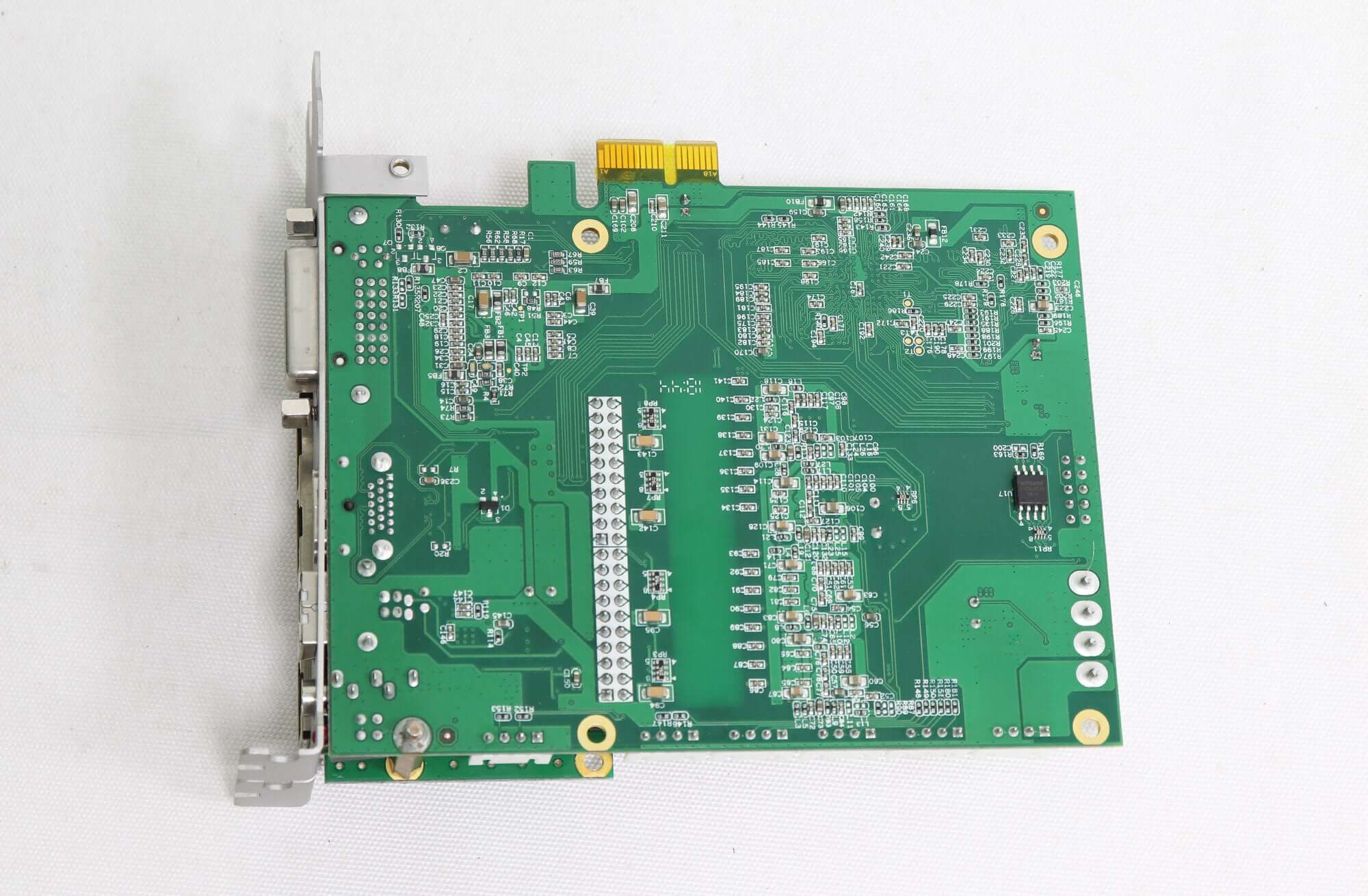

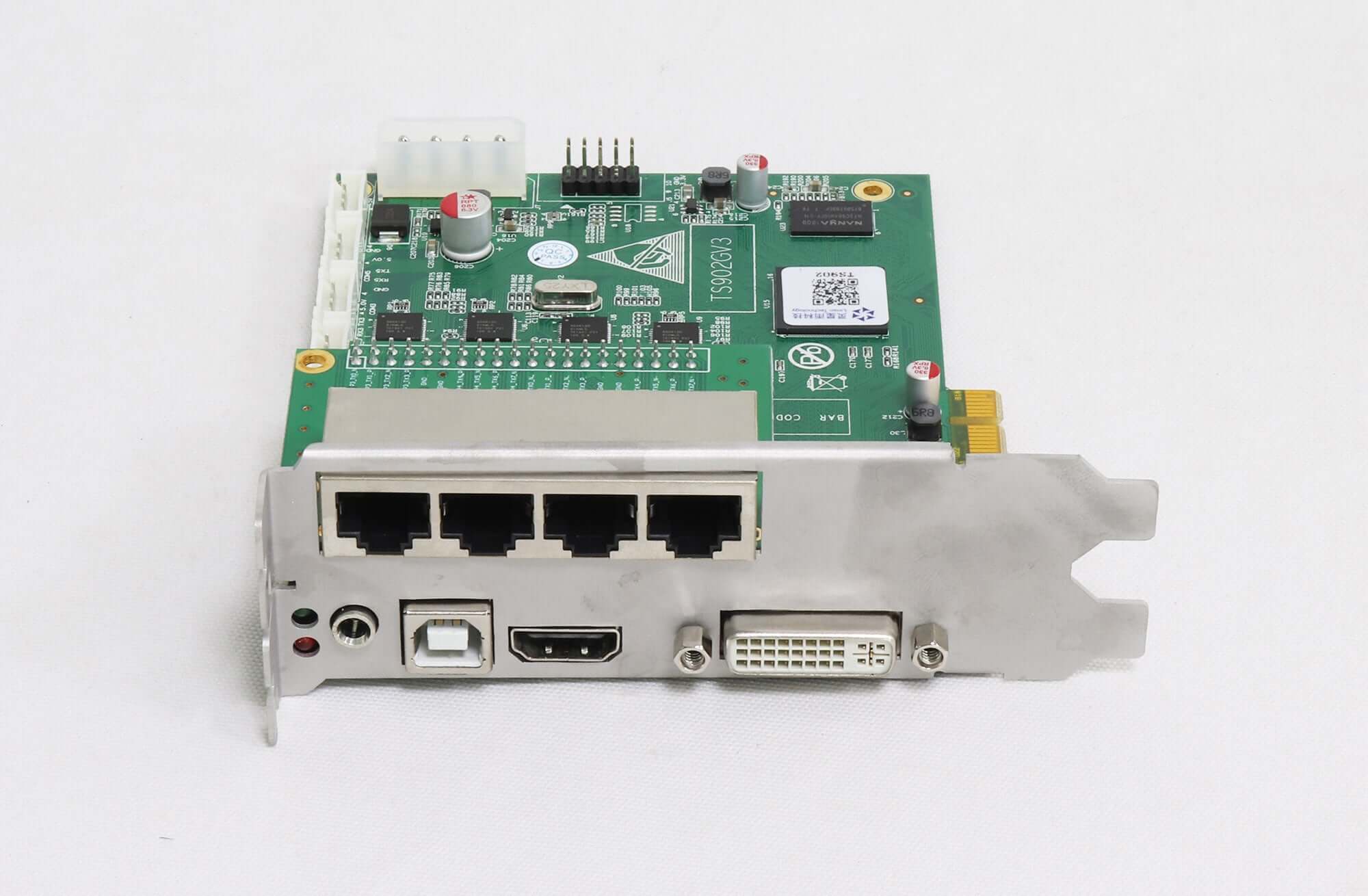

The Linsn TS902 is an LED sending card with HDMI and DVI video inputs, a PCI-E 1X interface and RCG/CON configuration-file functions. The attached V1.1 specification, dated January 2019, documents four network outputs and a maximum load of 2.6 million pixels. Confirm this version against the supplied card because the older product text gives different loading and port information.
Product specifications
| Parameter | Specification |
|---|---|
| Model / manual | TS902; V1.1, January 2019 |
| LED outputs in linked manual | 4 network output ports |
| Maximum load in linked manual | 2.6 million pixels |
| Video inputs | 1 × DVI; 1 × HDMI |
| Audio | 1 input |
| Card interface | PCI-E 1X |
| Input support | 4K source input; exact 4K timing is not specified |
| Input bit depth / grayscale | 8-bit, 10-bit or 12-bit input; 16-bit grayscale |
| Video formats | RGB, YCrCb 4:2:2, YCrCb 4:4:4 |
| Listed resolution examples | 2560 × 1024; 1920 × 1200; 2048 × 1152 |
| Supply voltage | 5 V rated; 4.5–5.5 V |
| Current | 0.50 A rated; 0.46–0.57 A |
| Power consumption | 2.5 W rated; 2.1–3.1 W |
| Operating conditions | −20°C to +70°C; 0–95% humidity |
Resolve the version before selecting a screen
The previous listing states 2.3 million pixels, dual-port output and a 4096 × 640 example. These do not match the attached V1.1 manual’s four outputs and 2.6-million-pixel rating. The table attributes its values to that manual instead of combining conflicting specifications.
The manual supports RCG readback and broadcast plus CON broadcast. Its 4K input statement is separate from LED output capacity and does not establish full 4K LED loading.
The old text also mentions USB media playback, LAN control and an HDMI monitor output, but the attached manual does not confirm those functions. Verify the exact card hardware if any of them is required.
Frequently asked questions
1. Does the Linsn TS902 have two or four LED outputs?
The linked January 2019 V1.1 manual specifies four network outputs. The previous product text said two, so check the physical card and matching revision before ordering.
2. What is the TS902 maximum pixel capacity?
The attached manual specifies 2.6 million pixels. The original listing’s 2.3-million figure conflicts with that document and is not combined with the manual’s rating.
3. Does TS902 support HDMI and DVI input?
Yes. The V1.1 manual lists one HDMI input, one DVI input and one audio input, with 8-bit, 10-bit and 12-bit video input support.
4. Can TS902 play files directly from a USB drive?
The attached specification does not document USB media playback. Do not assume that capability from the older page text; confirm the hardware and required playback method.
