Linsn TS952 LED Sending Box | 4 Ethernet Outputs
$ 273.00
Linsn TS952 LED sending box with four Gigabit Ethernet outputs, a 2.6-million-pixel load, HDMI/DVI inputs and external light-sensor support.
10000 in stock
Product overview

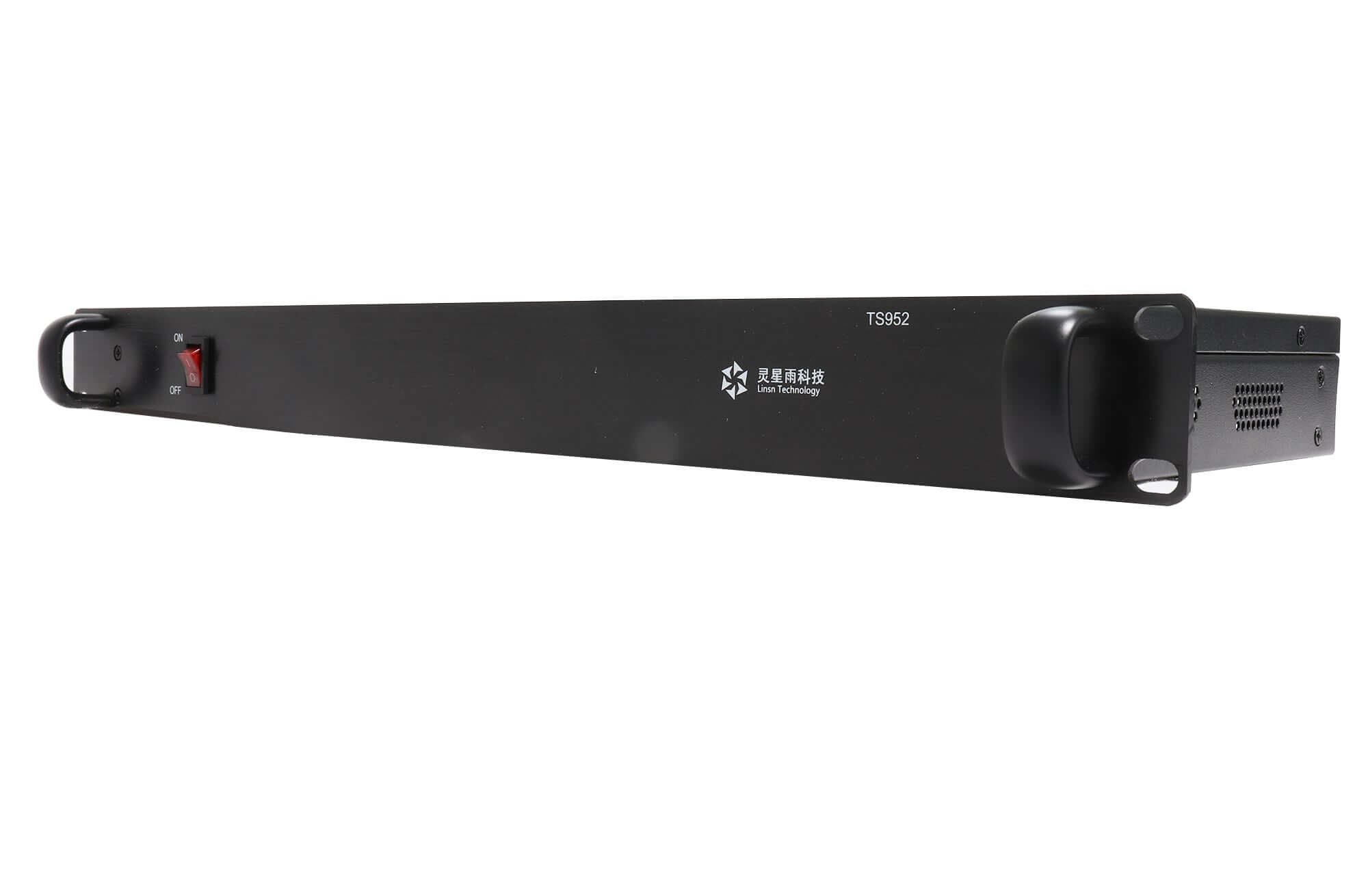

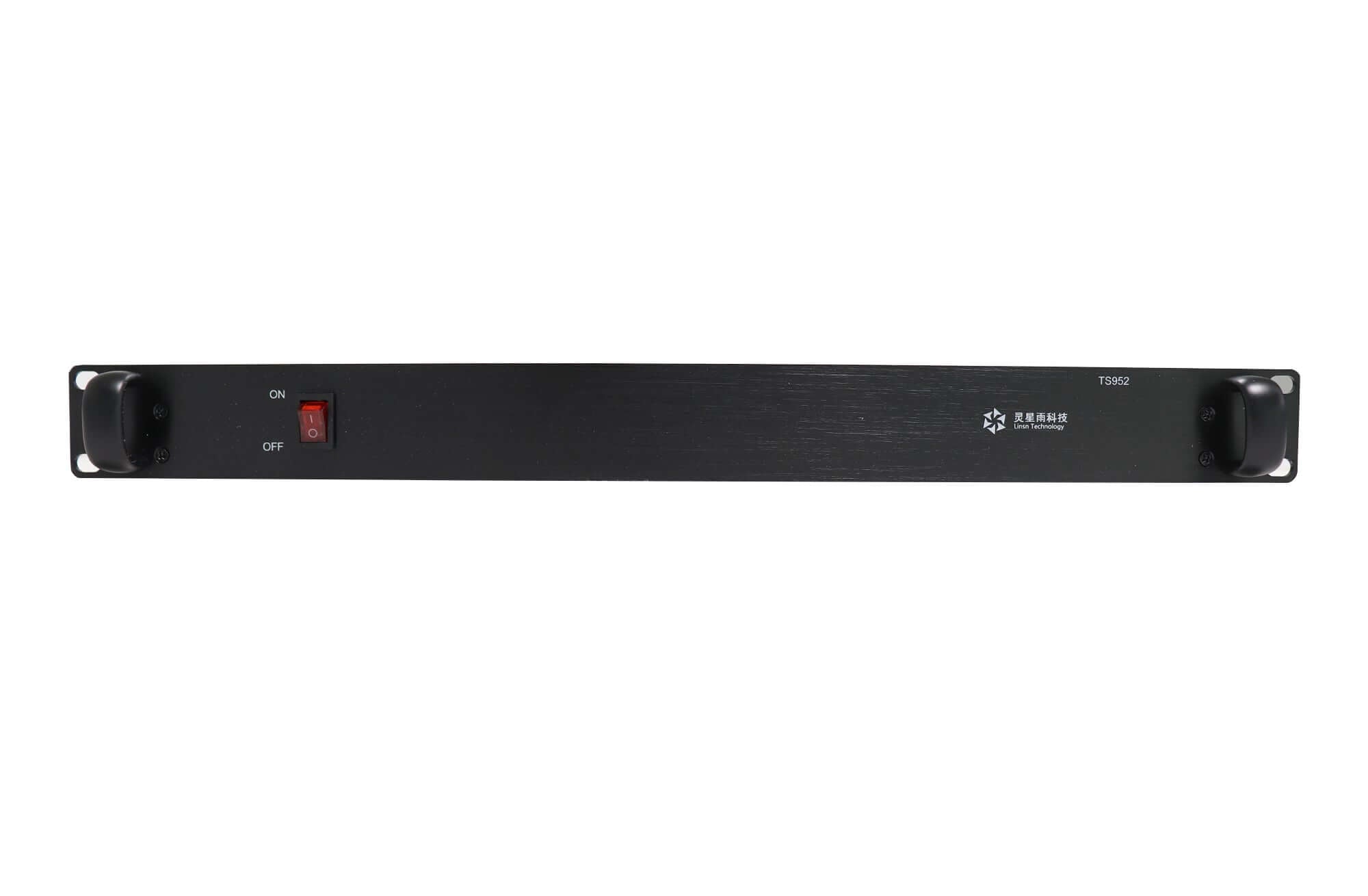

The Linsn TS952 is a four-port LED sending box for single-color, dual-color and full-color displays. It accepts HDMI and DVI video sources and supports a maximum LED load of 2.6 million pixels. Its 4K input support refers to the source signal; it does not increase the stated LED output capacity.
Product specifications
| Parameter | Specification |
|---|---|
| Model | TS952 |
| LED outputs | 4 Gigabit Ethernet ports |
| Maximum loading | 2.6 million pixels |
| Video inputs | 1 × HDMI; 1 × DVI |
| Source support | 4K input; timing and refresh rate are not specified in the linked manual |
| Input bit depth | 8-bit, 10-bit and 12-bit |
| Grayscale | 16-bit |
| Video formats | RGB, YCrCb 4:2:2 and YCrCb 4:4:4 |
| Listed screen resolutions | 2560 × 1024; 1920 × 1200; 2048 × 1152 |

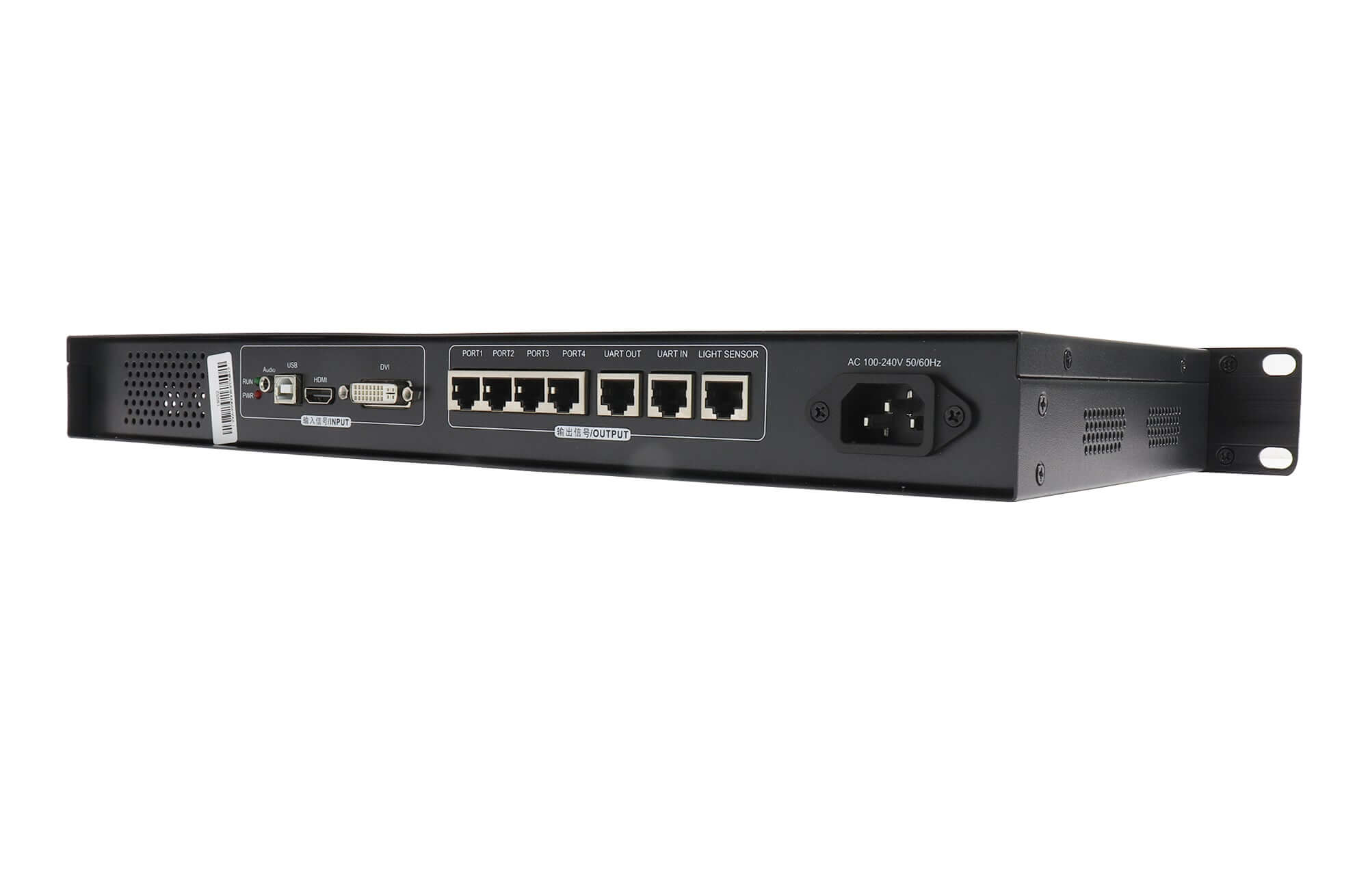

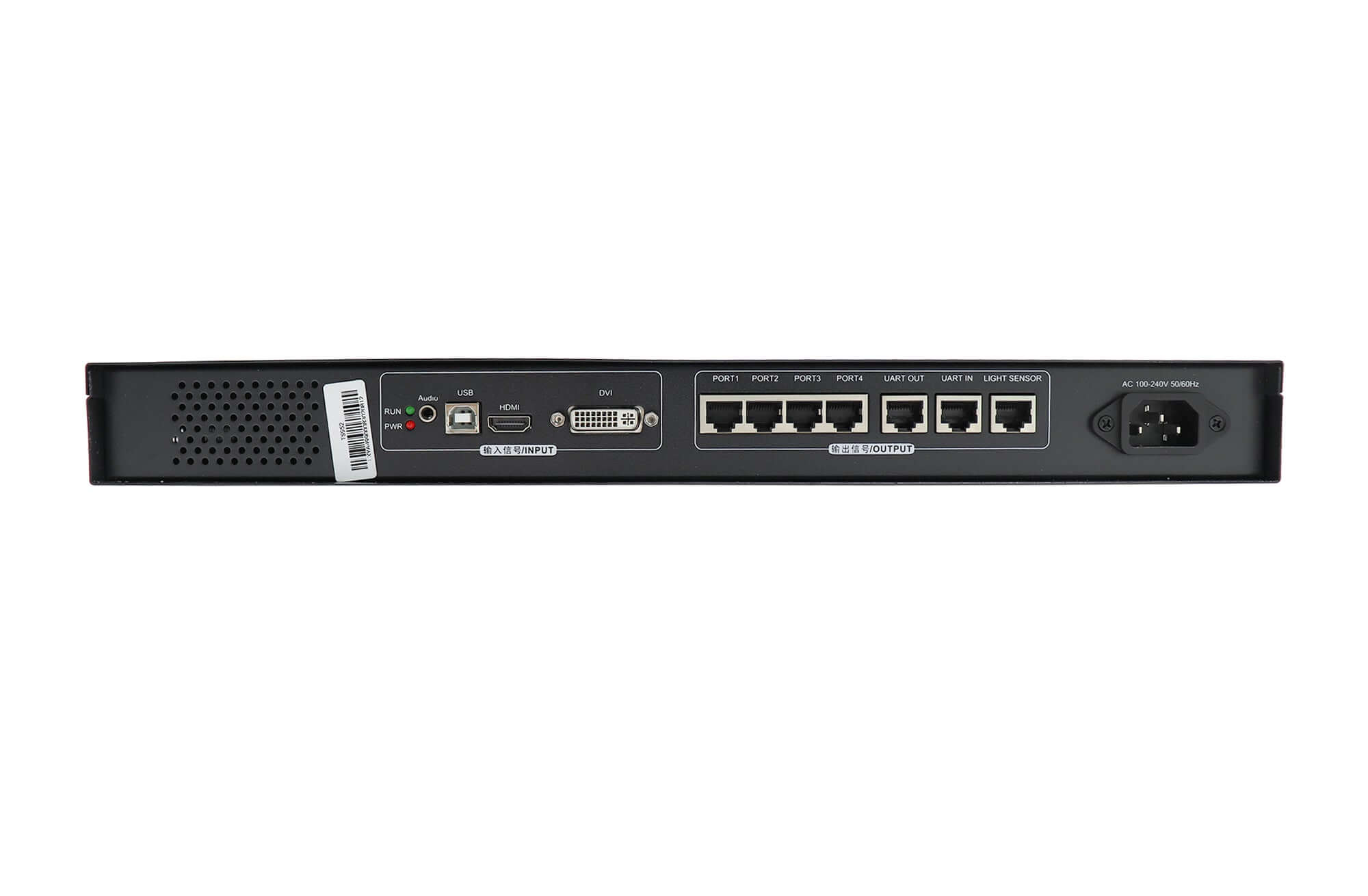

| Other connections | 3.5 mm audio input; USB setup; UART-IN/OUT; light sensor connector |
| Supply | AC 100–240 V |
| Rated power | 20 W |
| Operating temperature | −20°C to +70°C |
| Operating humidity | 0–95% |
| Weight | 3 kg |
Configuration and installation
RCG file readback retrieves receiving-card configuration, while RCG and CON broadcast functions distribute receiving-card and screen-connection settings. Check the receiving cards and cabinet mapping before applying configuration files to an existing display.
The controller supports cascading and automatic brightness adjustment through an additional light sensor. Confirm the sensor and required cabling separately. This parameter table follows the TS952 sender-box specification, version 1.2, August 2017.
Frequently asked questions
1. What is the maximum pixel capacity of the TS952?
The TS952 supports up to 2.6 million pixels across four Gigabit Ethernet outputs. The manual lists 2560 × 1024, 1920 × 1200 and 2048 × 1152 as common resolutions.
2. Does 4K input mean the TS952 can drive a full 4K LED screen?
No. The manual lists 4K source input and a separate maximum output capacity of 2.6 million pixels. It does not specify the supported 4K input timing or refresh rate.
3. Which video inputs does the TS952 have?
It has one HDMI input and one DVI input, with a separate 3.5 mm audio input. Supported video formats include RGB and YCrCb 4:2:2 and 4:4:4.
4. Can TS952 brightness adjust automatically?
Yes, with an additional light sensor connected to the dedicated sensor interface. Confirm that the sensor is supplied for your installation.
Download specification
| Weight | 7.5 kg |
|---|
