Mooncell MTB200S LED Sending Box with V30 Pro
$ 101.00
LED sending box with a built-in V30 Pro sending card, DVI and audio inputs, two Gigabit Ethernet outputs and a maximum loading capacity of 1.3 million pixels. Supports USB cascading, backup functions and configuration readback.
10000 in stock
Mooncell MTB200S LED Sending Box
The Mooncell MTB200S is an LED display master controller with a built-in V30 Pro sending card. It accepts a DVI video signal and sends synchronized display data through two Ethernet outputs, with a maximum loading capacity of 1.3 million pixels.
Connections and control features
The DVI and audio inputs support synchronous transmission over network cable. USB communication allows multiple sending cards to be cascaded to one computer. Ethernet loop dual backup and dual master controller backup are supported for systems configured with these backup arrangements.
Control software can monitor sending-card operating parameters and status, read back stored configurations, and detect Gigabit network error rates. Custom resolutions and output splicing are supported.
MTB200S specifications
| Parameter | Specification |
|---|---|
| Built-in sending card | V30 Pro |
| Maximum loading capacity | 1.3 million pixels |
| Video input | 1 × DVI |
| Audio input | 1 × AUDIO |
| Display data outputs | 2 × Gigabit Ethernet |
| Communication | 1 × USB; cascading connection control |
| Preset resolutions | 1024×768; 1280×1024; 1366×768; 1600×1200; 1920×1080; 2048×1152; 2560×960 |
| Custom resolution | Supported |
| Listed input frame rates | 30 Hz; 50 Hz; 60 Hz; 120 Hz |
| Backup functions | Ethernet port loop dual backup; dual master controller backup |
Check the complete screen resolution and planned output mapping against the loading limit before selecting the controller. Preset input resolutions and maximum pixel loading describe different parts of the signal path.

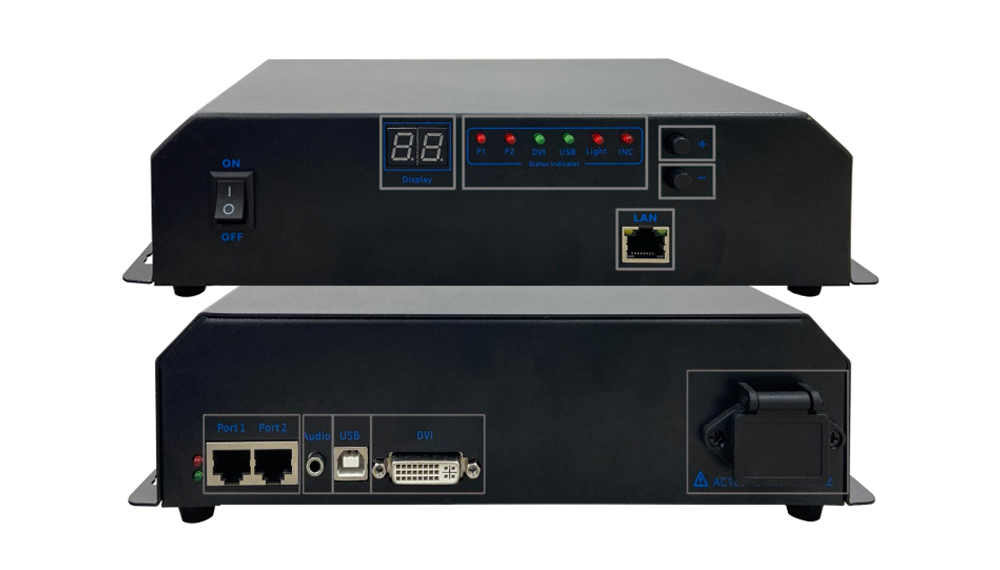

Product image
Specification download
Download the Mooncell MTB200S specification PDF
Frequently asked questions
1. What is the Mooncell MTB200S used for?
It is a sending box for an LED display control system, with a built-in V30 Pro sending card and two Ethernet data outputs.
2. What is the maximum pixel capacity?
The listed maximum loading capacity is 1.3 million pixels. Confirm the screen layout and resolution before configuring the outputs.
3. Which input connections does it provide?
The listed inputs are one DVI video input and one audio input. A USB port provides communication with the control computer.
4. Does MTB200S support backup and configuration readback?
Yes. It supports Ethernet port loop dual backup, dual master controller backup and reading back stored configurations.
5. Where can I find the MTB200S specification?
Use the specification PDF download above to review the model details before ordering or installation.
| Weight | 2.5 kg |
|---|
