NovaStar MCTRL600 LED Display Controller
$ 230.00
MCTRL600 LED controller with HDMI/DVI inputs, four Ethernet outputs and a light-sensor interface. Supports 8-bit, 10-bit and 12-bit sources with different resolution limits.
9994 in stock
The NovaStar MCTRL600 LED display controller connects HDMI or DVI video sources to an LED receiving-card system. It provides four Gigabit Ethernet outputs, a light-sensor connector and USB control, with UART connections for cascading multiple units.
MCTRL600 specifications
| Item | Specification |
|---|---|
| Video inputs | 1 × DVI; 1 × HDMI 1.3 |
| Audio | HDMI audio / external audio input |
| Input color depth | 8-bit, 10-bit and 12-bit |
| 8-bit maximum input in manufacturer documentation | 1920 × 1200 at 60 Hz |
| 10-bit / 12-bit maximum input | 1440 × 900 at 60 Hz |
| Other resolutions in the original listing | 2048 × 1152 and 2560 × 960; timing and configuration need confirmation |
| LED outputs | 4 × Gigabit Ethernet |
| Light sensor | 1 interface |
| Control / cascading | Type-B USB; UART IN and OUT |
| Listed video formats | RGB, YCrCb 4:2:2, YCrCb 4:4:4 |
| Grayscale processing in original listing | 18-bit |
| Housing / power | Standard 1U housing; independent power supply |
Match color depth and resolution
The supported resolution changes with input bit depth. NovaStar’s video-source specifications give 1920 × 1200 at 60 Hz for 8-bit and 1440 × 900 at 60 Hz for 10-bit/12-bit operation.
The original listing also names 2048 × 1152 and 2560 × 960 without refresh-rate conditions. Those values are retained as original listing information, not a guarantee of 60 Hz support. Confirm the required timing, source format and installed program before planning a custom screen. The listed 18-bit grayscale processing is separate from input video bit depth.

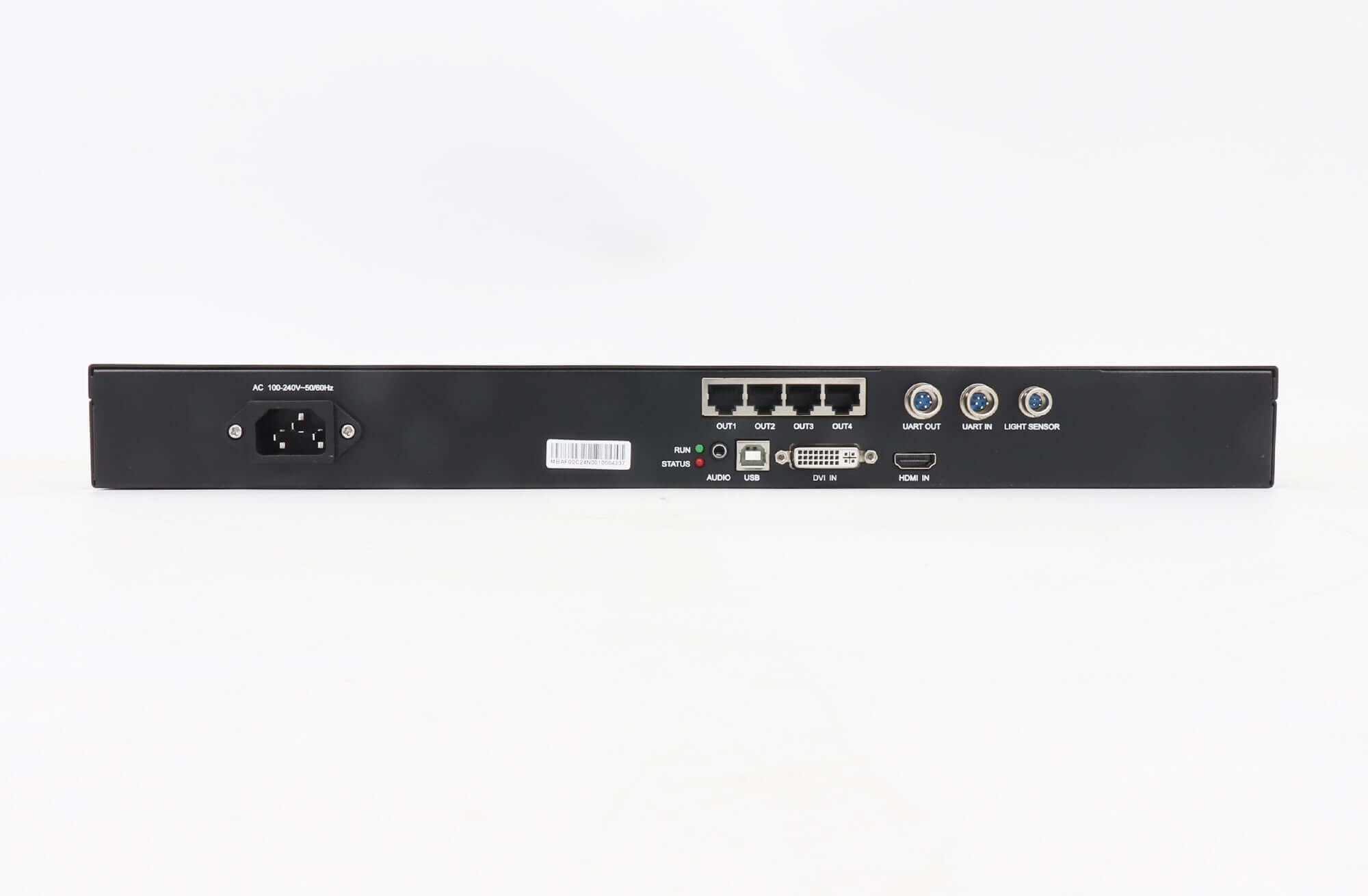

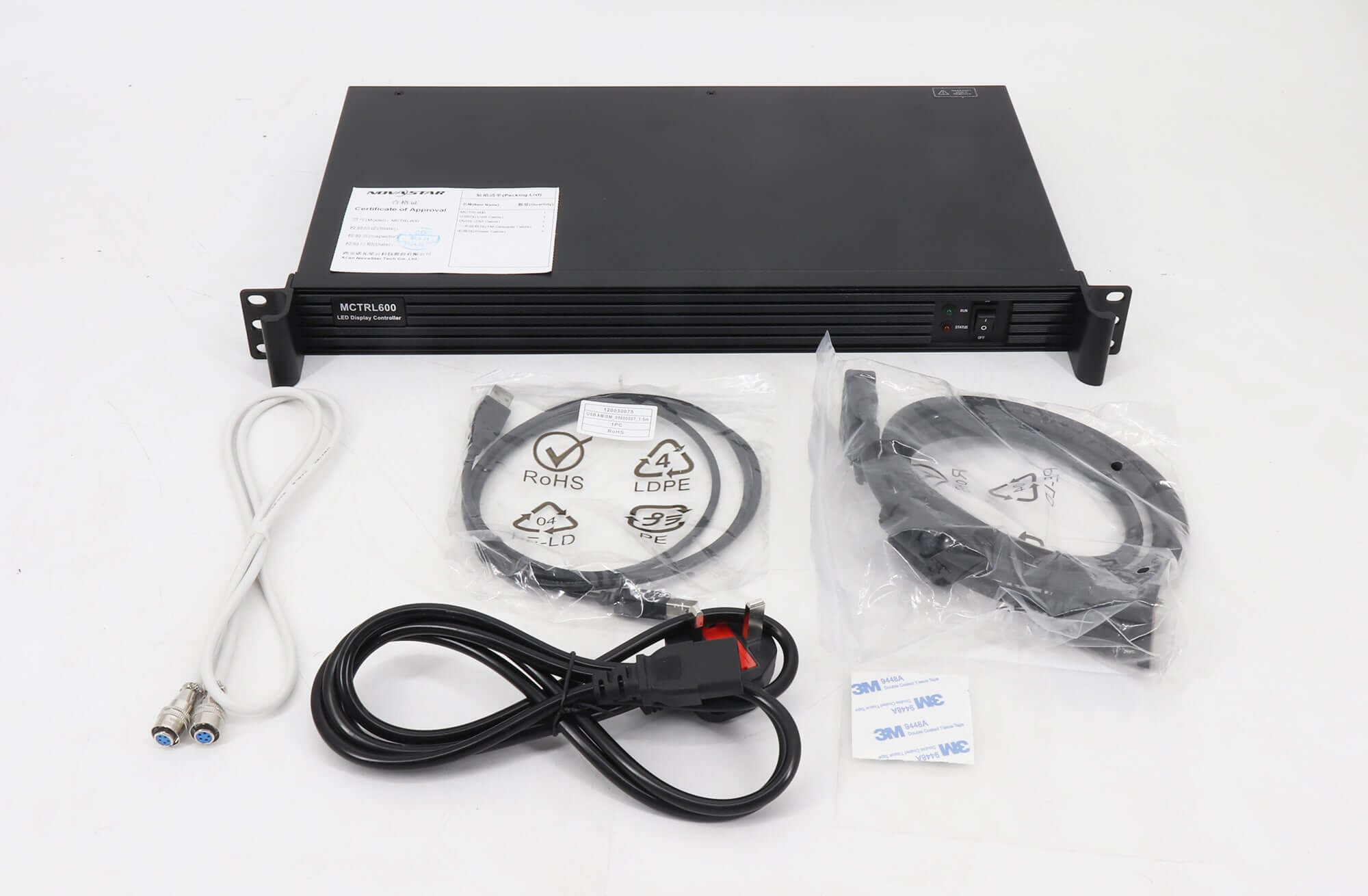

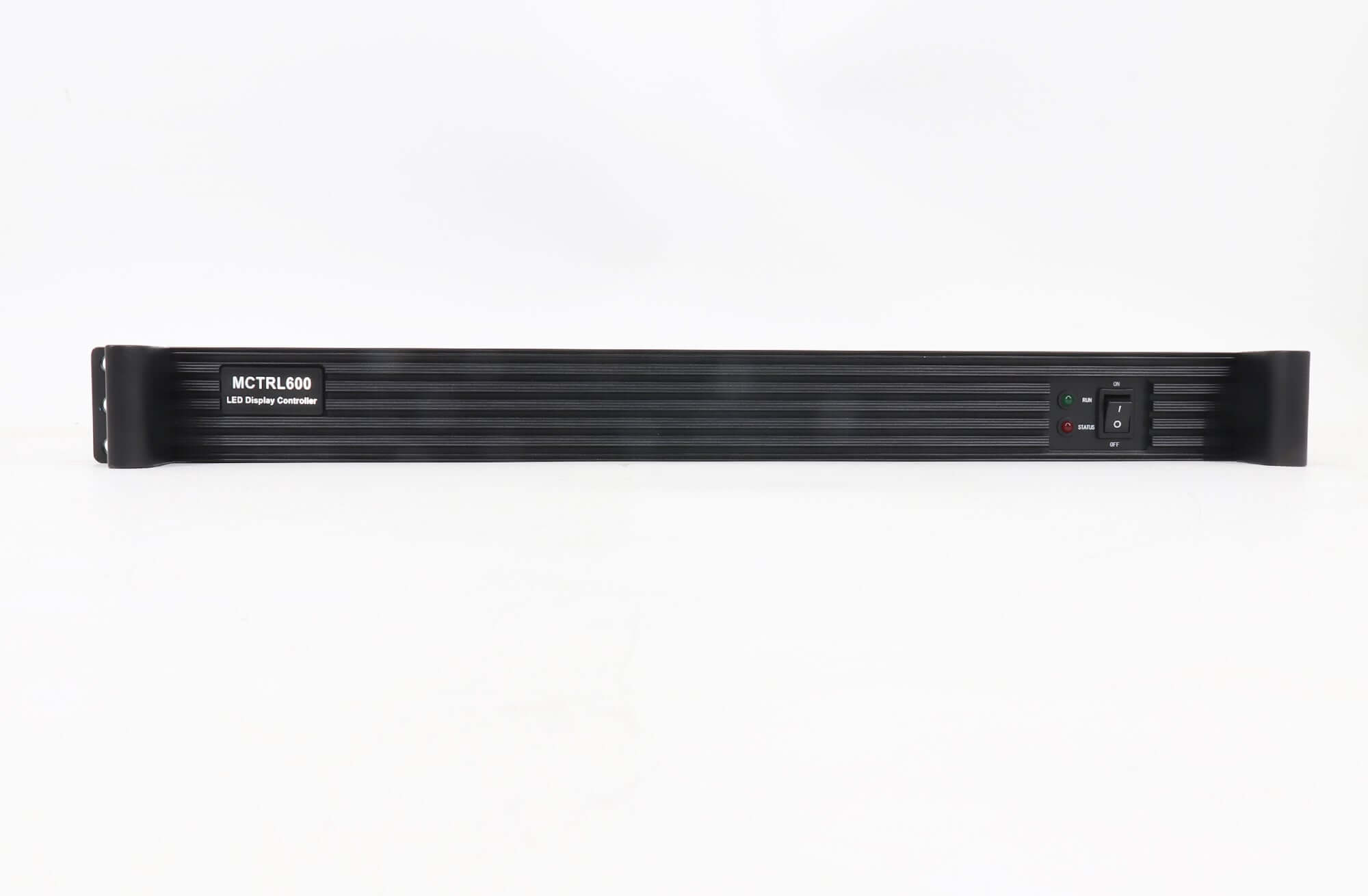

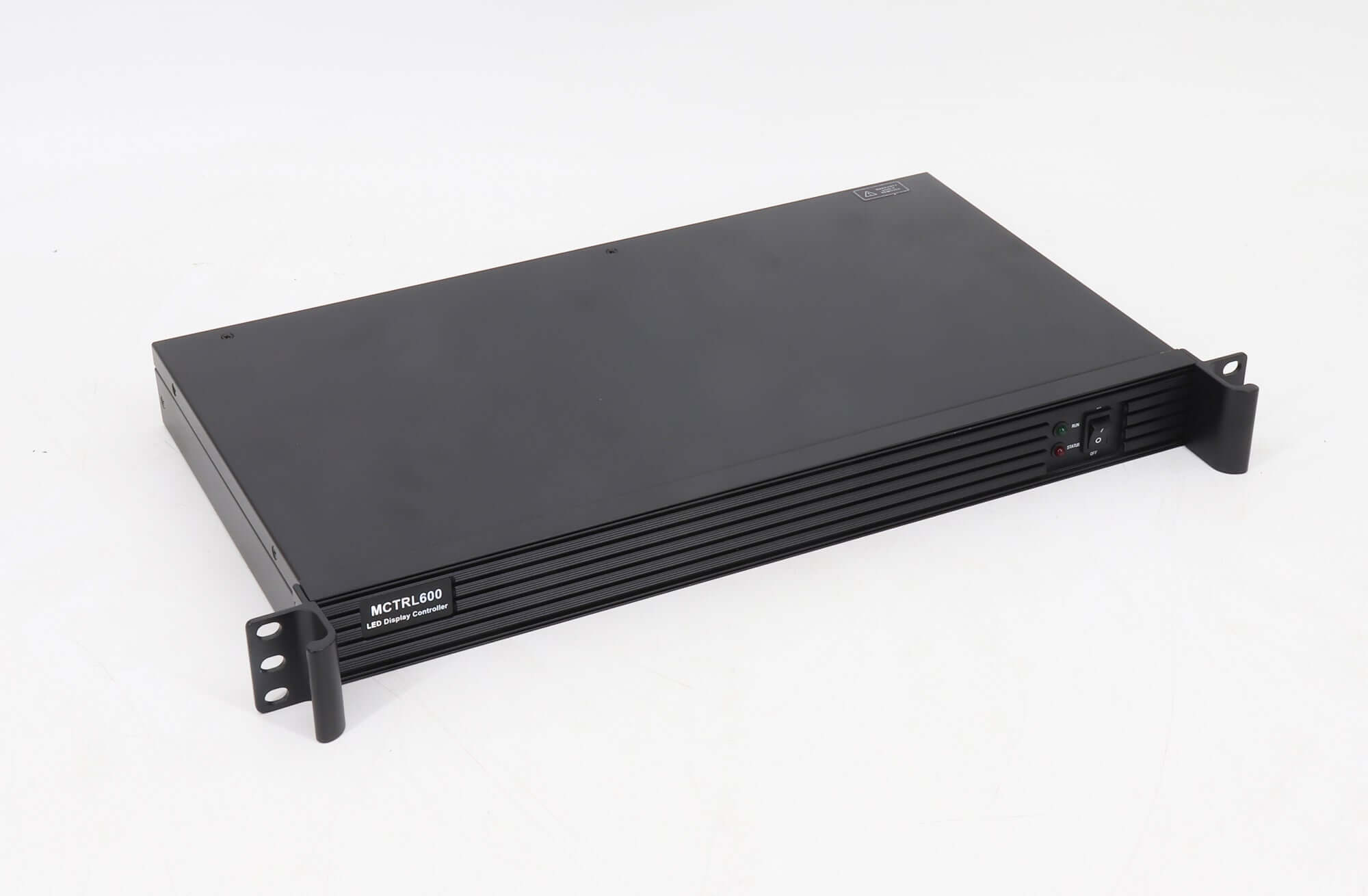

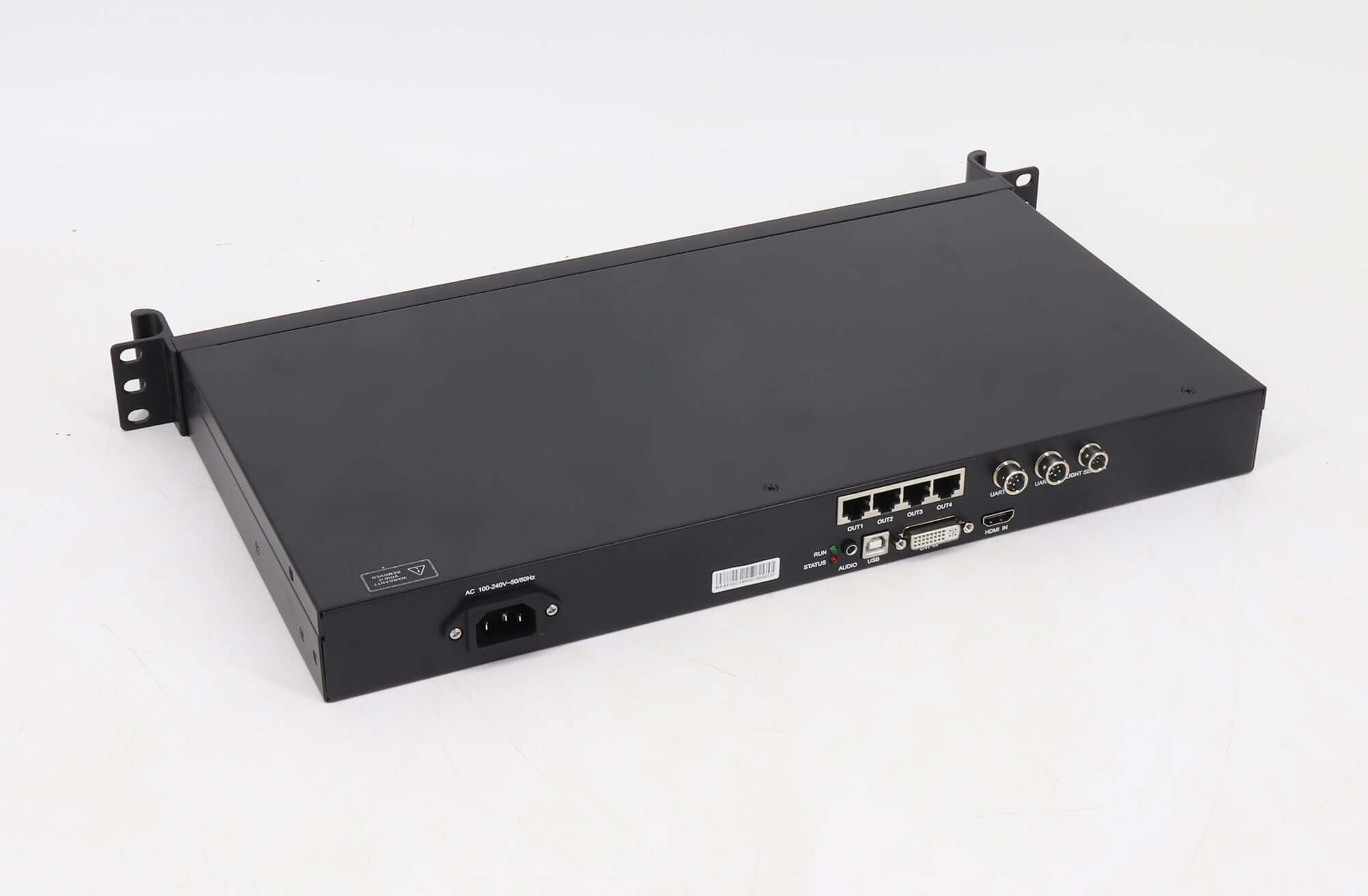

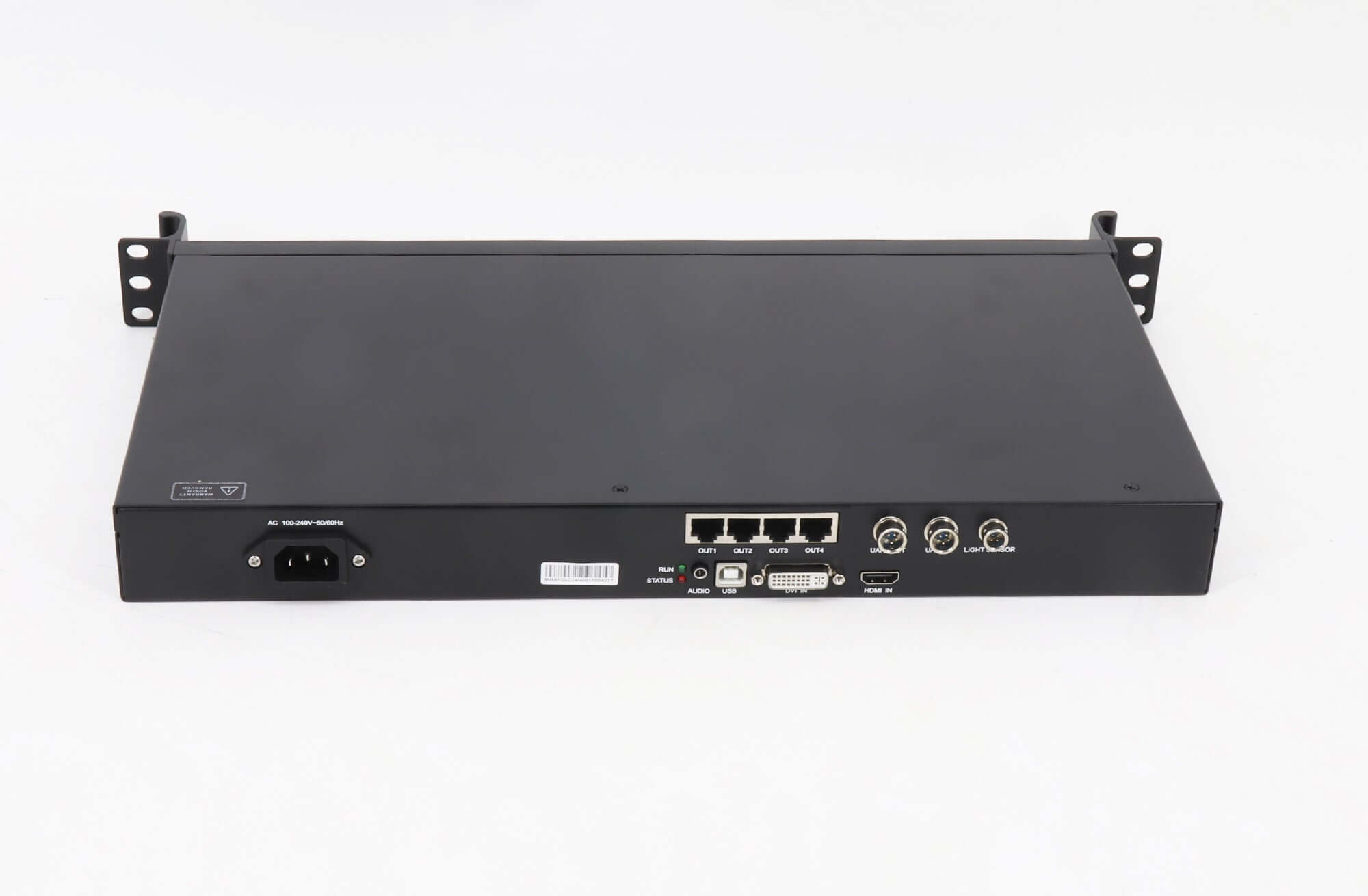

Product images
Specification download
Download the MCTRL600 V2.2.1 specification PDF
MCTRL600 FAQ
Does the MCTRL600 accept HDMI and DVI?
Yes. It has one HDMI 1.3 input and one DVI input, with HDMI audio and an external audio input also listed.
What resolution can I use with 10-bit or 12-bit video?
The manufacturer specifies up to 1440 × 900 at 60 Hz for 10-bit/12-bit input, compared with 1920 × 1200 at 60 Hz for 8-bit input.
Can I use 2560 × 960 on an MCTRL600?
That resolution appears in the original listing without a refresh rate. Confirm the exact timing and hardware/program support before using it; do not assume the 1920 × 1200 at 60 Hz rating applies to it.
How many Ethernet outputs does the MCTRL600 have?
It has four Gigabit Ethernet outputs for the LED receiving-card system. Plan port loading together with the controller’s overall input-resolution limit.
Can multiple MCTRL600 controllers be cascaded?
Yes. The controller provides UART IN and OUT for cascading, with a Type-B USB connection for computer control. Follow the matching specification and control-system instructions.
| Weight | 7.26 kg |
|---|
