NovaStar MX6000 Pro Modular LED Display Controller
NovaStar MX6000 Pro modular COEX LED controller with configurable input and fiber output cards.
Price basis: host chassis, MX_4×HDMI 2.0 input card and MX_4x10G_Fiber output card. Contact sales for specific pricing or other configurations.
NovaStar MX6000 Pro Modular LED Display Controller
The MX6000 Pro is a COEX-series controller with configurable video input and fiber output cards. Its modular design lets the input formats and output transmission system be selected for the LED display project. The available card slots do not mean that all cards are included.
Listed-price configuration: the original offer is based on the host chassis, an MX_4×HDMI 2.0 input card and an MX_4x10G_Fiber output card. Contact EagerLED for specific pricing or a different card combination.
Configuration Parameters
| Item | Specification / configuration |
|---|---|
| Input card slots | 8 |
| 4K input card types | 4 × HDMI 2.0; 4 × DP 1.2; 4 × 12G-SDI |
| 8K input card types | 2 × HDMI 2.1; 2 × DP 1.4 |
| Video-over-IP card listed in V1.1.1 | 1 × SMPTE ST 2110 (25G) |
| Video input bit depth | 12-bit, 10-bit or 8-bit |
| Output card slots | 8 |
| 5G output path | CX_1x40G_Fiber with CVT8-5G; documented capacity up to 2,600,000 pixels per Ethernet cable |
| 1G output path | MX_4x10G_Fiber with CVT10; documented capacity up to 650,000 pixels per Ethernet cable |
| Frame rate | Up to 360 Hz; maximum depends on screen hardware configuration |
| Monitoring | Real-time input preview and LED display status monitoring |
Input-card document difference: the earlier page mentioned seven input-card types including NDI. The attached V1.1.1 specification lists six types and does not list an NDI card. Treat NDI availability as unconfirmed for this offer until the exact card and supporting document are identified.
Select the Fiber Output System
The two listed output cards use different downstream converter paths. Choose the output card, converter and receiving-card arrangement together. The per-cable capacity figures are reference limits, not a promise that every pixel format, frame rate and screen configuration achieves the same load.
For a configuration check, provide the screen pixel dimensions, cabinet layout, receiving-card model, input sources and required frame rate. This lets the quote identify the actual installed input/output cards and any separate converters.
Control and Configuration
The supplied manual describes VMP-based device management, screen topology, layer configuration, color processing, presets and monitoring. Use the manual for the selected hardware revision when planning a new system or replacing an existing controller.

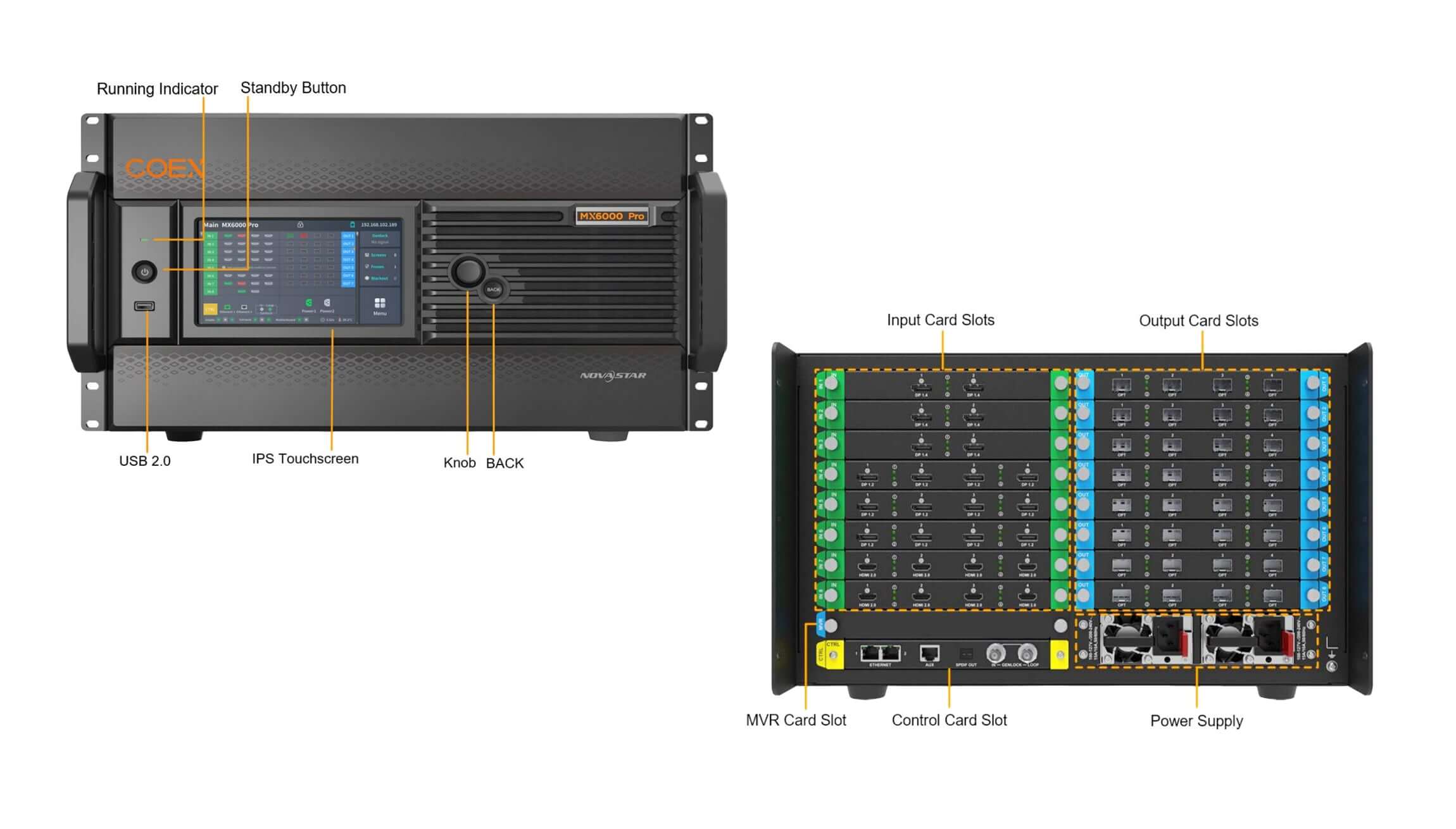

Product Image
Downloads
Download MX6000 Pro specifications — V1.1.1 (PDF)
Download MX6000 Pro user manual — V1.1.1 (PDF)
Frequently Asked Questions
Which cards are included in the listed MX6000 Pro configuration?
The original price basis is the host chassis, MX_4×HDMI 2.0 input card and MX_4x10G_Fiber output card. Ask for a configuration-specific quotation if other cards or converters are needed.
Does MX6000 Pro support both 1G and 5G transmission systems?
The listed options are MX_4x10G_Fiber with CVT10 for a 1G path, or CX_1x40G_Fiber with CVT8-5G for a 5G path. The required cards and downstream equipment must be selected together.
Does eight input slots mean all input cards are supplied?
No. Slot capacity and the purchased card configuration are different. Confirm the exact cards and quantities on the quotation.
Is 360 Hz available with every LED screen?
No. The original specification makes the maximum frame rate dependent on the screen hardware configuration. Provide the receiving-card and driver-IC details when checking a high-frame-rate system.
Is an NDI input card confirmed by the attached specification?
No. NDI appeared in the earlier page text, but it is not among the six input-card types listed in V1.1.1. Confirm a supported card and document before ordering an NDI-based configuration.
| Weight | 46 kg |
|---|
