NovaStar TU20 Pro LED Playback Control Processor
Price range: $ 939.00 through $ 1,027.00
NovaStar TU20 Pro is an indoor LED playback control processor with Android 11, 2 HDMI inputs, 3 USB ports and 6 Gigabit Ethernet outputs.
- Up to 3.9 million pixels with scaling; 2.88 million pixel-to-pixel.
- Wired presentation, local playback and wireless screen sharing.
- Choose the processor or projector bundle below; confirm accessory compatibility before ordering.
NovaStar TU20 Pro: indoor LED playback and control
The NovaStar TU20 Pro combines an Android media player and LED sending functions in one processor for indoor displays. It supports HDMI sources, USB media and wireless screen sharing, making it a practical option for meeting rooms, training spaces and showrooms.
Capacity at a glance: up to 3.9 million pixels with scaling, or 2.88 million pixels for pixel-to-pixel display. Choose the operating mode before sizing your LED wall; these are different limits.
TU20 Pro specifications
| HDMI inputs | 2 × HDMI 1.3 |
|---|---|
| USB ports | 3 × USB 2.0 for media and peripherals |
| LED outputs | 6 × Gigabit Ethernet |
| Scaling capacity | Up to 3,900,000 pixels |
| Pixel-to-pixel capacity | Up to 2,880,000 pixels |
| Maximum output dimensions | 4096 pixels wide or 1920 pixels high, subject to the total pixel limit |
| Audio outputs | SPDIF digital audio and 3.5 mm audio |
| System | Android 11; 4 GB RAM; 32 GB storage |
| Device control | Gigabit Ethernet control port, Bluetooth 5.1 and remote control |
Specifications reference: NovaStar TU20 Pro Specifications V1.5.3. Firmware and accessory requirements should be checked for your installation. The original downloadable specification is retained below for reference.
Choose how to present your content
- HDMI presentation: connect a wired source for a meeting or demonstration.
- Local media playback: use USB content when a presentation computer is not needed.
- Wireless sharing: mirror content from supported Windows, macOS, iOS and Android devices. Confirm the device, network and optional dongle requirements before ordering.
- Everyday control: use the remote or ViPlex Handy for playback control. Check specific camera, audio and other peripheral compatibility before building a room system.
Check your LED wall before ordering
- Calculate the wall resolution. Multiply total width in pixels by total height in pixels. Physical dimensions alone do not determine controller capacity.
- Select scaling or pixel-to-pixel display. A 2560 × 1440 wall contains 3,686,400 pixels: it is below the scaling limit but above the pixel-to-pixel limit. A 1920 × 1080 wall contains 2,073,600 pixels, below both limits. These are arithmetic examples, not approval of a complete cabinet or port layout.
- Check the signal chain. Provide the receiving-card model, cabinet resolution, port allocation and source format. Do not assume that the maximum width and maximum height can be used together.
- Confirm the package. The selector offers the processor alone or a bundle labelled “with PTB1304 Screen Projector.” Confirm the exact dongle model, connector and included accessories with EagerLED before choosing the bundle.
Send EagerLED your screen resolution and receiving-card details for configuration and package confirmation. You can also browse our NovaStar controllers or review how to order.
Frequently asked questions
Is TU20 Pro the same as TU20PRO?
TU20PRO is a common search spelling for TU20 Pro. Confirm that the product label and quotation specify NovaStar TU20 Pro, particularly when comparing listings with different accessory bundles.
Can the TU20 Pro drive a 4096 × 1920 LED wall?
No. That resolution contains 7,864,320 pixels, exceeding the processor’s total load limit. The individual width and height limits do not describe a simultaneously supported full-size canvas.
Does 4K video decoding mean a full 4K LED wall output?
No. Media decoding, HDMI input compatibility and the LED output canvas are separate specifications. Size the wall using its output pixel capacity and confirm the source format separately.
Is the wireless projector included with every order?
Do not assume it is. Select the required model option and confirm the bundle contents before payment. Optional functions and accessories may require a separate purchase.

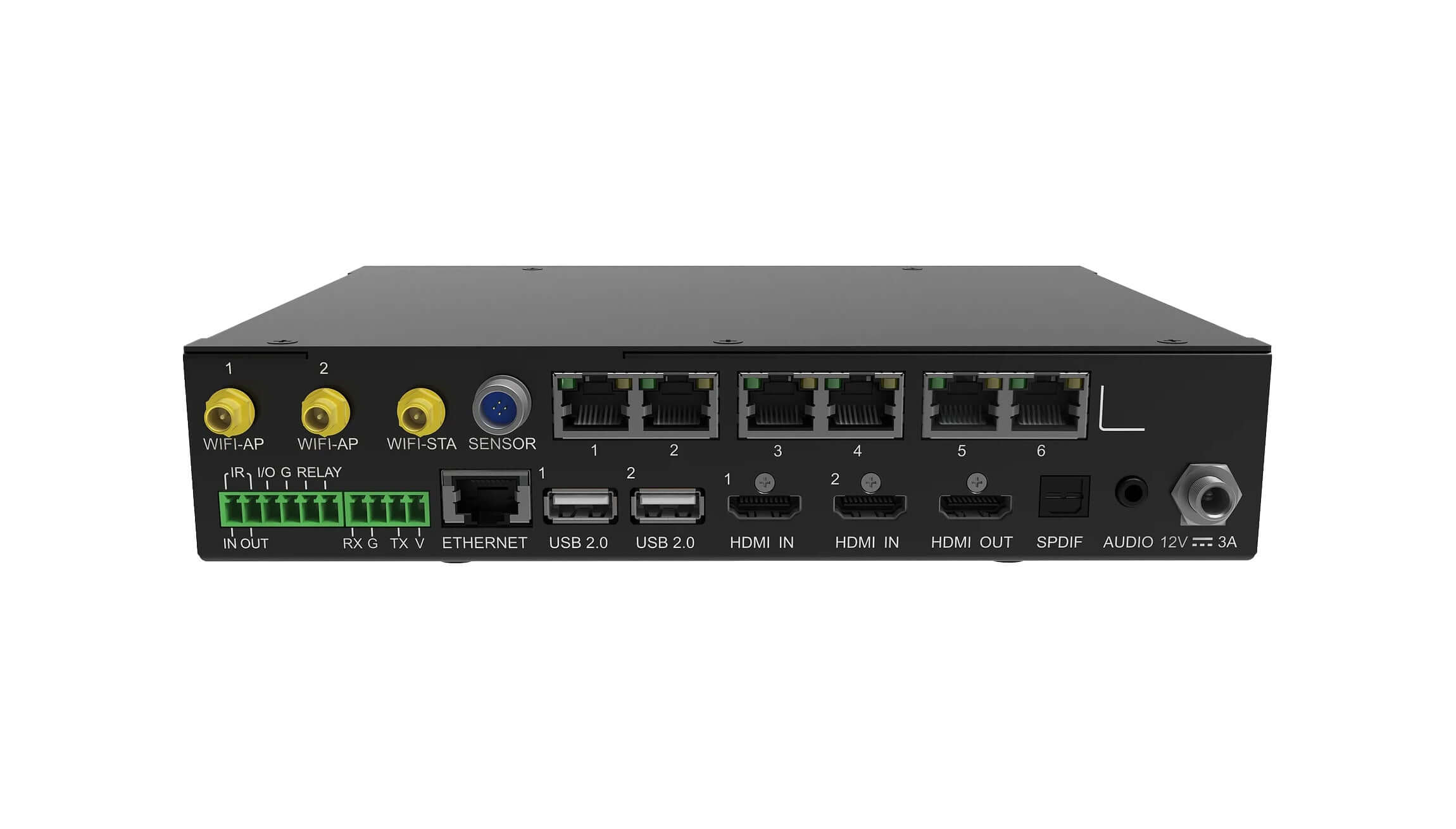

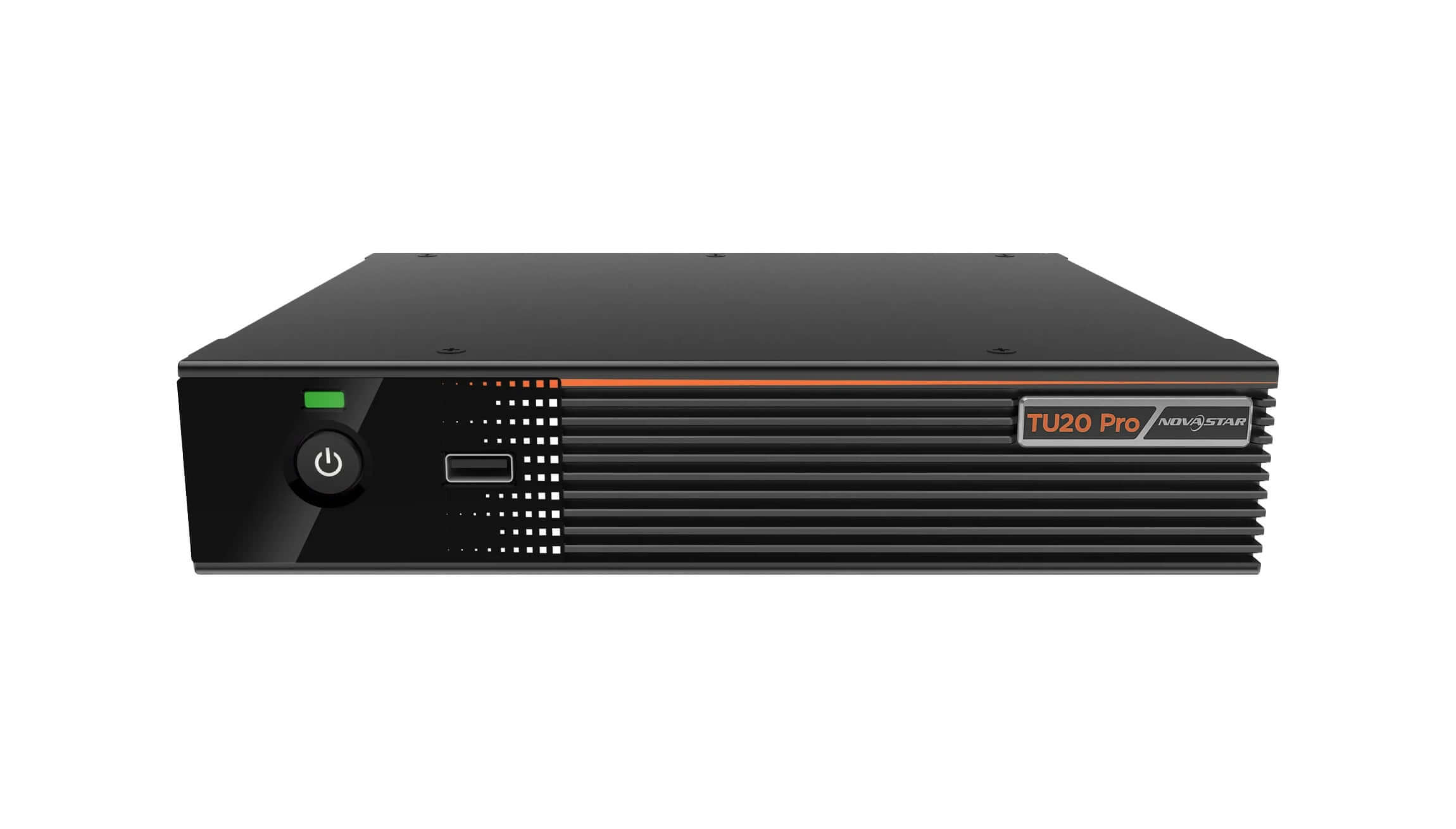

Product pictures
Download specification
TU20 Pro LED Playback Control Processor Specification — V1.0.1
Product information updated by EagerLED on . Confirm firmware-specific features and package contents for your order.
