NovaStar VX600 all-in-one LED video controller
The NovaStar VX600 combines video processing and LED display control in one unit. Its six Gigabit Ethernet outputs load up to 3.9 million pixels. Video Controller, Fiber Converter and Bypass modes allow it to serve different roles in an LED signal chain; select the mode to suit the source, screen layout and required processing.

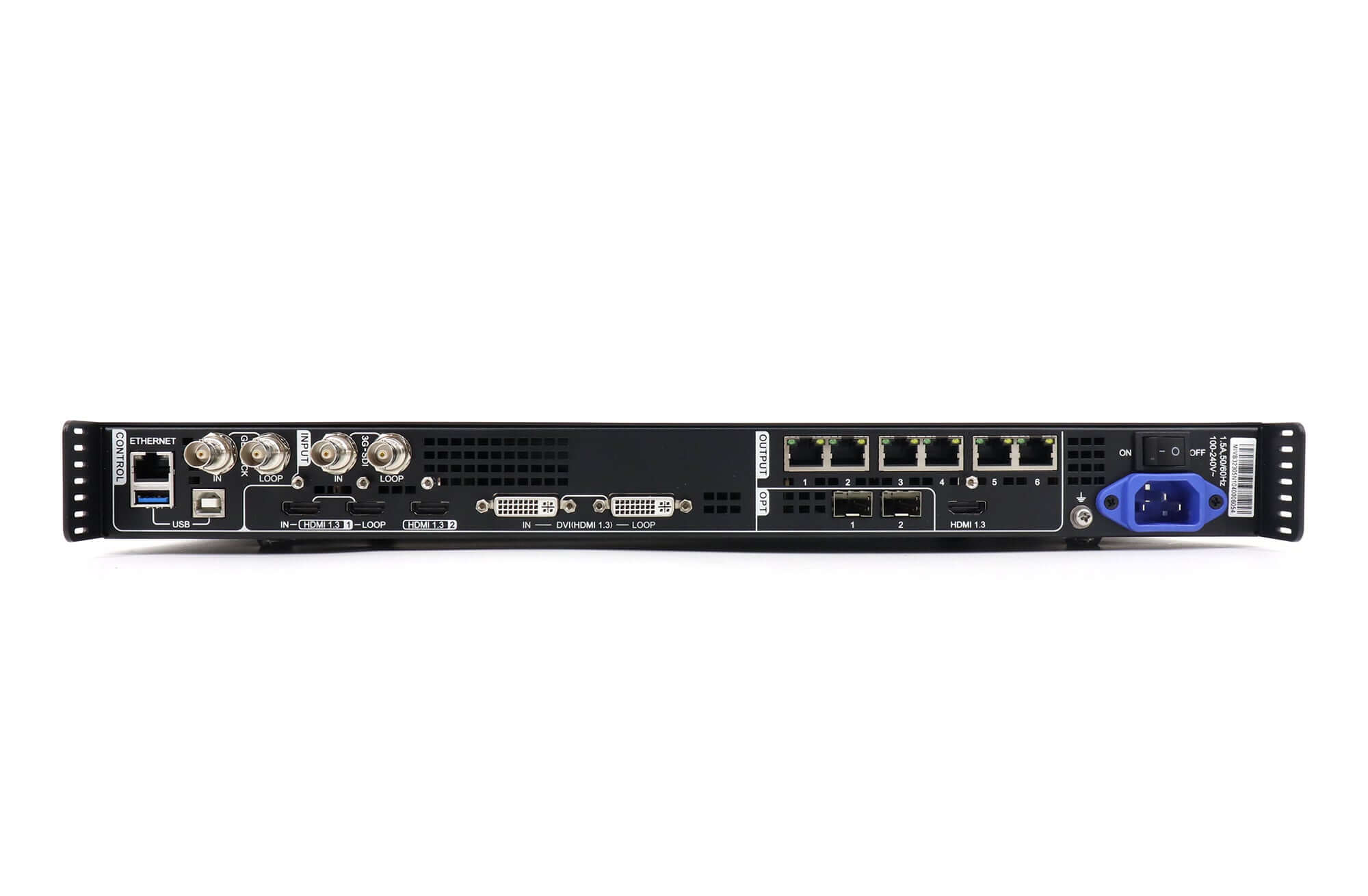

VX600 loading capacity and connections
| Parameter | Specification |
|---|---|
| Total LED loading | Up to 3,900,000 pixels |
| Maximum screen width / height | 10,240 pixels wide or 8192 pixels high, within the total loading limit |
| LED outputs | 6 Gigabit Ethernet ports |
| Video inputs | 2 HDMI 1.3 inputs (one with loop), 1 DVI input with loop, 1 3G-SDI input with loop, and 1 10G optical port (OPT1) |
| Optical transmission | OPT1 copies the six Ethernet outputs when used as an output; OPT2 copies or backs up those outputs |
| OPT1 role | Self-adapts as video input or sending-card output according to the connected device |
| Monitoring / video output | 1 HDMI 1.3 output |
| Working modes | Video Controller, Fiber Converter and Bypass |
| Layers / presets | 3 layers; up to 10 user-defined presets |
| Control software | NovaLCT and V-Can |
| Audio | Audio with HDMI input; output through a multifunction card; volume adjustment supported |
The maximum width and maximum height are separate limits. They do not describe a supported 10,240 × 8192 screen. Count the actual LED pixels and check the output-port distribution and receiving-card configuration.
Scaling, low latency and system setup
VX600 supports output scaling, layer management, presets and pixel-level brightness and chroma calibration. NovaLCT and V-Can provide screen configuration, Ethernet-port backup settings and firmware management. Keep a copy of the working cabinet configuration before changing the controller or receiving-card settings.
The linked V1.1.0 specification describes latency down to 20 lines when both low-latency mode and Bypass mode are enabled. This is a conditional specification, not a promise for every scaling or layer arrangement. Confirm the complete source-to-screen setup when latency is a project requirement.
Download the original VX600 specification (document V1.1.0).

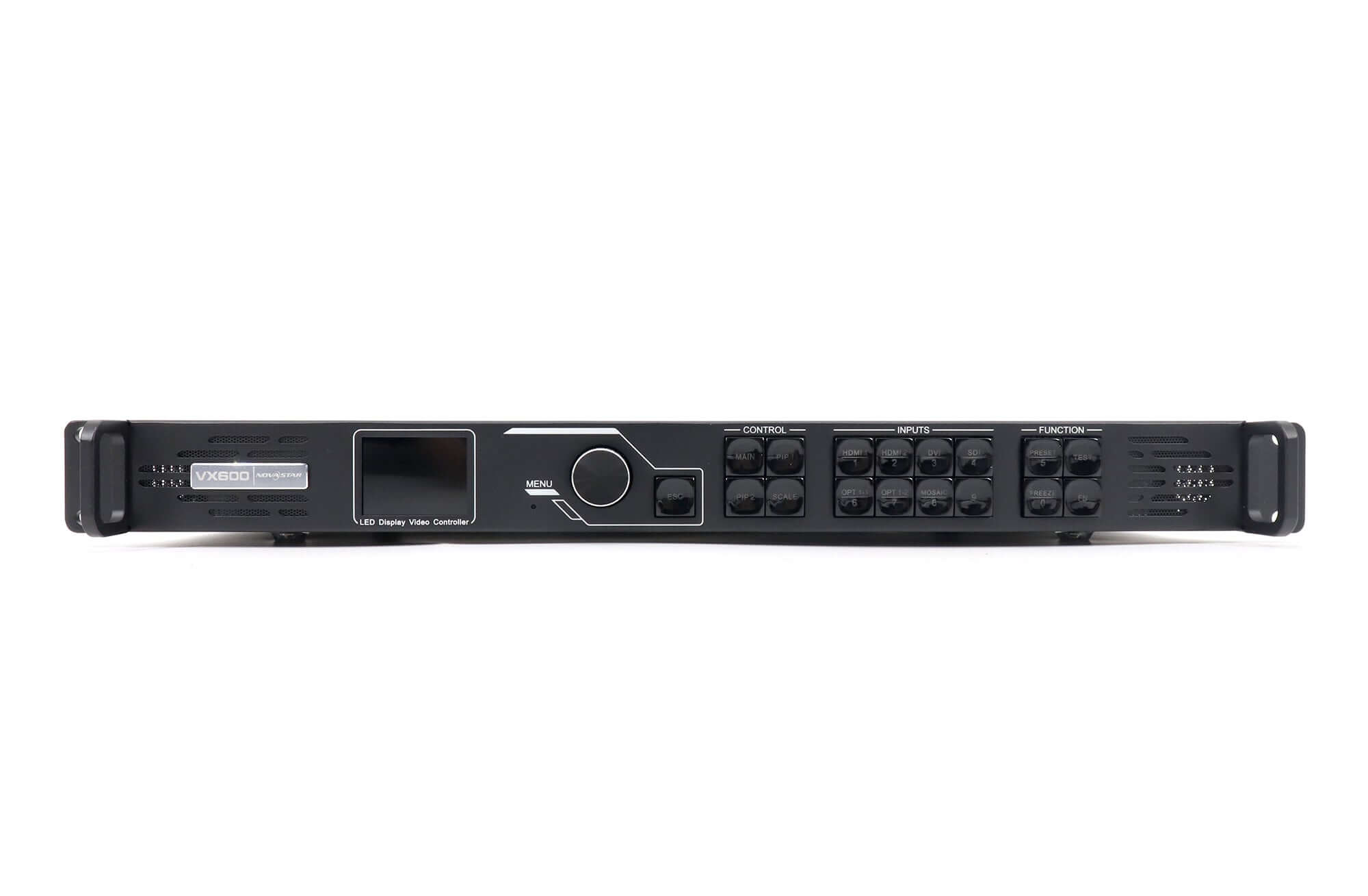

VX600 front panel and controls

No. | Area | Function |
| 1 | LCD screen | Display the device status, menus, submenus and messages. |
| 2 | Knob | 1):Rotate the knob to select a menu item or adjust the parameter value. 2):Press the knob to confirm the setting or operation. |
| 3 | ESC button | Exit the current menu or cancel an operation. |
| 4 | Control area | 1):Open or close a layer (main layer and PIP layers), and show the layer status. Status LEDs: − On (blue): The layer is opened. − Flashing (blue): The layer is being edited. − On (white): The layer is closed. 2):SCALE: A shortcut button for the full screen function. Press the button to make the layer of the lowest priority fill the entire screen. Status LEDs: − On (blue): Full screen scaling is turned on. − On (white): Full screen scaling is turned off. |
| 5 | Input source buttons | Show the input source status and switch the layer input source. Status LEDs: -On (blue): An input source is accessed. -Flashing (blue): The input source is not accessed but used by the layer. -On (white): The input source is not accessed or the input source is abnormal. |
| 6 | Shortcut function buttons | 1):PRESET: Access the preset settings menu. 2):TEST: Access the test pattern menu. 3):Freeze: Freeze the output image. 4):FN: A customizable button |

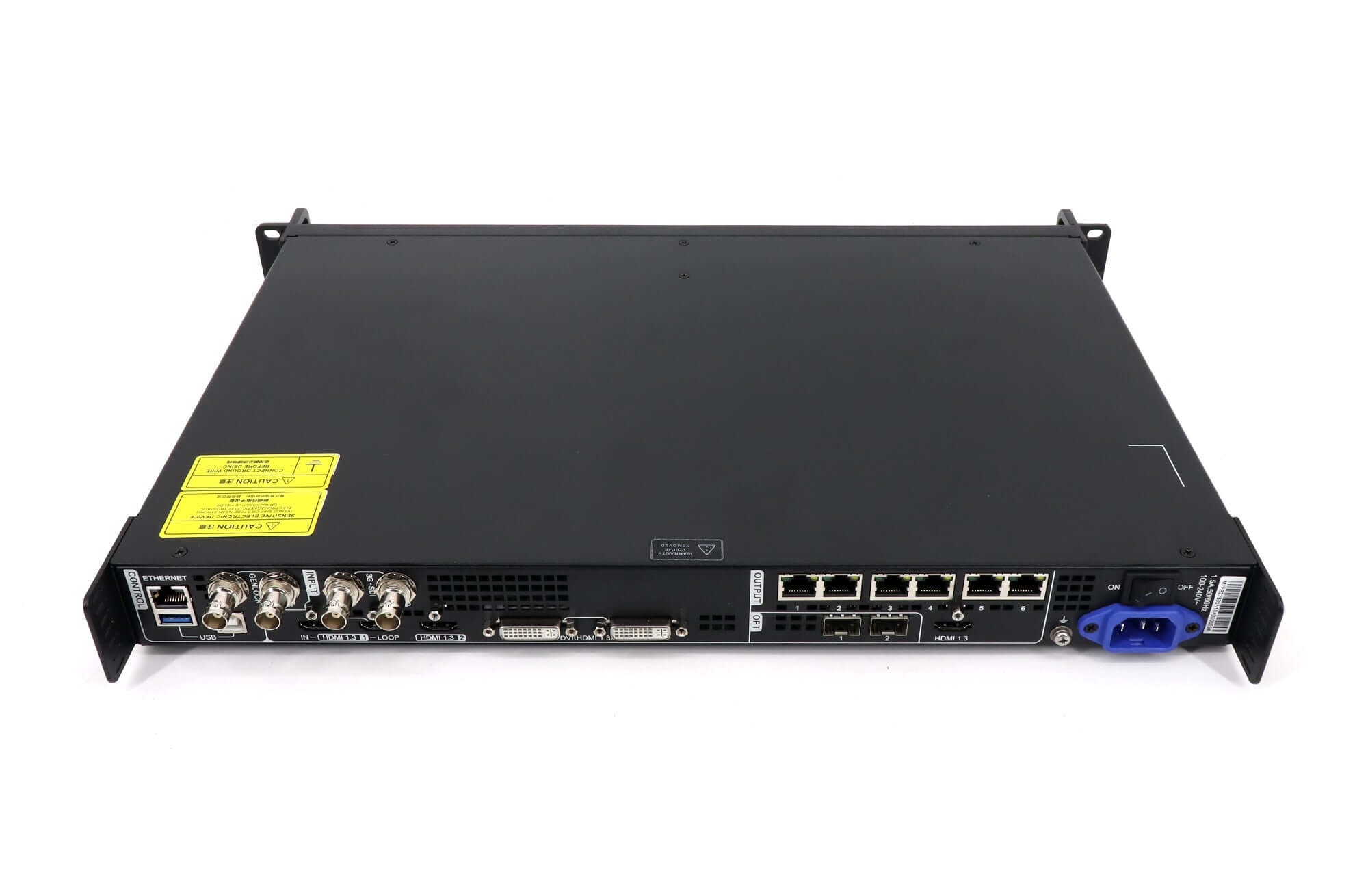

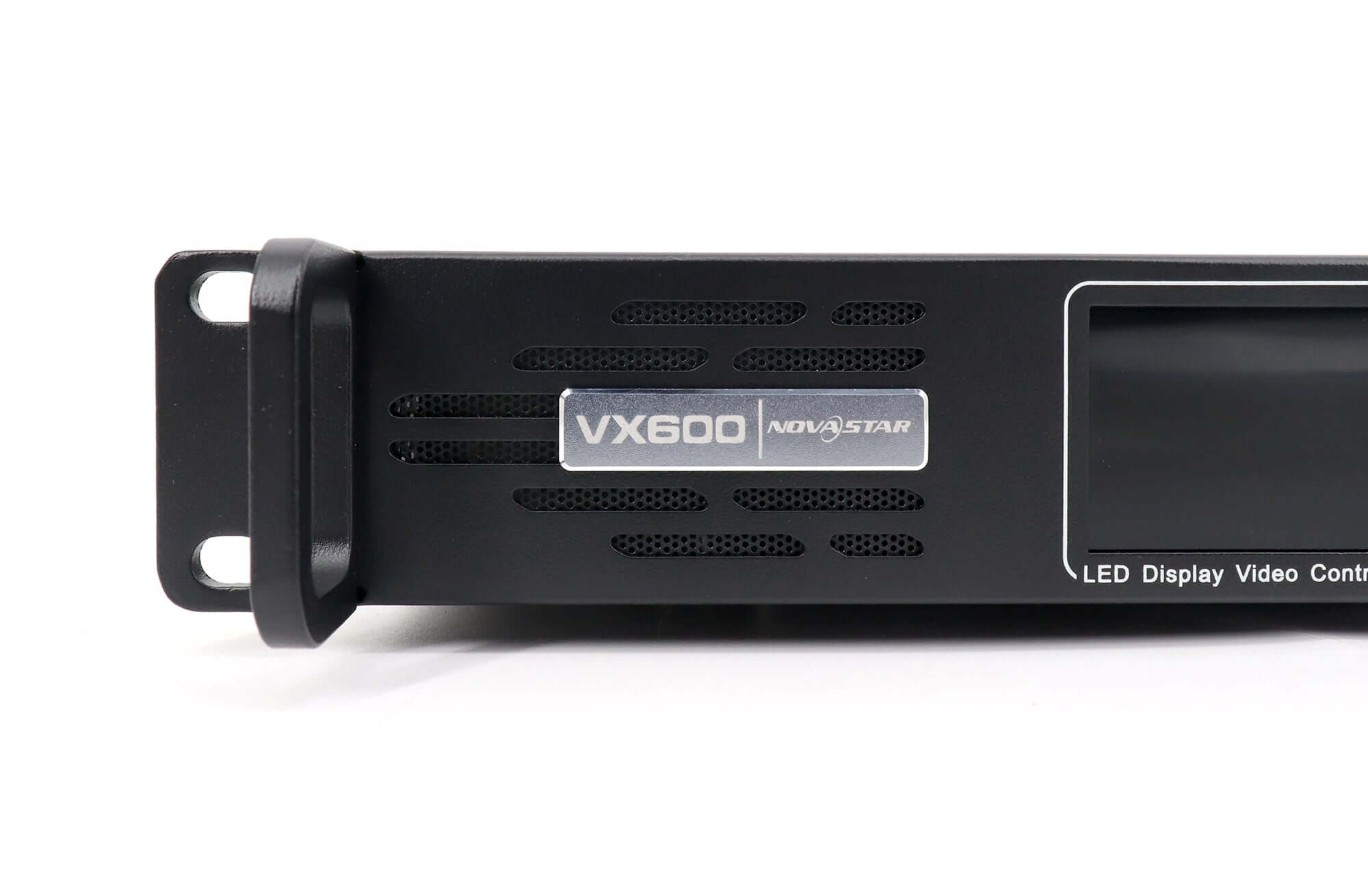

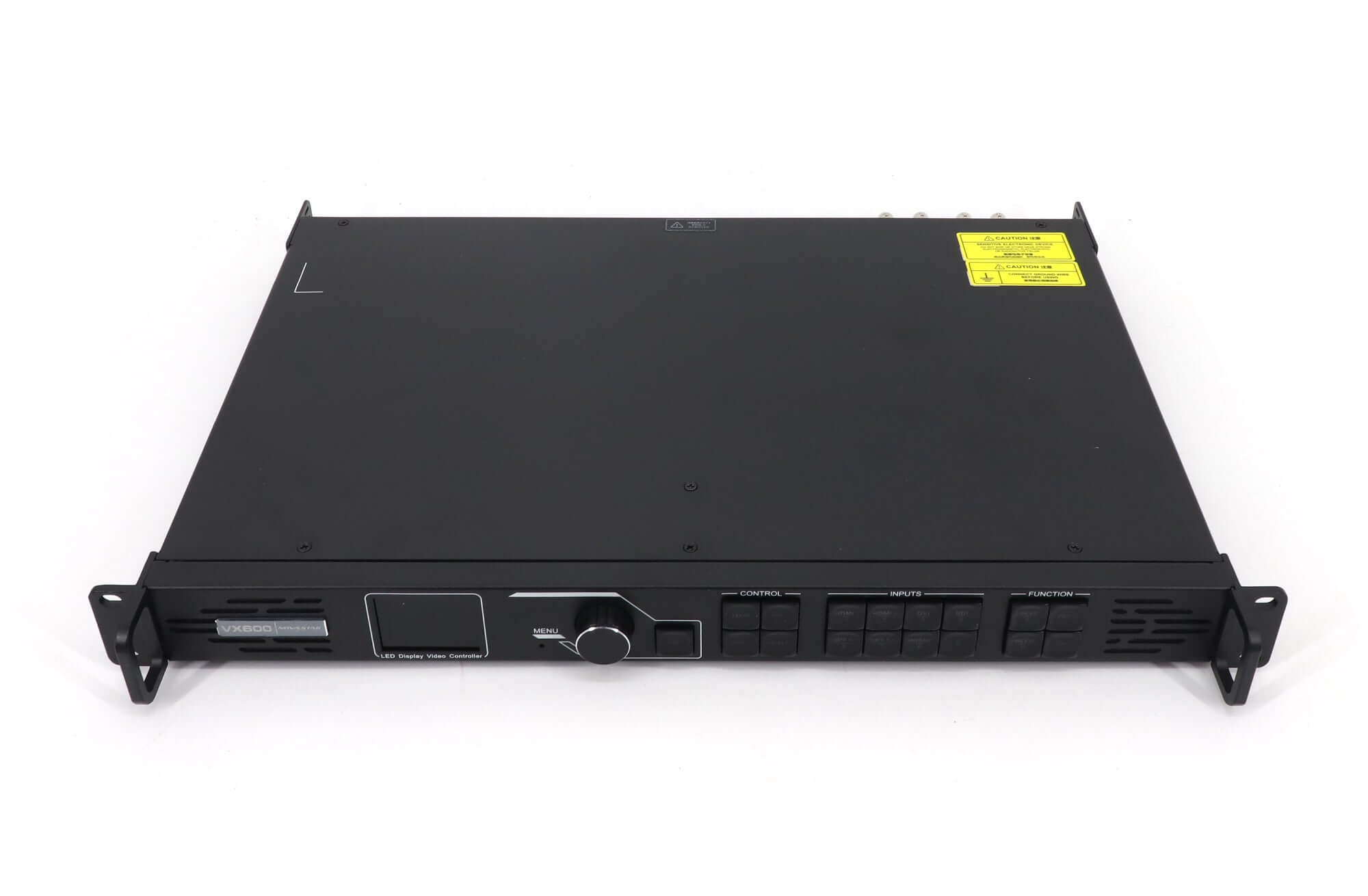

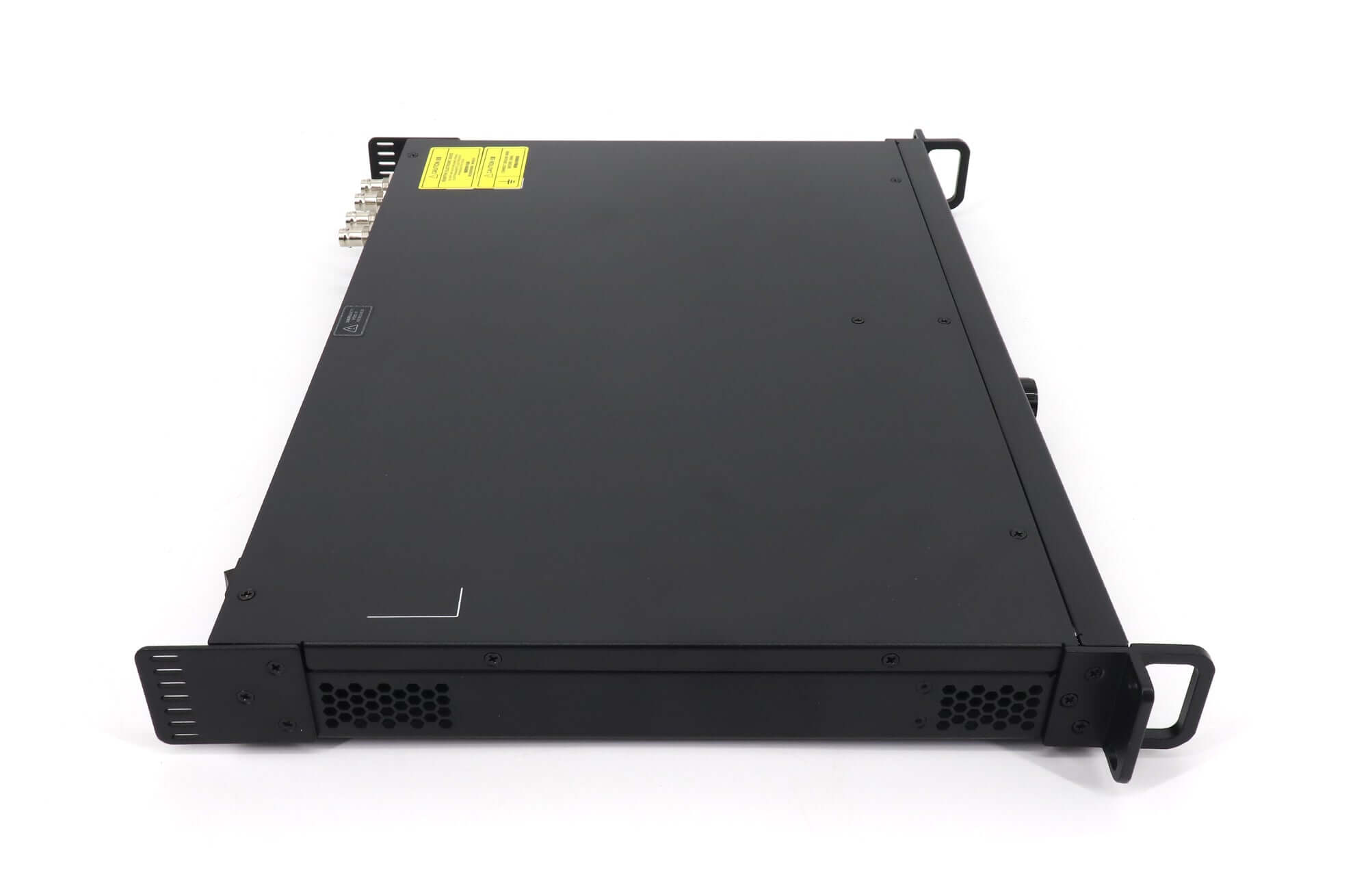

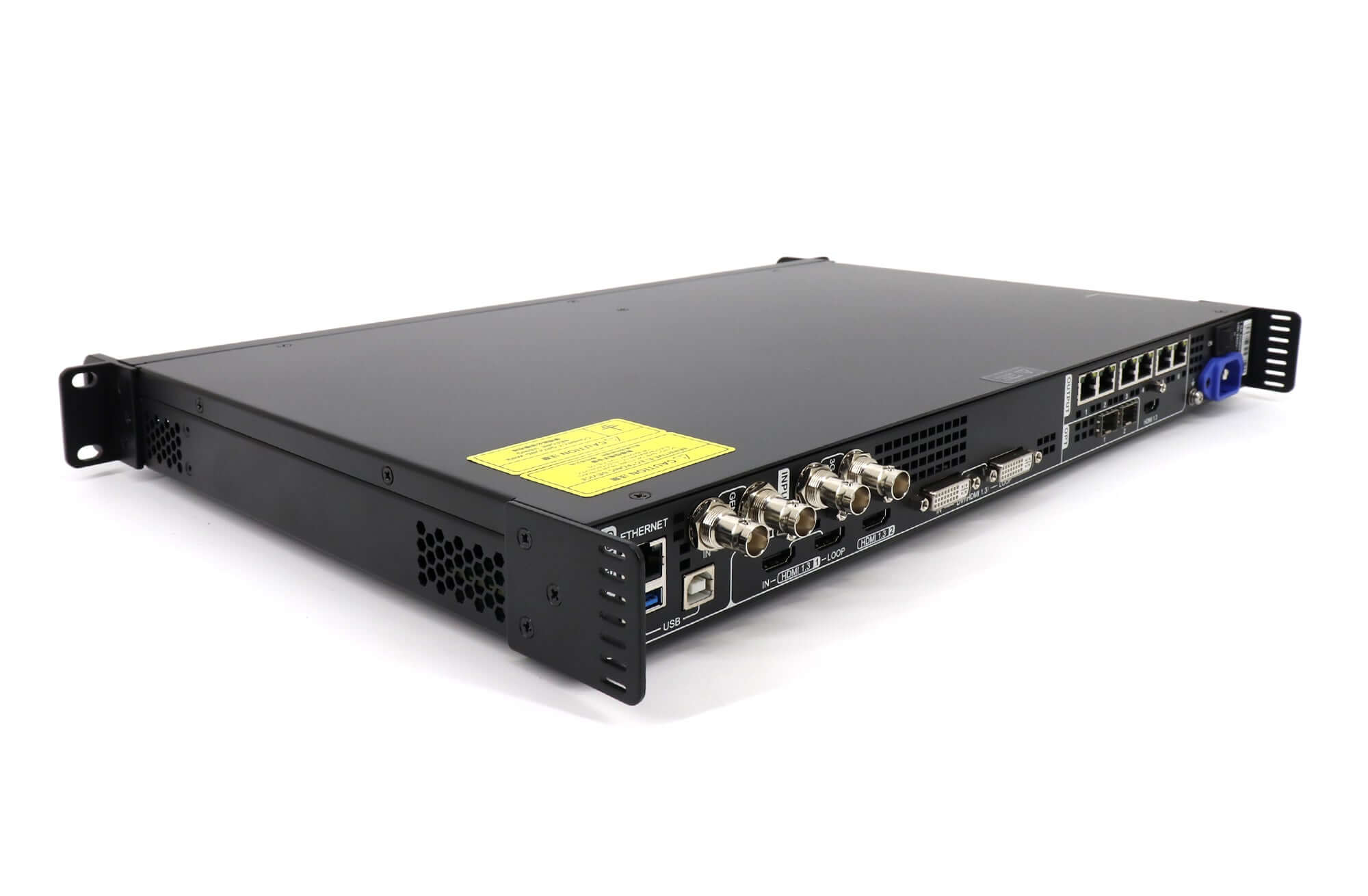

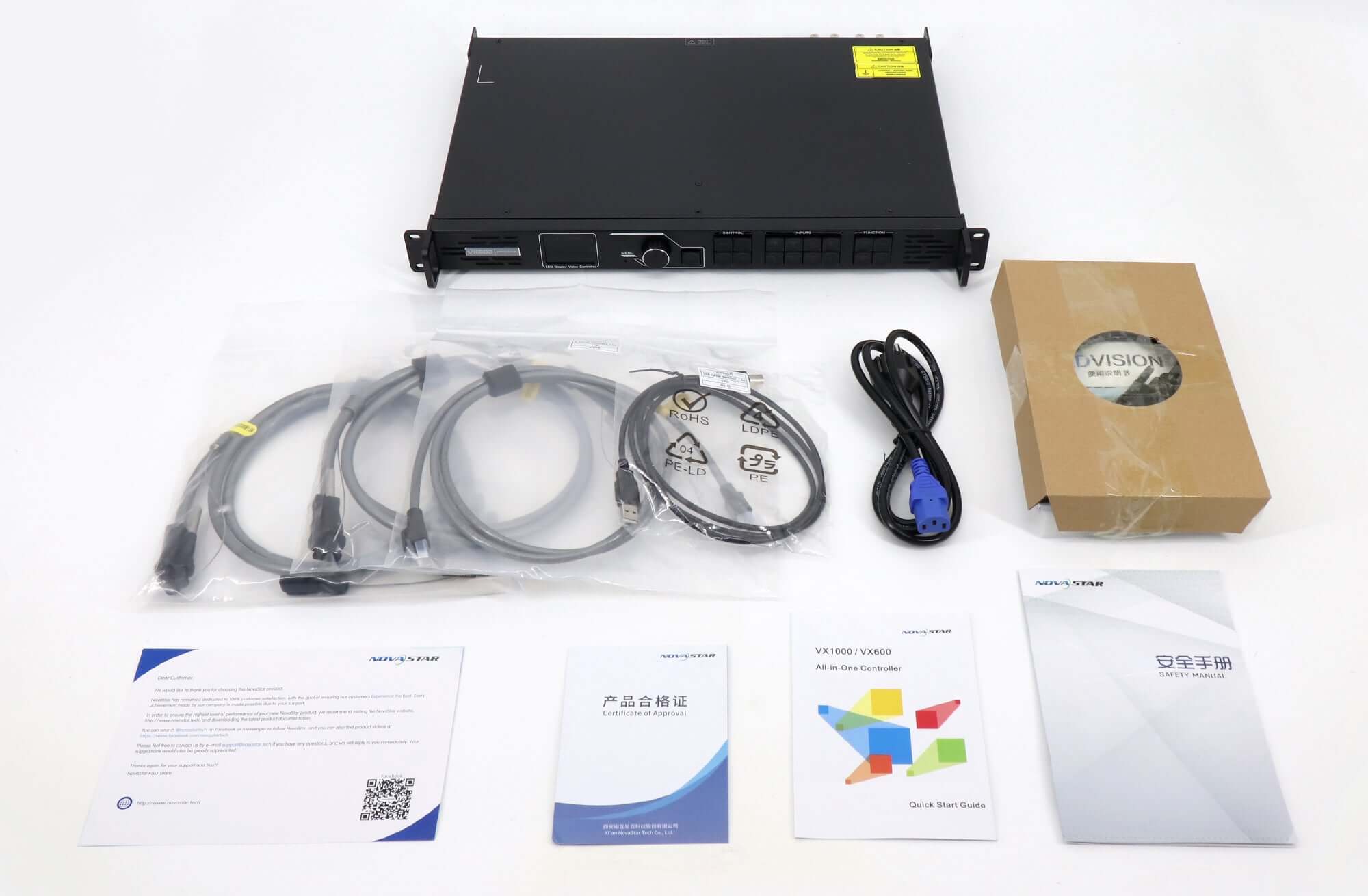

VX600 product views


Download User-Manual:
Novastar VX600 All-in-one LED Screen Video Controller User-Manual
VX600 frequently asked questions
How many LED pixels can one VX600 control?
Up to 3.9 million pixels through six Gigabit Ethernet outputs. The maximum width of 10,240 pixels and maximum height of 8192 pixels still need to stay within that total and the supported port mapping.
Do the two optical outputs increase the pixel capacity?
No additional pixel capacity is stated for those copies. OPT1 can copy the six Ethernet outputs, while OPT2 copies or backs them up. Design the optical link and redundancy arrangement around the documented 3.9-million-pixel loading limit.
When is the 20-line latency specification available?
The linked specification requires low-latency mode and Bypass mode to be enabled together. Check whether your project also needs scaling or other processing before choosing the operating mode.
Which software can configure VX600?
NovaLCT and V-Can are listed for configuration and control. Match software and firmware versions to the device and save the existing screen configuration before making changes.
How can I get a VX600 price for my project?
Send EagerLED the quantity, LED screen pixel dimensions, receiving-card model, video sources and any optical-transmission or backup requirements. Include the delivery destination so the quotation can cover the required configuration.
