P4 Outdoor 320x320mm SMD1921 Front Service LED Panel Module

P4 Outdoor 320x320mm SMD1921 Front Service LED Panel Module

Name: P4 Outdoor 320x320mm SMD1921 Front Service LED Panel Module
Brand: Eager-LED
SKU: P4-O10S-1921-320x320F
Price: 59.5 USD
Availability: PreOrder

$ 59.50

SKU: P4-O10S-1921-320x320F Categories: Eager-LED, LED Display Module, Outdoor Front Service LED Module Tags: $100.00 - $300.00, Eager-LED Brand: Eager-LED

Notice before order

1) Parts included: LED module, signal cable between modules, power cable between module and power supply.

2) Buy modules of same batch: to avoid brightness&color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Tariff: our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

Features of P4 Outdoor 320x320mm SMD1921 Front Service LED Panel Module:

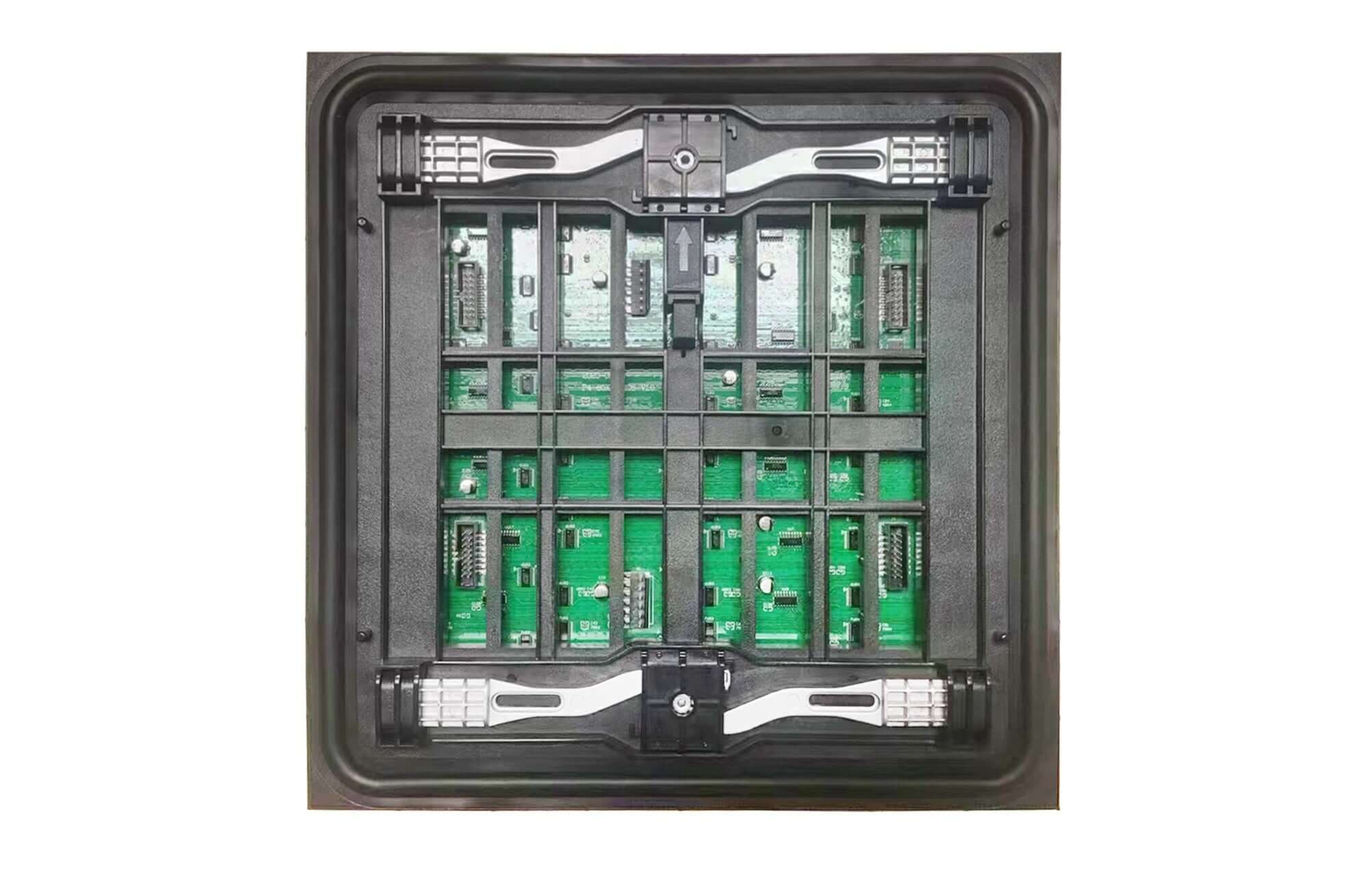

1) Dual-maintenance, from both the front side and the rear side. People usually use its front maintenance function.

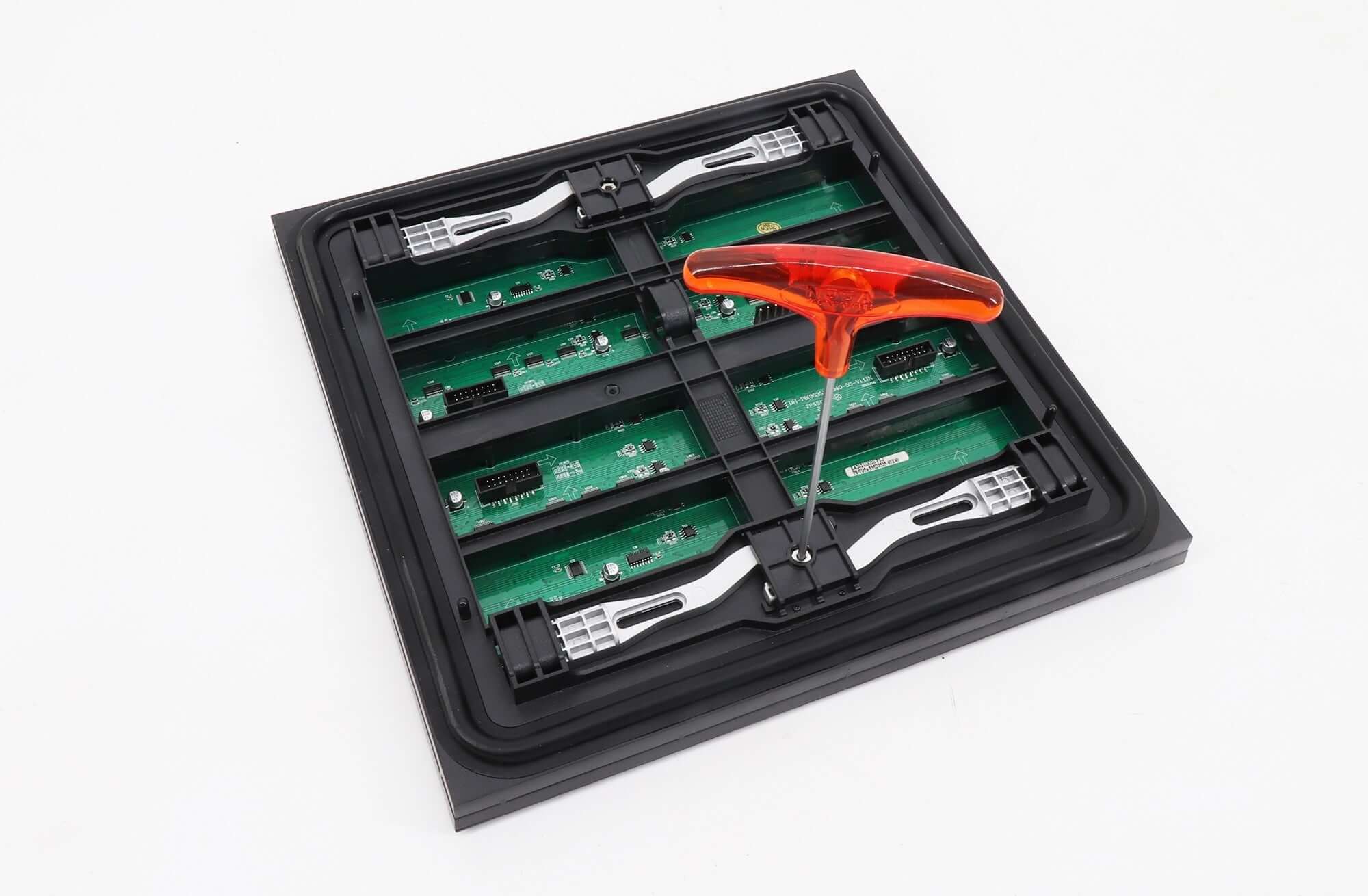

2) Easy maintenance, easy to take the modules with a hexagonal screwdriver.

3) No screws, easier to take the modules and mount the modules on the cabinet.

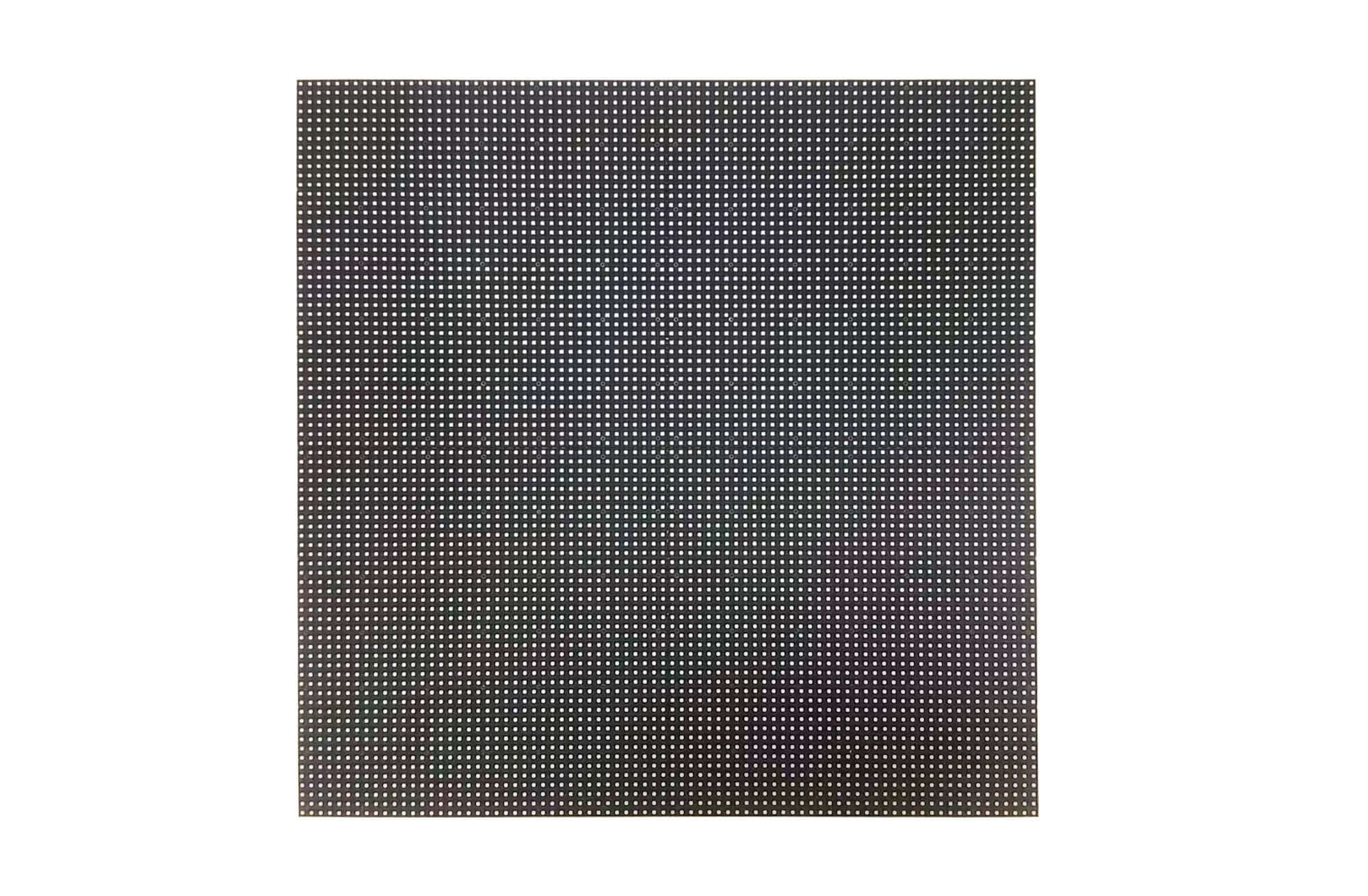

4) 4mm pixel pitch with SMD, perfect solution for semi-outdoor advertising LED screen and outdoor rental LED screen.

5) New plastic cover with new mold, smaller module gaps and better screen flatness.

6) Reasonable PCB design, reliable and long life time.

Applicable situations of P4 Outdoor 320x320mm SMD1921 Front Service LED Panel Module:

Outdoor LED signs requiring front maintenance

Commercial video screens with small sizes

Double face LED signs

Small LED banner signs

Outdoor rental LED screen requiring fast maintenance

Parameters of P4 Outdoor 320x320mm SMD1921 Front Service LED Panel Module:

Module Parameter
Pixel Pitch	4mm
Pixel Configuration	SMD1921
Density	62,500 pixels/㎡
Module Resolution	80pixel(L) * 80pixel(H)
Module Dimension	320mm(L) * 320mm(H) * 20mm(D)
Driving Mode	Constant current, 1/10 duty
Module Mask	Pure black mask—high contrast screen
Electricity Parameter
Optical Ratings
Brightness	≥6,000 CD/㎡
Viewing Angle	140°(Horizontal); 120°(Vertical)
Best Viewing Distance	≥4m
Gray Grade	14 bits
Display Color	4.4 trillion colors
Brightness Adjustment	100 grades by software or automatically by sensor
Max. Power Consumption	85 W
Control System
Frame Frequency	≥60Hz
Refresh Frequency	≥1920Hz
Input Signal	Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance	100M (Ethernet cable);
Control Distance	20KM (Optical fiber cable)
Support VGA Mode	800600, 1024768, 12801024, 16001200
Color Temperature	5000—9300 adjustable
Brightness Correction	Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature	-20～+60 ºC
Storage Temperature	-30～+70 ºC
Working Humidity	10%～90% RH
Lifetime	100,000 hours
MTBF	5000 hours
Continuous Operating Time	≥72 hours
Protection Grade	IP65
Out-of-Control Pixel Rate	≤0.01%

P4 Outdoor 320x320mm SMD1921 Front Service LED Panel Module

Download Specification:

P4 Outdoor 320x320mm SMD1921 Front Service LED Panel Module Specification

Weight	2.42 kg
