VDWall LVP909F LED Video Processor – Wi-Fi, 4 Windows
$ 798.00
VDWall LVP909F LED video processor with four-window display, four DVI outputs, Wi-Fi control and compatible wireless video monitoring.
10000 in stock

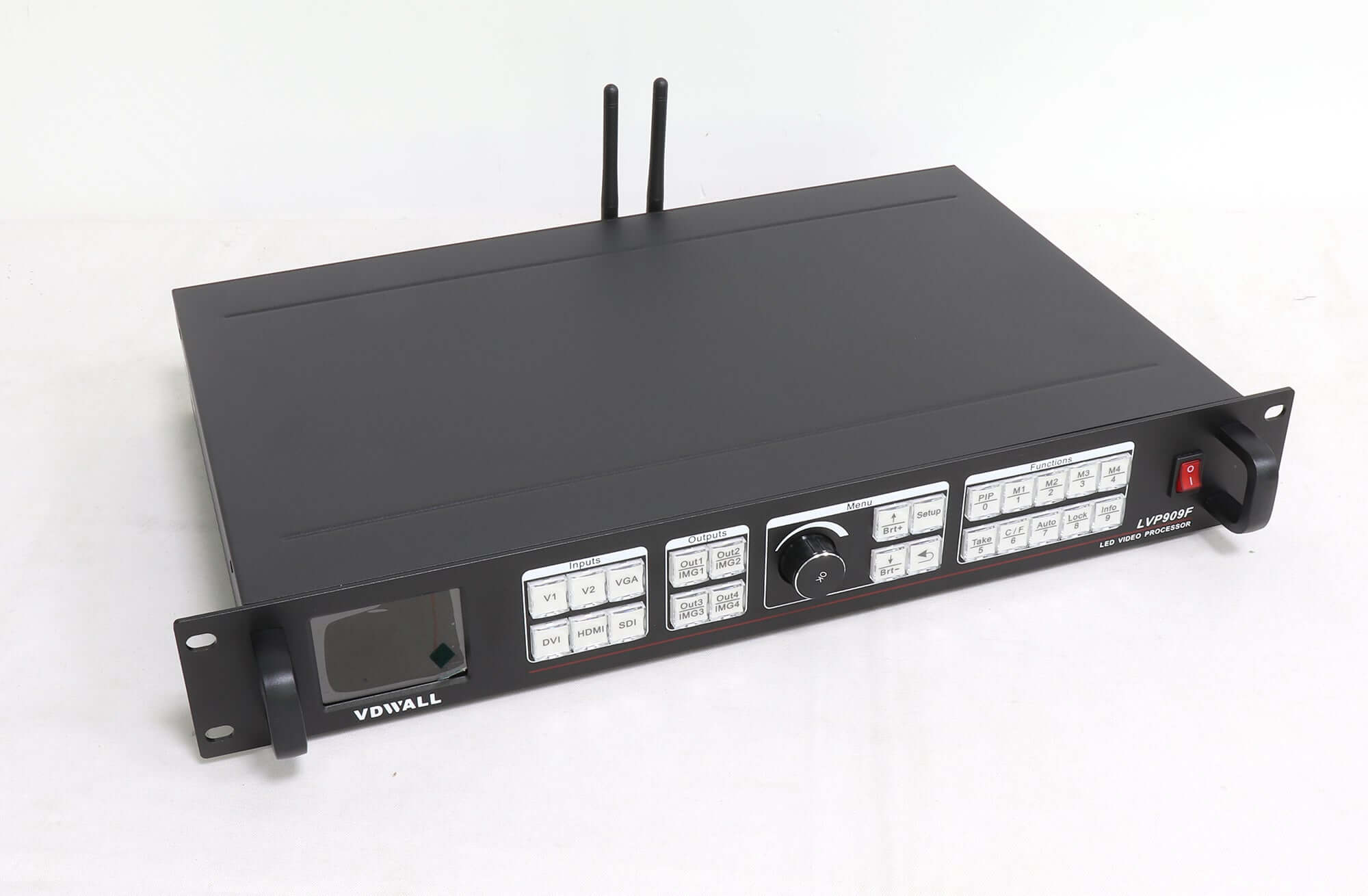

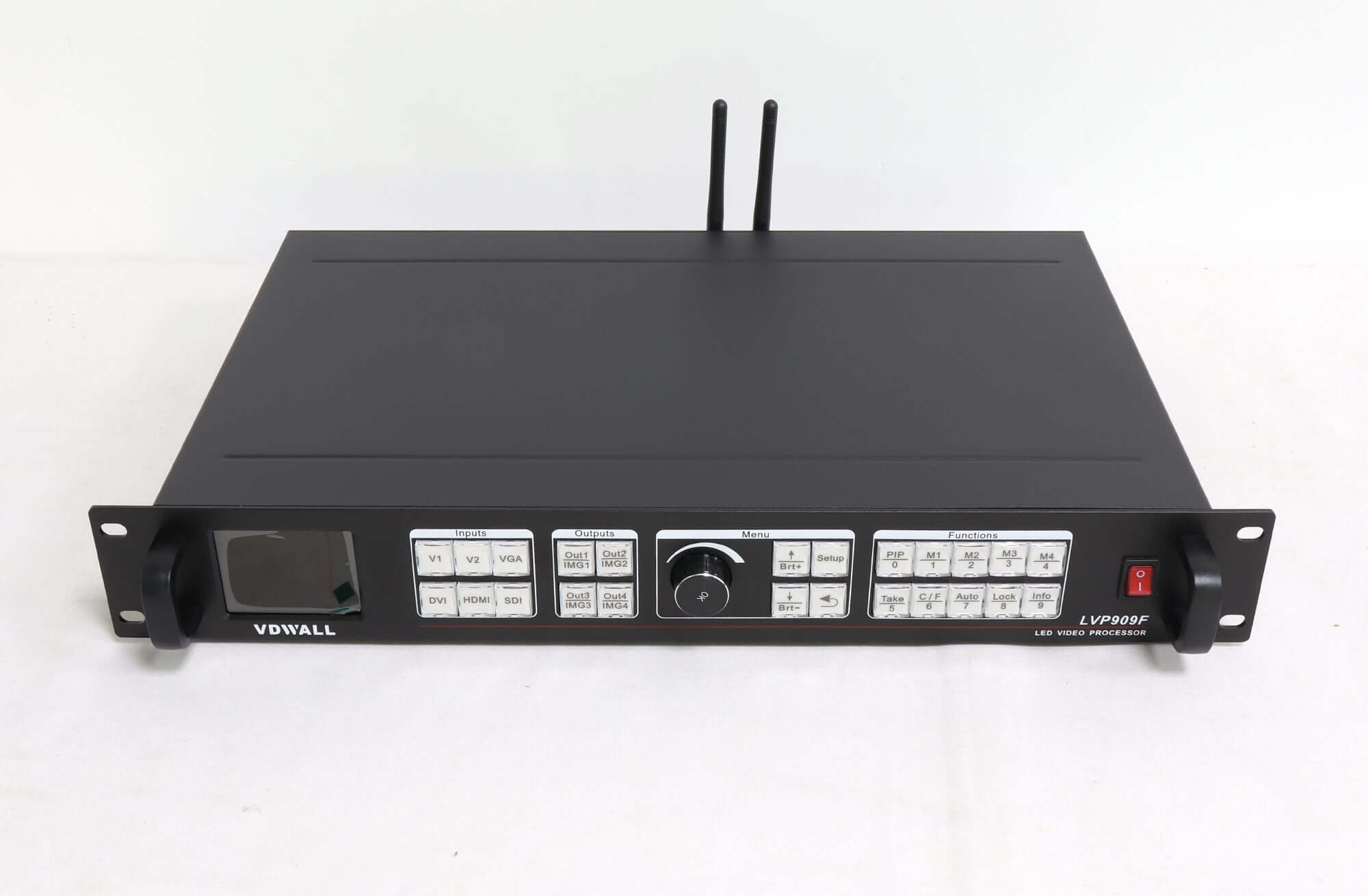

VDWall LVP909F LED Video Processor with Wi-Fi
The LVP909F supports four adjustable image windows, seamless/fade/wipe switching and four preset PIP modes. Wi-Fi control and video feedback use compatible handheld software; confirm app and device support before purchase.
Product parameters
| Inputs | |||
| Number / Type | 2×Video 1×VGA（RGBHV） 1×DVI（VESA / CEA-861） 1×HDMI（VESA / CEA-861） 1×SDI / HD-SDI / 3G-SDI | ||
| Video system | PAL / NTSC | ||
| Composite Video Amplitude Impedance | 1V（p_p）/ 75Ω | ||
| VGA format | PC（VESA standard） | ≤2048×1152_60Hz | |
| VGA Amplitude Impedance | R、G、B = 0.7 V（p_p）/ 75Ω | ||
| DVI format | PC（VESA standard） | ≤1920×1200_60Hz | |
| HDMI1.3（CEA-861） | |||
| HDMI format | PC（VESA standard） | ≤1920×1200_60Hz | |
| HDMI1.3（CEA-861） | |||
| SDI format | SMPTE259M-C SMPTE 292M SMPTE 274M/296M SMPTE 424M/425M | 480i_60Hz 576i_50Hz 720p、1080i、1080p | |

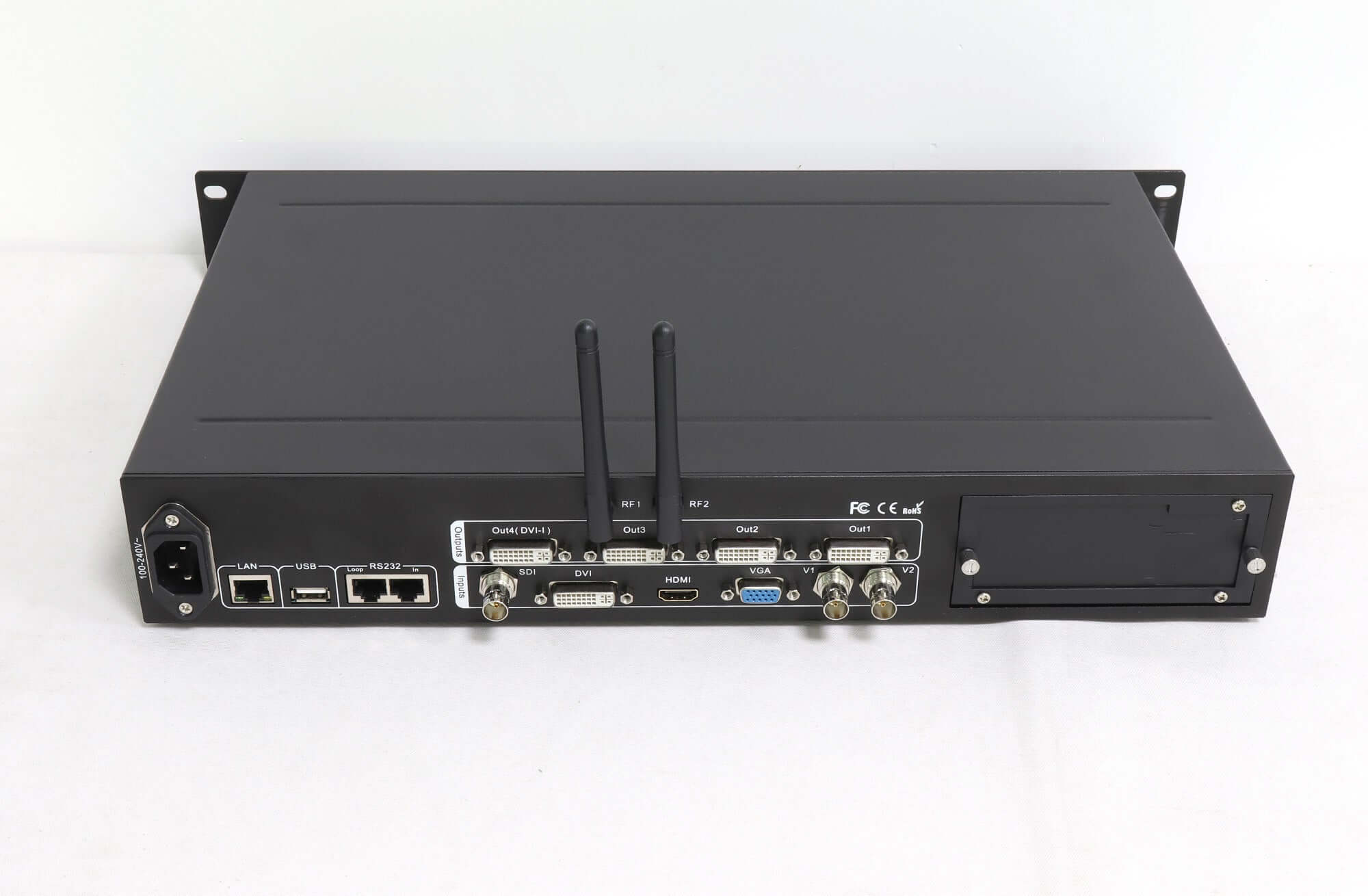

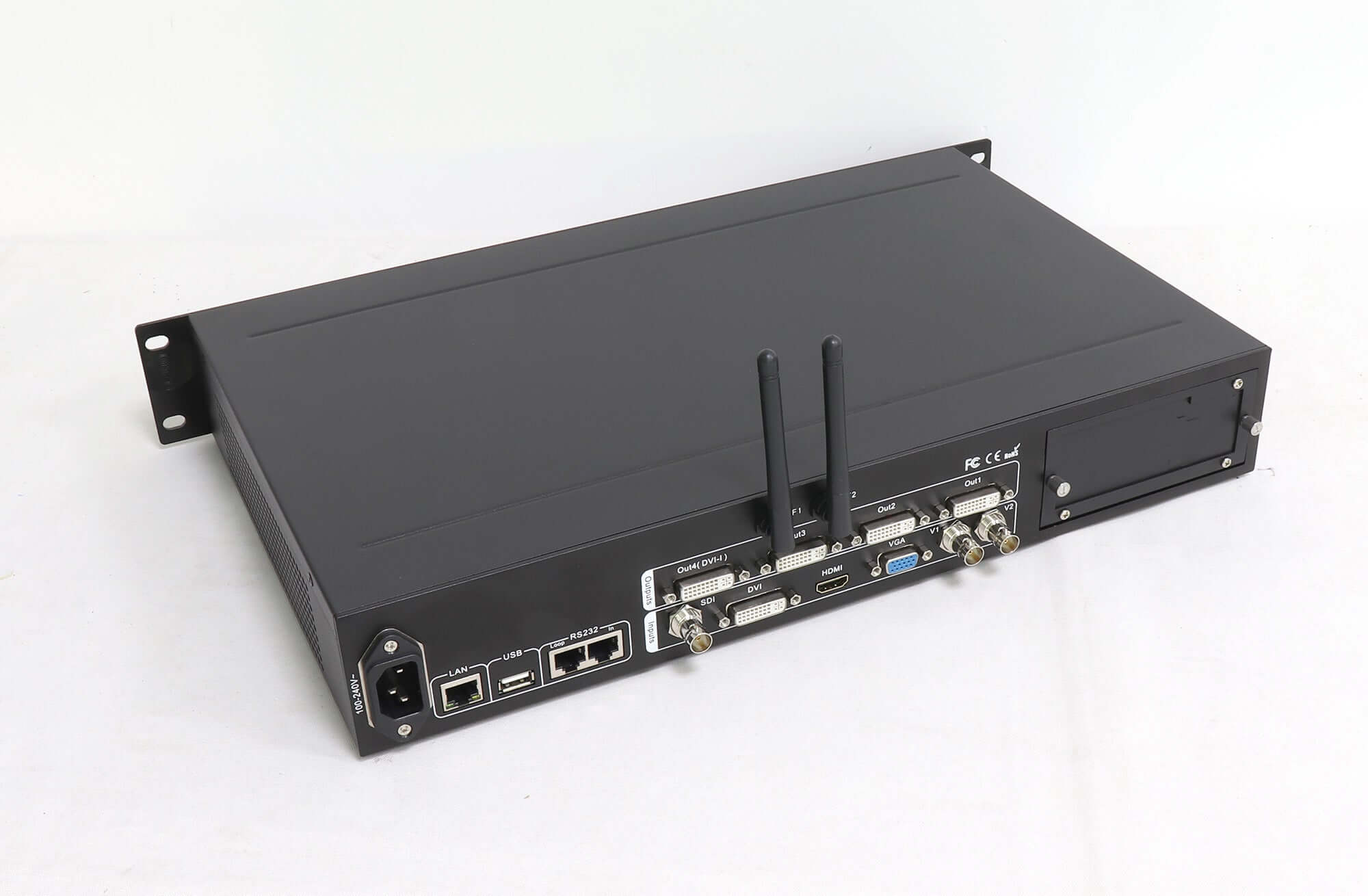

| Input connectors | Video：BNC VGA：15pin D_Sub( female) DVI：24+1 DVI_D SDI：BNC/ 75Ω HDMI：HDMI port A type | ||
| Outputs | |||
| Number / Type | 4×DVI, 1×VGA(RGBHV)（Out4） | ||
| VGA / DVI format | 1024×768_60Hz 1280×1024_60Hz 1440x1440_60Hz 1920×1080p_50Hz/60Hz 1920×1200_60Hz | ||
| Output connectors | DVI OUT：24+5 DVI_I | ||
| Others | |||
| Control port | RS232 / USB / LAN / Wi-Fi | ||
| input voltage | 100-240VAC 50/60Hz | ||
| Power consumption | ≤45W | ||
| Environment Temperature | 0-45 ℃ | ||
| Environment Humidity | 15-85% | ||
| Product Size | 483(L) x 274(W) x 66.6(H)mm | ||
| Package Size | 520(L) x 350(W) x 130(H)mm | ||
| Net Weight | 4.2Kg | ||
| Gross Weight | 5.9Kg | ||
Power and chassis specifications can differ between documentation revisions. Confirm the supplied unit’s rating before installation.
VDWALL LVP909F HD Video Processor Specification
Frequently asked questions
1. How many images can LVP909F display?
Up to four, with adjustable size, position and overlay order.
2. Does LVP909F support Wi-Fi monitoring?
Yes, through compatible handheld app software and the Wi-Fi video feedback function.
3. What is the maximum DVI output resolution?
Up to 1920 × 1200 at 60 Hz per DVI output. The listed combined output maximum is 3840 × 2400 at 60 Hz.
| Weight | 7 kg |
|---|
