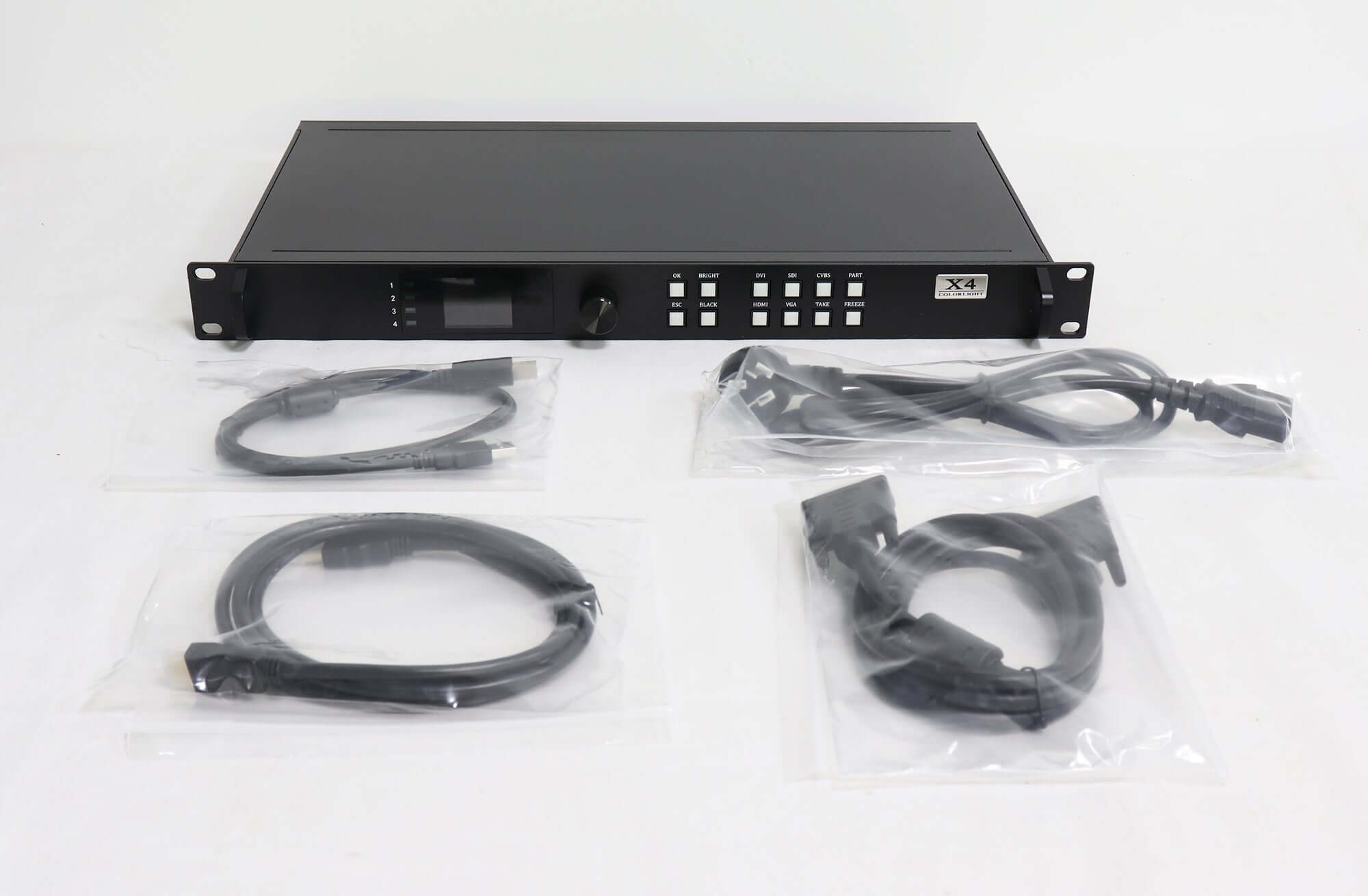

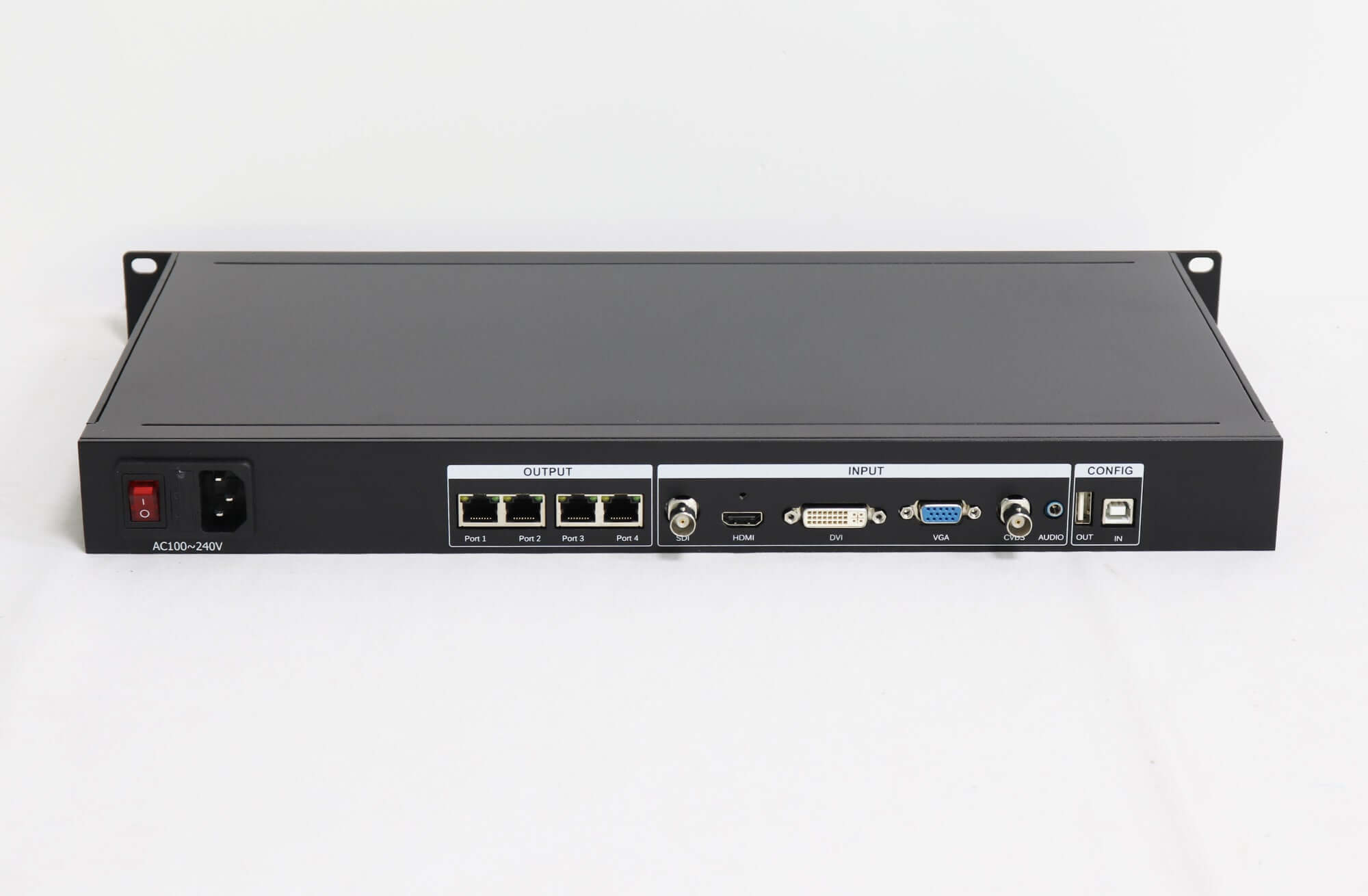

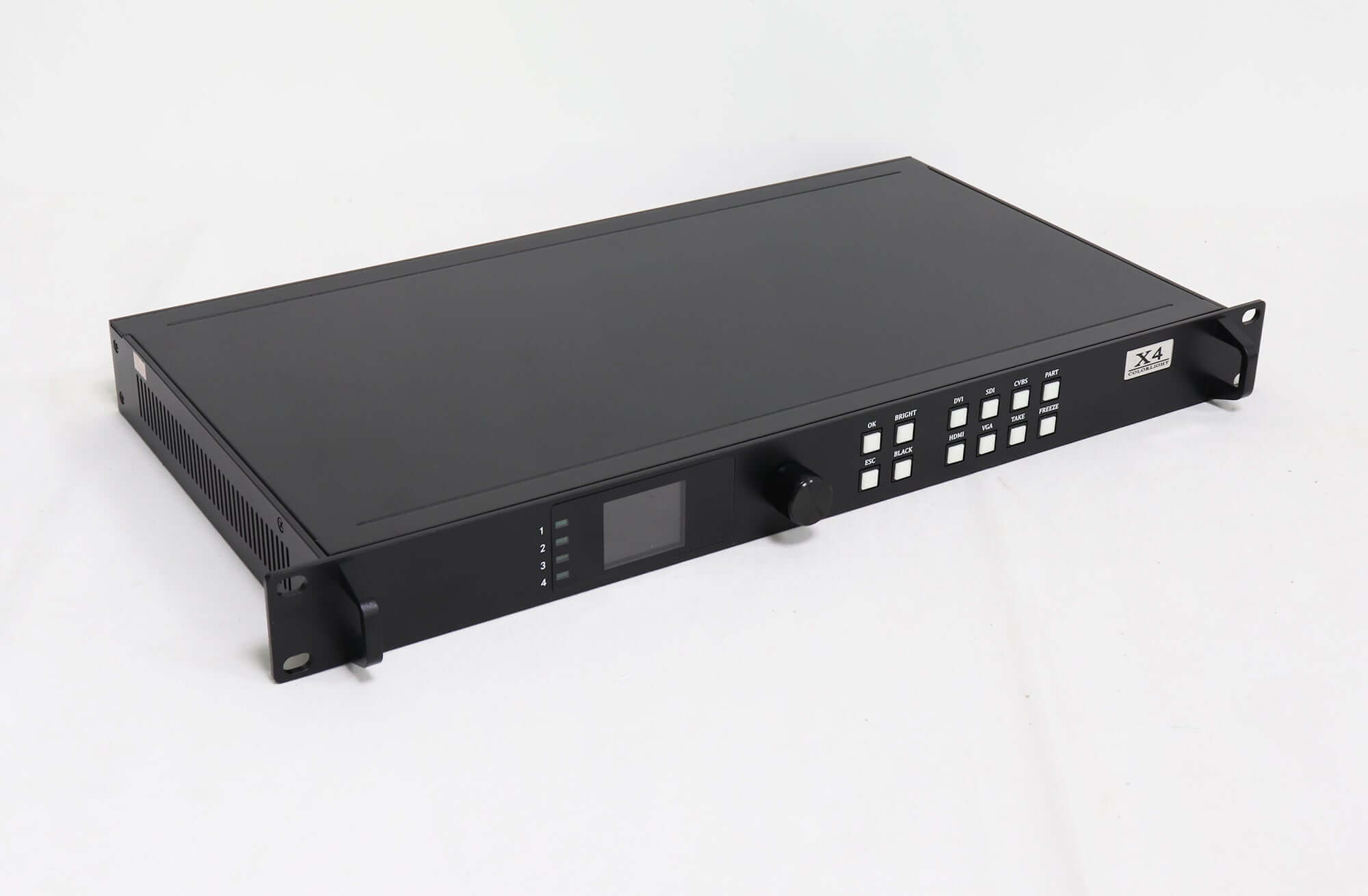

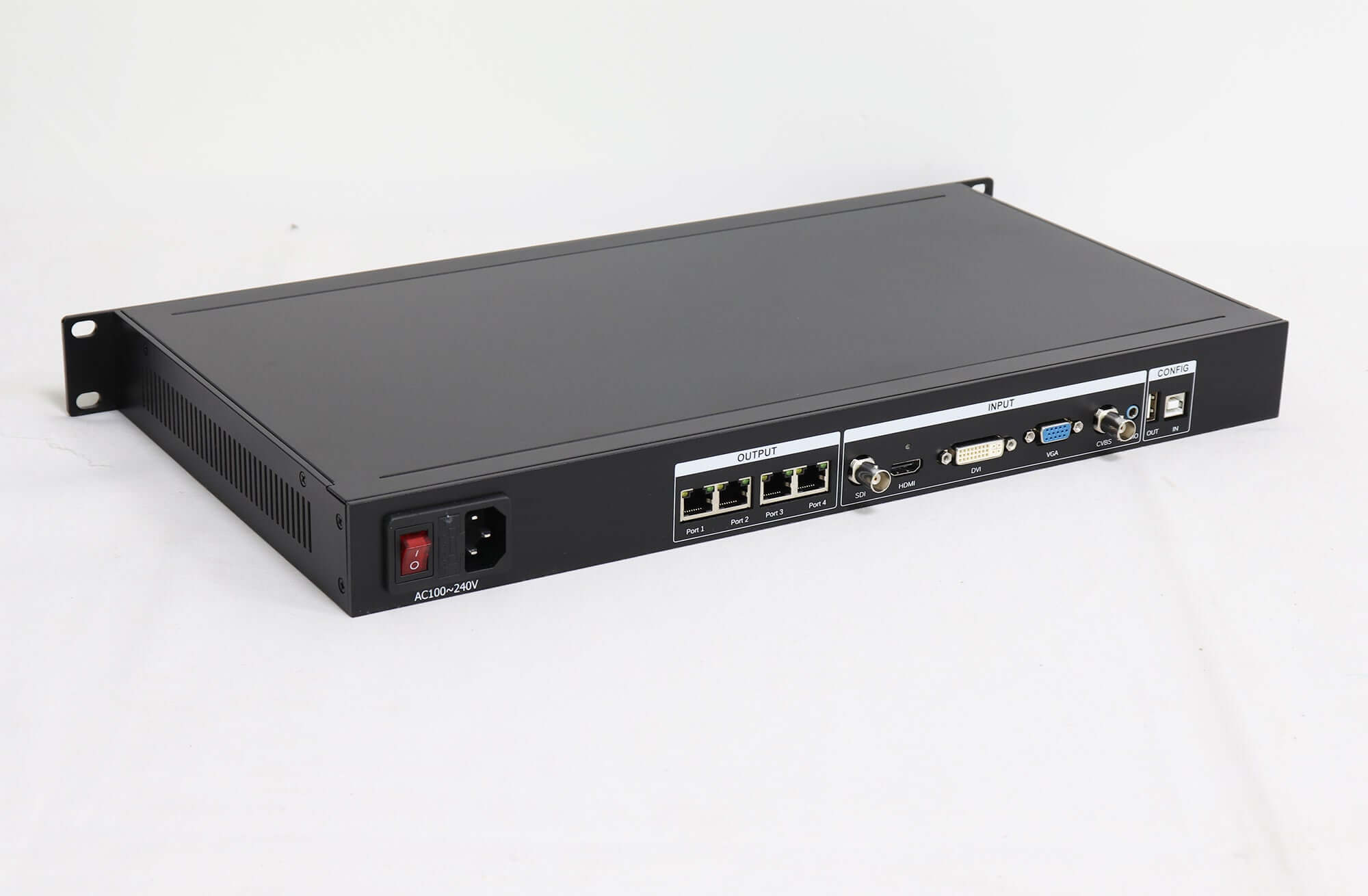

Colorlight X4 Professional LED Display Controller Box

In stock
$376.00 $361.00
Colorlight X4 Professional LED Display Controller Box Features:   X4 master is a professional LED display control equipment, with a strong video signal reception and processing power Force,...

Colorlight X4 Professional LED Display Controller Box Features:


X4 master is a professional LED display control equipment, with a strong video signal reception and processing power

Force, the maximum can receive 1920 * 1200 pixel high-definition digital signal; the same time four Gigabit Ethernet output, single

Machine can support the widest 4096 pixels, or up to 2560 pixels large screen.

X4 uses high-speed USB and PC communication, and can be used for multiple transmitter cascade, easy to operate.

X4 has a range of rich and practical features that can provide flexible screen control and excellent image display,

In the field of LED media applications have a lot of advantages.


• X4 has Category 5 video input interface, including 1 SDI, 1 HDMI, 1 DVI, 1

VGA, 1 way CVBS;

• Input resolution: up to 1920 * 1200 60Hz, support resolution any setting;

• Video output with load capacity: 2.3 million pixels, up to 4096 points, or up to 2560 points;

Support video source any switch, screen zoom;

• Dual USB2.0 high-speed communication interface for computer debugging and inter-card cascade;

• Support multi-transmitter arbitrary splicing cascade, strict synchronization;

• Supports brightness and color temperature adjustment;

• support low light and high ash;

• support HDCP1.4;

Support Carlet full range of receiving cards, multi-function cards, fiber optic transceivers.


Colorlight X4 Professional LED Display Controller Box Parameters:



Board size

1U Standard chassis

Input voltage

AC 100~240V

Rated power consumption


Operating temperature





Input indicator









EIA/CEA-861 ,Support 1920*1200, 60Hz & HDCP



VESA ,Support 1920*1200, 60Hz & HDCP



VESA Suooprt 1920*1200, 60Hz Input






Audio input, through the network cable to the multi-function card

Output indicator


RJ45, 4 Gigabit Ethernet port output, 4 network ports can be up and down about any stitching

Download Specification of Colorlight X4 Professional LED Display Controller Box
