Colorlight i5A LED Receiving Card | 256 × 256 Pixels
$ 13.30
Colorlight i5A LED receiving card with a listed 256 × 256-pixel capacity, static to 1/32 scan and brightness/chromaticity calibration. Confirm the hardware revision, HUB pinout and conflicting RGB output-group information before replacement.
9996 in stock
Colorlight i5A receiving card for LED panels
The Colorlight i5A receives display data for LED modules and supports brightness and chromaticity calibration. The existing product information lists a 256 × 256-pixel capacity and static to 1/32-scan operation, with support for conventional, PWM and lighting driver chips.
Product parameters
The table summarizes the existing listing. No specification PDF is attached. Verify the exact board revision before using the output-group information for a replacement or new HUB design.
| Parameter | Specification |
|---|---|
| Pixel capacity | 256 × 256 pixels |
| Scan support | Static to 1/32 scan |
| Input voltage | DC 3.3–6 V; verify polarity and the supplied revision |
| Driver chips | Conventional, PWM and lighting chips; confirm the specific IC |
| RGBR′ output | 16 groups listed |
| RGB output — unresolved source conflict | 20 groups / 32 extended groups in one section; 24 groups in another |
| Calibration | Brightness and chromaticity calibration |
| Listed sending equipment | iT7, iQ7, iQ7E and gigabit NIC; verify the system configuration |
| Display mapping | Freeform, spherical and other creative display layouts |
Choosing a replacement i5A
Provide photographs of the card and HUB board, the revision label, cabinet pixel dimensions, module driver IC and scan ratio. Save the current display configuration and calibration files before replacement. Connector assignments and operating mode are especially important because the source text gives conflicting RGB group counts.
The listing does not establish a fixed refresh-rate value, board dimensions or power consumption for this card. Obtain documentation for the supplied hardware when those values are needed.

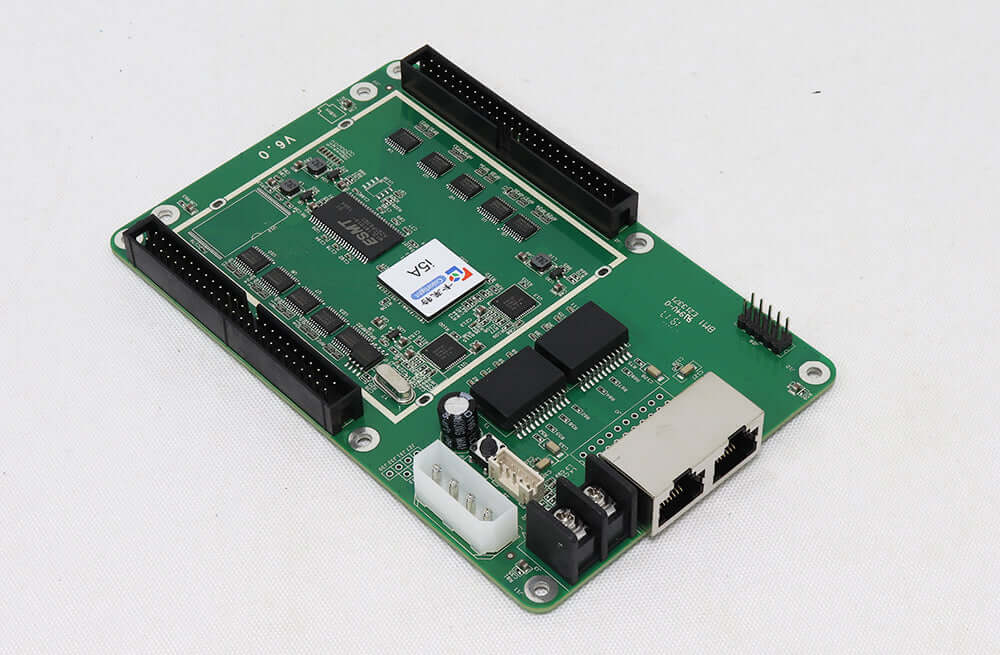

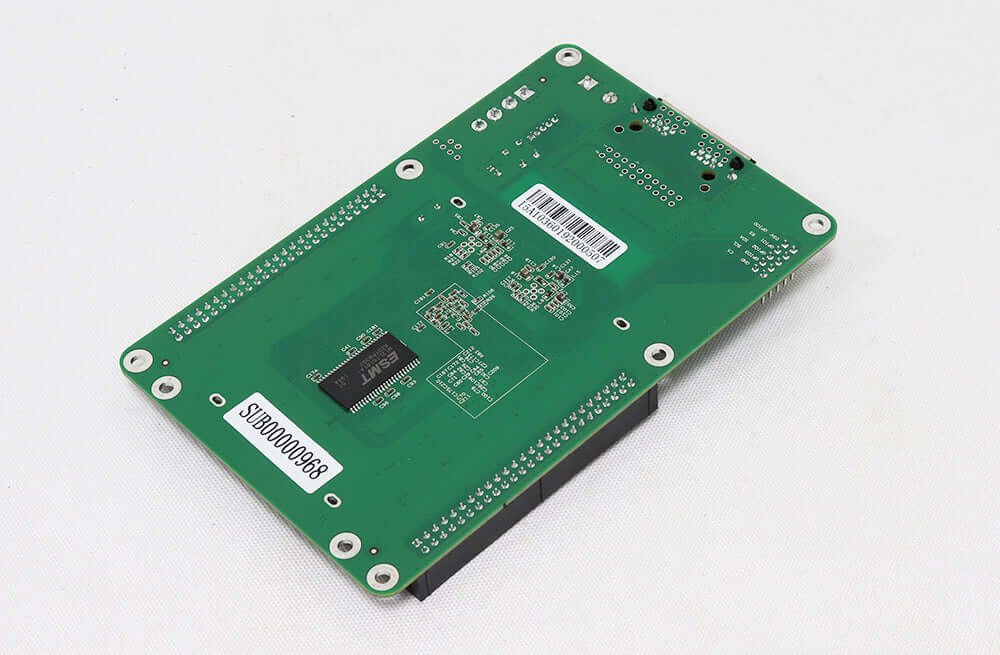

Product photos
Frequently asked questions
What is the listed loading capacity of the Colorlight i5A?
The existing product information lists 256 × 256 pixels per receiving card. Check the driver IC, scan ratio and refresh settings before applying this load to a cabinet.
Does the i5A support 1/32 scan?
Yes. The existing listing specifies static operation through 1/32 scan. It does not provide a verified higher scan limit.
How many RGB output groups does this i5A provide?
The original text is inconsistent: one section says 20 RGB groups with 32 in an extended mode, while another says 24 RGB groups. Both mention 16 RGBR′ groups. Confirm the board revision, operating mode and pin definitions before selecting a HUB board.
Can the i5A calibrate brightness and color?
The listed functions include brightness and chromaticity calibration. The calibration data and module configuration must match the installed LED modules.
Can I replace an i5A-905 or i5A-907 with this i5A card?
A related model name does not confirm a direct replacement. Compare the board revision, connector pinout, mounting layout, power requirements and cabinet configuration before choosing a card.
| Weight | 0.35 kg |
|---|
