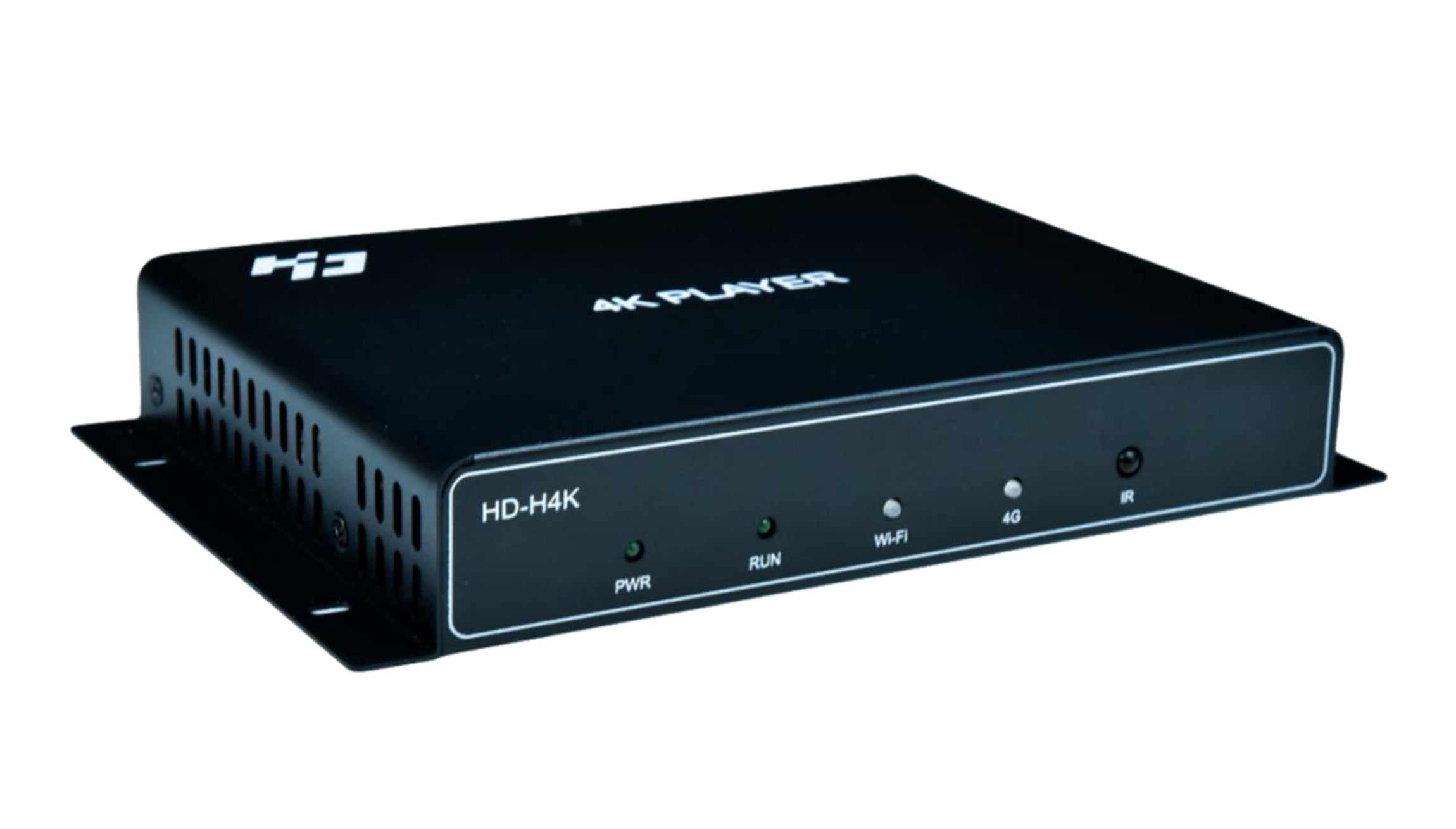

Huidu HD-H4K 4K HDMI Multimedia Player – 64 GB Storage
$ 180.00
The Huidu HD-H4K is a 4K HDMI multimedia player with 4 GB RAM, 64 GB storage and dual-band Wi-Fi. It connects to a monitor or LED video processor and supports local publishing, cloud-management workflows and optional wireless screen casting.
9994 in stock
Huidu HD-H4K HDMI multimedia player for digital signage
The HD-H4K plays scheduled multimedia content through an HDMI 2.0 output to a monitor or LED video processor. With 64 GB storage, dual-band Wi-Fi and local or remote publishing workflows, it is suited to advertising displays, exhibition signage and commercial screens.
HD-H4K technical specifications
The following values follow the linked V1.0 specification. Canvas dimensions, decoding limits and HDMI output timings describe different parts of the signal path.

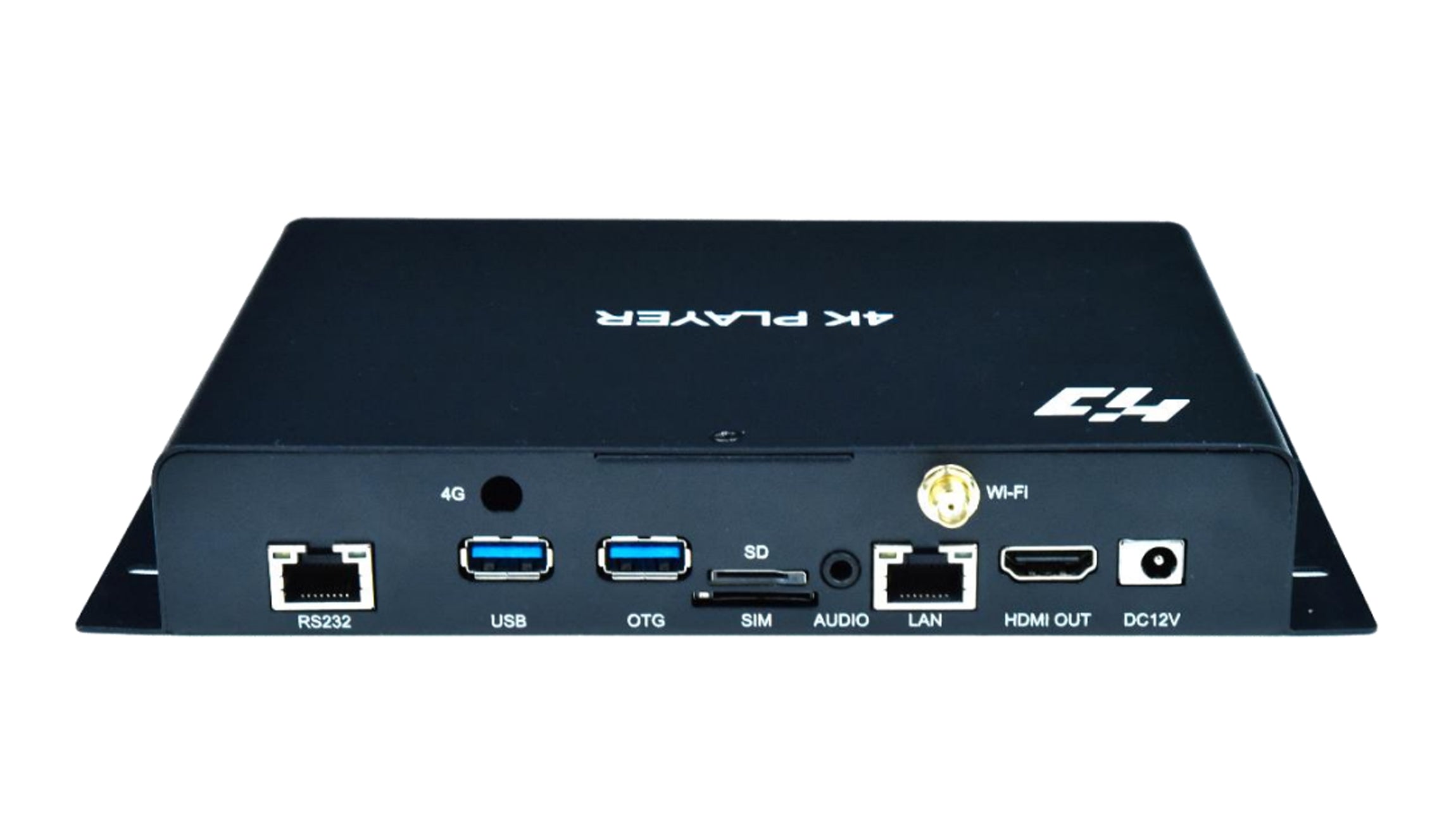

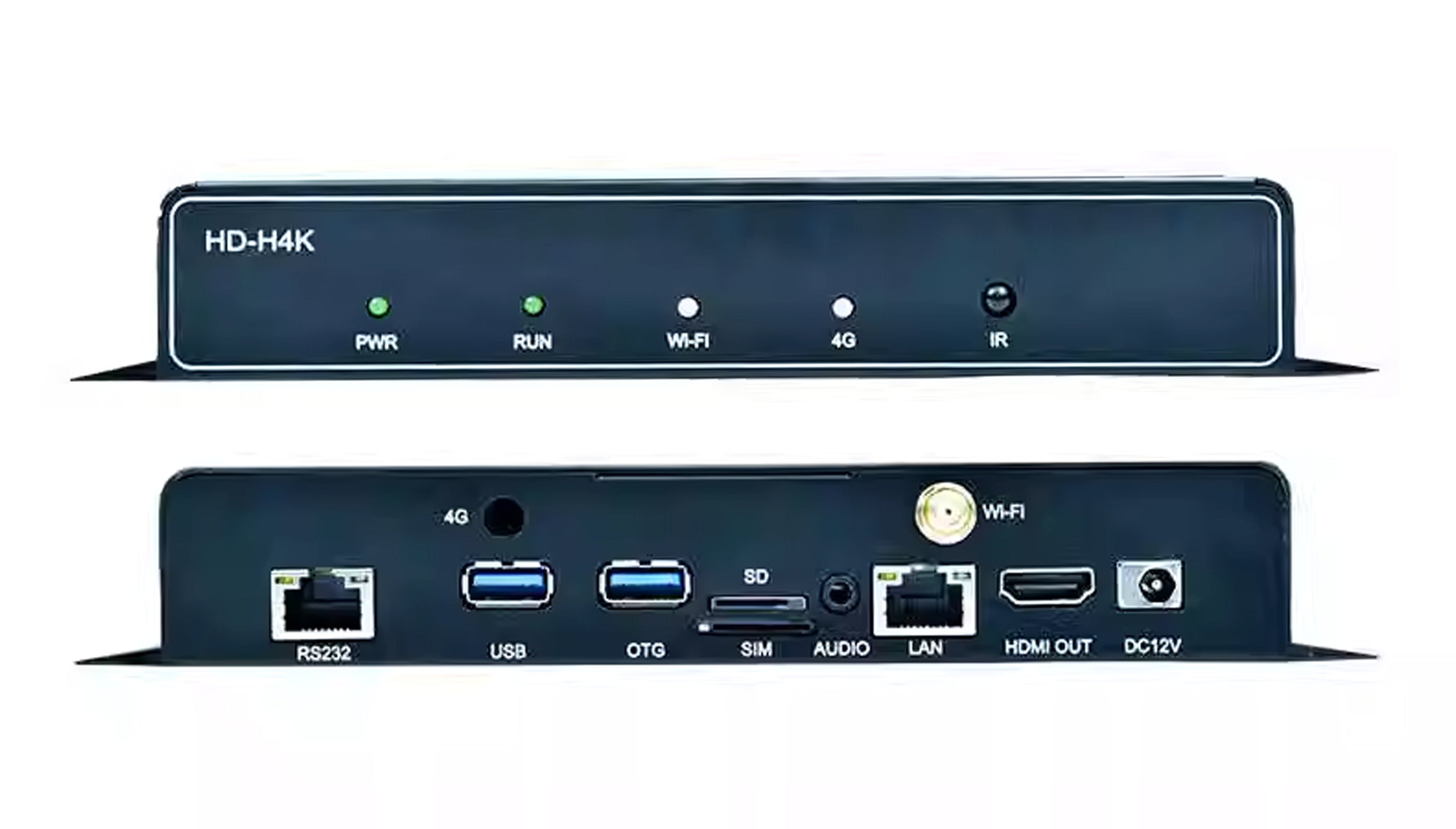

| Display output | 1 × HDMI 2.0 output; 4K display support and EDID-based playback-window adjustment |
|---|---|
| Canvas dimensions | Maximum width 16,384 pixels or height 4,096 pixels; confirm supported timing and downstream equipment |
| Network input | 1 × 100 Mbps Ethernet port for publishing and control |
| Wireless | Standard 2.4 GHz / 5 GHz Wi-Fi; AP and Station mode switching |
| Memory / storage / OS | 4 GB RAM / 64 GB internal storage / Android 11.0 |
| USB / card storage | USB 3.0, configurable OTG (default USB-drive function), SD-labelled slot described as suitable for TF cards |
| Control / audio | RS232 central control / 3.5 mm stereo output |
| Video playback combinations | 2 × 4K or 6 × 1080p or 10 × 720p or 20 × 360p; codec-specific limits apply |
| Wireless casting | Optional function |
| Mobile network | Optional 4G module documented at SIM slot; feature list also mentions optional 4G/5G—confirm package |
| Power supply / maximum consumption | DC 12 V, 1.5 A / 18 W |
| Operating / storage temperature | −40°C to 70°C / −40°C to 80°C |
| Operating / storage humidity | 0–80% RH, non-condensing |
| Dimensions / net weight | 208 × 132 × 31 mm / 0.6 kg |
| Protection | IP20 |
Publishing and playback
Update programs through the network, Wi-Fi or USB, or use supported storage expansion. The player can adjust its playback window using the connected display’s EDID and supports canvas settings for point-to-point mapping. RS232 enables compatible central-control integration.
For multi-window playback, the listed combinations are alternatives rather than additive totals. Match codecs, resolution, frame rate and bitrate to the PDF’s media tables. Confirm the software and accessories needed for cloud access, third-party apps, optional casting and mobile networking.
HD-H4K frequently asked questions
Does HD-H4K connect directly to LED receiving cards?
The H4K provides an HDMI 2.0 output for a monitor or LED video processor. Its 100 Mbps Ethernet port is for program publishing and control, not a specified LED receiving-card output. Use a compatible sending/controller system for an LED wall.
Can I control the H4K through Wi-Fi?
Yes. Dual-band 2.4 GHz and 5 GHz Wi-Fi is standard, with AP/Station mode switching and the Screen Control app described in the specification. Wi-Fi control is separate from the optional wireless screen-casting function.
Are wireless screen casting and mobile networking included?
Wireless casting is optional. The PDF identifies an optional 4G module at the SIM slot and also mentions optional 4G/5G in the feature list. Confirm the exact network module, regional support and casting configuration supplied.
Does the 16,384-pixel width mean 16K video output?
No such output timing is specified. The document lists a maximum canvas width of 16,384 or height of 4,096 and 4K HDMI output support. Confirm the actual output timing, canvas mapping and processor compatibility; decoding limits are also separate.
What content and remote-management workflows are supported?
The specification lists video, images, GIF, text, Office documents, tables, clocks, weather, QR codes and environmental data, plus third-party APK installation. Programs can be updated locally, and XiaoHui Cloud access supports remote cluster management. Check required apps, sensors and network access for the chosen content.
