Linsn EB901 LED Signal Splitter | RJ45 Distribution & Backup
Original price was: $ 113.00.$ 108.00Current price is: $ 108.00.
Linsn EB901 LED control-signal splitter with selectable distribution modes, cascade support and signal hot backup for multiple-screen systems.
9996 in stock
Product overview

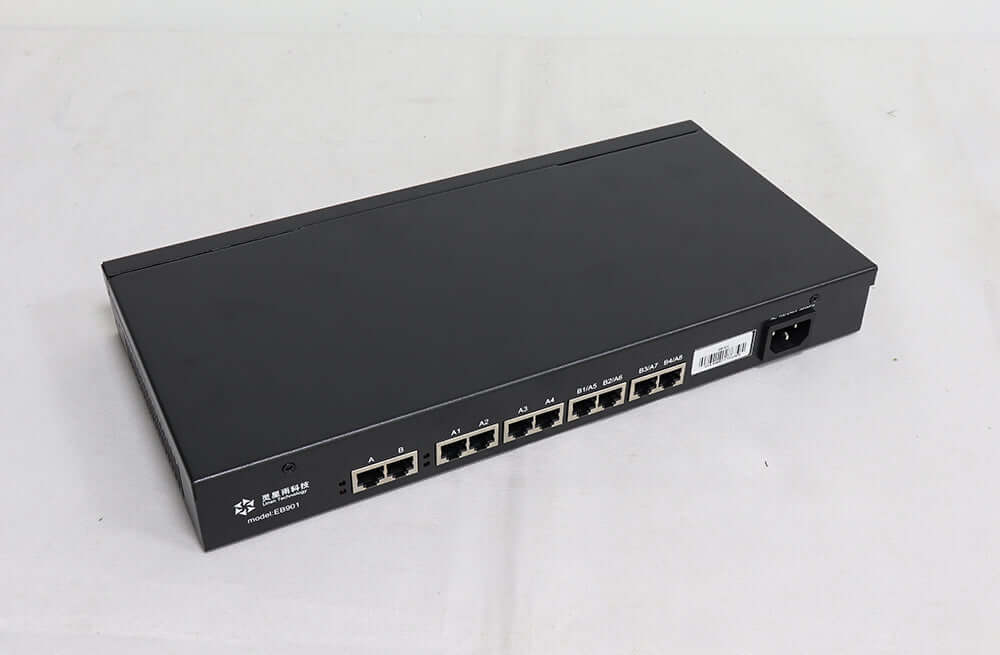

The Linsn EB901 is an LED control-signal splitter for multiple-screen installations. It distributes a sending-card signal through selectable split modes and can be used in a signal hot-backup arrangement. The V1.1 specification documents RJ45 inputs/outputs and an independent AC supply.
Product specifications
| Parameter | Specification |
|---|---|

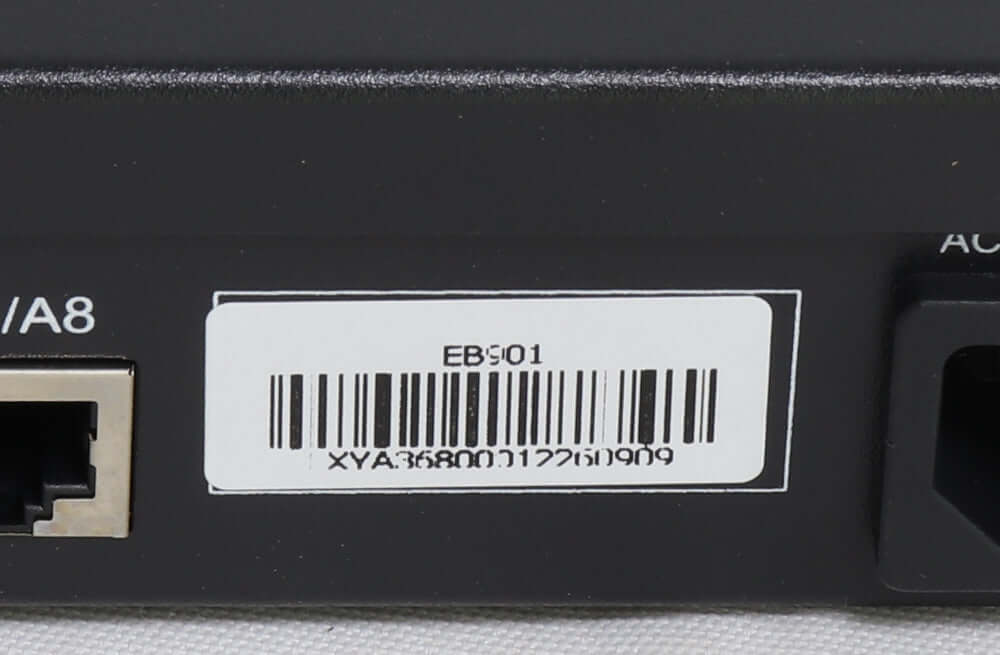

| Model / manual | EB901; V1.1, January 2018 |

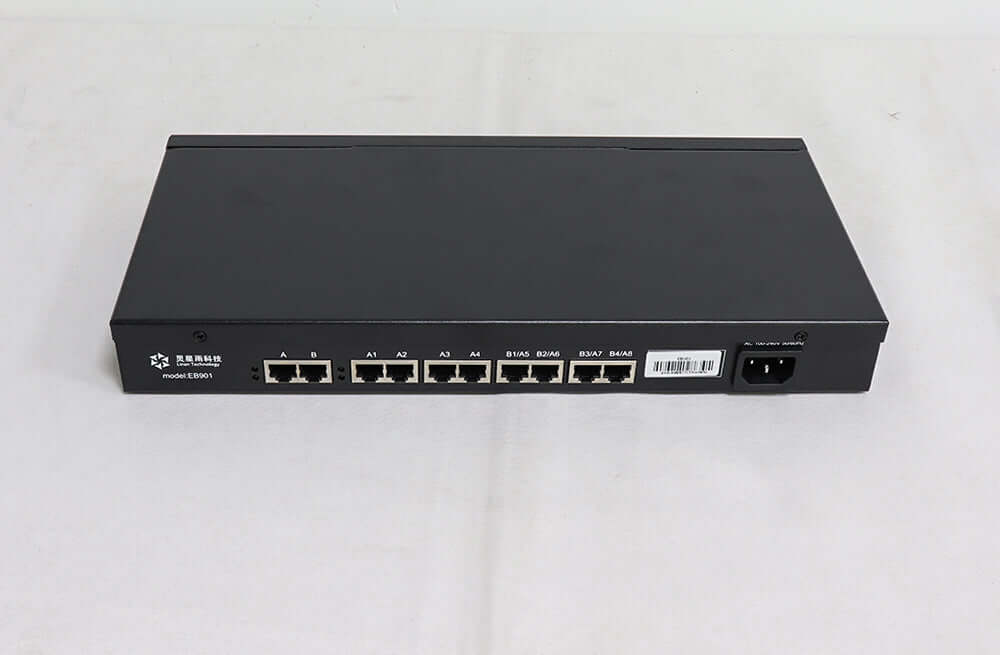

| Inputs | RJ45, 1–2 ports |
| Outputs | RJ45, 4–8 ports |
| Split modes | 1 signal to 8; or 2 signals to 4, as stated in the manual |
| Cascade | Up to 8 units in 1-to-8 mode; stated 1-to-64 distribution |
| Backup function | Signal hot-backup support |
| Supply | 100–240 V AC |

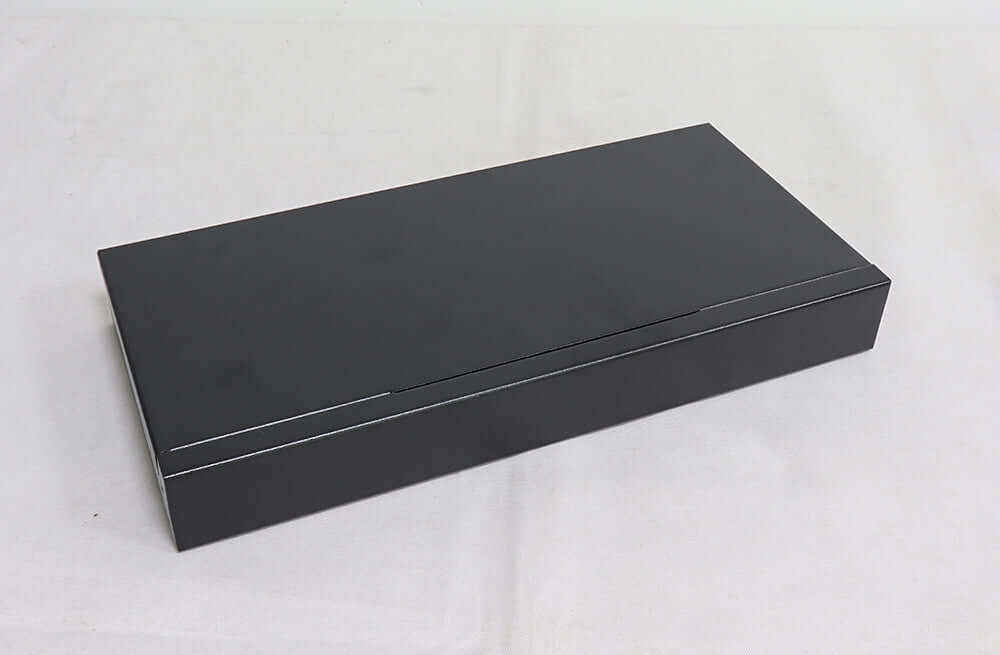

| Dimensions (L × W × H) | 357 × 173 × 45 mm |
| Net weight | 1.04 kg |
Select the distribution mode
Match the sending-card links, splitter mode and receiving-card mapping to the multiple-screen layout. The manual’s short “2 signals into 4” wording does not explain every port assignment; confirm the physical mode and connection diagram before wiring.
The EB901 distributes control signals. Its output count and cascade capability do not establish a larger sender pixel capacity or additional independent video sources.
Hot-backup operation requires the appropriate signal paths and system configuration. Confirm compatibility with the installed sending and receiving equipment.
Frequently asked questions
1. What is EB901 used for?
It distributes LED sending-card signals for multiple screens and supports a signal hot-backup arrangement.
2. Which split modes does EB901 support?
The manual states one signal into eight, or two signals into four. Confirm the selected mode and port allocation for the installation.
3. How many EB901 units can be cascaded?
In 1-to-8 mode, the specification lists up to eight units for stated 1-to-64 distribution.
4. Does using EB901 increase the sender’s pixel capacity?
The specification describes signal distribution, not an increase in sender loading. Check the original sender’s pixel and timing limits.
Download specification
LINSN EB901 LED Screen Signal Distributing Controller Specification
