Linsn L3 Asynchronous LED Player | Wi-Fi, USB & LAN
$ 190.00
Linsn L3 asynchronous LED player with USB/LAN playback, Wi-Fi transfer, optional 4G and a backup output. Check the documented capacity differences before selecting a screen.
10000 in stock
Product overview

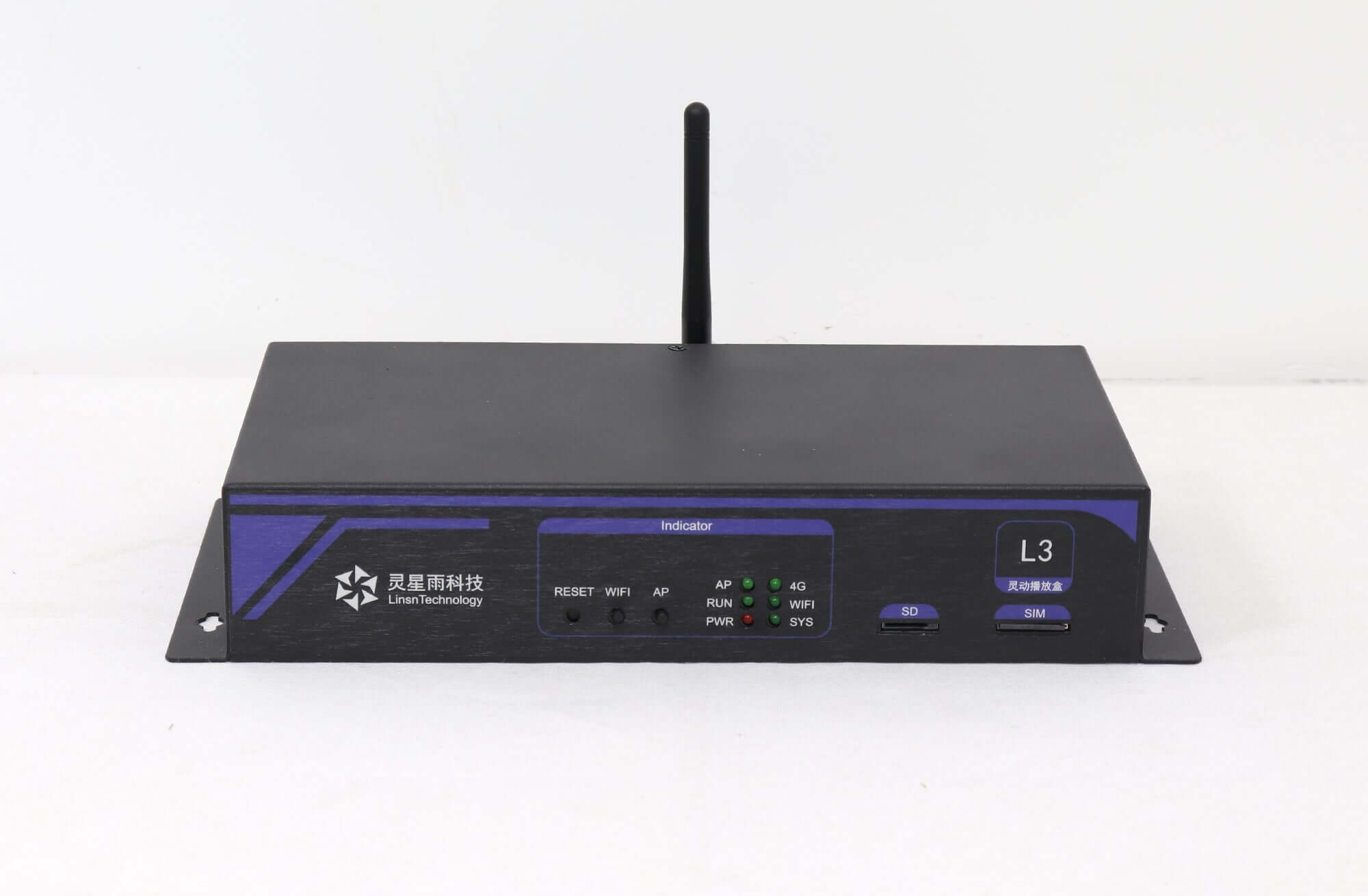

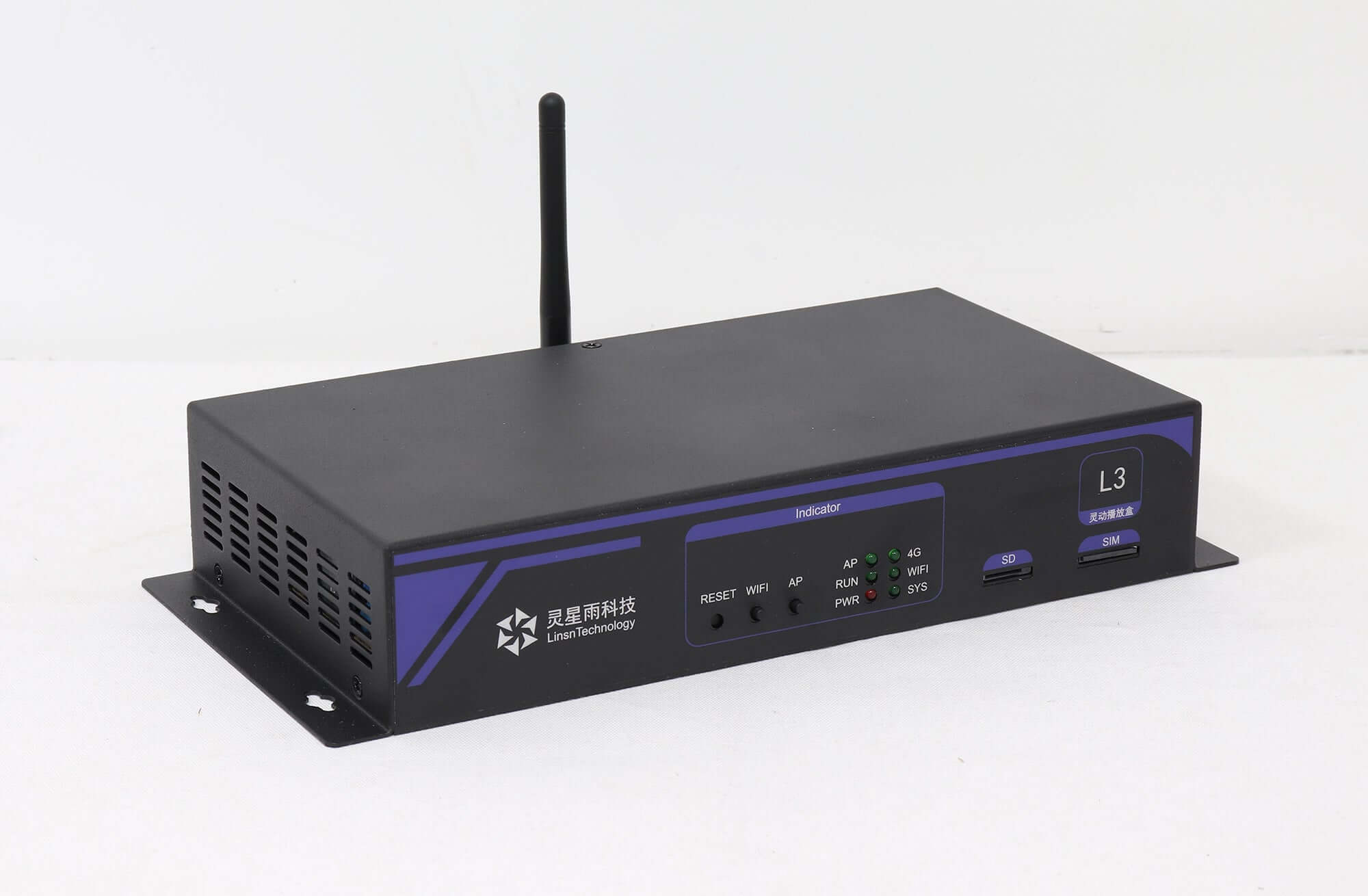

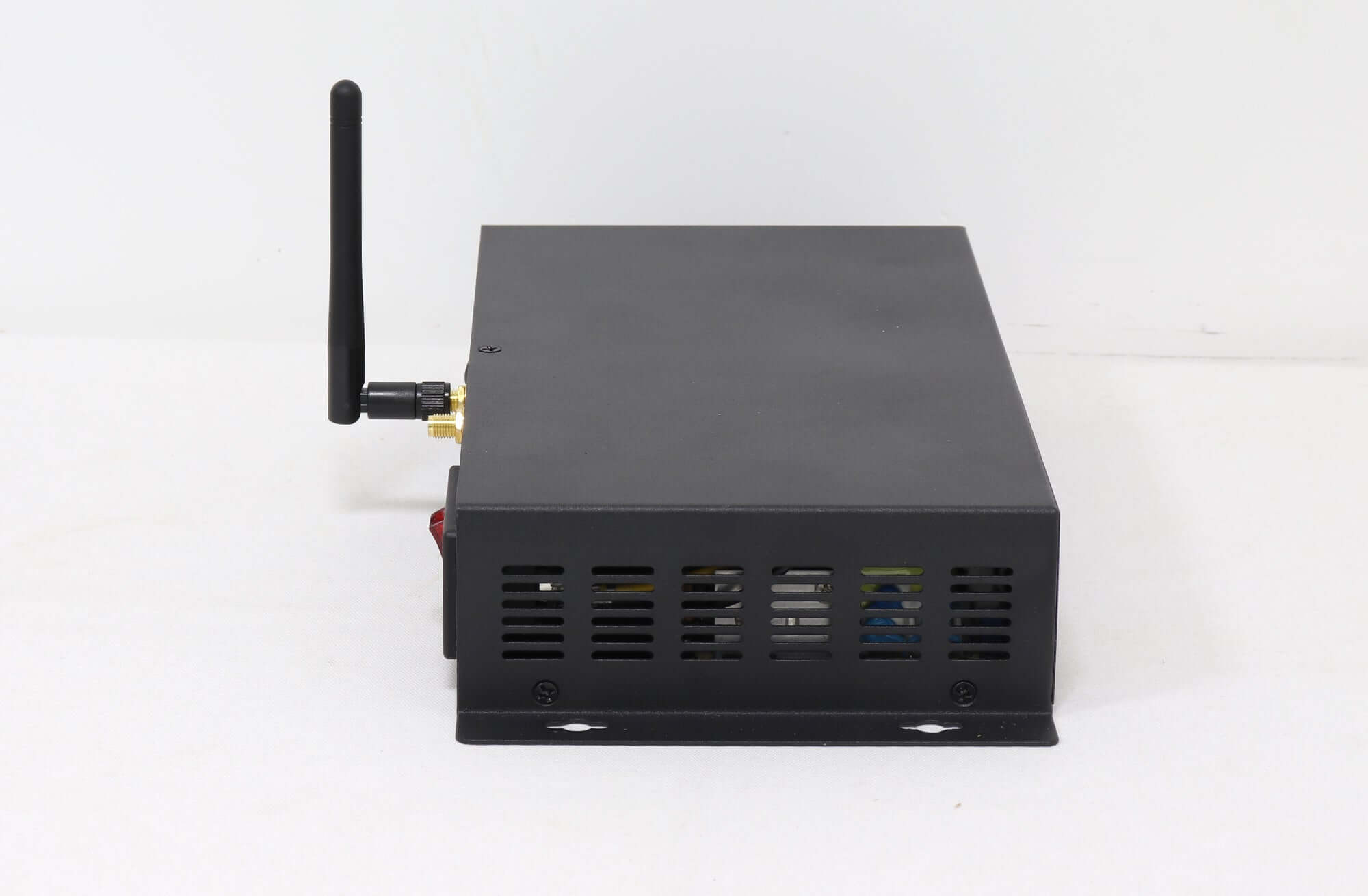

The Linsn L3 is an asynchronous LED screen player for transferring and playing content through USB flash drive, LAN or Wi-Fi, with optional 4G connectivity. It has separate LED OUT and BACK UP network connections, plus brightness and temperature sensor interfaces. The available pixel-capacity statements conflict and should be checked against the intended operating mode.
Product specifications
| Parameter | Specification |
|---|---|
| Model / manual | L3; V2.1, March 2019 |
| Playback | Asynchronous; USB flash-drive playback and LAN program playback |
| Transfer methods | Wi-Fi, Wi-Fi hotspot, Ethernet; optional 4G |

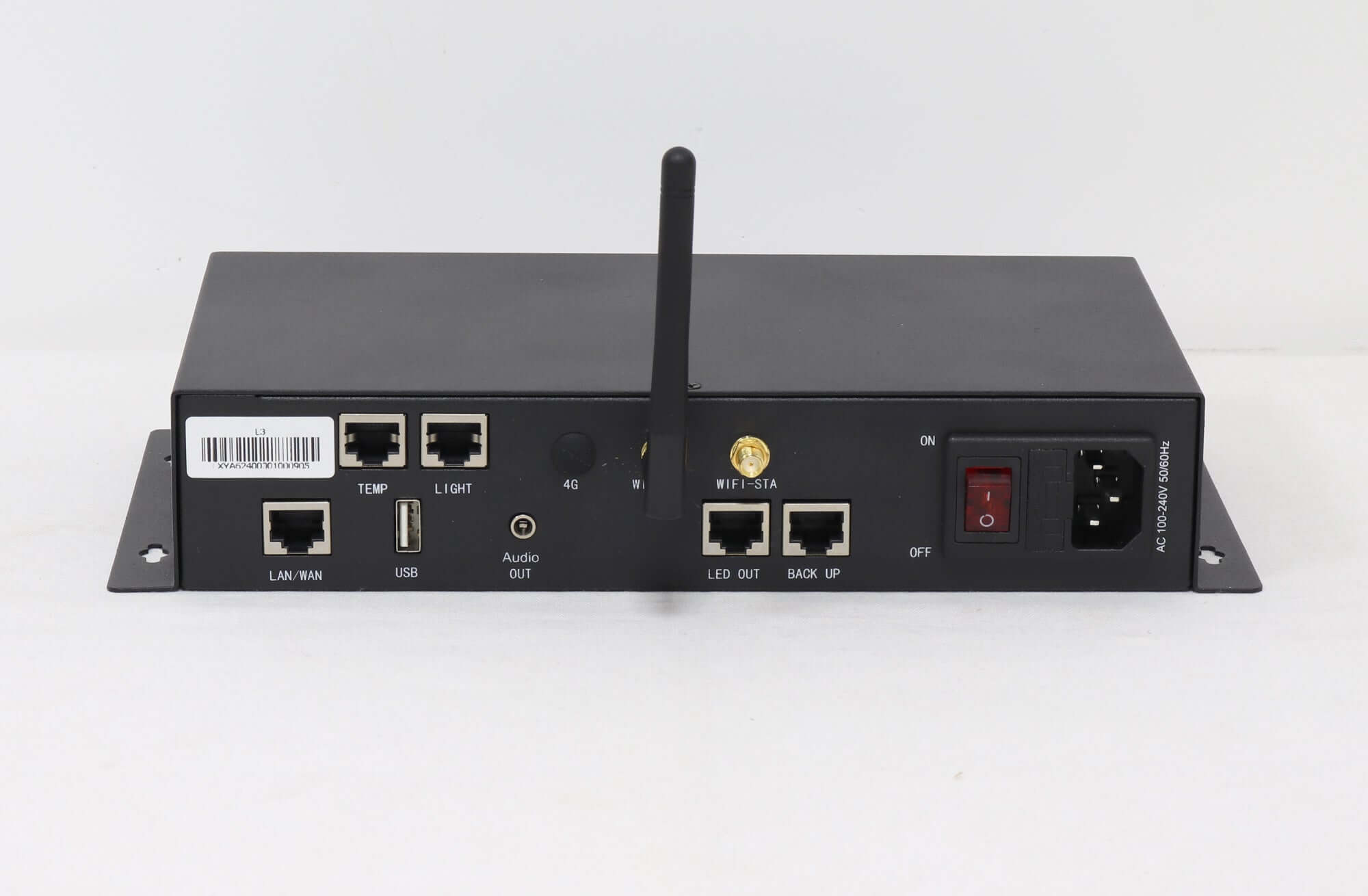

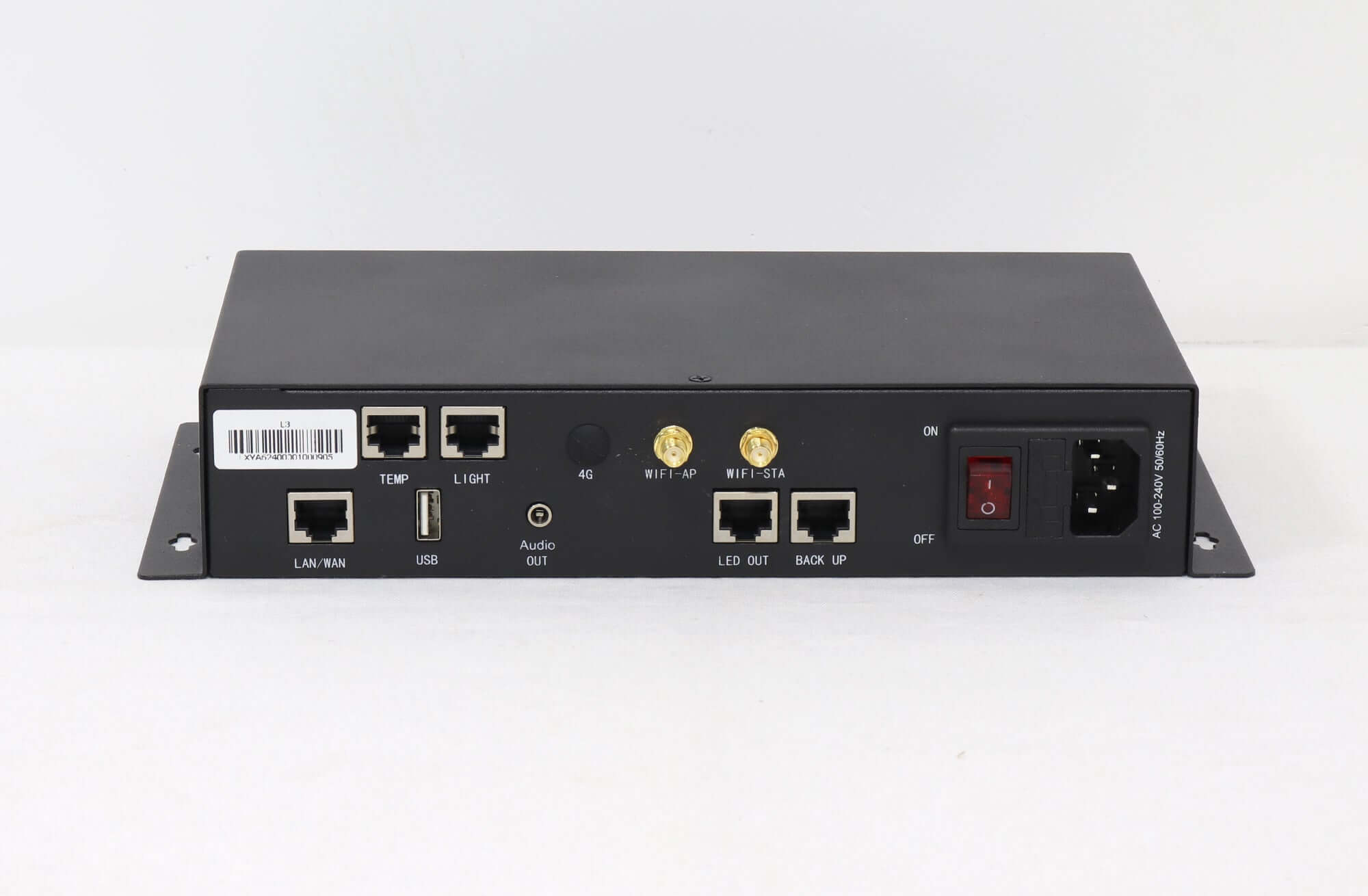

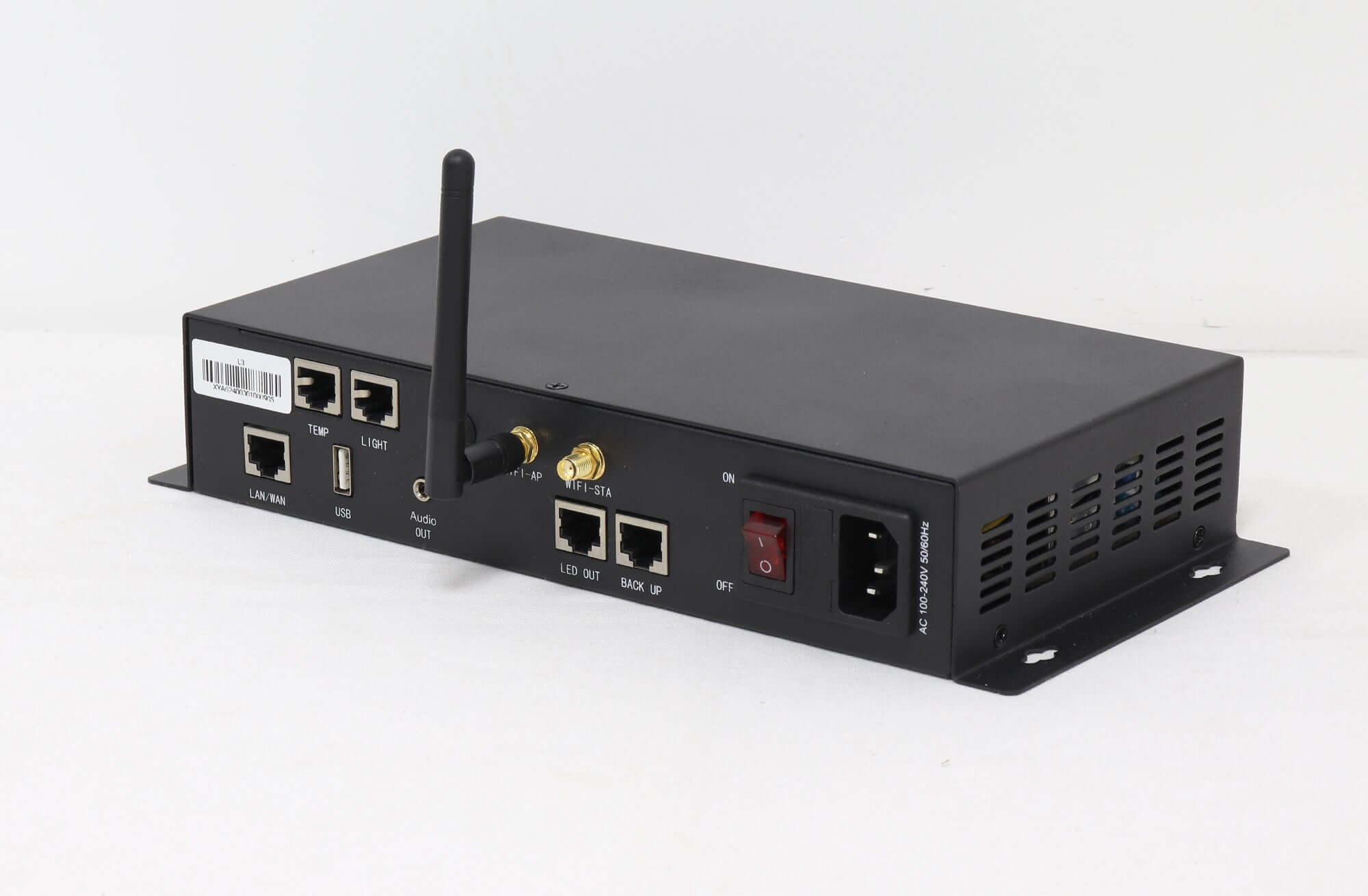

| LED connections | LED OUT and BACK UP |
| Capacity in manual summary and interface table | 650,000 pixels; each LED OUT/BACK UP connection listed at 650,000 |
| Capacity in feature list and original page | Up to 1.3 million pixels; not reconciled with the backup-port description |
| Sensors | Brightness and temperature interfaces |
| Audio | 3.5 mm audio output |
| Media / content types | Videos, images, animations; Word and database content listed |
| Dimensions in original listing | 278.5 × 134 × 50 mm |
| Power consumption | 20 W |
| Operating conditions | −20°C to +75°C; 0–95% humidity |
| Weight | 0.65 kg |
Playback, networking and backup
Use LAN, Wi-Fi or a USB flash drive to transfer or play content as described in the manual. 4G is an option, so confirm the module, antenna and mobile-network requirements for the supplied unit.
Do not add the LED OUT and BACK UP ratings together to assume a larger independent display canvas. The document identifies one connection for display and one for backup, but also lists a different total in its feature section. Confirm supported loading and port mode before ordering.
The original description lists broad media and content categories without codec-level requirements. Test the actual program and media files before deployment. Sensor support identifies connection capability; confirm the required sensors separately.
Frequently asked questions
1. Is Linsn L3 an asynchronous player?
Yes. The specification identifies L3 as an asynchronous player with USB flash-drive and LAN playback, plus Wi-Fi transfer and optional 4G.
2. Does L3 support 650,000 or 1.3 million pixels?
The manual’s summary and LED output descriptions state 650,000 pixels, while its feature list and the original page state 1.3 million. Confirm the unit’s supported port mode and capacity; do not assume the backup connection doubles the display area.
3. Does the L3 include 4G as standard?
The manual identifies 4G as optional. Confirm the supplied module, antenna and applicable network service before planning a cellular installation.
4. What is the L3 BACK UP port used for?
It is listed as a backup connection to the LED screen. The manual rates that port at 650,000 pixels and describes the other network output as the display connection.
