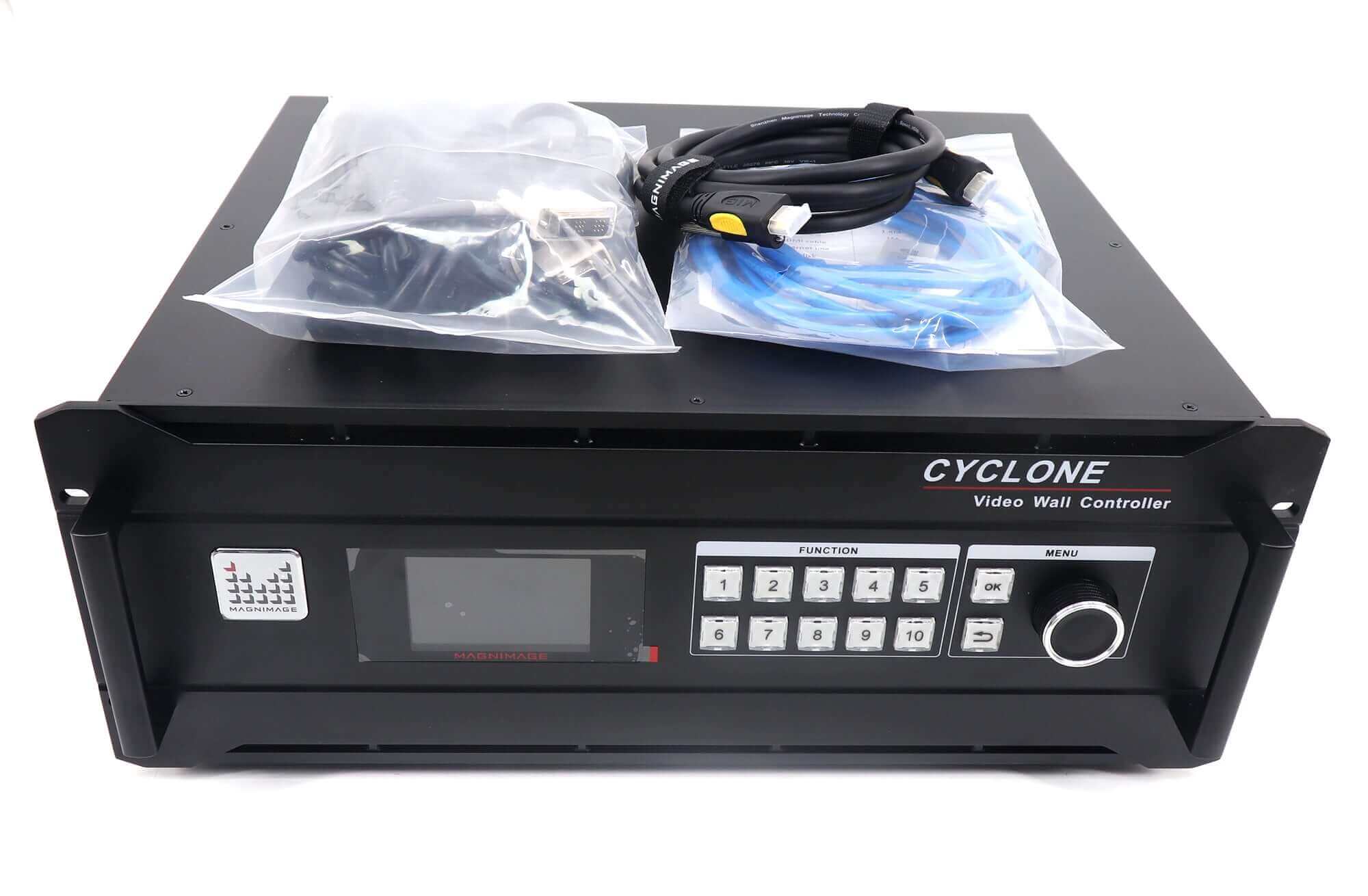

Magnimage MIG-CL9600 Video Wall Controller
$ 4,583.00
Magnimage MIG-CL9600 modular video wall controller for multi-layer screen layouts, custom output resolutions and input/output monitoring. Confirm chassis and board configuration for your project.
10000 in stock
MIG-CL9600 modular video wall control
The Magnimage MIG-CL9600 uses FPGA hardware processing for multi-layer video walls. It supports custom screen layouts, layer positioning and mosaics across displays with different pixel pitches.
Product specifications
| Parameter | Specification |
|---|---|
| Processing | Internal 24-bit RGB; 60 Hz real-time processing |
| Layers | 6 independent layers per output in the listed configuration |
| Multipreview | 9 windows per multipreview output |
| Input formats listed in the brief | 4K × 2K / 8K × 1K at 60 Hz; dependent on input configuration |
| HDCP | 1.4 and 2.2 |
| Output | Customizable resolution; SDI output support depends on installed board |
| Backgrounds | Capture 4 background pictures |
| Backup | Dual power supply backup |
Choose the configuration for your wall

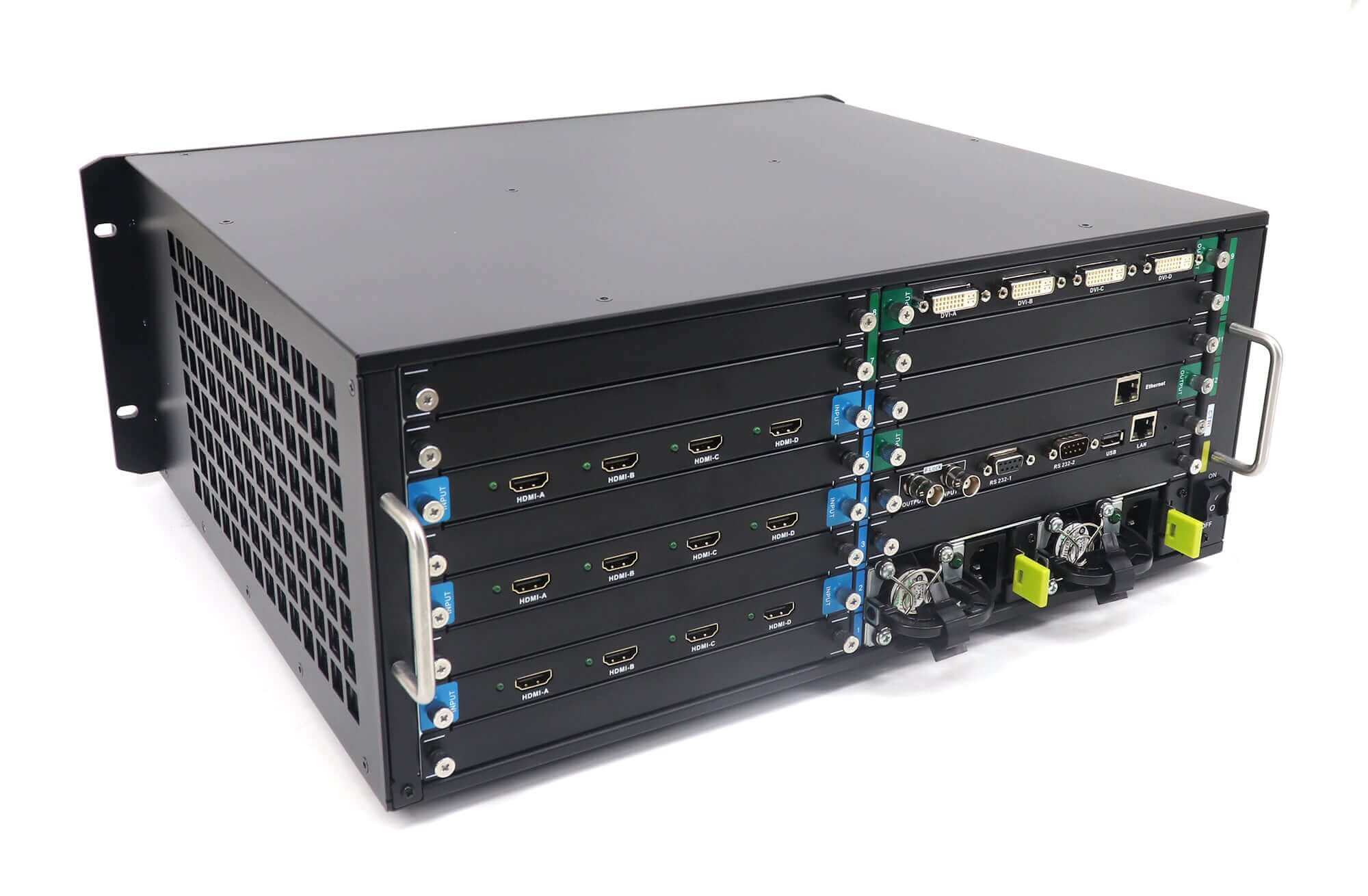

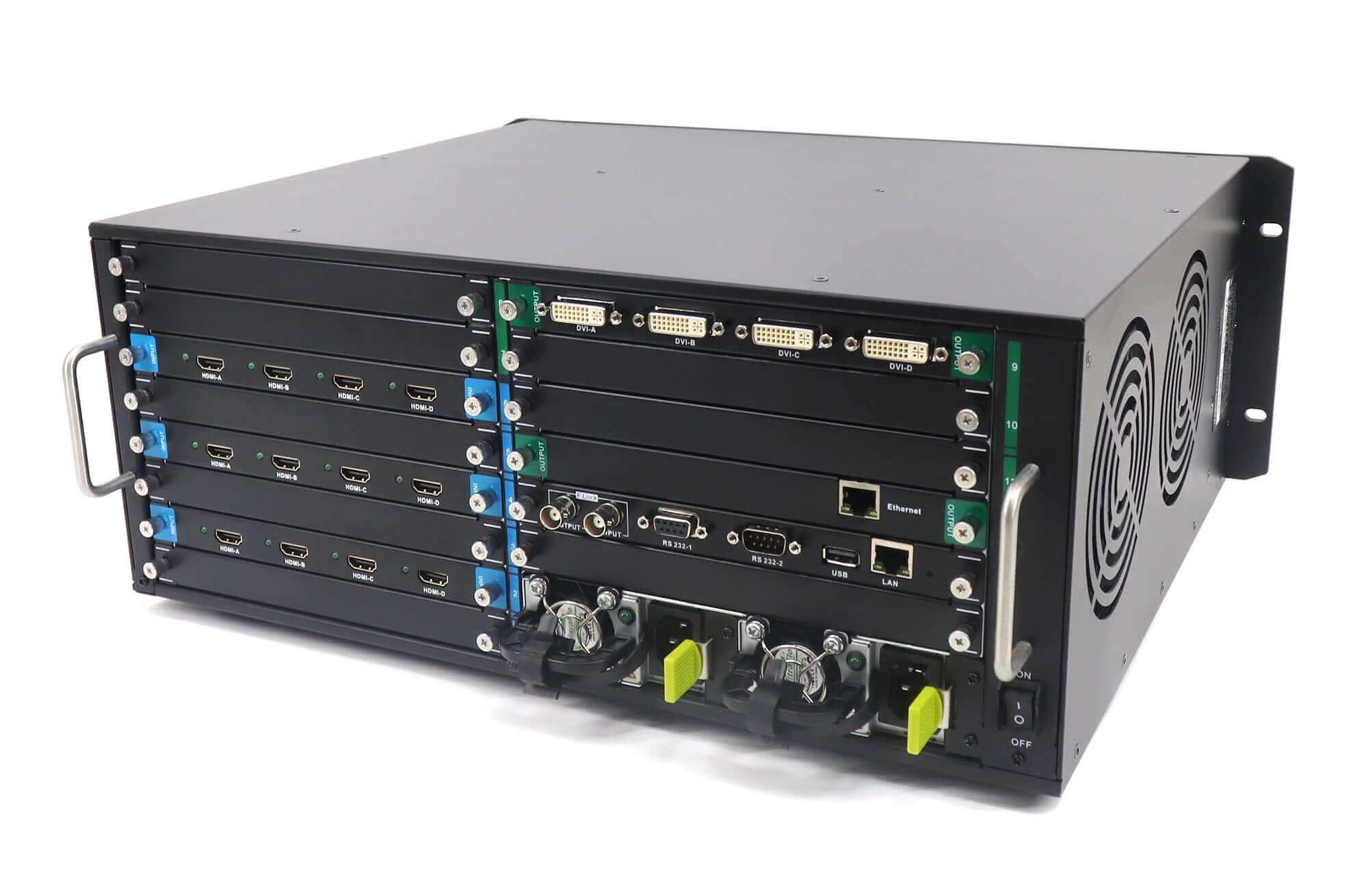

Input and output boards determine connector counts, accepted timings and layer capability. The series brief lists 4K 60 Hz support, while individual board specifications can list lower timings. Confirm the exact chassis, installed boards and required signal format before ordering.
Layer grouping, roaming, seamless switching, fades, captions and labels support presentation layouts. Input/output monitoring and IP monitoring help supervise sources. Edge blending is available for projection mosaics.
Product images and downloads
Magnimage MIG-CL9600 Video LED Processor
Frequently asked questions
1. Are all input connectors included as standard?
No fixed connector count is specified here. Confirm the chassis and input/output board list for the supplied configuration.
2. Are nine preview windows the same as nine program layers?
No. Nine windows refers to multipreview output. The listed program configuration provides six independent layers per output.
3. Can it splice screens with different pixel pitches?
Yes. The series supports mosaics across screens with different pixel pitches and custom output resolutions.
4. Does every input board accept 4K 60 Hz?
Do not assume this from the series name. Verify the installed board and its supported timing against the required source.
| Weight | 11 kg |
|---|
