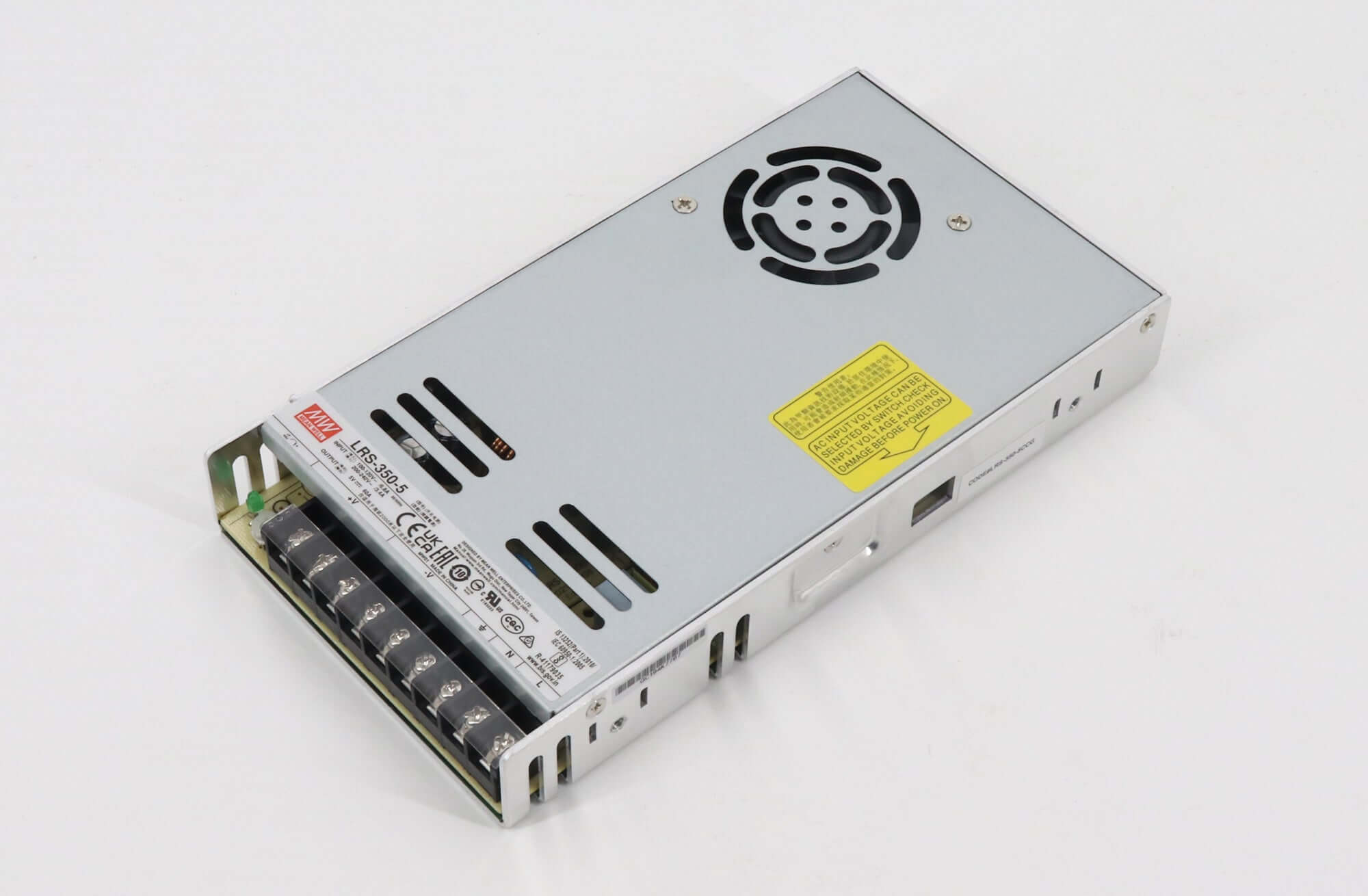

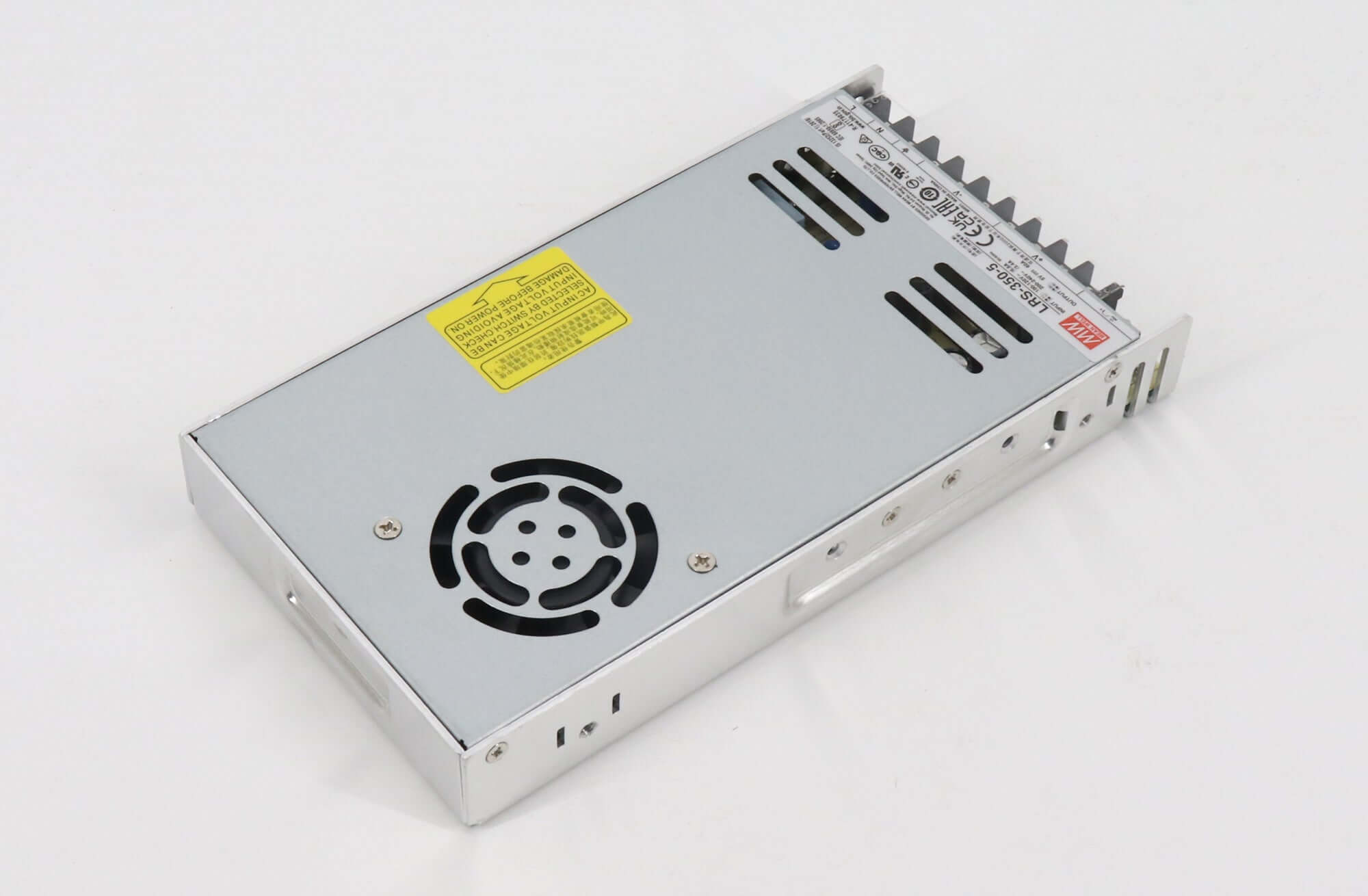

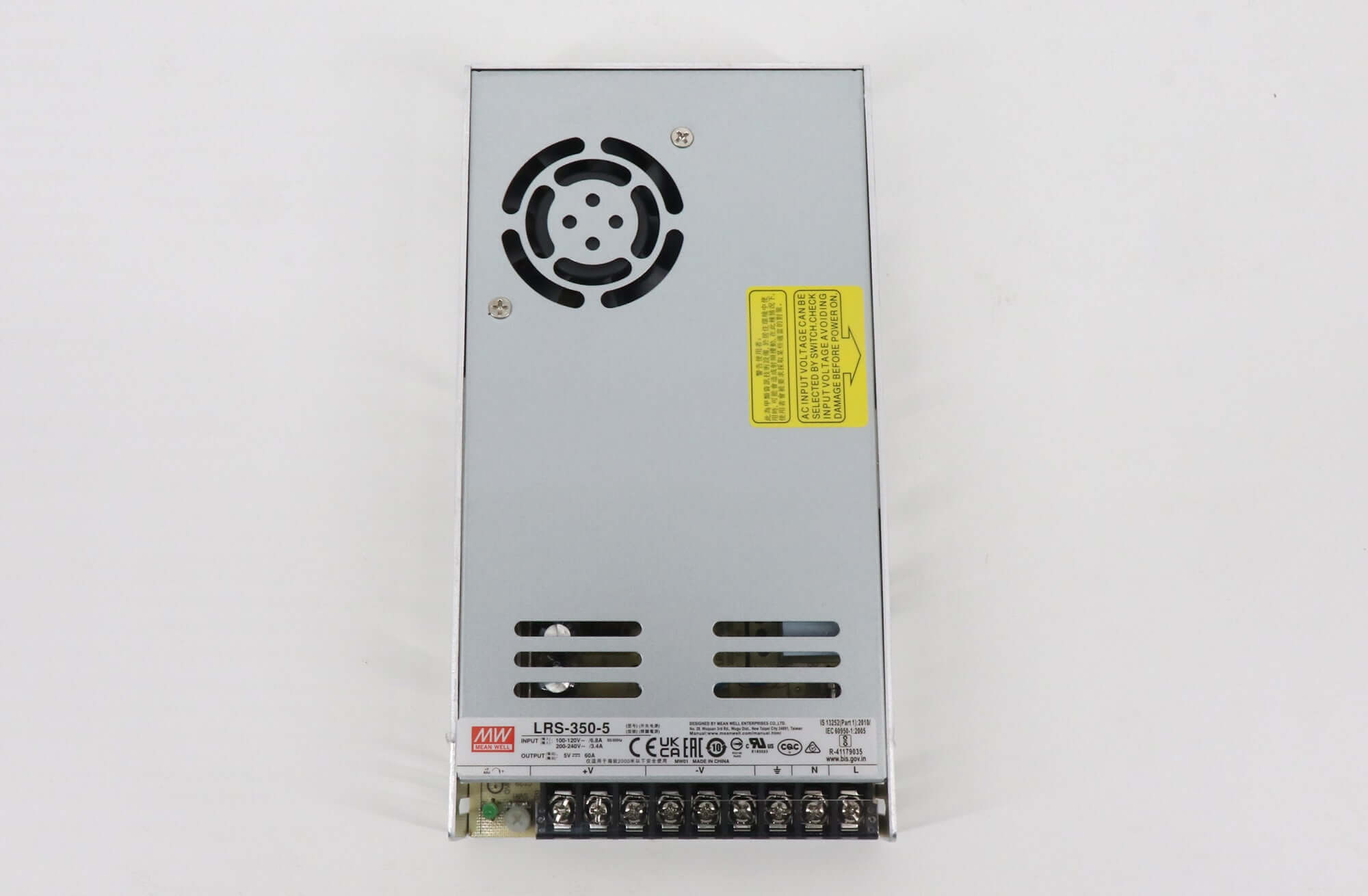

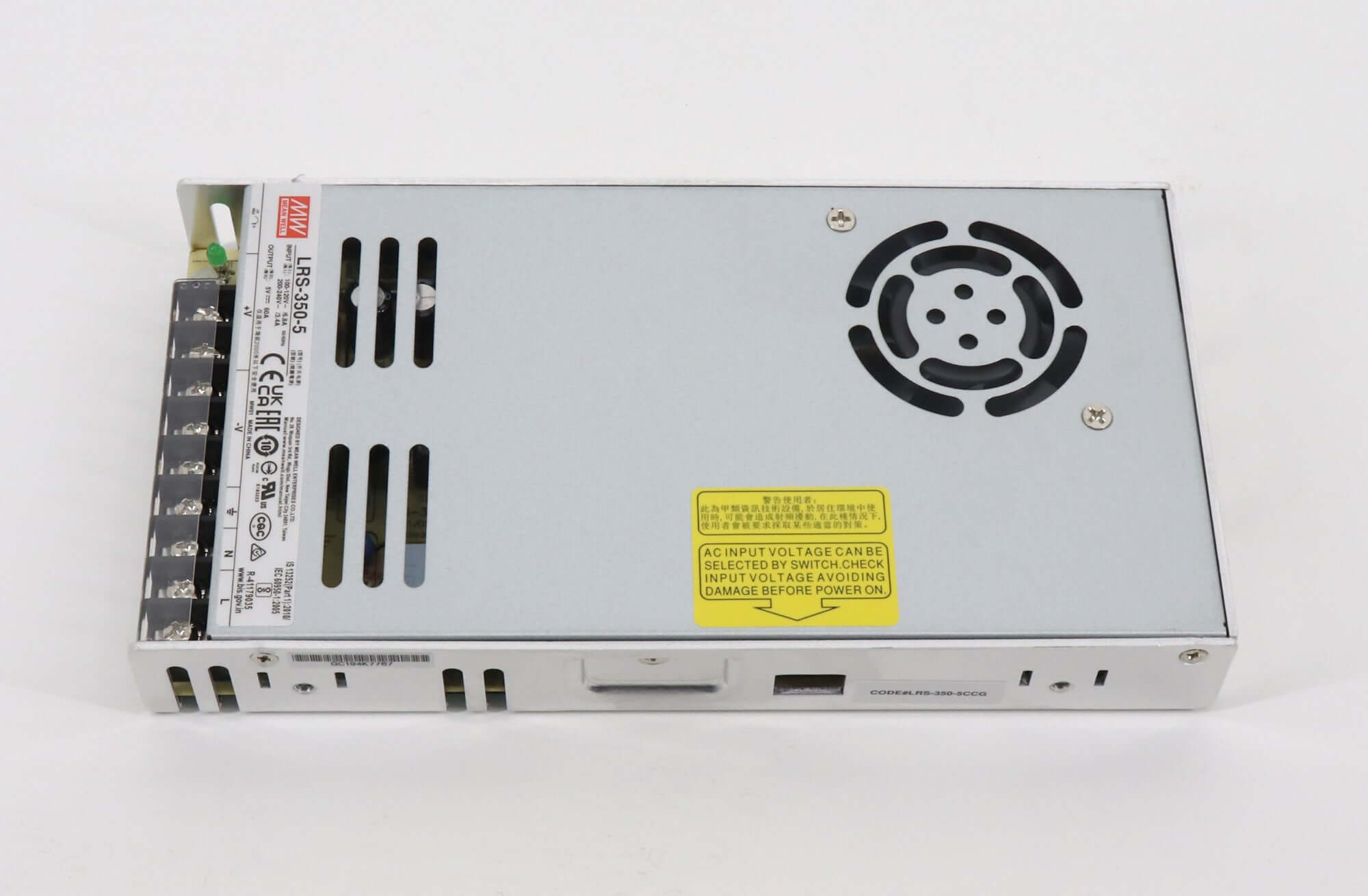

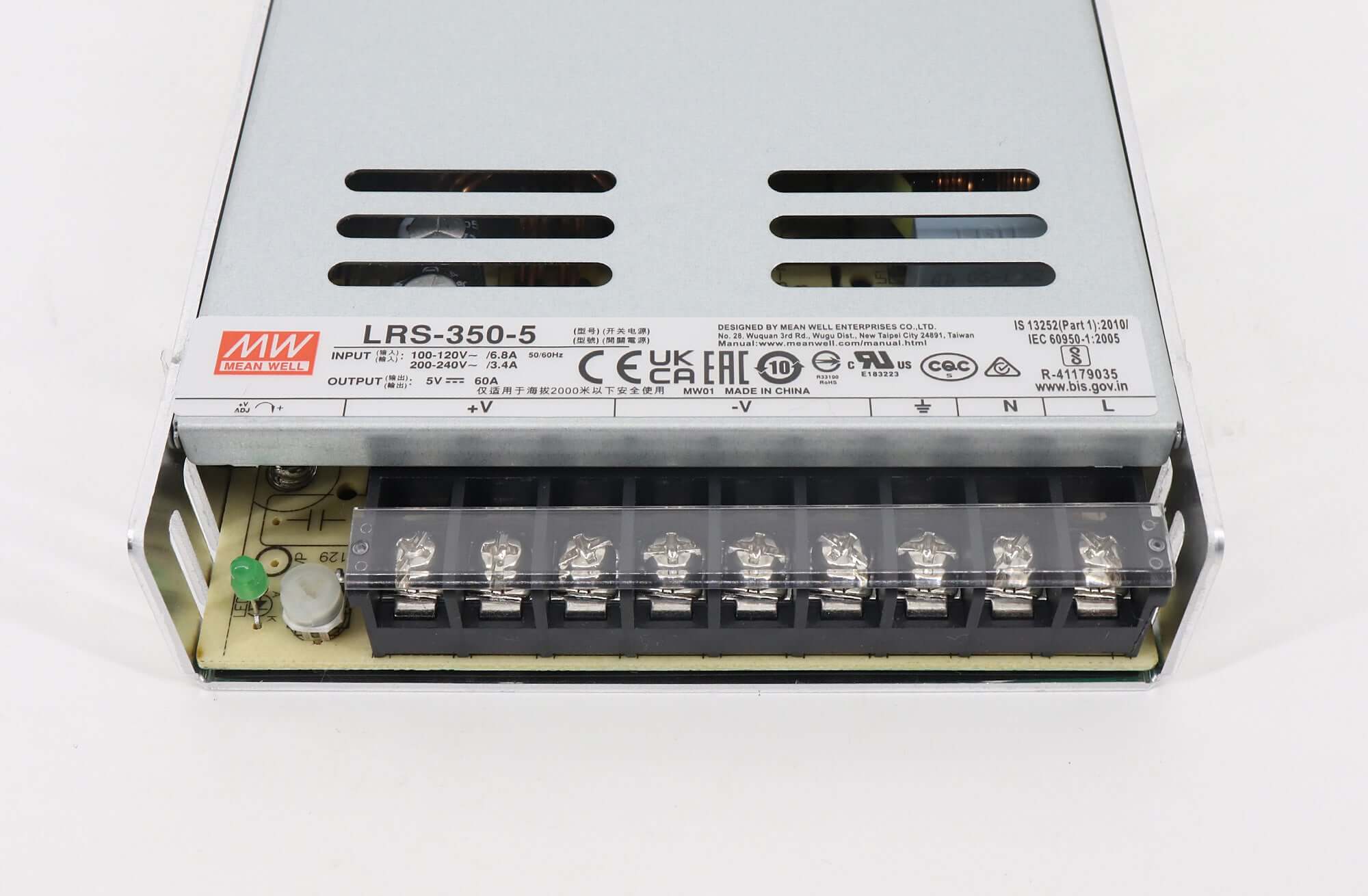

Meanwell LRS-350-5 5V60A 300W LED Power Supply

Meanwell
Meanwell-LRS-350-5
In stock
$24.00
Meanwell LRS-350-5 5V60A 300W LED Power Supply Features:   5V  60A 300W Universal AC input / Full range Built-in active PFC function, PF>0.95 High efficiency up to 90%...

Meanwell LRS-350-5 5V60A 300W LED Power Supply Features:



5V  60A 300W
Universal AC input / Full range
Built-in active PFC function, PF>0.95
High efficiency up to 90%
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC Fan with fan speed control function
1U low profile 30mm
LED indicator for power on
2 years warranty
UL  passed

Case:806 Size:215×115×30mm

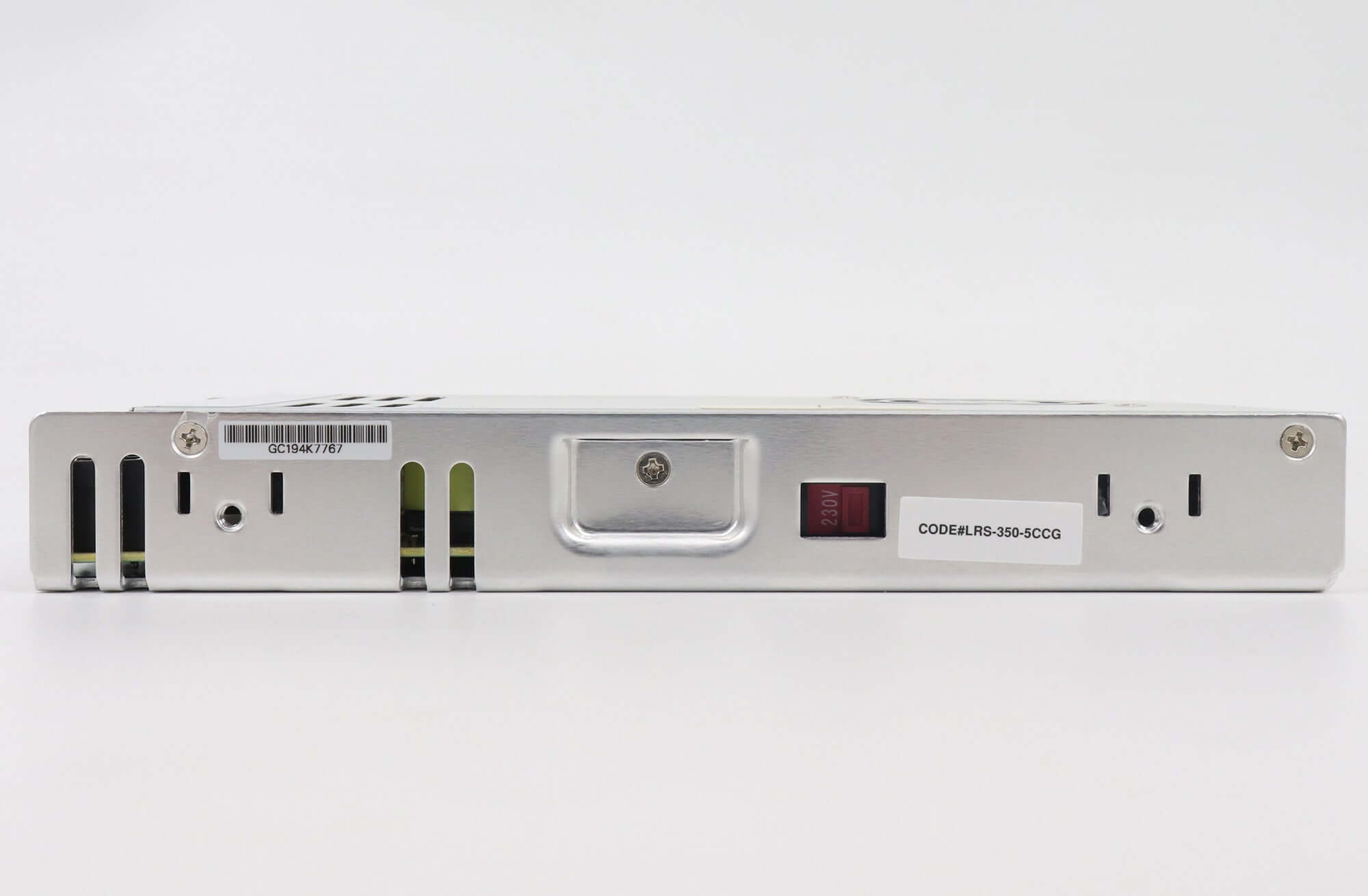

AC input voltage range---------88-132VAC/ 176-264VAC selected by switch
Input frequency---------------------------------47-63Hz
AC inrush current--------------------------------Cold start,40A/230VAC
DC adjustment range-----------------------------±10% rated output voltage
Line regulation(full load)------------------------≤0.5%
Output over load protection-------110%-150% hiccup mode,auto-recovery
Rise,hold up time--------------------50mS,20mS at full load(typical)
Withstand voltage-------I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
Working temperature----- -10~+40℃@100%,+60℃@60% load
Storage temperature----- -20℃~+85℃,20%~95%RH(non condensing)
Safety standards------Design refer to GB4943,UL60950-1,EN60950-1
EMC standards------- Design refer to GB9254,EN55022 class A
Cooling method---------------------Forced air cooing by built-in DC fan
