Colorlight N6 Mini LED Display Receiving Card
$ 11.50
Colorlight N6 is a mini LED receiving card with 8-bit input, pixel-level brightness and chromaticity calibration, rotation and loop redundancy. Confirm the exact board revision and matching specification for replacement.
1419 in stock

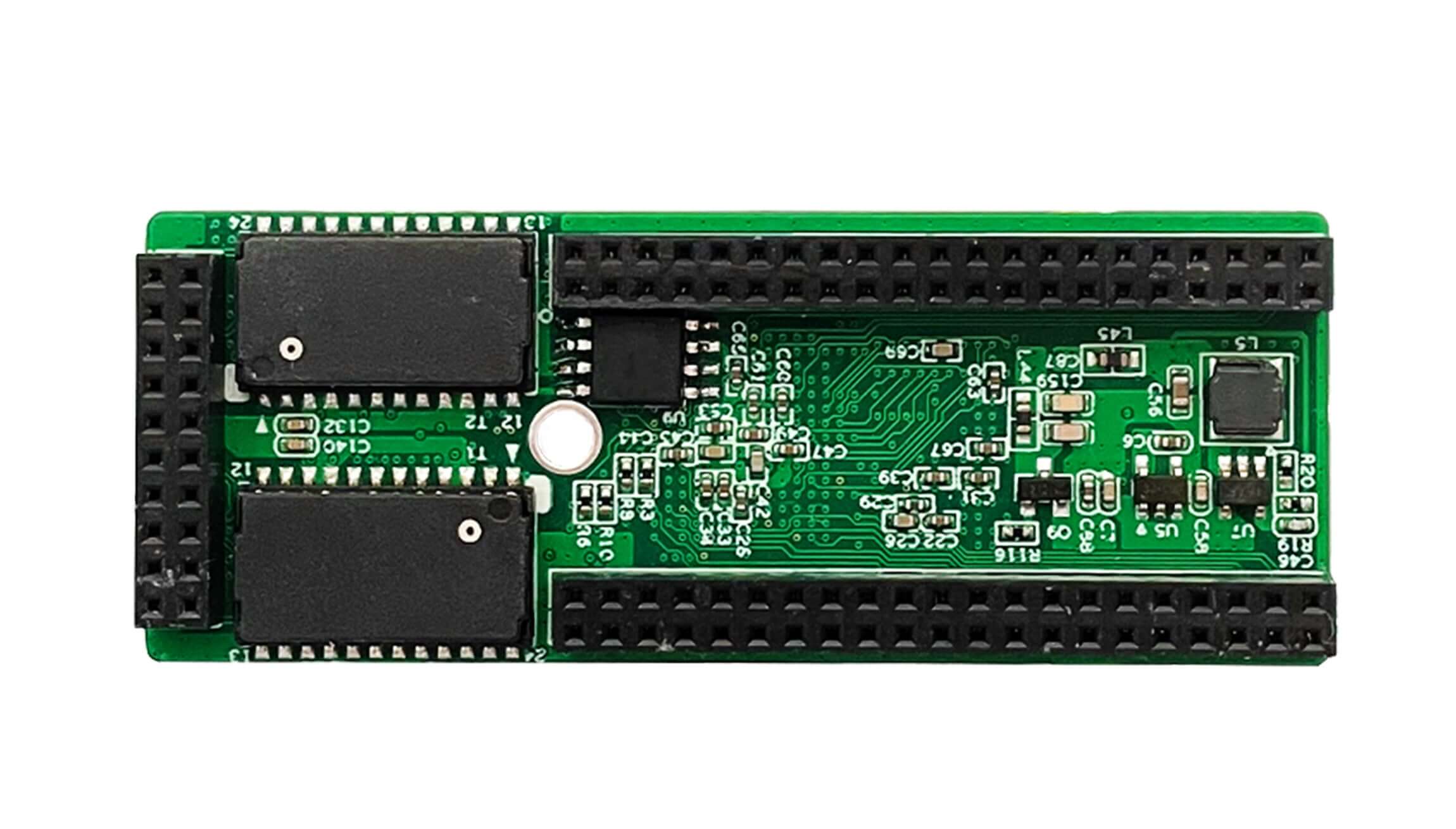

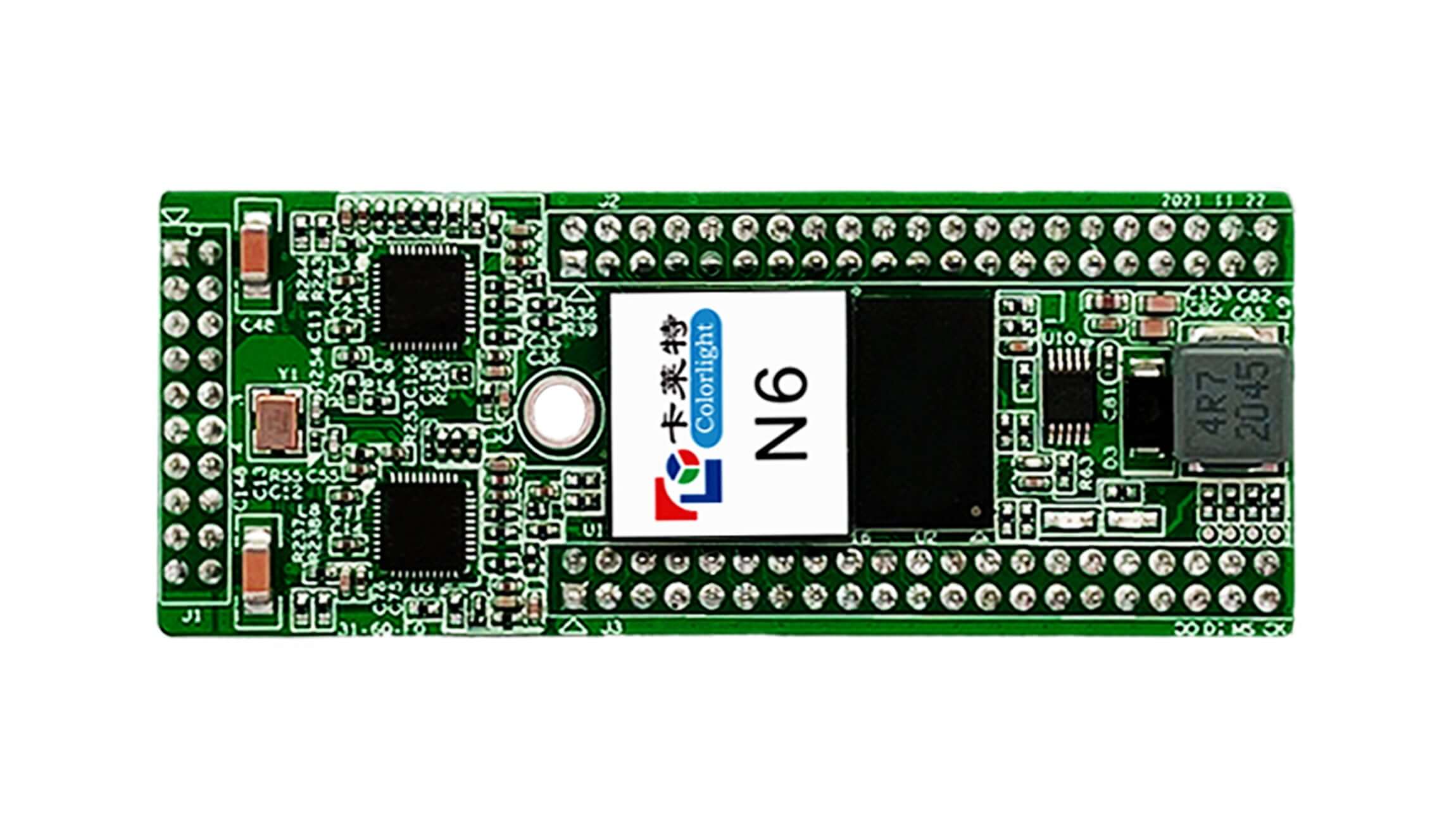

Colorlight N6 mini receiving card
The Colorlight N6 is a compact LED display receiving card with 8-bit video input, pixel-level brightness and chromaticity calibration, and cabinet maintenance functions. It supports color temperature adjustment and grayscale processing at low brightness.
Display setup and maintenance
Image rotation and data-group offset help configure the screen layout. The published feature list includes a test input key, gradual brightening at power-on and a no-signal display state. Firmware upgrades, calibration coefficient delivery and firmware readback support servicing.
Loop redundancy and network cable status monitoring are available for a compatible control system. Match the exact board revision, module driver IC, wiring and stored configuration before using an N6 as a replacement card.
Product parameters
| Parameter | Specification |
|---|---|
| Brand / model | Colorlight N6 |
| Product type | Mini LED display receiving card |
| Video source input | 8-bit |
| Listed frame rates | 30, 50, 60, 100 and 120 Hz |
| Calibration | Pixel-level brightness and chromaticity |
| Display adjustment | Color temperature; low-brightness grayscale |
| Configuration tools | Image rotation, data-group offset and test input key |
| Maintenance | Firmware upgrade, calibration coefficient delivery and firmware readback |
| Reliability functions | Loop redundancy and network cable status monitoring |
| Loading, power and dimensions | Confirm the specification matching the actual hardware revision |
Download status: The original specification link below currently returns a not-found response. It is retained for reference. Request the current N6 document matching the board revision before installation; this page does not supply unverified loading, voltage or dimensional values.
Frequently asked questions
What video input depth does Colorlight N6 support?
The existing product feature list specifies 8-bit video source input.
Does N6 support brightness and color calibration?
Yes. Pixel-level brightness and chromaticity calibration are listed, along with color temperature adjustment and low-brightness grayscale processing.
Which frame rates are listed for the N6?
The page lists 30, 50, 60, 100 and 120 Hz. Confirm the usable loading and module configuration at the required rate for the actual hardware revision.
What should I check before replacing an N6 card?
Check the N6 hardware revision, cabinet interface, driver IC, scan mapping, supply requirements and saved configuration. Do not select a replacement solely by the model name or board appearance.
Where can I download the N6 specification?
The original download link is retained below, but it currently returns a not-found response. Request a working specification for the exact board revision before relying on electrical or loading values.
Download Specification:
| Weight | 0.2 kg |
|---|
