NovaStar CVT4K-M Multi-Mode LED Fiber Converter
Original price was: $ 2,030.00.$ 1,750.00Current price is: $ 1,750.00.
NovaStar CVT4K-M multi-mode fiber converter with 16 Neutrik Gigabit Ethernet ports, four LC optical ports and dual-power redundancy. Supports a specified 300 m optical link at 850 nm.
1888 in stock
NovaStar CVT4K-M multi-mode fiber converter
The CVT4K-M connects optical fiber and twisted-pair Ethernet cabling in an LED display signal path. It provides 16 Neutrik Gigabit Ethernet ports and four LC optical ports, with two primary optical channels and two backups. Its specified multi-mode transmission distance is 300 m.
Specifications
| Product type | Gigabit Ethernet / fiber converter |
|---|---|
| Ethernet connections | 16 × Neutrik RJ45 Gigabit Ethernet inputs/outputs |
| Optical connections | 4 × multi-mode twin-core LC; 2 primary and 2 backup |
| Wavelength / distance | 850 nm / 300 m |
| Fiber | OM3/OM4, 50/125 μm, twin-core, LC |
| Control | USB and Ethernet (TCP/IP) |

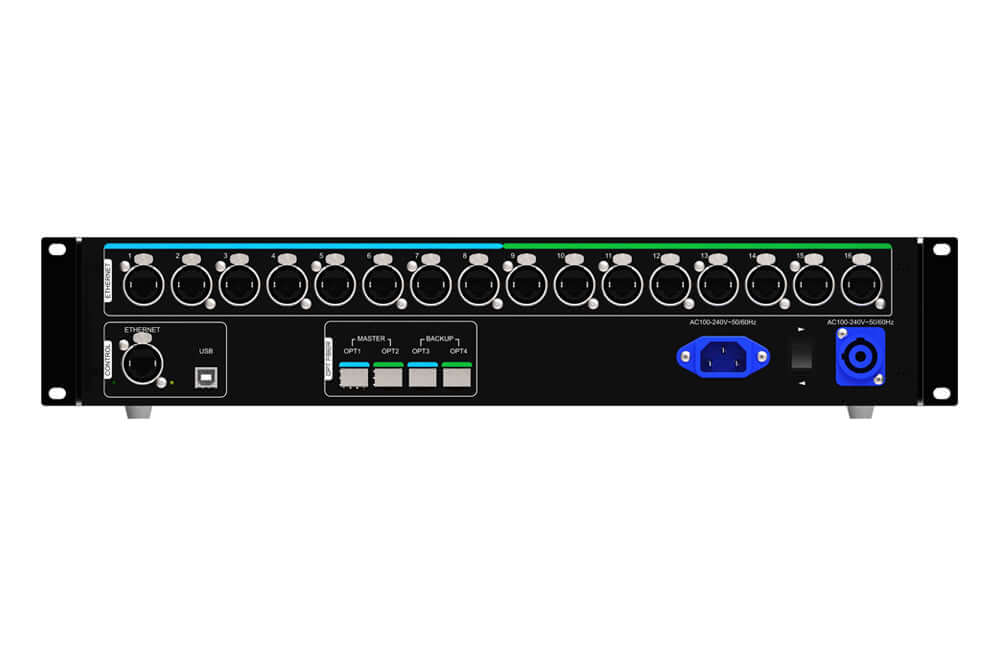

| Power input | AC 100–240 V, 50/60 Hz; 3-pin socket and PowerCON |
| Power redundancy | Two internal power supplies for redundant backup |
| Listed certifications | CE, FCC, UL & cUL, EAC, CB, IC |
Optical channel mapping

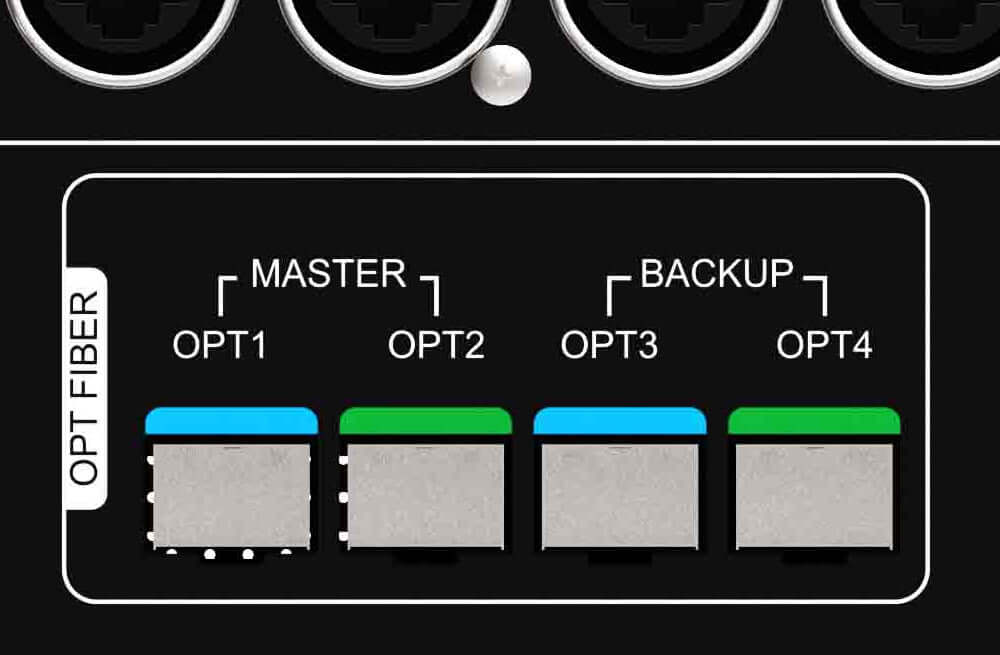

OPT1 serves Ethernet ports 1–8; OPT2 serves ports 9–16. OPT3 backs up OPT1, and OPT4 backs up OPT2. The backup connections duplicate the corresponding signal paths; they do not create additional Ethernet port groups.

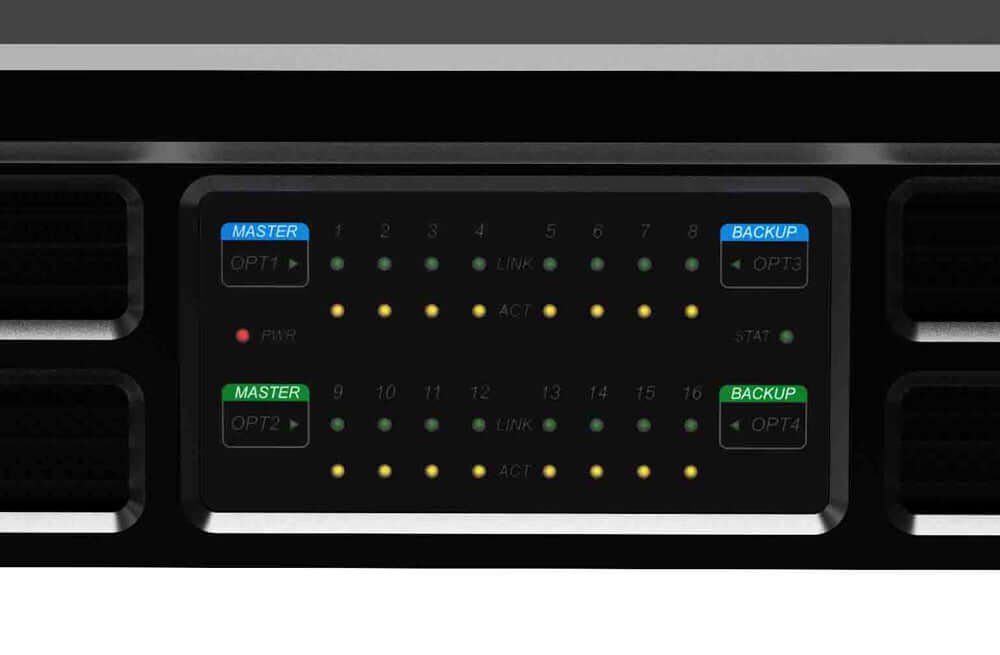

Front-panel indicators show power, device status and link activity. USB and Ethernet control connections provide access from a control computer. Confirm the fiber type, connectors and controller compatibility before ordering.
Frequently asked questions
What does the NovaStar CVT4K-M do?
It converts signals between optical fiber and Gigabit Ethernet cabling for an LED display system. It is used in the signal transmission path.
Which fiber cable does CVT4K-M require?
The linked specification lists OM3/OM4 multi-mode twin-core fiber, 50/125 μm, with LC connectors. Its optical wavelength is 850 nm and its specified transmission distance is 300 m.
Are all four optical ports separate primary channels?
No. OPT1 and OPT2 are the primary channels, and OPT3 and OPT4 are their respective backups.
How are the 16 Ethernet ports divided between optical channels?
Ports 1–8 correspond to OPT1 and its backup OPT3. Ports 9–16 correspond to OPT2 and its backup OPT4.
Does CVT4K-M have redundant power?
Yes. It has internal dual-power redundancy and offers a 3-pin power socket and a PowerCON connection. The specified supply is AC 100–240 V at 50/60 Hz.

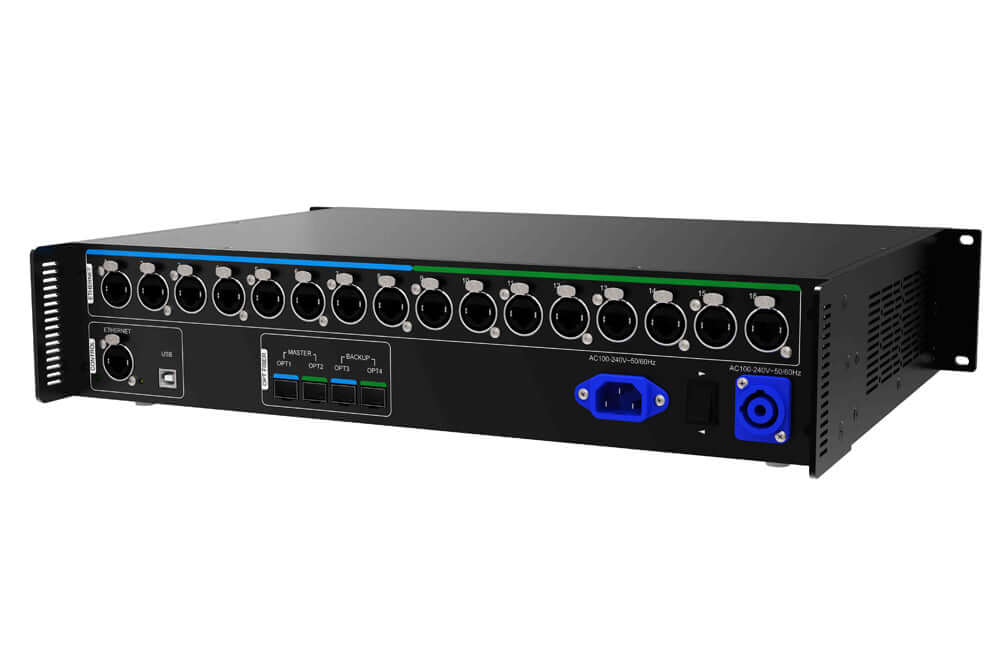

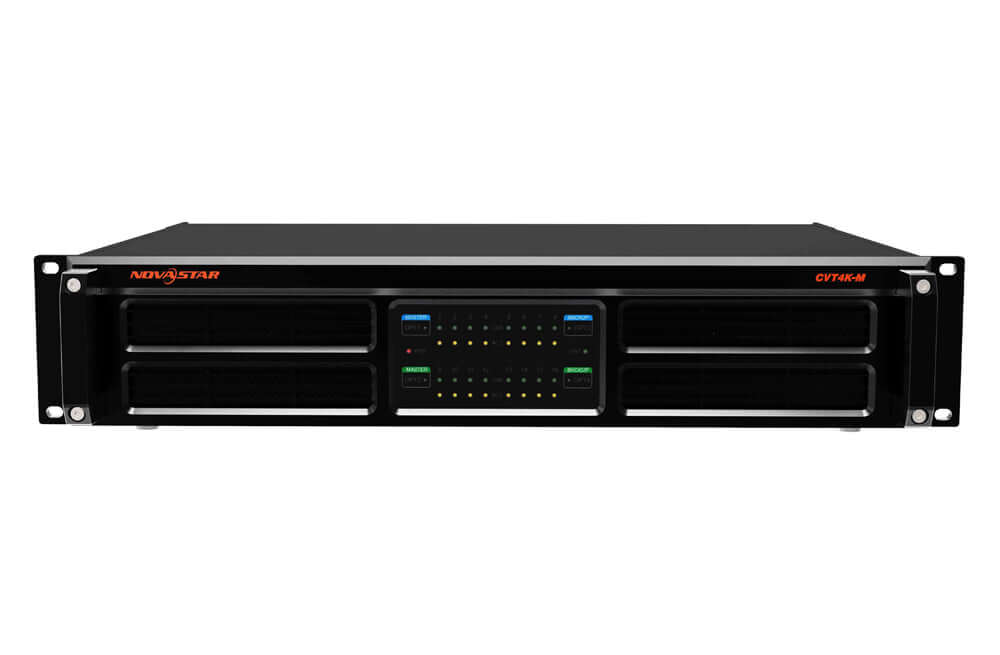

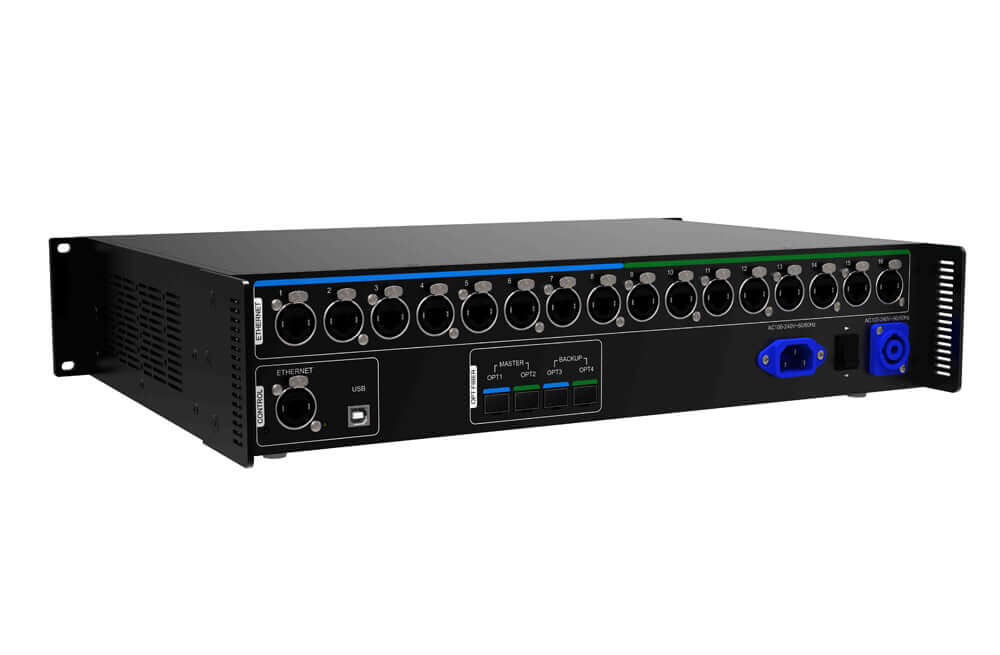

Product images
Specification download
| Weight | 12.5 kg |
|---|
