NovaStar MCTRL300 LED Sending Box Controller
$ 145.00
MCTRL300 LED sending box with DVI video input, USB control, audio input, two Ethernet outputs and a light-sensor interface. Review listed resolutions and the specification PDF.
9993 in stock

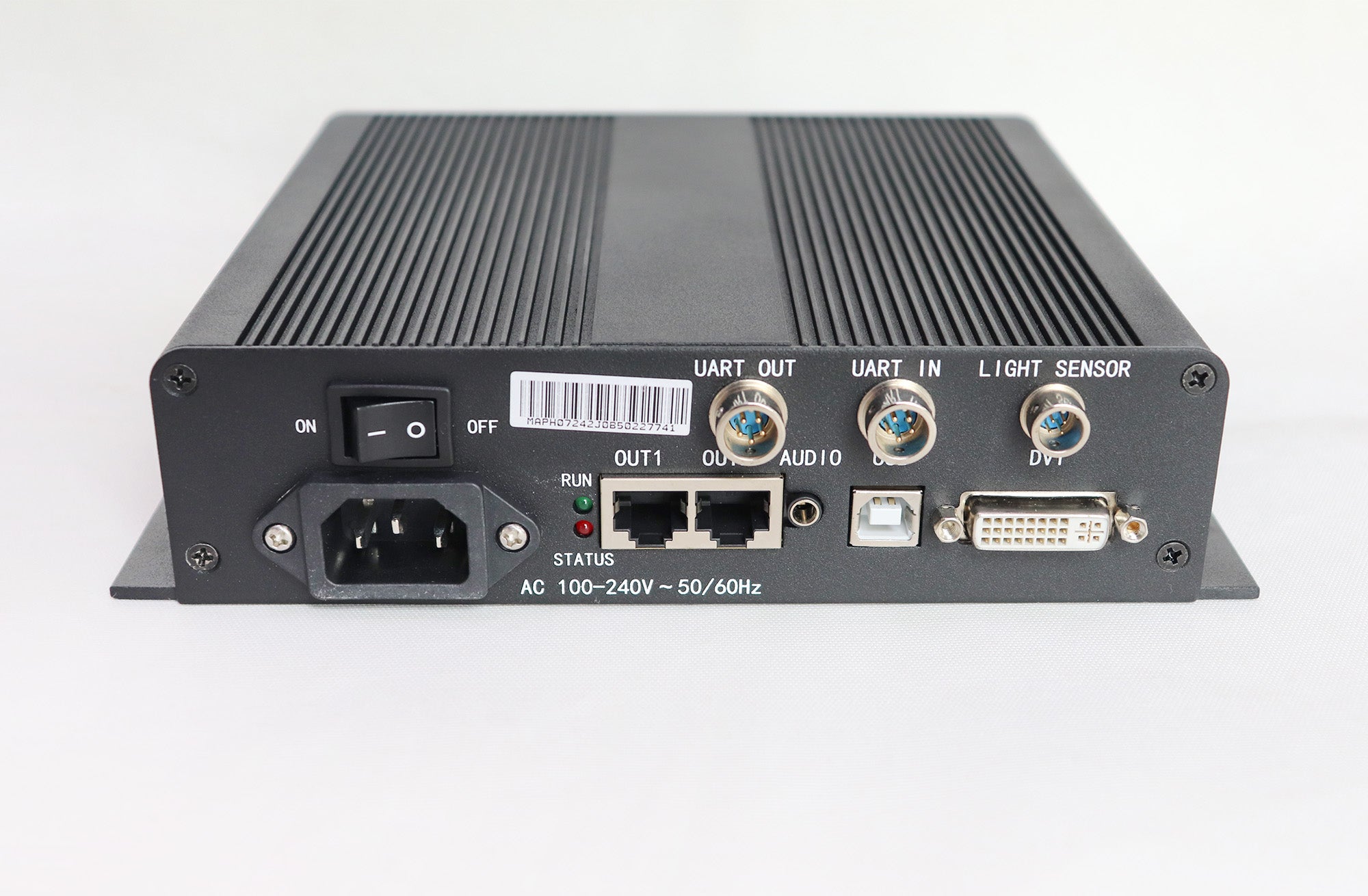

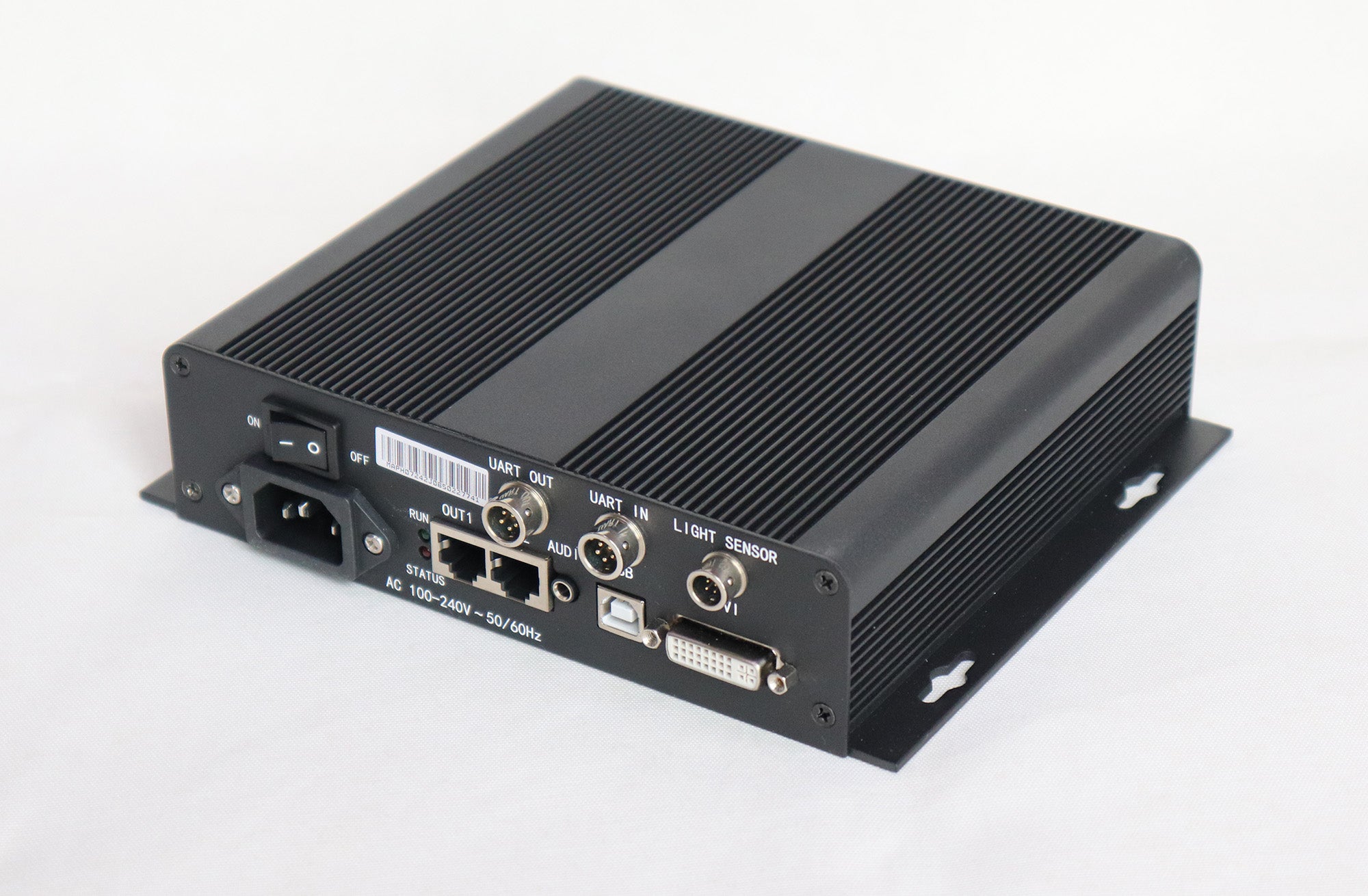

The NovaStar MCTRL300 LED sending box uses a DVI video input and USB computer control to send display data to LED receiving cards. It includes an audio input, two Ethernet outputs and a light-sensor interface.
MCTRL300 connections and listed resolutions
| Item | Specification |
|---|---|
| Video input | 1 × DVI |
| Computer control | USB interface |
| Audio input | Integrated |
| LED data outputs | 2 Ethernet ports |
| Light-sensor interface | 1 |
| Resolutions in the original listing | 1024 × 1200; 1280 × 1024; 1600 × 848; 1920 × 712; 2048 × 640 |
| Resolution discrepancy to confirm | The original listing says 2048 × 640; NovaStar’s controller specification lists 2048 × 668. |
Before configuring the LED screen
Match the DVI source timing, screen dimensions and receiving-card configuration to the controller. The five resolutions above preserve the original page information; the difference between 2048 × 640 and 2048 × 668 should be checked against the supplied device and specification version before a screen layout is finalized.
The USB connection is for control communication, while DVI carries the video source. Plan the audio and light-sensor connections separately using the interface definitions in the specification.

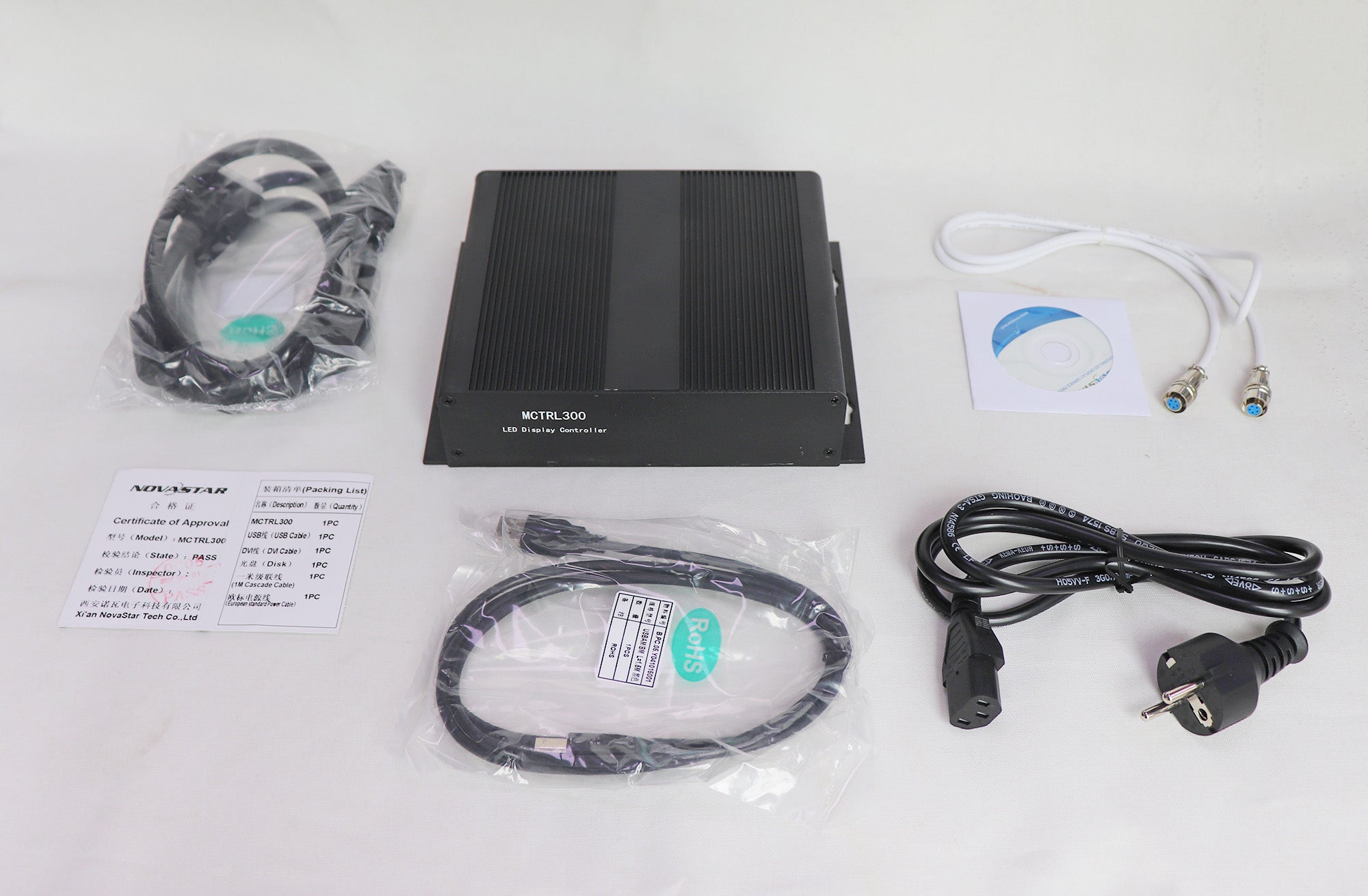

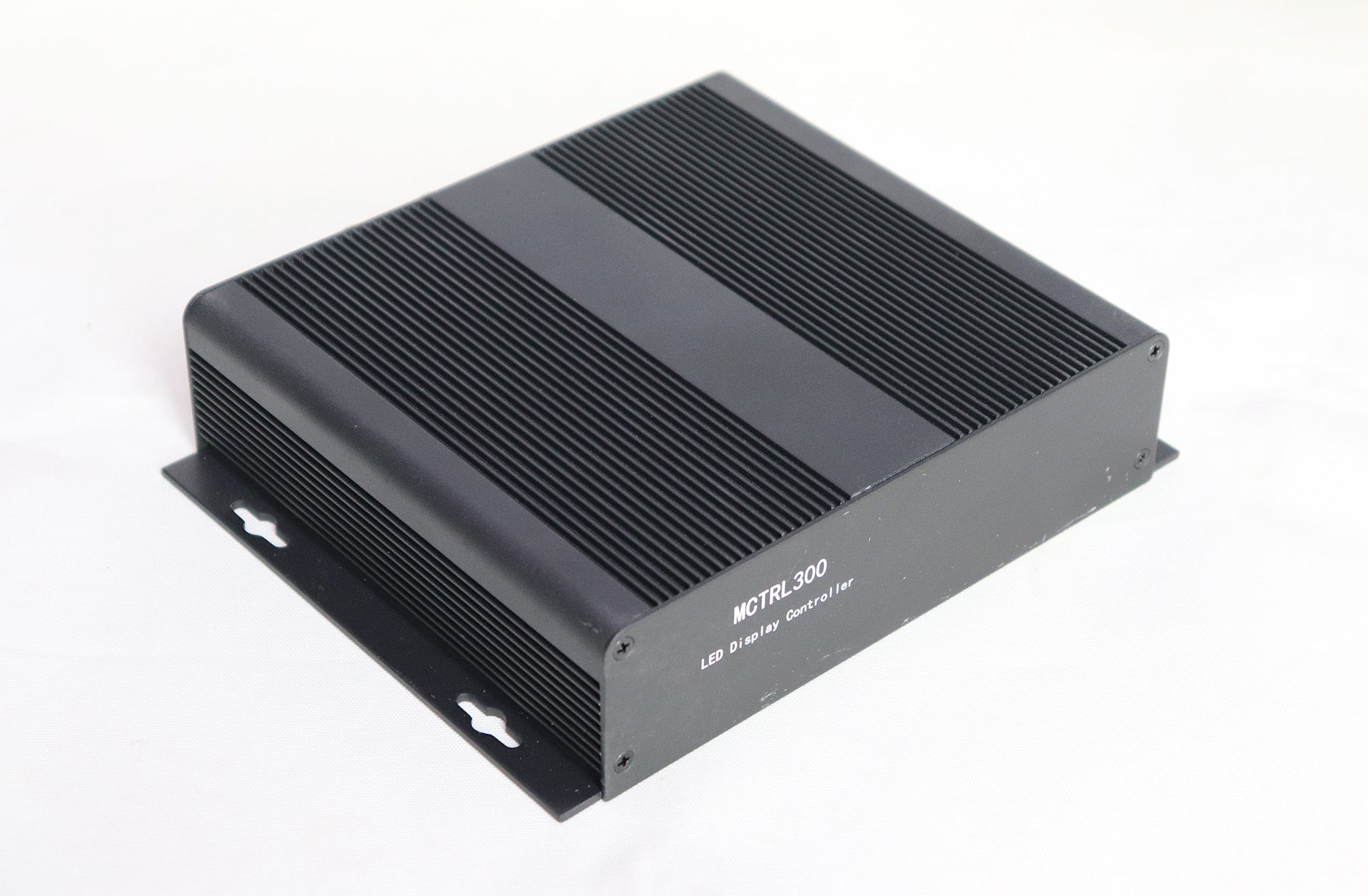

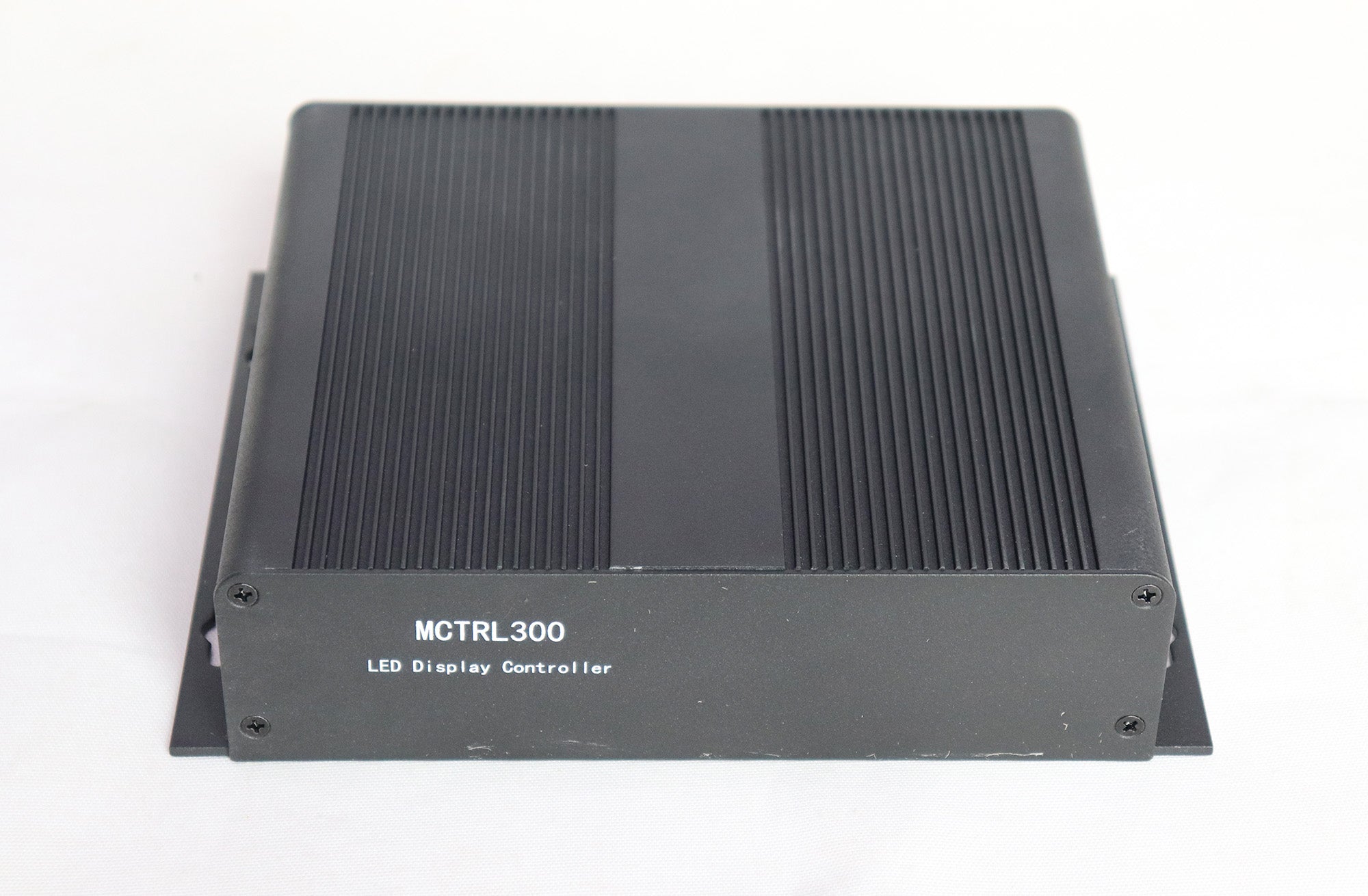

Product images
Specification download
Download the MCTRL300 V2.3.1 specification PDF
MCTRL300 FAQ
Does the MCTRL300 have an HDMI input?
The video connector listed for MCTRL300 is DVI. If your source uses a different connector, confirm the signal format and connection method before ordering.
Is USB used to send the video image?
No. USB provides control communication with the computer; the listed video-source connection is DVI.
How many Ethernet outputs does the MCTRL300 have?
It has two Ethernet outputs for connecting the LED receiving-card system.
Does MCTRL300 support a 2048-pixel-wide screen?
The original page lists 2048 × 640, while NovaStar’s controller specification lists 2048 × 668. Confirm the applicable timing and specification version for the complete screen dimensions rather than using width alone.
Can I connect a light sensor to MCTRL300?
Yes. One light-sensor interface is provided. Check the sensor and wiring requirements for your controller version before installation.
