NovaStar TCC70 LED Sign Multimedia Player
$ 87.00
NovaStar TCC70 combines media playback, sending and receiving for LED signs up to 512 × 384 pixels. Features include 8 HUB75E connectors, USB playback, Wi-Fi AP, GPS and CAT1 4G. The referenced 4G configuration is limited to China and India; confirm the destination network before ordering.
9993 in stock

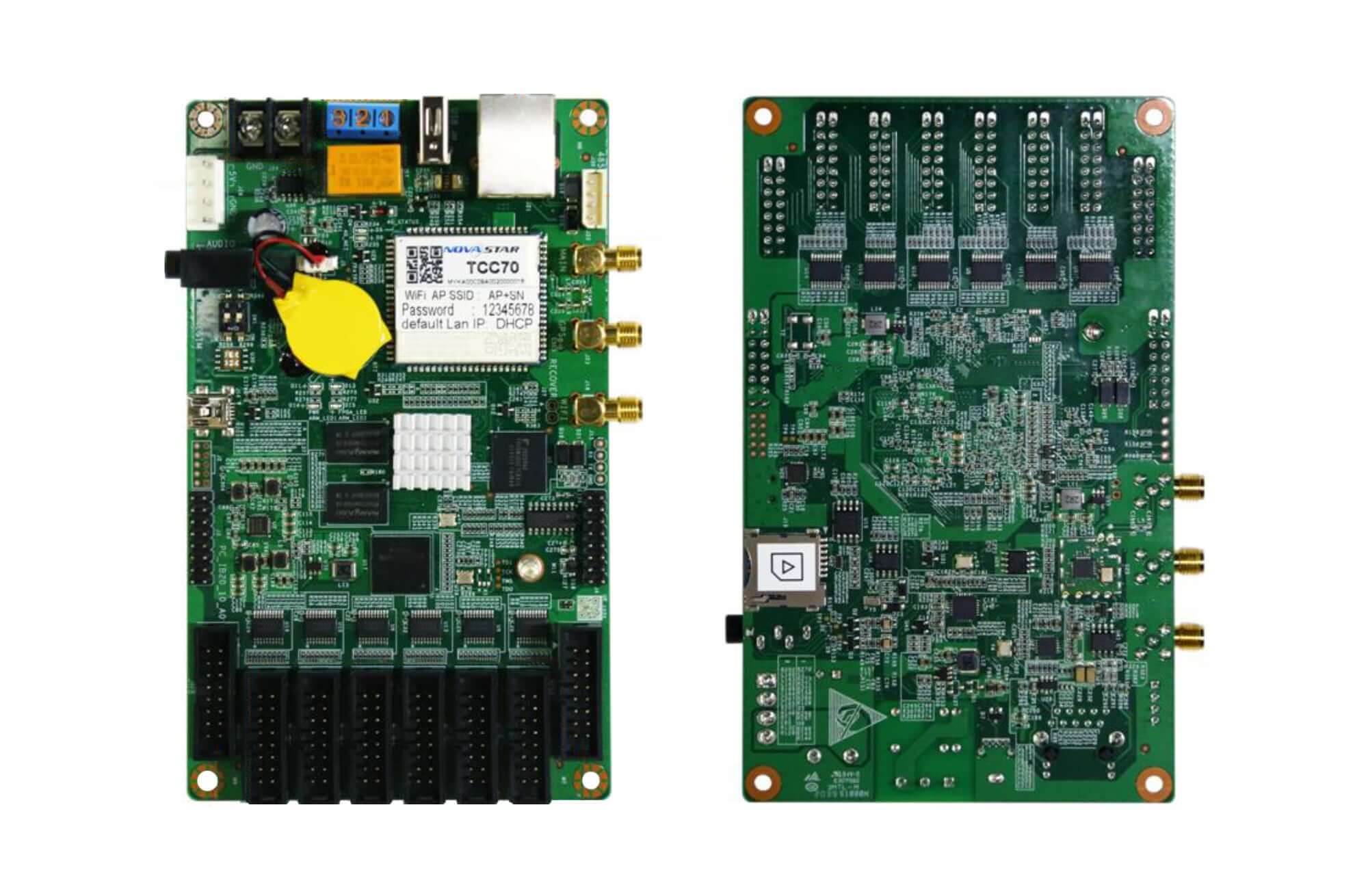

NovaStar TCC70 controller for small LED signs
The NovaStar TCC70 is an integrated multimedia player, sending controller and receiving card. It connects to compatible LED modules through eight HUB75E connectors and supports up to 16 groups of parallel RGB data. Its compact-sign applications include vehicle displays, community information boards and lamp-post screens.
Use a PC, phone or tablet for content publishing and screen control. Cloud publishing and monitoring support management of multiple screens. Check the destination network as well as the LED module configuration: the referenced TCC70 configuration has a specific regional 4G limitation.
TCC70 specifications
| LED loading capacity | Up to 512 × 384 pixels |
|---|---|
| Alternative layout examples | Maximum width: 1280 × 128; maximum height: 384 × 512 |
| Module interface | 8 HUB75E connectors; up to 16 parallel RGB data groups |
| Processing | Quad-core 1.2 GHz processor; 1080p hardware video decoding |
| Memory / storage | 1 GB RAM / 8 GB internal storage, with 4 GB available |
| Playback and audio | 1 USB 2.0 port for playback; 1 stereo audio output |
| Local wireless connection | Built-in Wi-Fi AP |
| Mobile network | CAT1 by default; documented 4G access in China and India only |
| Positioning and timing | GPS positioning and GPS time synchronization |
| Sensor / relay | 1 RS485 connector; relay support up to DC 30 V, 3 A |
Plan the screen and network together
The maximum-width and maximum-height examples are separate layouts. Do not combine 1280 and 512 into a larger claimed canvas. Check the actual screen resolution, module driver IC, scan ratio and HUB75E wiring before using the board as a replacement.
The original specification describes CAT1 4G access in China and India. For a deployment elsewhere, ask for confirmation of the exact hardware and network configuration before ordering; a compatible SIM card alone does not establish regional support. Include the destination country and operator in the inquiry.
The Wi-Fi AP provides a local connection for user devices. The original listing gives the factory SSID as “AP” plus the final eight serial-number digits and the password as “12345678”. If the installed configuration has changed, use its current credentials.
TCC70 frequently asked questions
Can the TCC70 drive a full 1080p LED screen?
No. The 1080p feature describes hardware video decoding. The LED output rating is up to 512 × 384 pixels, with the alternative layouts shown above. Source resolution and screen loading are different specifications.
Does it require a separate receiving card?
Sending and receiving functions are integrated. The board connects through HUB75E to compatible modules, but the module pinout and scan configuration still need to match.
Can I manage several screens remotely?
The TCC70 supports grouped remote content publishing, screen control and status monitoring through cloud platforms. Confirm the intended platform, device firmware and network connection for your installation.
Can the TCC70 play content from USB?
Yes. Its USB 2.0 port supports USB playback. Check the media requirements for the installed firmware and test your actual files before deploying the screen.
What should I send for a TCC70 quotation?
Include the model label, quantity, screen resolution, module parameters and delivery destination. Add the required 4G operator, GPS function, sensors and relay load so the proposed configuration can be checked.
Original specification download
TCC70 Multimedia Player Specifications V1.0.2. If the download is unavailable, ask EagerLED for the matching specification and configuration assistance.
