NovaStar VX4U all-in-one LED controller overview
The NovaStar VX4U combines video processing and LED display control in a 1U chassis. It provides four LED Ethernet outputs, a published loading capacity of 2.3 million pixels, input scaling and adjustable picture-in-picture (PIP). HDMI, DVI, DisplayPort, analog video and USB media inputs support different source setups.
This reference follows NovaStar’s Video Controller VX4U Specifications, Rev1.0.2, document NS160110164. Match the actual hardware, source timing and receiving-card configuration before using these limits for a project or replacement.

VX4U specifications and pixel capacity
| Item | Published specification |
|---|---|
| LED outputs | 4 Ethernet LED OUT ports |
| Total loading capacity | 2.3 million pixels |
| Custom output limits | Maximum width 3840 pixels; maximum height 1920 pixels, separately and within total capacity |
| Video inputs | 1 HDMI, 1 DVI, 1 DP, 2 VGA, 2 CVBS and 1 USB media input |
| Input timing | Overview lists up to 1920 × 1200 at 60 Hz; verify the chosen interface and source format |
| Power | 100–240 V AC, 50/60 Hz; listed overall consumption 25 W |
| Operating temperature | −20 to 60 °C (−4 to 140 °F) |
| Dimensions / weight | 482.6 × 250 × 45 mm (19.00 × 9.84 × 1.77 in); 2.55 kg (5.62 lb) |
The maximum width and height are separate limits, not a supported 3840 × 1920 canvas. For example, a 1920 × 1080 screen contains 2,073,600 pixels, below the stated total capacity; the port mapping and receiving-card setup still need validation.
Check PIP source compatibility
The main picture and PIP can use different inputs, but not every pair works together. Rev1.0.2’s appendix lists these conflicting pairs in either main/PIP direction:
| Source pair | Planning implication |
|---|---|
| HDMI + DVI | Use another permitted input type for the second picture. |
| VGA1 + VGA2 | Two VGA connectors do not provide this simultaneous main/PIP pair. |
| CVBS1 + CVBS2 | Choose a different input type for the second picture. |

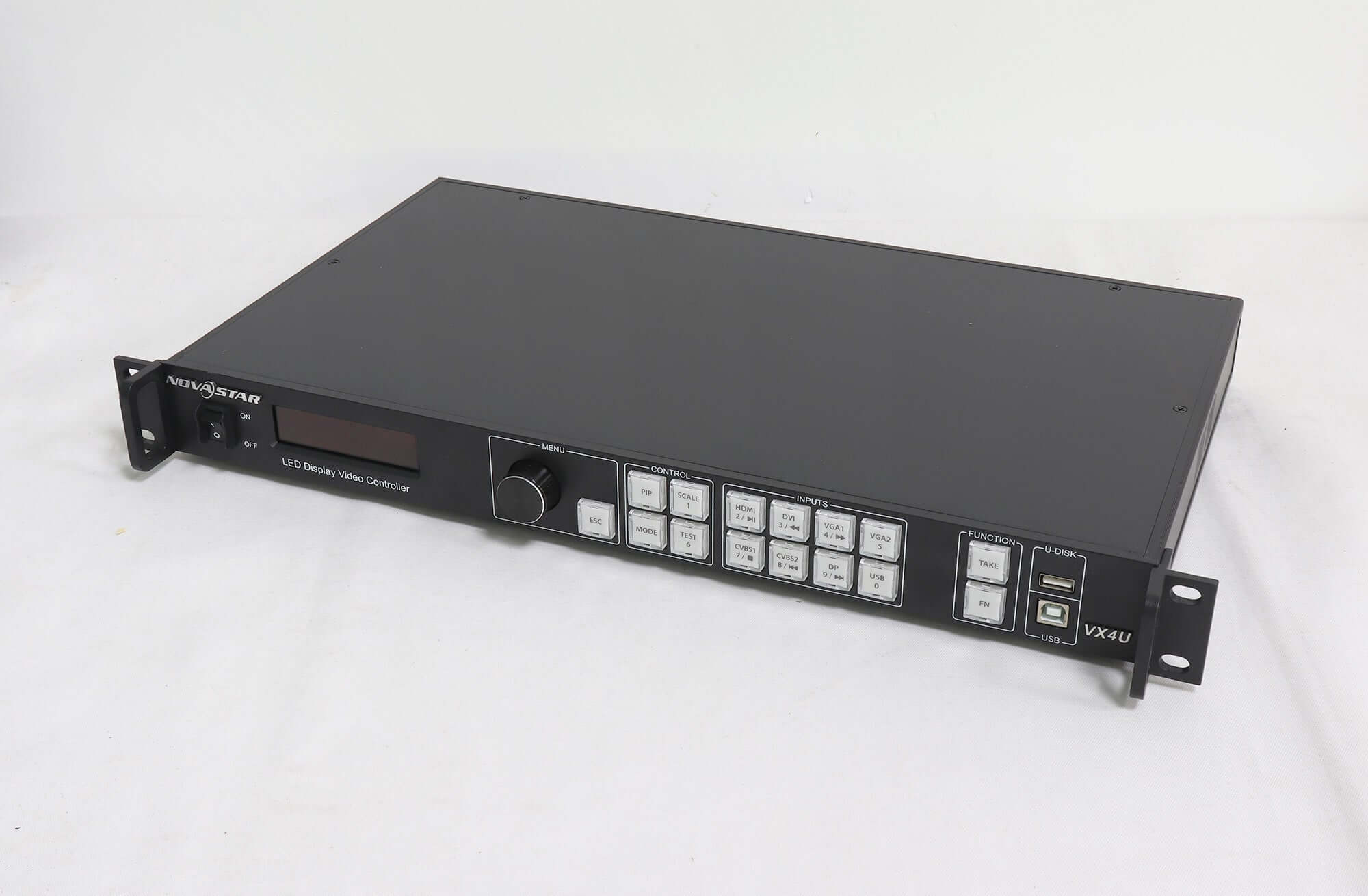

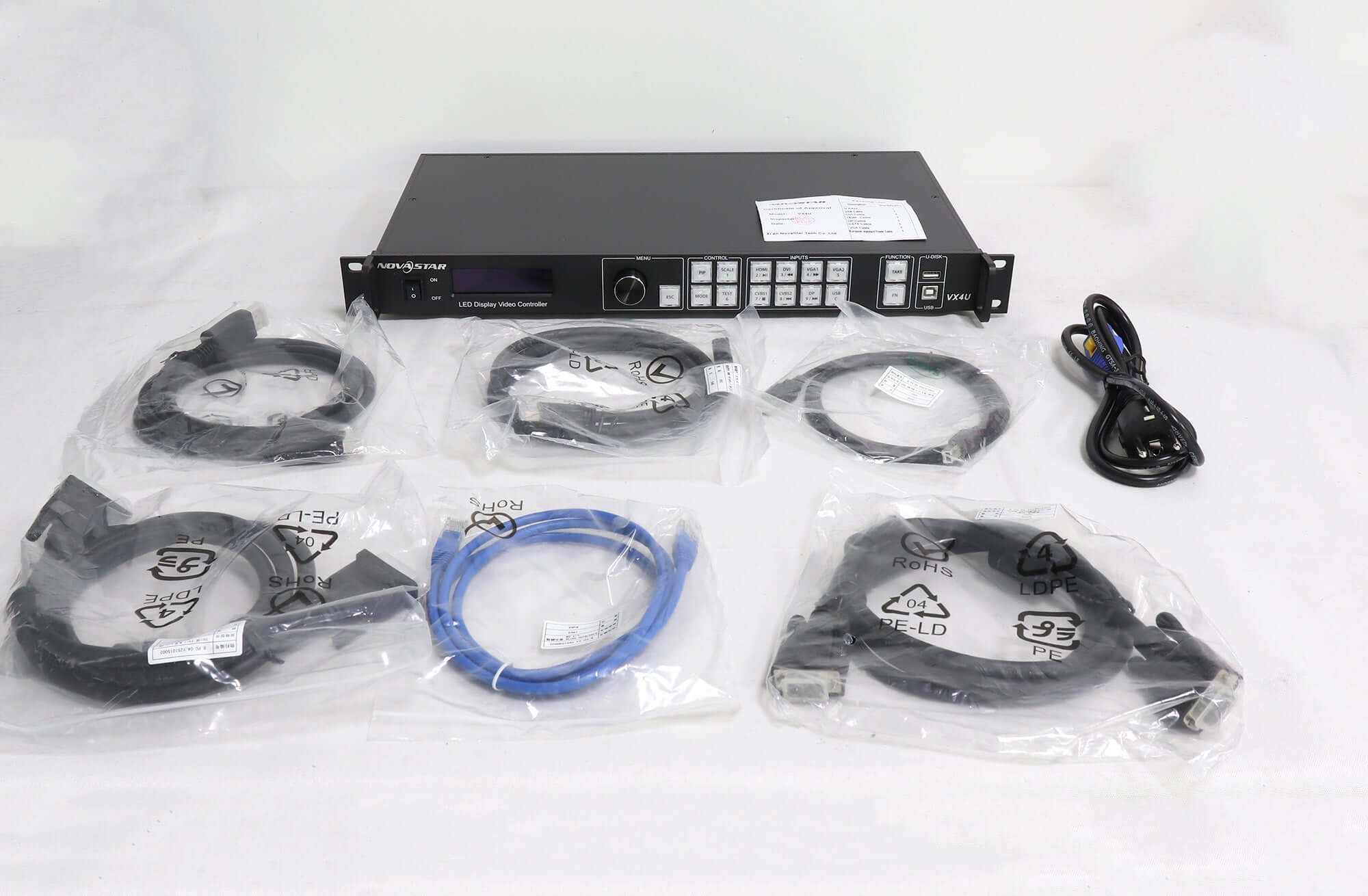

PIP position and size are adjustable. The front panel provides PIP, SCALE, MODE and TEST shortcuts, input selection buttons, a knob and an LCD. The TAKE key switches the main and PIP pictures once PIP is enabled, as described in the front-panel section.
USB playback, control and monitor connections
The VX4U accepts media from a USB drive. The specification lists AVI, MP4, MPG, MKV, MOV and VOB containers, with codecs including H.264, MJPEG and MPEG formats. A supported file extension alone does not confirm playback: check the encoding and test the actual file before an event.
USB media playback does not establish that every setup task can be completed without a computer. The Type-B USB connector is for PC communication/control; the rear Type-A control connector is for USB cascade output. The specification explicitly prohibits connecting the front or rear Type-A USB interfaces directly to a PC.

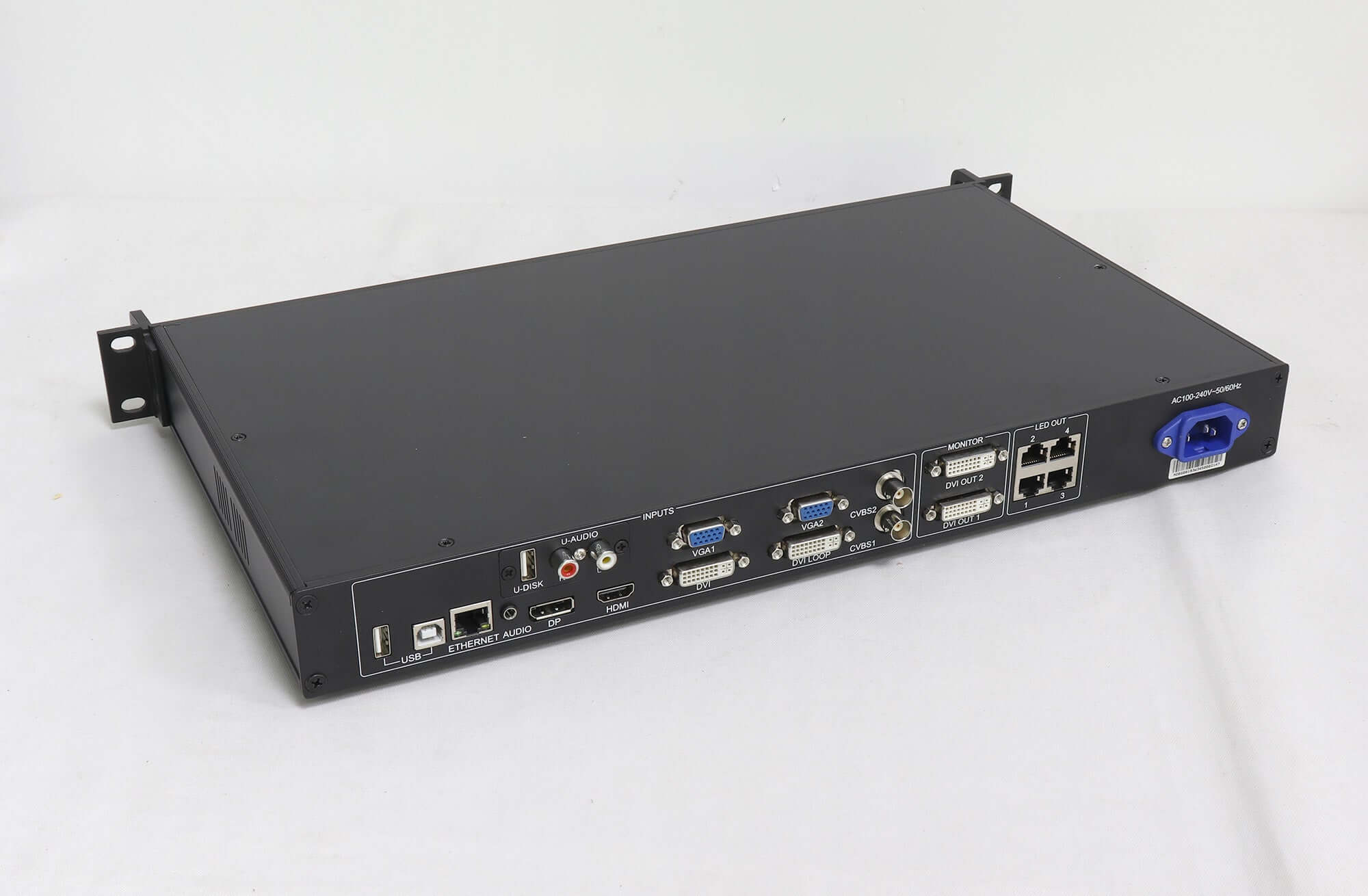

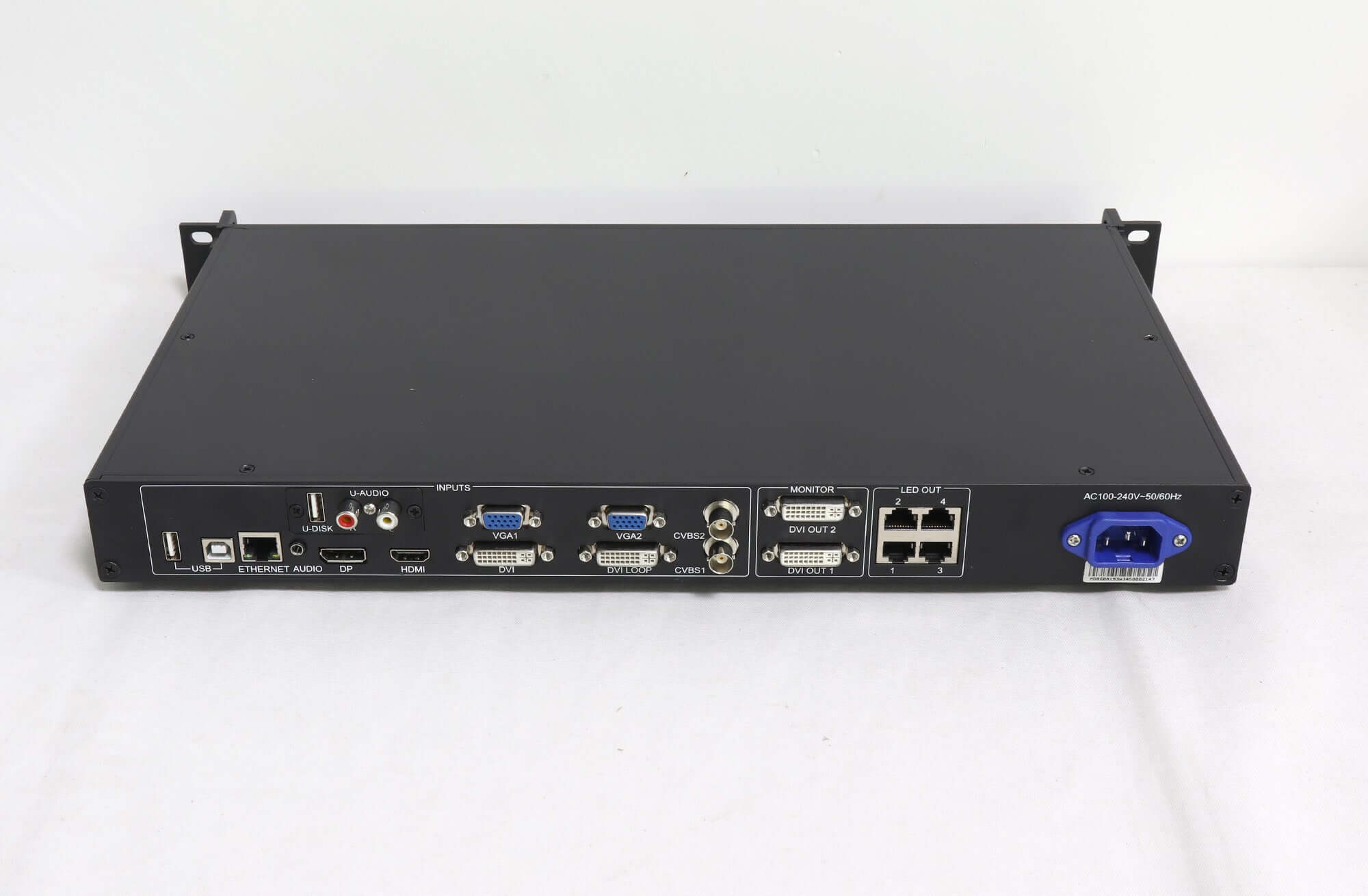

Keep the network-control ETHERNET connector separate from the four LED OUT connectors. DVI LOOP follows the DVI input. Monitor interfaces are also separate from LED OUT: the legacy specification’s rear-panel section and output table describe the monitor connectors differently, so confirm the actual unit before selecting monitor cables.

NovaStar VX4U selection questions
Does the VX4U require a separate video processor?
The VX4U integrates video processing and LED display control. It can scale inputs and provide PIP within its documented limits. Additional equipment depends on the source formats, display system and required functions.
Is the VX4U a 4K controller?
The published input overview specifies up to 1920 × 1200 at 60 Hz. A custom output width of 3840 pixels does not imply 4K input or a full 3840 × 2160 LED canvas.
Can VX4U show HDMI and DVI together as main picture and PIP?
No. The Rev1.0.2 conflict matrix lists HDMI + DVI as unavailable together in either direction. It also excludes VGA1 + VGA2 and CVBS1 + CVBS2. Select a permitted source pair before preparing the layout.
What should I confirm before ordering or replacing one?
Send the LED screen’s pixel dimensions, receiving-card model, port layout, source formats and required main/PIP pair. Include USB sample-file details and rear-panel photos if monitor connections or an existing control system must be matched.
Contact EagerLED about a VX4U configuration or compare our LED video controllers against your requirements.
Source: NovaStar VX4U Specifications Rev1.0.2, NS160110164: features on pages 1–2, connections on pages 3–4, specification table on page 5 and PIP conflict matrix on page 6.
