P6.67 Outdoor SMD LED display screen Module 320x160mm
$ 14.60
9994 in stock
Notice before order
1) Parts included: LED module, signal cable between modules, power cable between module and power supply.
2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.
3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don’t offer technical support or services if you used our LED modules to replace existing old LED modules.
4) Tariff: our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.
P6.67 Outdoor SMD LED display screen Module Features:
1) Small pixel pitch 6.67mm for SMD outdoor LED screen, good solution for outdoor Rental LED Screen and outdoor fixed installation LED display.
2) The module size is 320x160mm, which is of our standard 320×160 module series. It is convenient for clients to promote it. What is more,users can update their old LED screen made of our standard modules easily.
3) Top quality Kinglight SMD3535 LED lamps, ensuring the performance of the LED screen.
4) Reasonable PCB design with good heat radiation and achieve long life span.
P6.67 Outdoor SMD LED display screen Module Parameters:
Item | Specification | Remark |
LED type | SMD3535 | |
Pixel pitch | 6.67mm | |
Pixel configuration | 1R1G1B | |
Module Size | 320x160mm | |
Module resolution | 48x24pixels | |
Density | 22,497 pixels/㎡ | |
Driving Mode | 1/6 duty | |
Brightness | ≥5300CD/㎡ | |
Viewing angle | H:120°,V:120° | |
Best view distance | ≥6.5m | |
Driving IC | General driver IC | |
Working voltage | 5V | |
Power consumption | 30W | |
Weight | 0.6KG | |
Protection grade | Front: IP65 | |
Working Temperature | -20～60℃ | |
HUB card | HUB75 | |

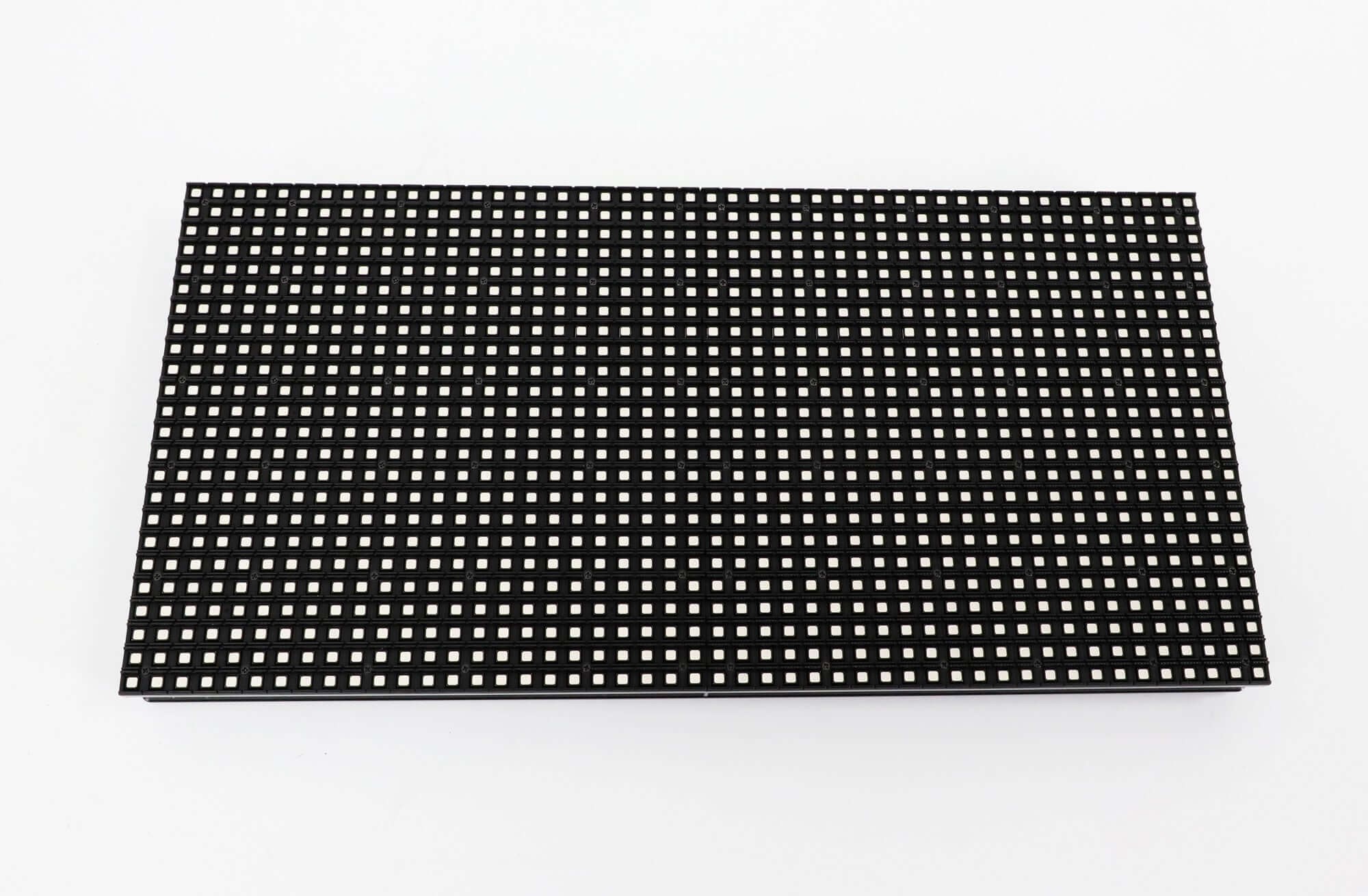

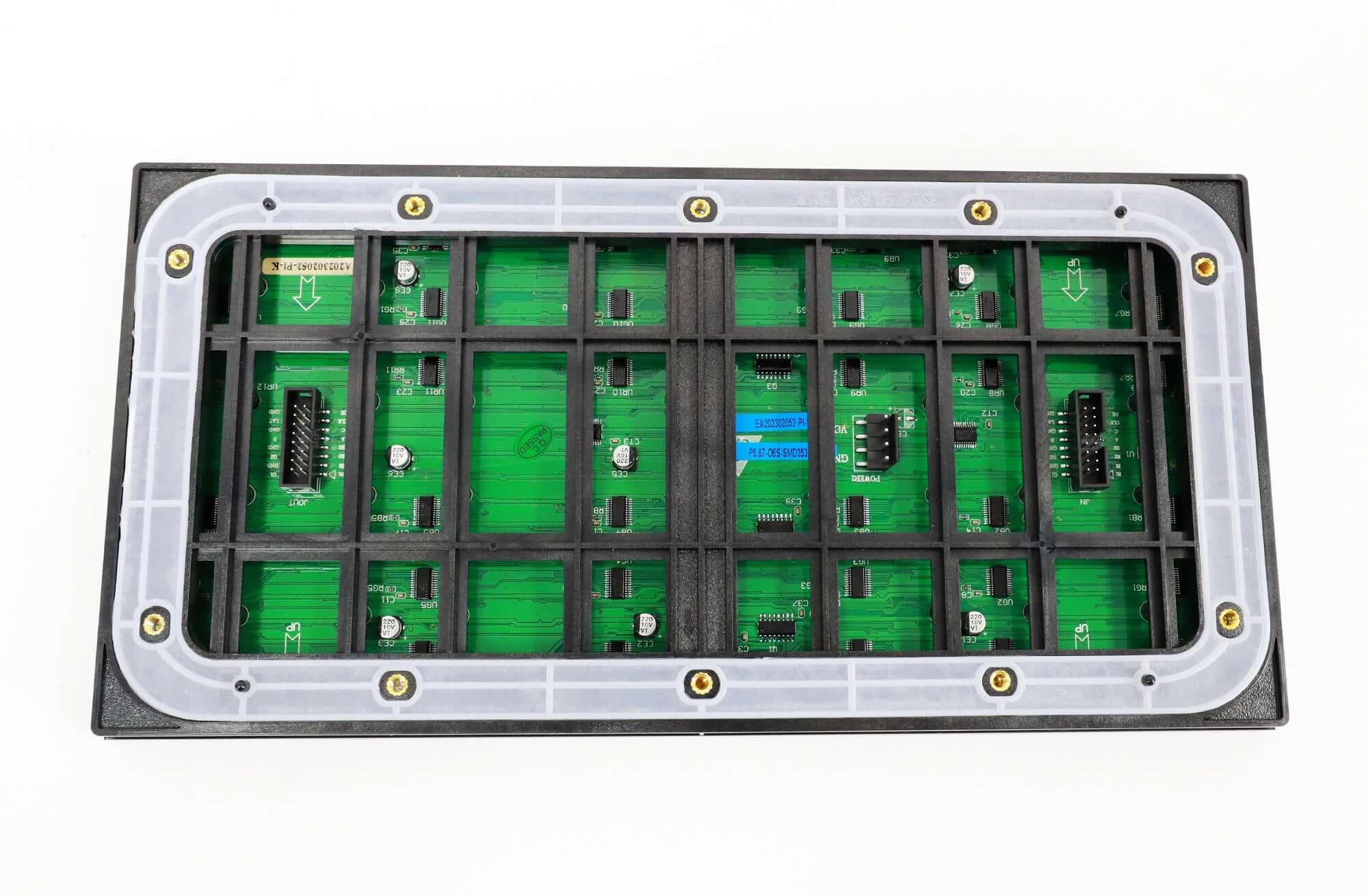

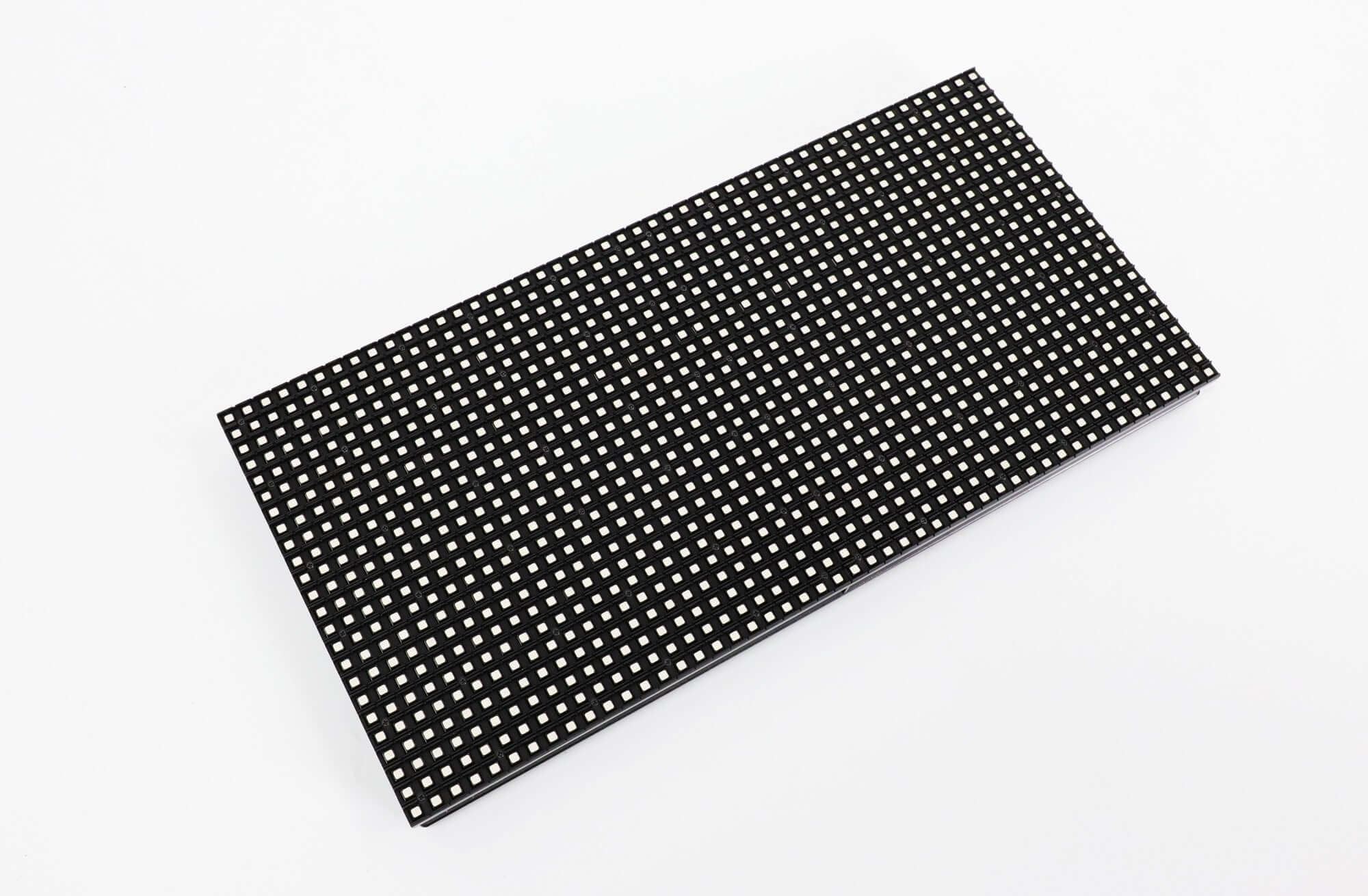

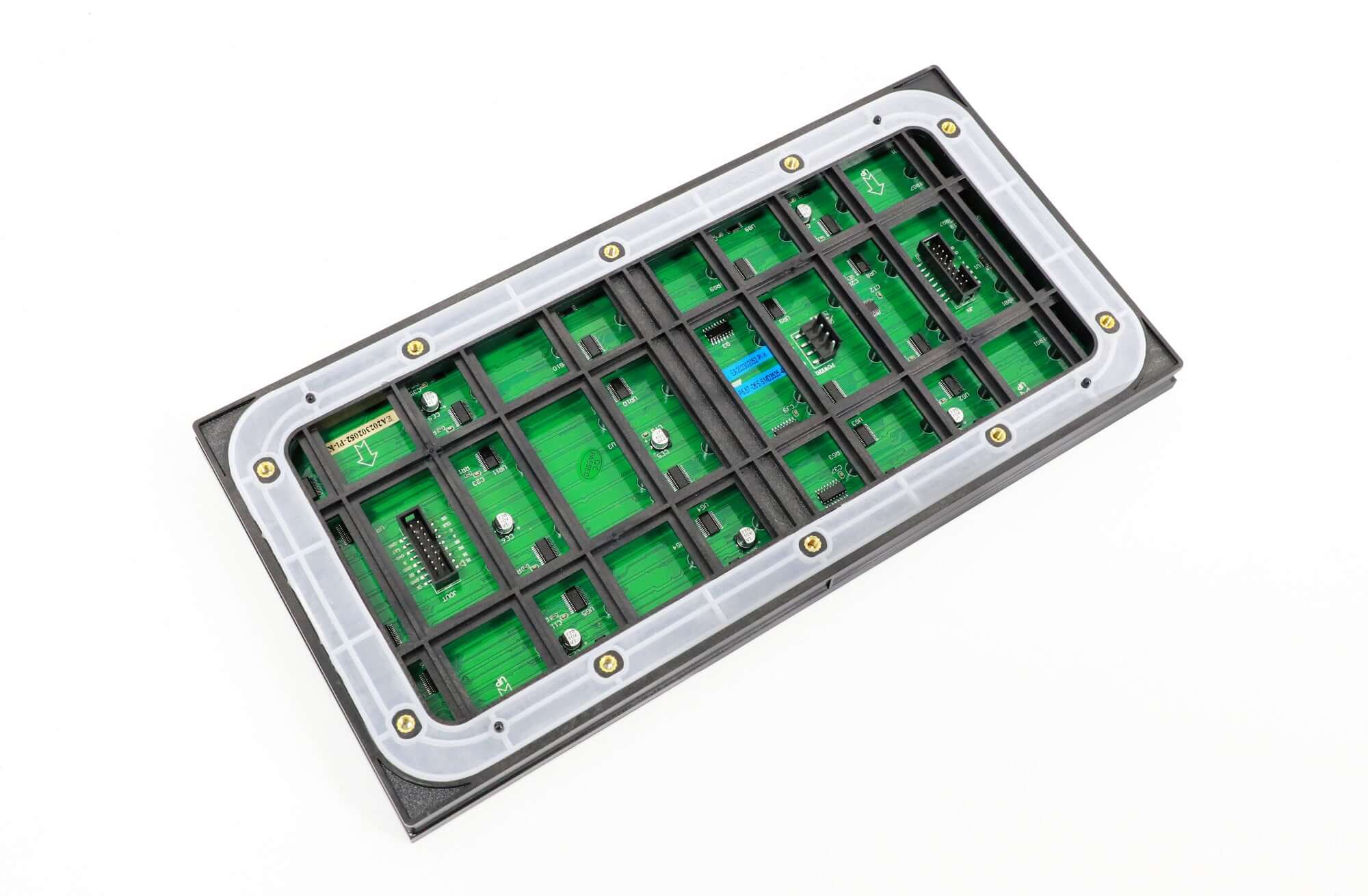

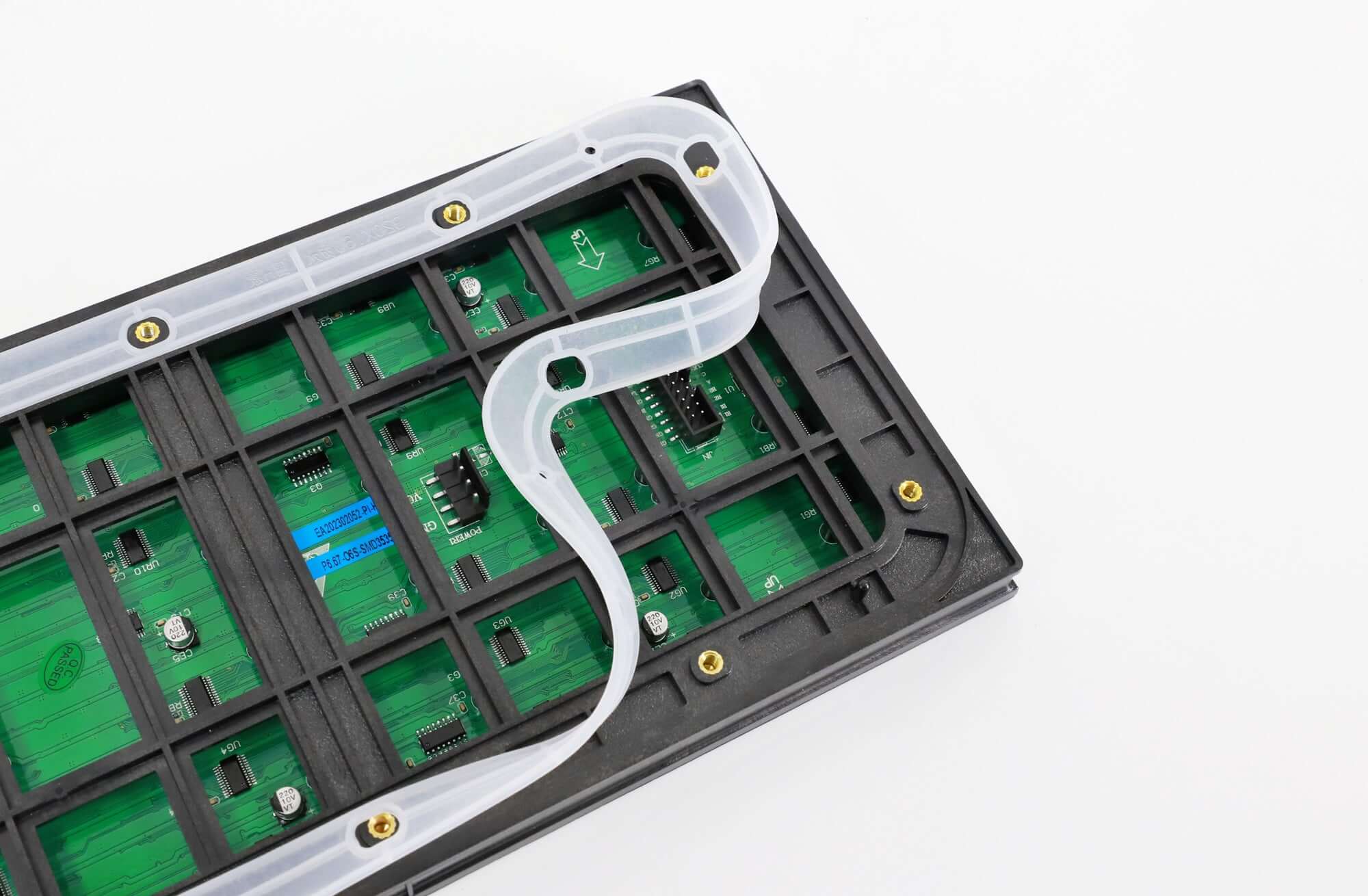

Most pictures of P6.67 Outdoor SMD LED display screen Module 320x160mm:
Download Specification
P6.67 Outdoor SMD LED display screen Module 320x160mm Specification
| Weight | 0.72 kg |
|---|
