South Creative NDA200HS5 5V 40A LED Power Supply
$ 6.00
5V, 0–40A LED screen power supply with 200W output and 190–264Vac input. Manufacturer-listed dimensions: 190 × 82 × 30mm; weight: 420g. See the PDF for loading conditions.
9938 in stock
NDA200HS5 Power Supply for LED Screens
The South Creative NDA200HS5 supplies a typical 5V DC output at up to 40A for LED display cabinets. The manufacturer specification lists 200W output power and a 190–264Vac input range. Match the LED module voltage and cabinet load before selecting this model.
Electrical and Mechanical Parameters
Source: NDA200HS5 specification V1.0, dated May 29, 2018. The efficiency below is taken from its output characteristics table.
| Parameter | Specification |
|---|---|
| Model | NDA200HS5 |
| AC input | 190–264Vac; 220Vac typical |
| Input frequency | 47–63Hz; 50Hz typical |
| Output voltage | 5V typical; 4.9–5.1V specified range |
| Output current | 0–40A |
| Output power | 200W |
| Efficiency (output table) | ≥88% at 220Vac, full load |
| Cooling listed in PDF | Natural air cooling |
| Dimensions (L × W × H) | 190 × 82 × 30mm |
| Weight | 420g |
| Protection | Input undervoltage, output current limiting and output short circuit |
AC Input and Installation Checks
The documented input range requires 190–264Vac, so check the actual supply voltage before ordering. Compare the mechanical drawing and connector definitions with the cabinet layout. Review the input and temperature derating curves for the intended load and cooling conditions.

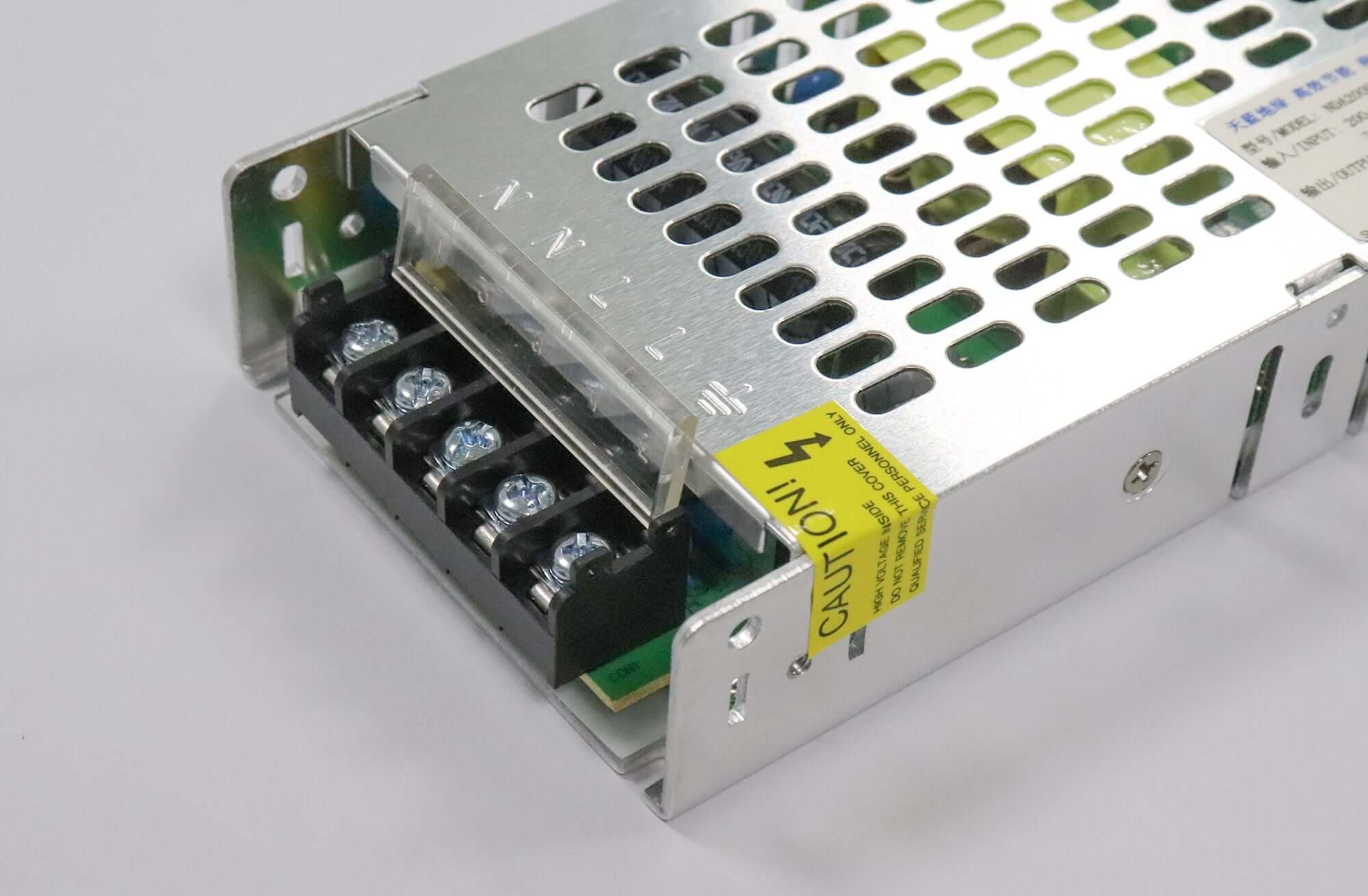

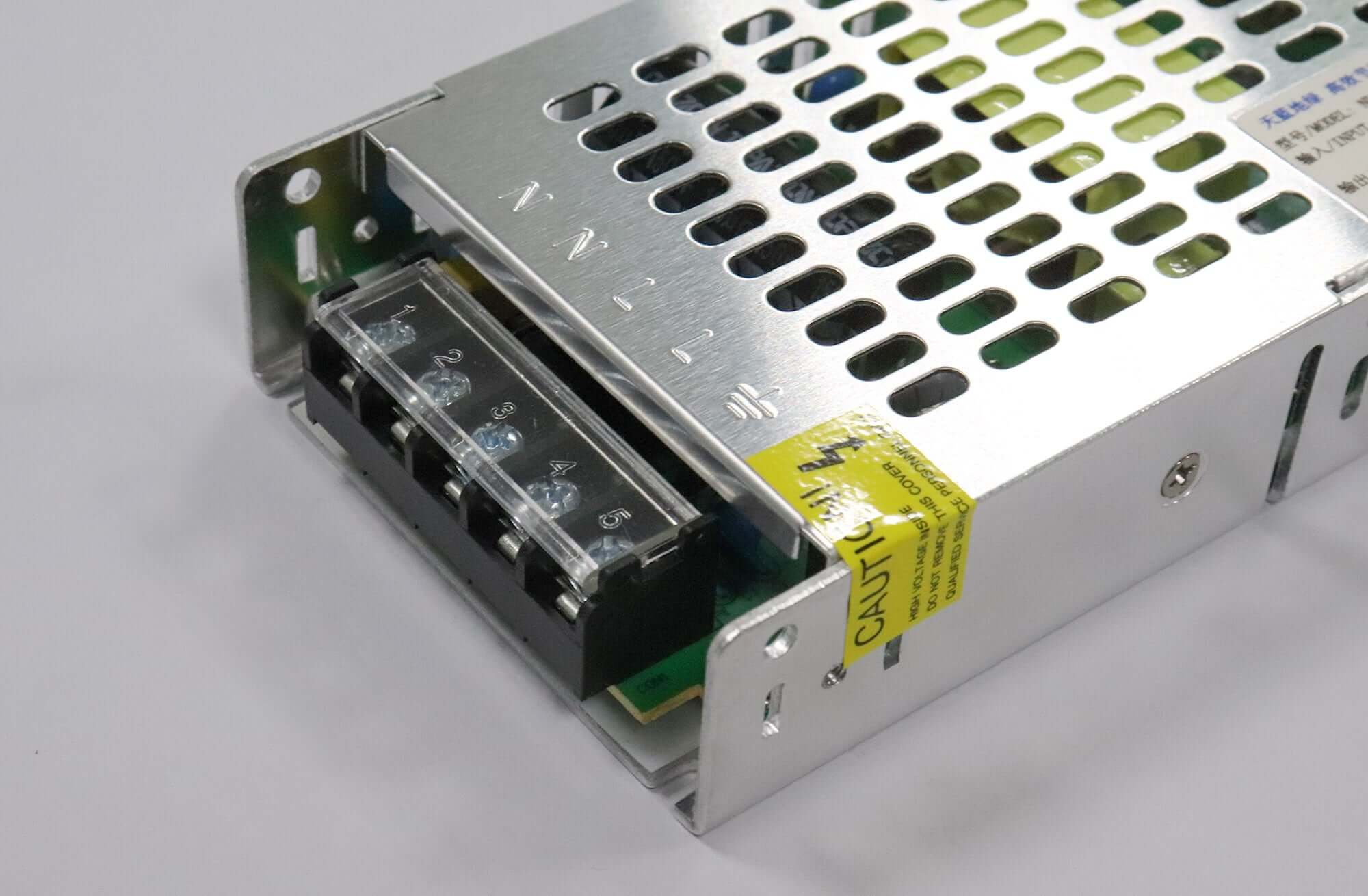

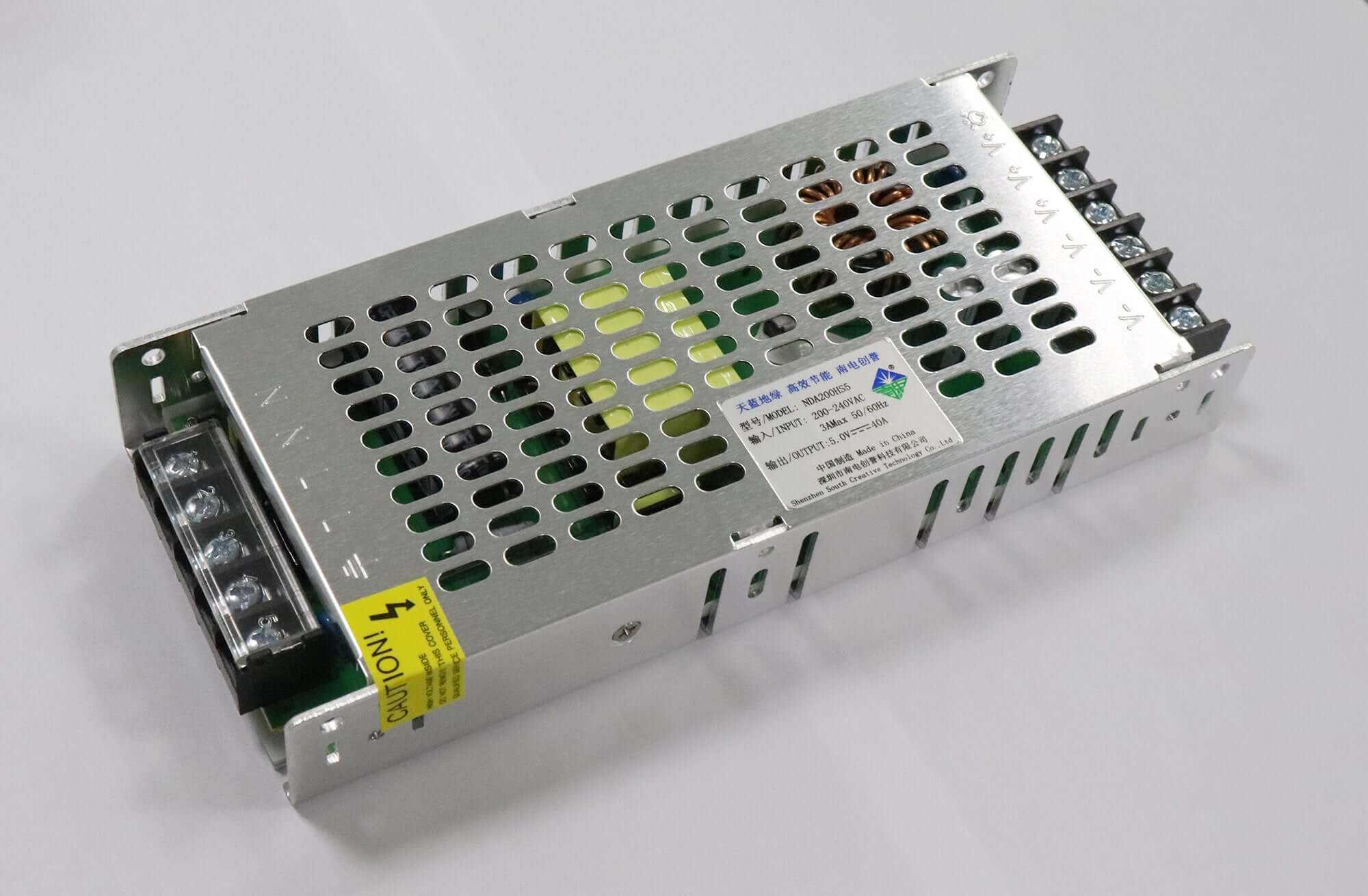

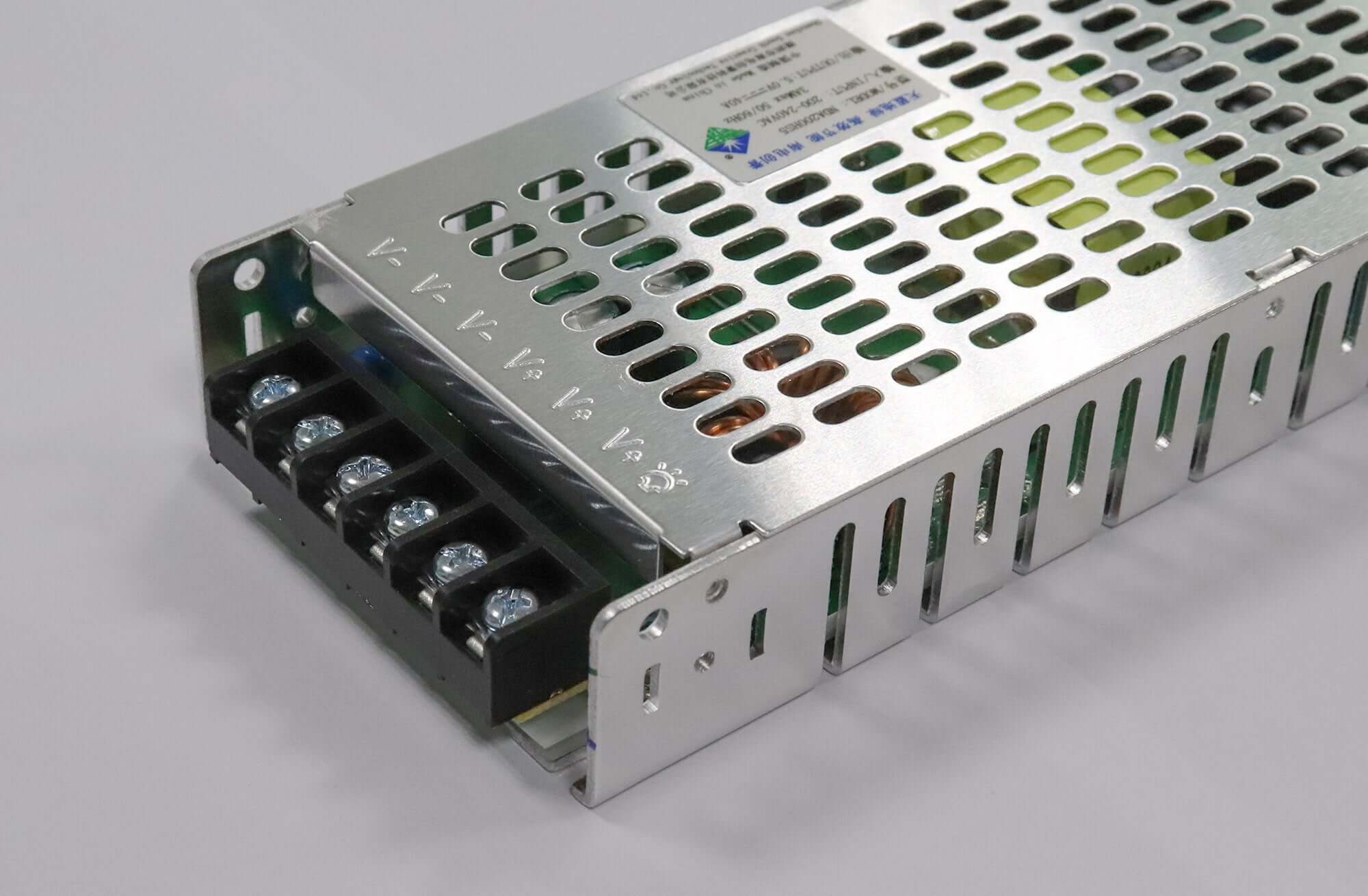

Product Image
Download Specification
South Creative NDA200HS5 LED Screen Power Supply Specification
Frequently Asked Questions
1. What are the NDA200HS5 output ratings?
The specification lists a typical 5V output, 0–40A output current and 200W output power.
2. Can the NDA200HS5 use 110V AC input?
The manufacturer specification lists 190–264Vac input. 110Vac is outside this documented range.
3. What are its size and weight?
The mechanical table lists 190 × 82 × 30mm (L × W × H) and 420g. Check the installation drawing for the mounting holes and terminal positions.
4. Is the efficiency 87% or 88%?
The PDF overview mentions 87%, while its output characteristics table specifies at least 88% at 220Vac and full load. The parameter table above identifies the output-table value and its test conditions.
5. Where can I download the NDA200HS5 specification?
Use the original specification PDF above for the complete input and output tables, protection information, connector definitions and installation drawing.
| Weight | 0.42 kg |
|---|
