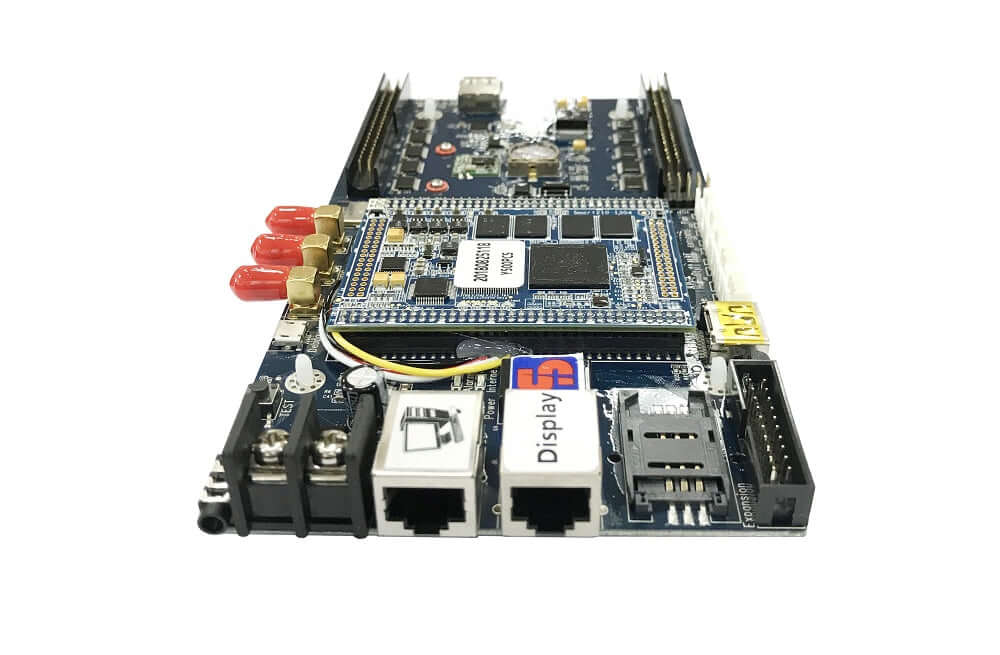

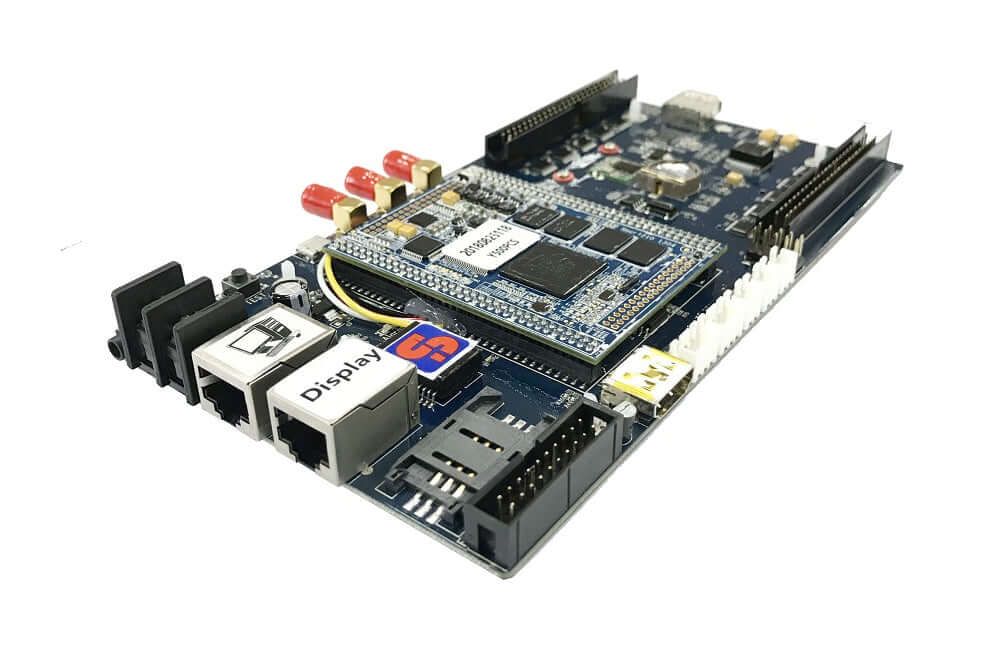

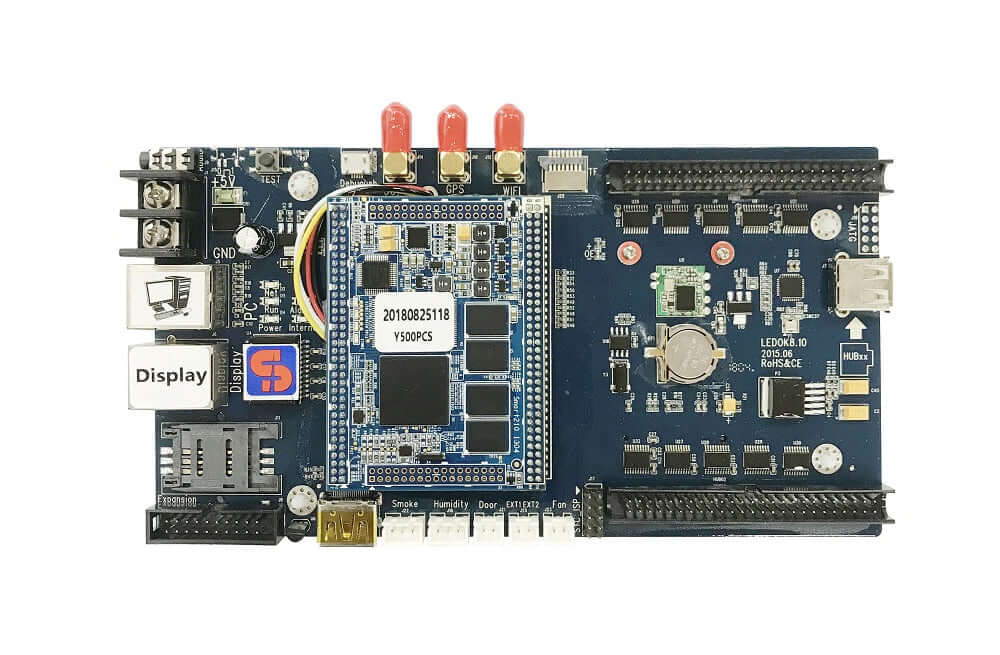

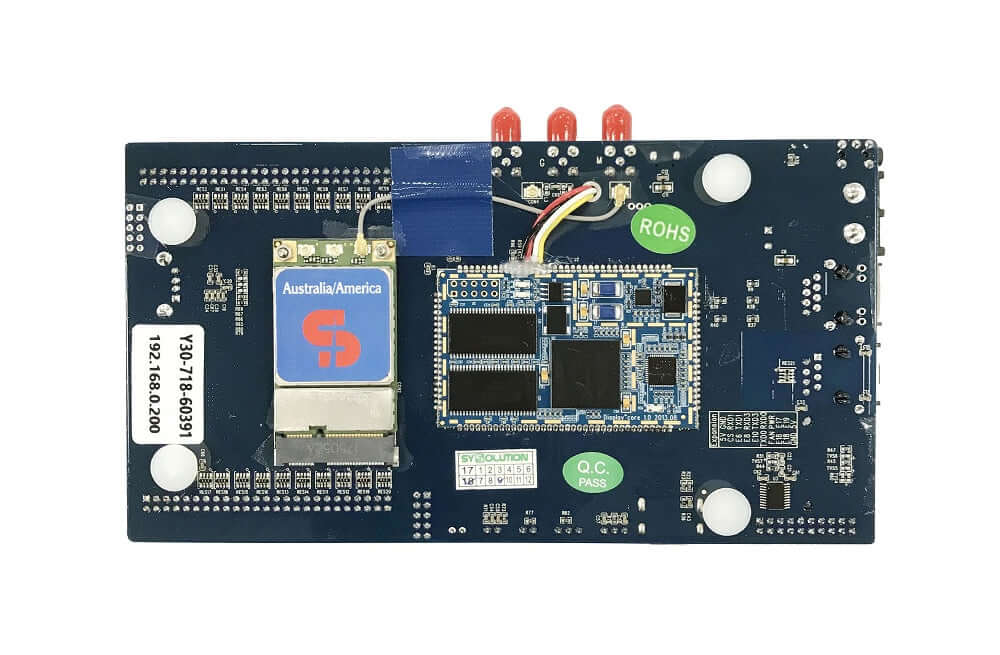

Sysolution Y30 LED Display Android Controller Card

In stock
Sysolution Y30 LED Display Android Controller Card Features: Integrates with WIFI, Ethernet ports, 3G and GPS together With temperature, humidity and other sensor functions on-board Supporting non-linear editing...

Sysolution Y30 LED Display Android Controller Card Features:

  • Integrates with WIFI, Ethernet ports, 3G and GPS together
  • With temperature, humidity and other sensor functions on-board
  • Supporting non-linear editing
  • Video hardware decoding
  • Supporting PCI-E 3G/4G modem
  • Supporting maximum 1280x512 pixels
  • Supporting HDMI audio and video outputs
  • Fast communicate rate, totally solve the 3G communication bottle-neck, Packet Switched Domain (PS for short) bearer service under WCDMA mode: maximum rate is 384Kbit/s; HSDPA Max 14.4Mbps(DL)/Max 5.76Mbps(UL); UMTS Max 384Kbps
  • Supporting continue transfer from breakpoint, adopting database warehouse management for onboard program so that could reduce dataflow extremely and optimize storage space
  • Supporting to connect receiving cards, refresh rate will self adapt to screen resolution, adjust brightness to realize better display effect
  • High quality product, easy to install and configuration but powerful function.
  • Possessing strong software----web-base multi-media publishing system (AIPS), so that could manage all terminals, edit and publish program

Sysolution Y30 LED Display Android Controller Card Parameter:

Type Intelligent led controller
Mode Y30
Receive card D90 series
Pixels After Cascade:1280*512(Full Color);Signal Card:256*256
3G/4G Support
WIFI Support
Display Type Full Color
Flash Onboard 1G,expand to 32G by TF
Grey Level 65536
LED Module Full Color
LED Module Scan Types Support random scan types within 32 scans
Communication Ports Ethernet/U-disk
Audio Yes
GPS Support Display In Specific Location
Weather forecast (Chinese) Support
Readback display content Support
Display in schedule Support
Video formats MP4
Animation formats GIF,SWF
Image formats bmp,jpg,gif,wmf,ico
Text formats txt,rtf
Text display mode Single line, static and multi-line
Clock Types of analog clocks and digital clock
Timing Timing and countdown
Software WEB( platform
Configuration software EasyBoard_V167

Download Sysolution Y30 LED Display Android Controller Card:
