NovaStar TB50 LED Multimedia Player for Retail Displays
Price range: $ 315.00 through $ 393.00
The NovaStar TB50 combines media playback and LED sending for retail signage with up to 1,300,000 pixels, two LED Ethernet outputs and live HDMI input.
- Play stored content offline or switch to a live HDMI source.
- Publish over LAN or Wi-Fi; choose the 4G-module option for cellular access.
- Confirm hardware revision, storage capacity and regional 4G compatibility before ordering.

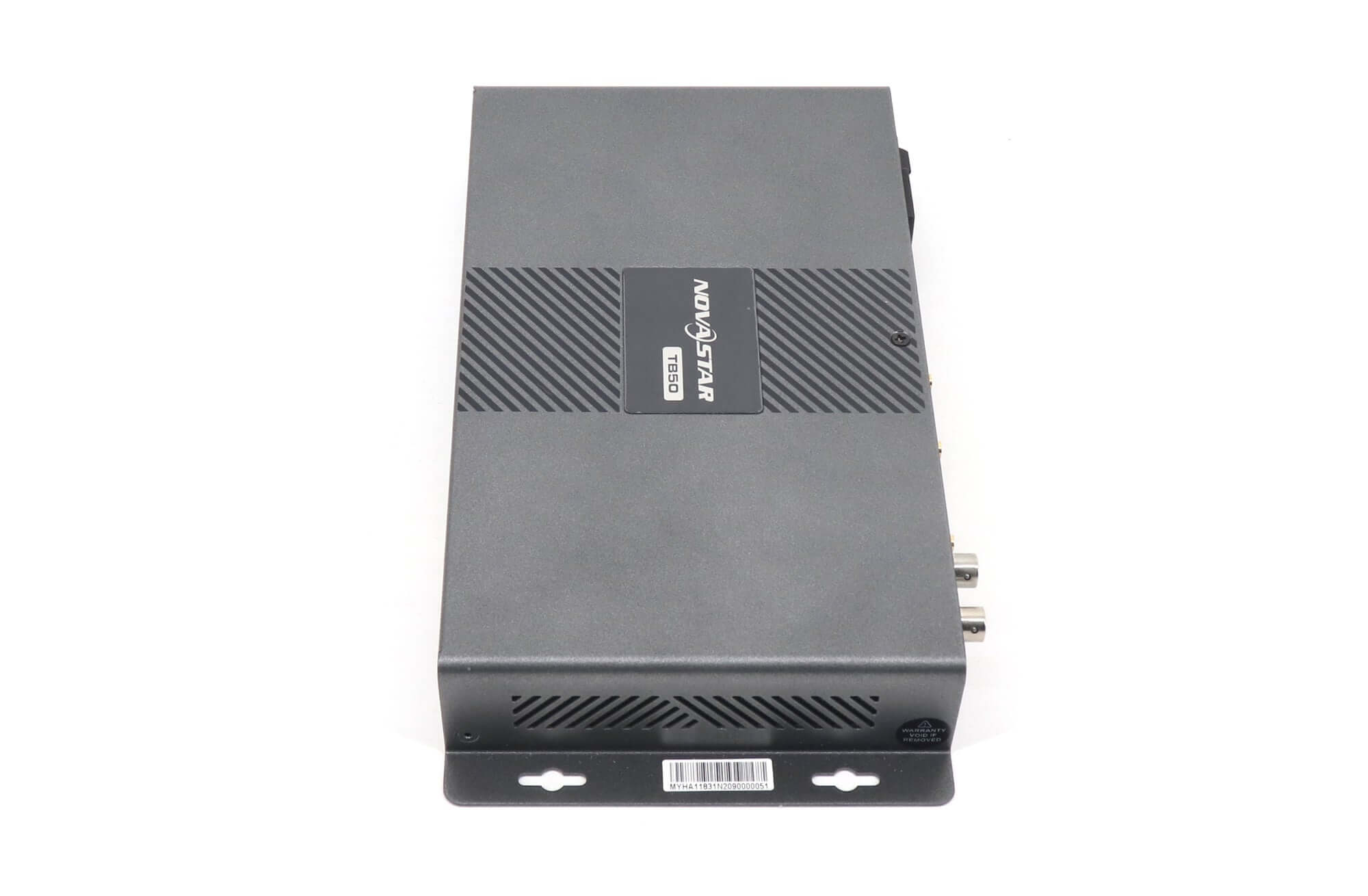

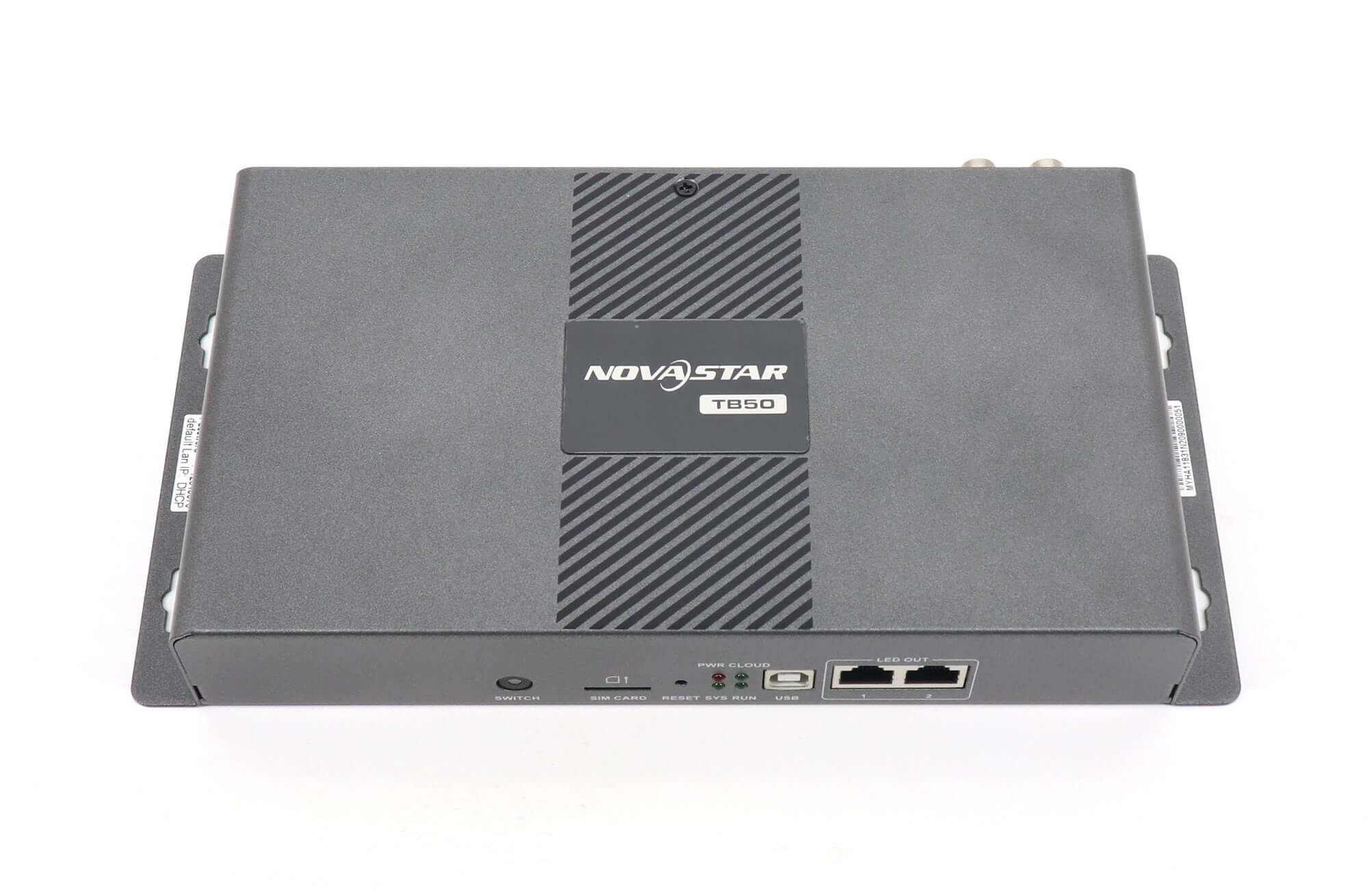

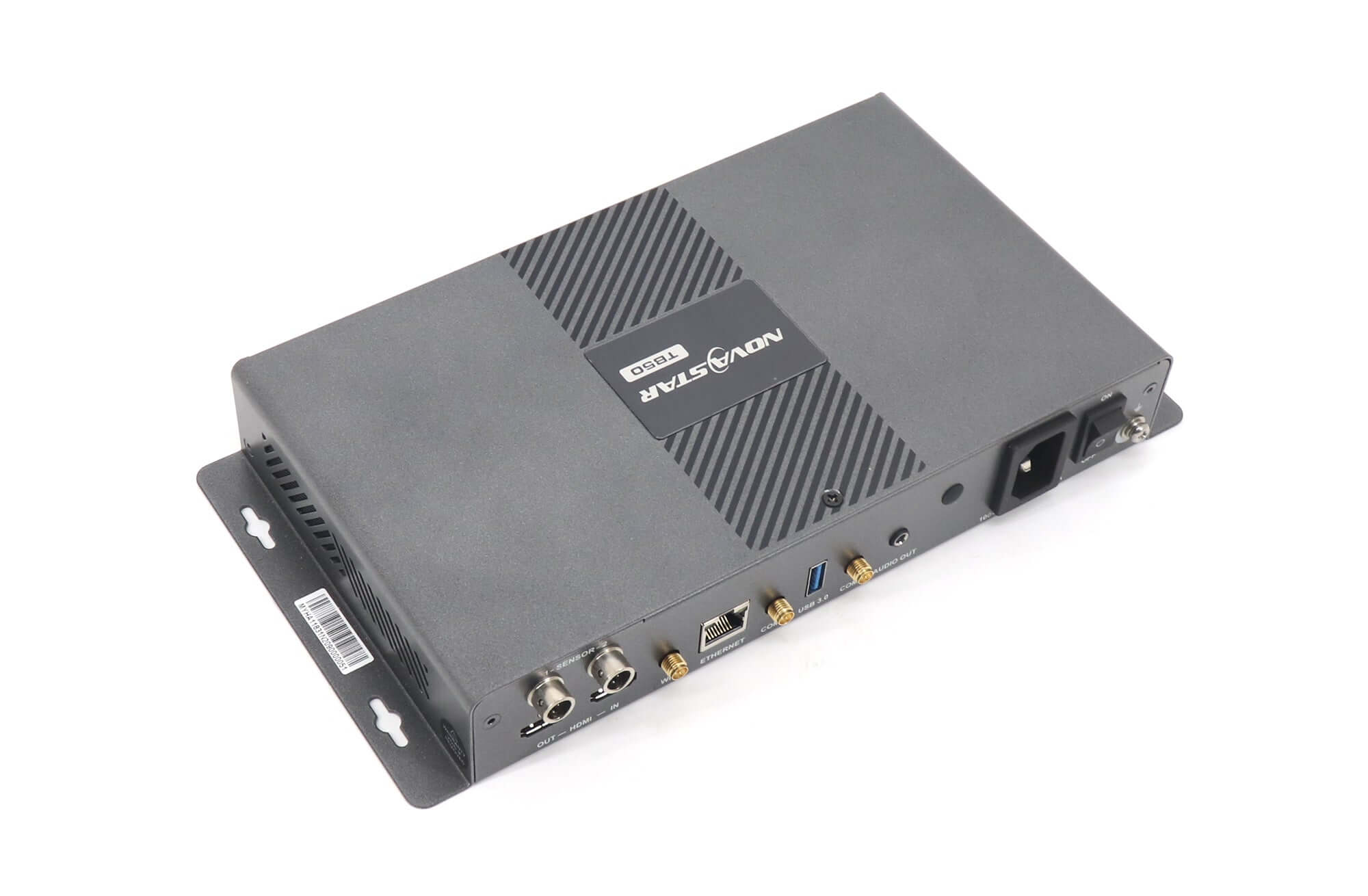

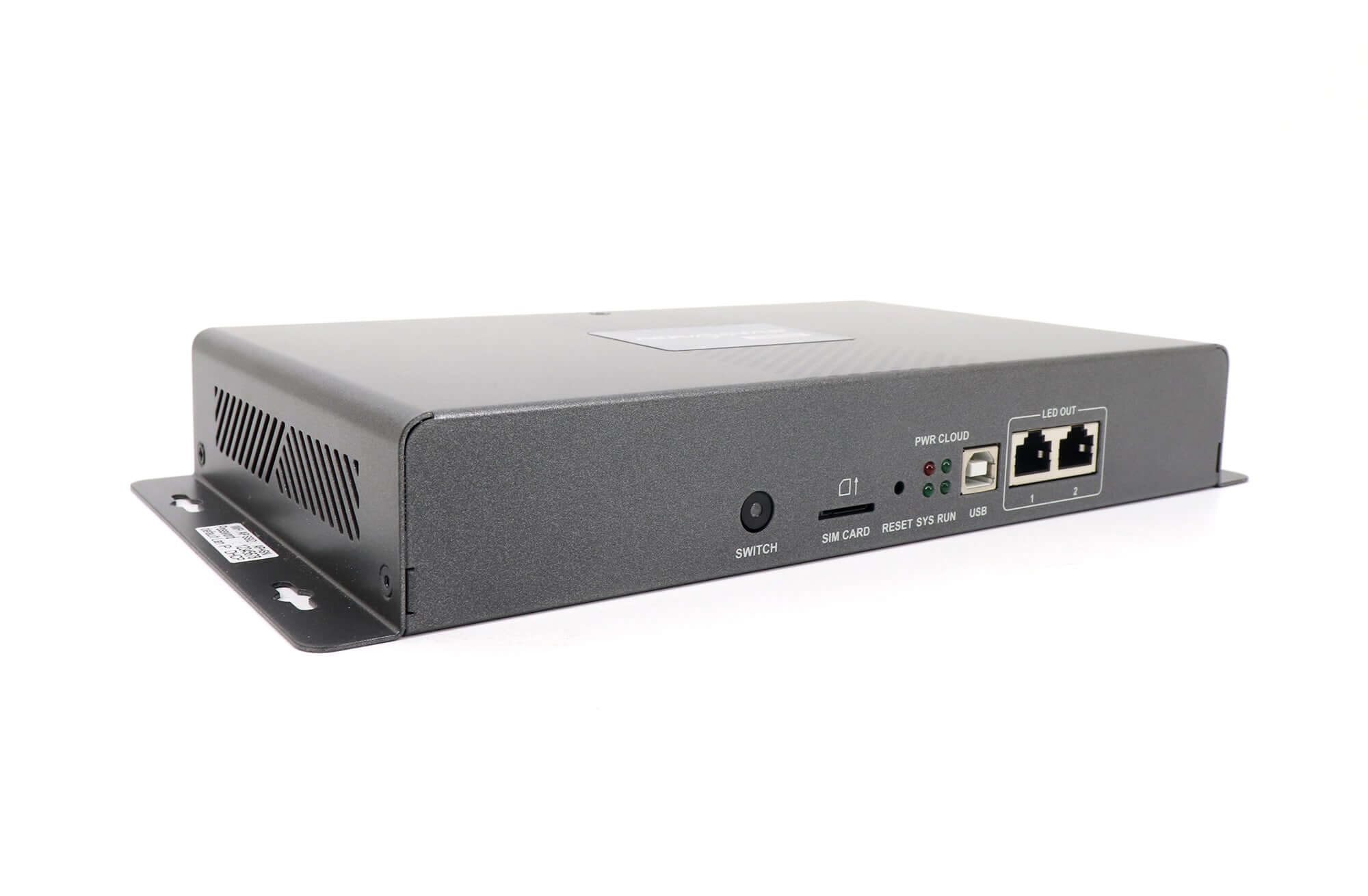

NovaStar TB50: LED Signage Playback and Control
The NovaStar TB50 is a Taurus-series multimedia player that stores advertising content and sends it to a full-color LED display. Use asynchronous playback for scheduled retail promotions, or synchronous mode for a live HDMI source. Its maximum LED loading capacity is 1,300,000 pixels; source-video decoding resolution is a separate specification and does not increase the LED pixel capacity.
At a glance: two Gigabit Ethernet LED outputs, LAN and Wi-Fi publishing, live HDMI input, and optional cellular connectivity. Suitable applications include shop windows, chain-store signage, shelf displays and fixed advertising screens.

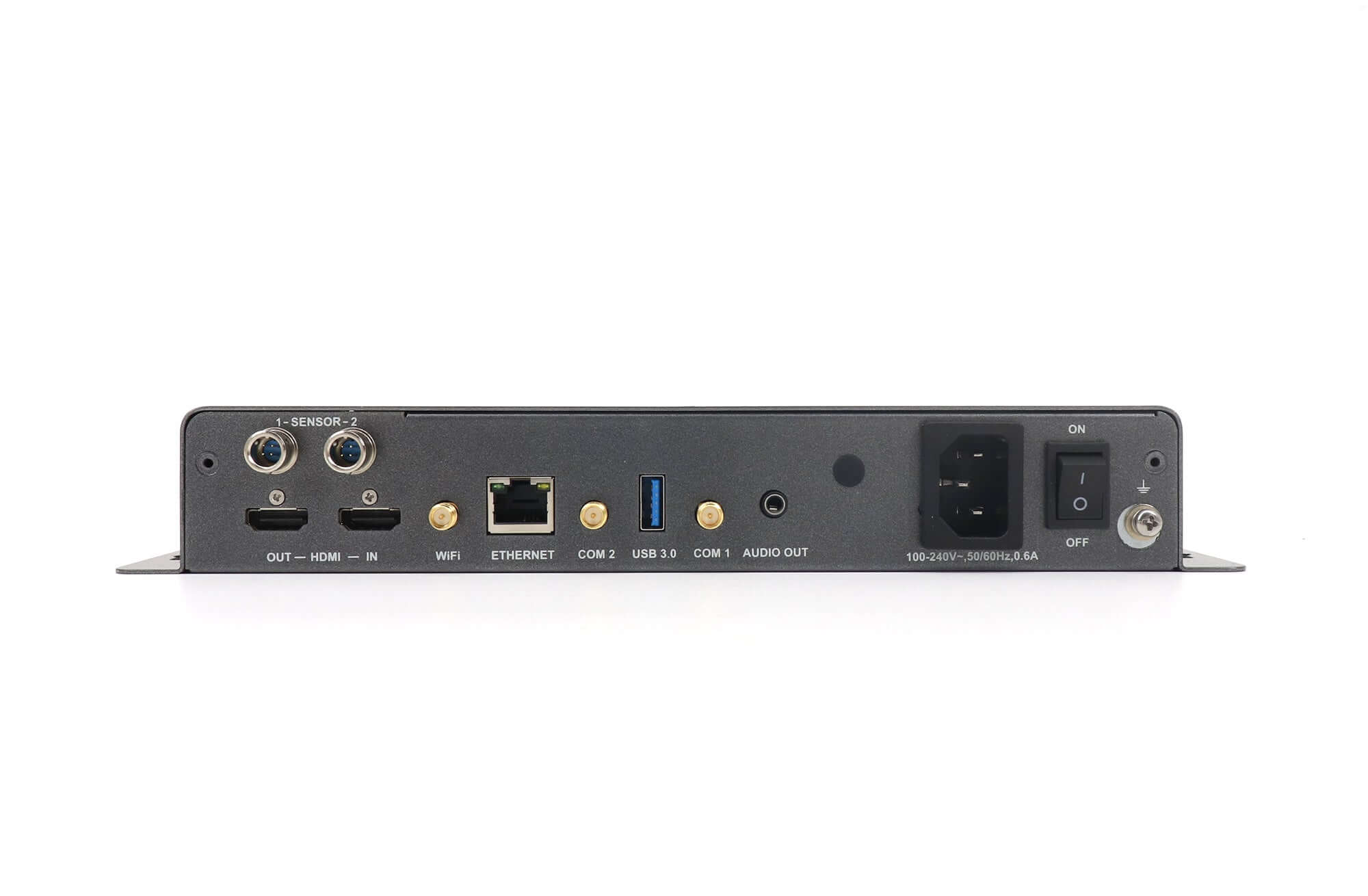

TB50 Specifications and Hardware Revisions
| Item | Specification / selection note |
|---|---|
| LED loading capacity | Up to 1,300,000 pixels in total |
| Maximum width / height | 4,096 pixels each, subject to the total pixel limit; this does not mean a 4,096 × 4,096 LED canvas |

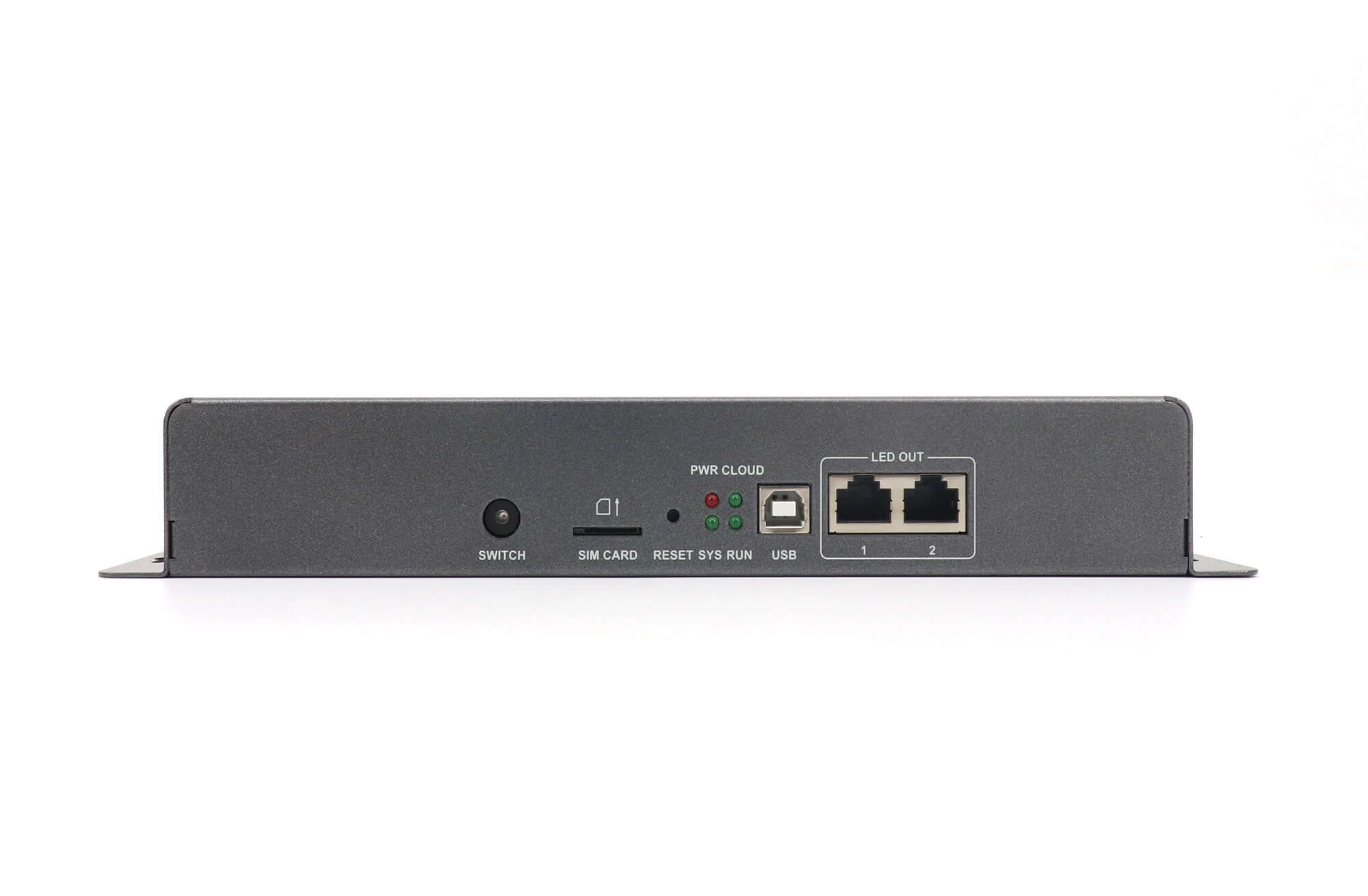

| LED outputs | 2 × Gigabit Ethernet; primary/backup configuration is supported |
| HDMI | Live input and loop output; V1.2.0 specifies HDMI 1.3 and up to 1920 × 1200 at 60 Hz output |
| Processing and RAM | Quad-core ARM A55 at 1.8 GHz; 1 GB RAM |
| Internal storage | Original V1.0.0 specification: 16 GB. Later documentation: 32 GB. Confirm the supplied unit before purchase. |
| Media decoding | H.264/H.265 up to 4K at 60 Hz; file compatibility and simultaneous playback depend on mode and firmware |
| Content publishing | LAN, Wi-Fi AP/STA and USB; optional 4G module for cellular deployment |
| Sensor interfaces | 2 connectors for compatible brightness or temperature/humidity sensors |
Revision note: NovaStar’s TB50 V1.2.0 specification records the storage change from 16 GB to 32 GB in revision V1.0.8. The older PDF retained below documents the original version. Do not use the older document alone to identify current stock.
Offline Playback or Live HDMI: Which Mode?
- Asynchronous playback: publish media to the player for local playback without a continuously connected source computer. Remote updates still require an available network connection.
- Synchronous playback: use the HDMI input when the screen needs to follow an external live source.
- Multiple screens: synchronized playback is supported with appropriate configuration. Check timing, network and optional module requirements before planning a synchronized installation.

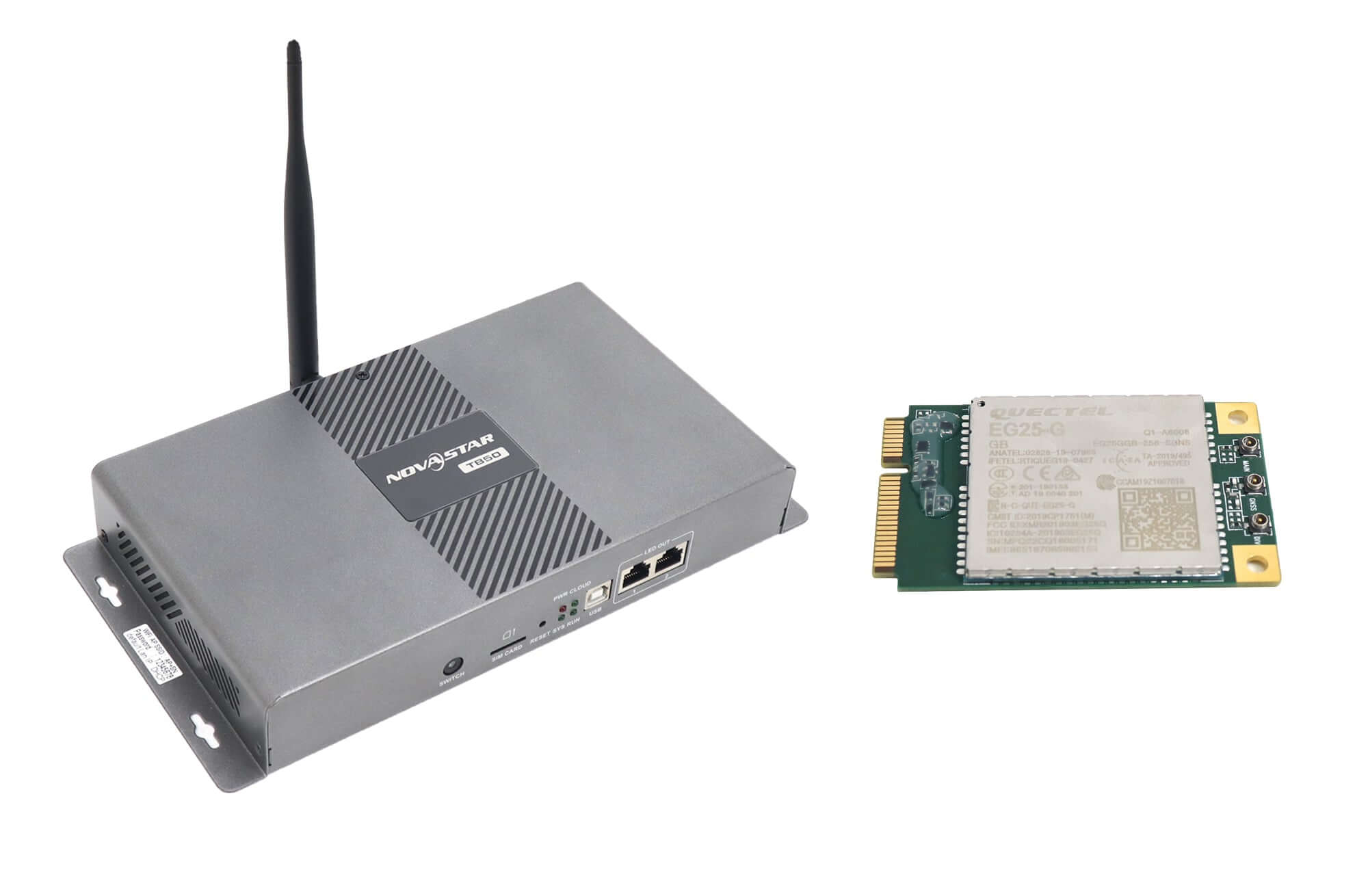

Choose the Standard or 4G Configuration

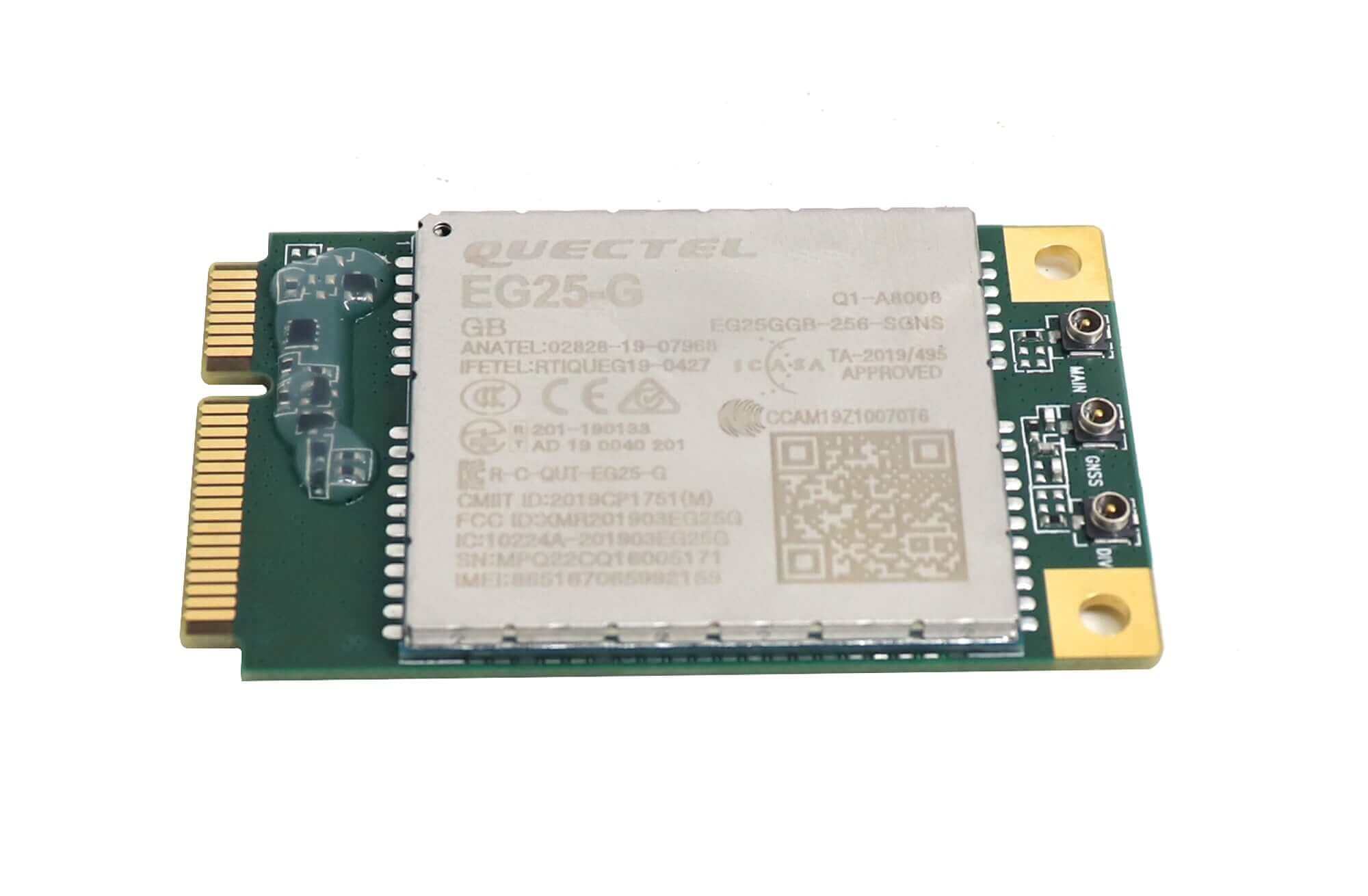

Choose the standard TB50 where a suitable LAN or Wi-Fi connection is available. For sites without fixed network access, select the listed TB50 with 4G module option and confirm the module’s regional bands and SIM/data-service requirements with EagerLED. The standard unit does not include the optional 4G module.
Before ordering, send your screen’s pixel width and height, receiving-card model, installation country and preferred publishing method. A screen measuring 1,600 × 720 pixels contains 1,152,000 pixels, within the stated total capacity; the actual port allocation and receiving-card configuration still need checking.
TB Series Video and Product Images
TB50 Setup Checklist
- Confirm the screen configuration. Check total pixels, cabinet mapping and receiving-card compatibility before connecting the LED outputs.
- Choose the connection method. Use local LAN or Wi-Fi for commissioning. Verify cellular-module compatibility if the installation uses 4G.
- Configure the display. Use the software and firmware appropriate to the supplied hardware; keep a copy of the working screen configuration.
- Publish a test program. Test the intended media files and playback schedule, then test live HDMI separately if required.
- Validate the installation. Check image mapping, audio if used, network recovery and restart behavior before handing over the system.
Manuals, Specifications and Related Products
Download the original TB50 specification PDF (V1.0.0). For additional documents, see our Taurus TB30 / TB40 / TB50 / TB60 manuals and specifications.
Browse LED media players or LED receiving cards for your system. For a different project size, review the NovaStar TB60 and ask us to compare the required capacity and interfaces.
Frequently Asked Questions
What is the maximum LED resolution of the TB50?
The total loading capacity is 1,300,000 pixels. Maximum width and height must also stay within the limits for the selected firmware and screen configuration. A 4K media-decoding capability does not mean the player can drive a full 4K LED wall.
Can the TB50 play content without an internet connection?
Yes. Asynchronous mode plays media stored locally. An internet connection is needed for internet-based remote publishing and monitoring, rather than for every moment of local playback.
Does the TB50 include 4G?
The standard TB50 does not include a 4G module. This product offers a separate configuration with a 4G module; confirm regional compatibility and data-service requirements before ordering.
Does the TB50 have 16 GB or 32 GB storage?
Both figures appear in NovaStar documentation for different revisions. The original specification lists 16 GB, while later documentation lists 32 GB. Ask EagerLED to confirm the hardware version and storage of the unit being supplied.
How do I get a TB50 price and compatibility check?
Select the configuration above or contact EagerLED with your screen resolution, quantity and delivery country. We can review the player and receiving-card configuration before you order.
