NovaStar A9s Compact LED Receiving Card
Original price was: $ 38.00.$ 33.00Current price is: $ 33.00.
NovaStar A9s compact receiving card with up to 512 × 512-pixel loading using PWM ICs. Supports 32 parallel RGB groups or 64 serial groups, expandable to 128, plus pixel-level calibration and 3D functions.
9999 in stock
NovaStar A9s compact LED receiving card
The A9s is a compact receiving card for LED display cabinets, with a listed maximum loading capacity of 512 × 512 pixels using PWM ICs. It supports pixel-level brightness and chroma calibration and 3D functions, and uses high-density connectors for its data connections.
Product parameters
| Model | NovaStar A9s |
|---|---|
| Maximum listed loading | 512 × 512 pixels with PWM IC |
| Parallel RGB data | Up to 32 groups |
| Serial data | 64 groups, expandable to 128 groups |
| Connection design | High-density connectors |
| Image functions | Pixel-level brightness and chroma calibration; 3D support |
| Custom functions | Reserved pins available |
| EMC design | EMC Class B compliant hardware |
Cabinet integration
The high-density connector design helps limit the effects of dust and vibration on the connection. The parallel RGB and serial data counts refer to alternative arrangements. The expanded serial mode must be checked against the actual cabinet design.
Before replacing a receiving card, confirm the PWM driver IC, HUB-board pinout, cabinet resolution and saved configuration file. For calibration or 3D use, verify the required sending hardware and firmware as part of the complete display system.
Frequently asked questions
What is the A9s receiving card loading capacity?
The listed maximum is 512 × 512 pixels with PWM IC. Keep this driver condition in mind when checking the cabinet configuration.
How many RGB or serial data groups does A9s support?
It supports up to 32 parallel RGB groups or 64 serial data groups. Serial output can be expanded to 128 groups with the relevant configuration.
Does A9s support pixel-level calibration?
Yes. Pixel-level brightness and chroma calibration are listed functions for this receiving card.
Does A9s support 3D LED display operation?
3D is a listed function. Confirm the sending device, driver IC and firmware requirements for the complete 3D installation before ordering.
Can A9s be installed directly in any LED cabinet?
Compatibility must be checked. The card uses high-density connectors, so match the HUB board, pinout, module driver and configuration rather than relying on the pixel capacity alone.

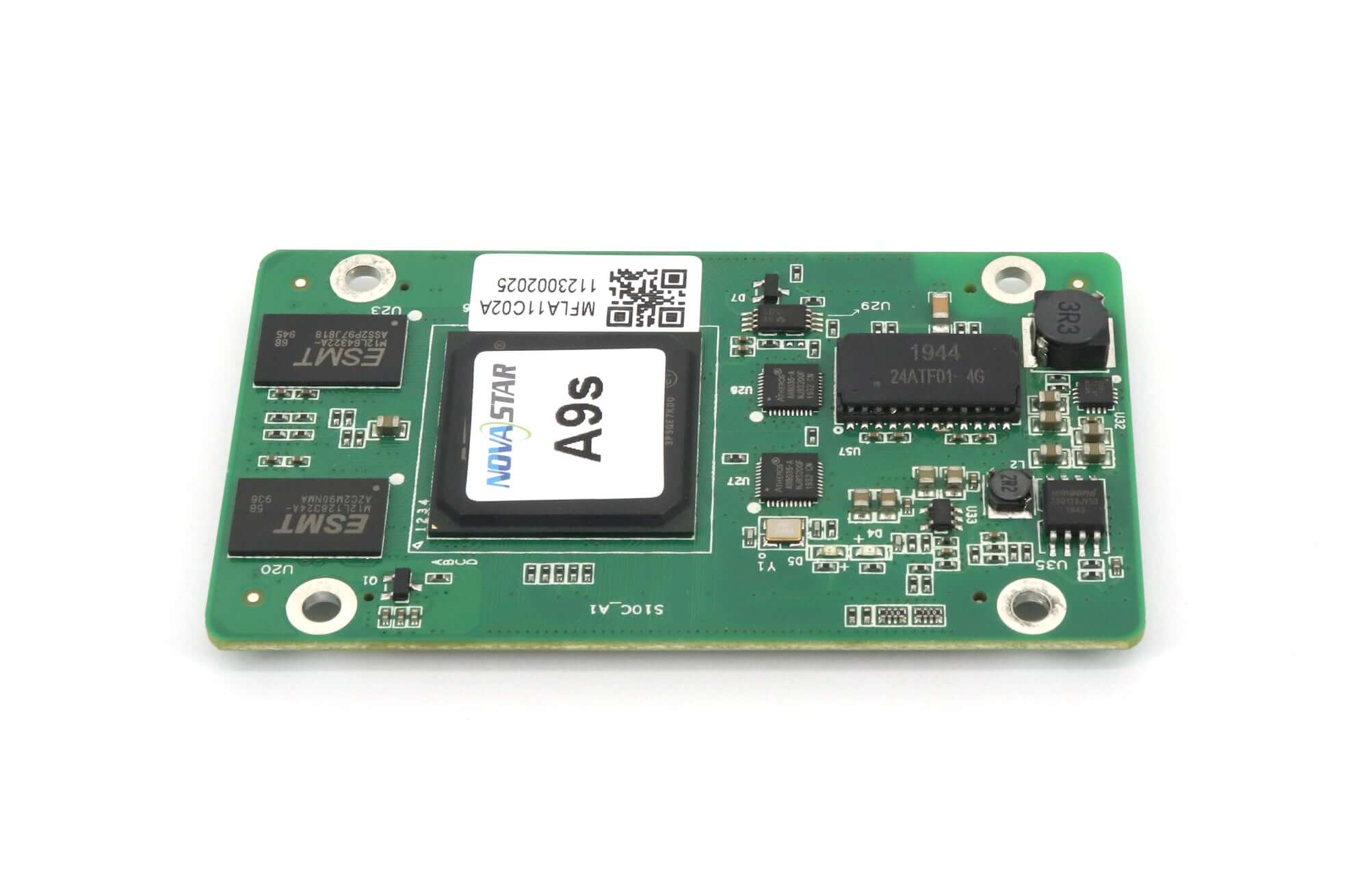

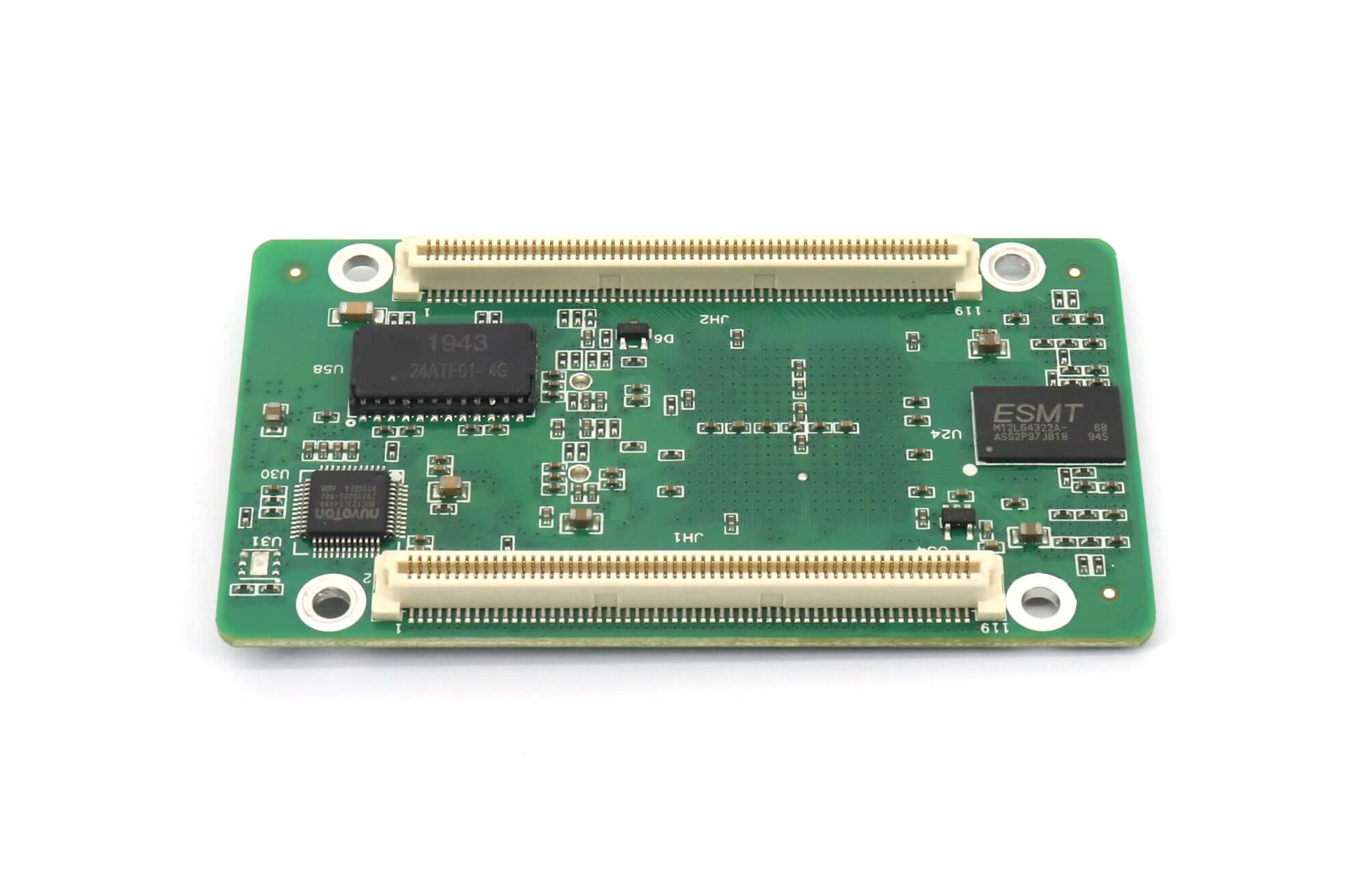

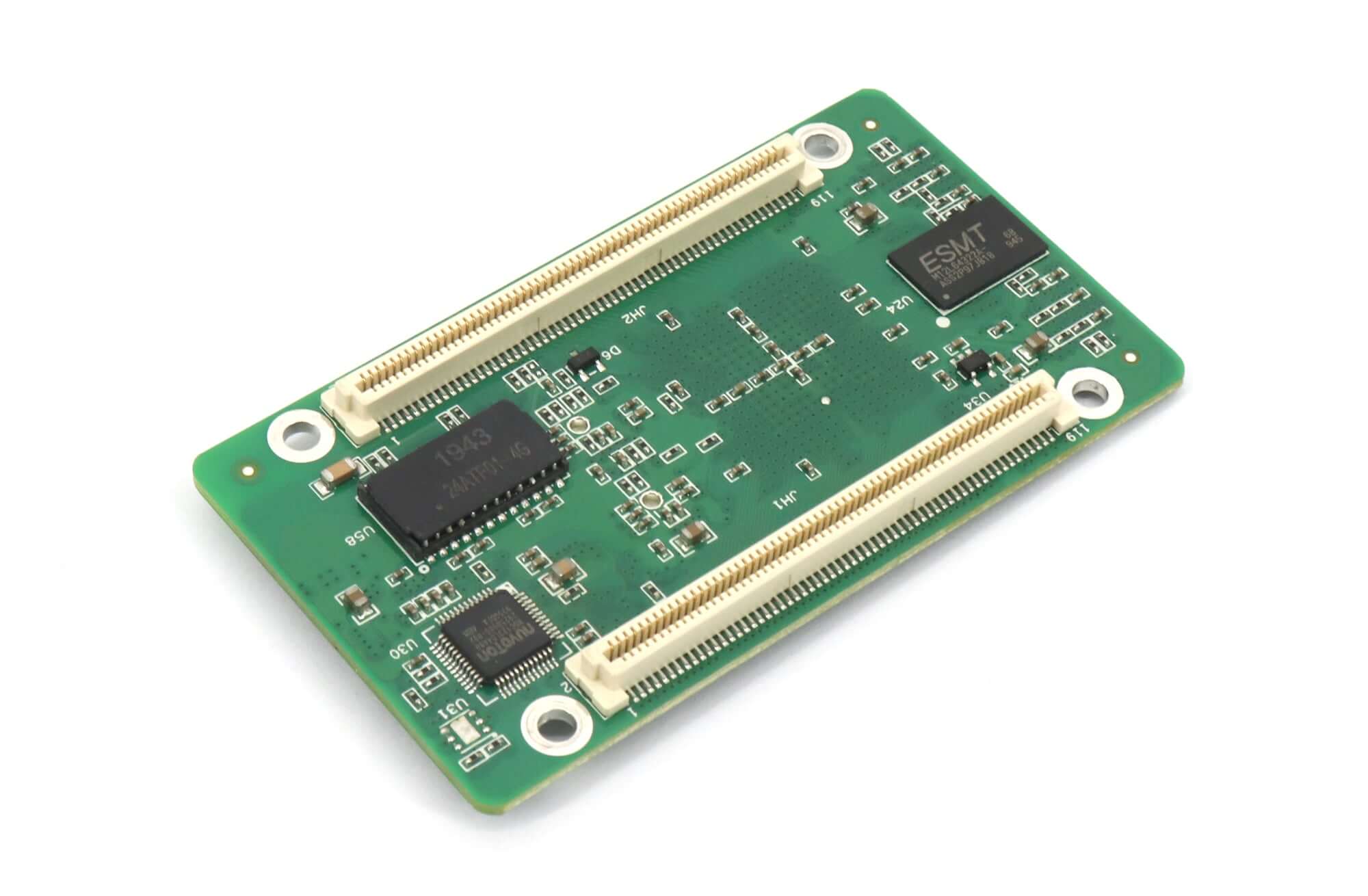

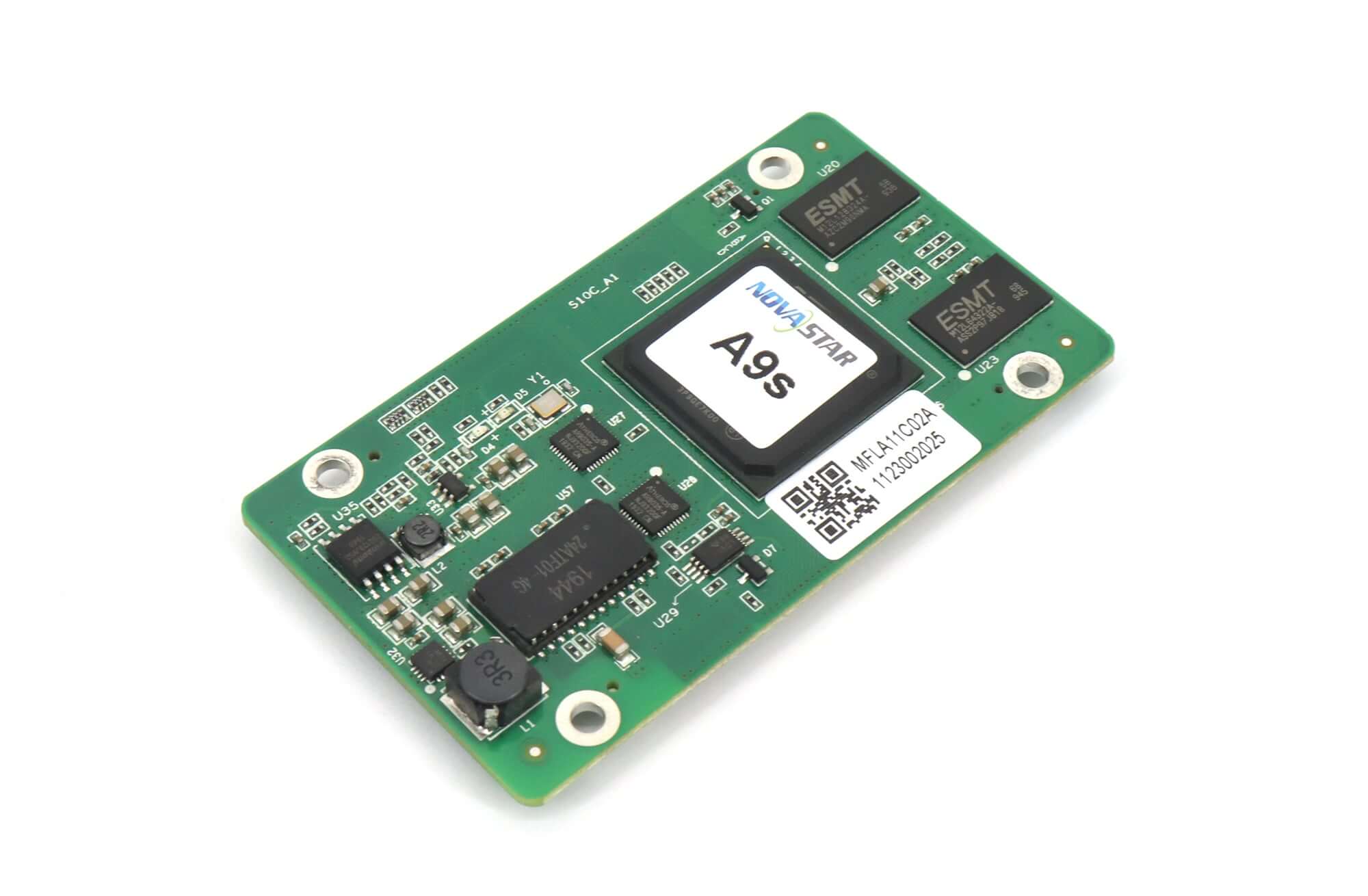

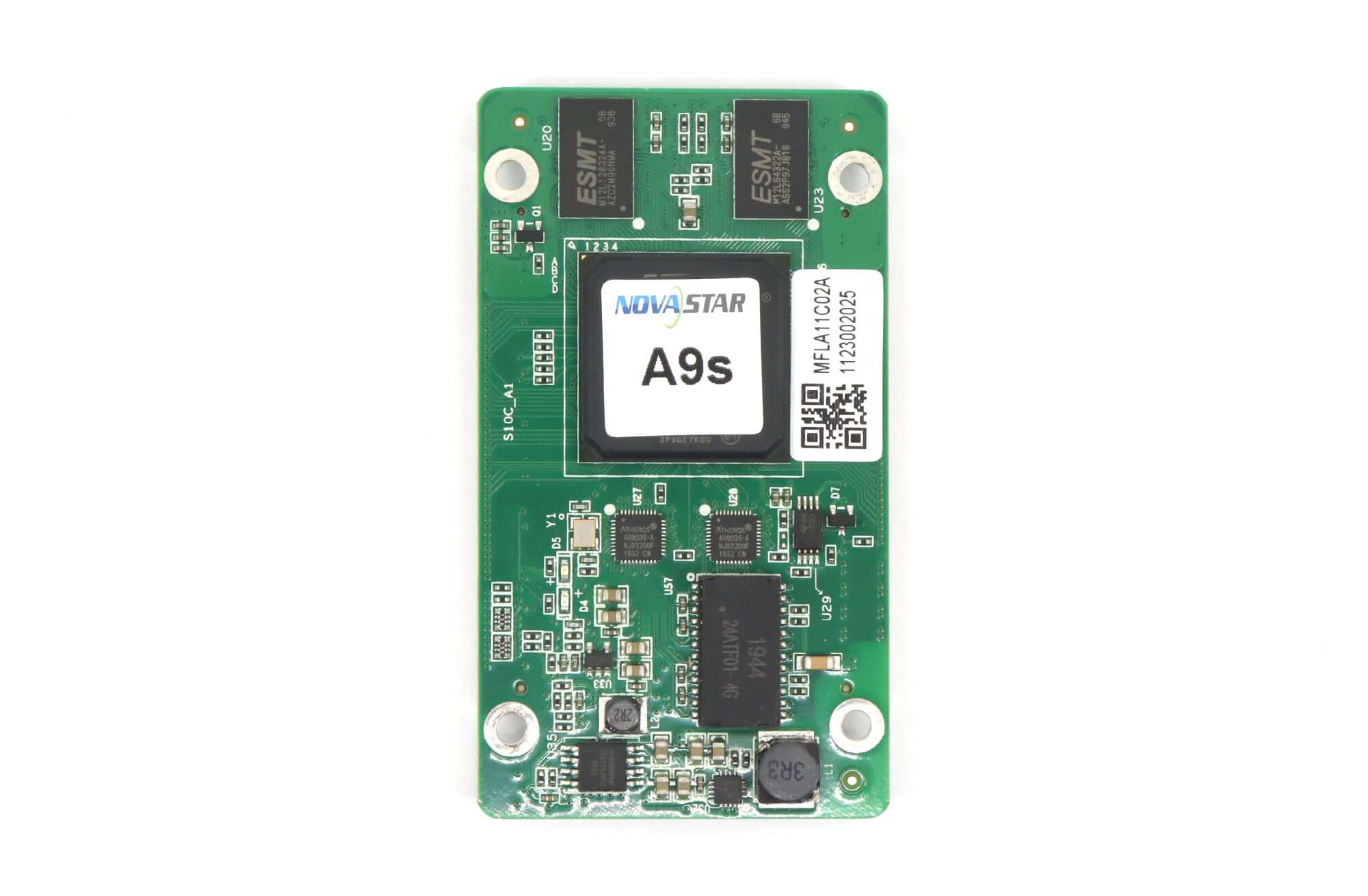

Product images
Specification download
| Weight | 0.2 kg |
|---|
