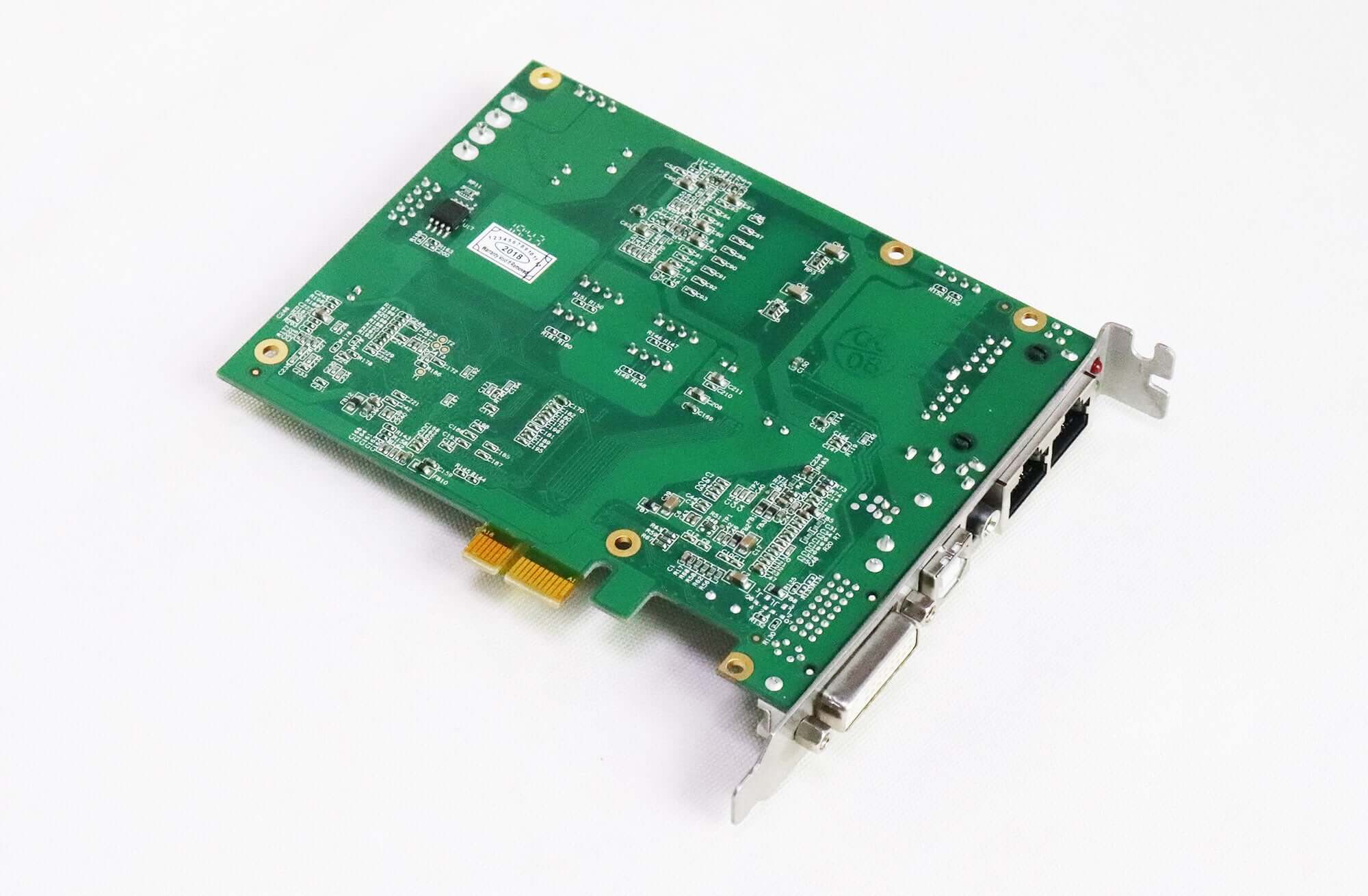

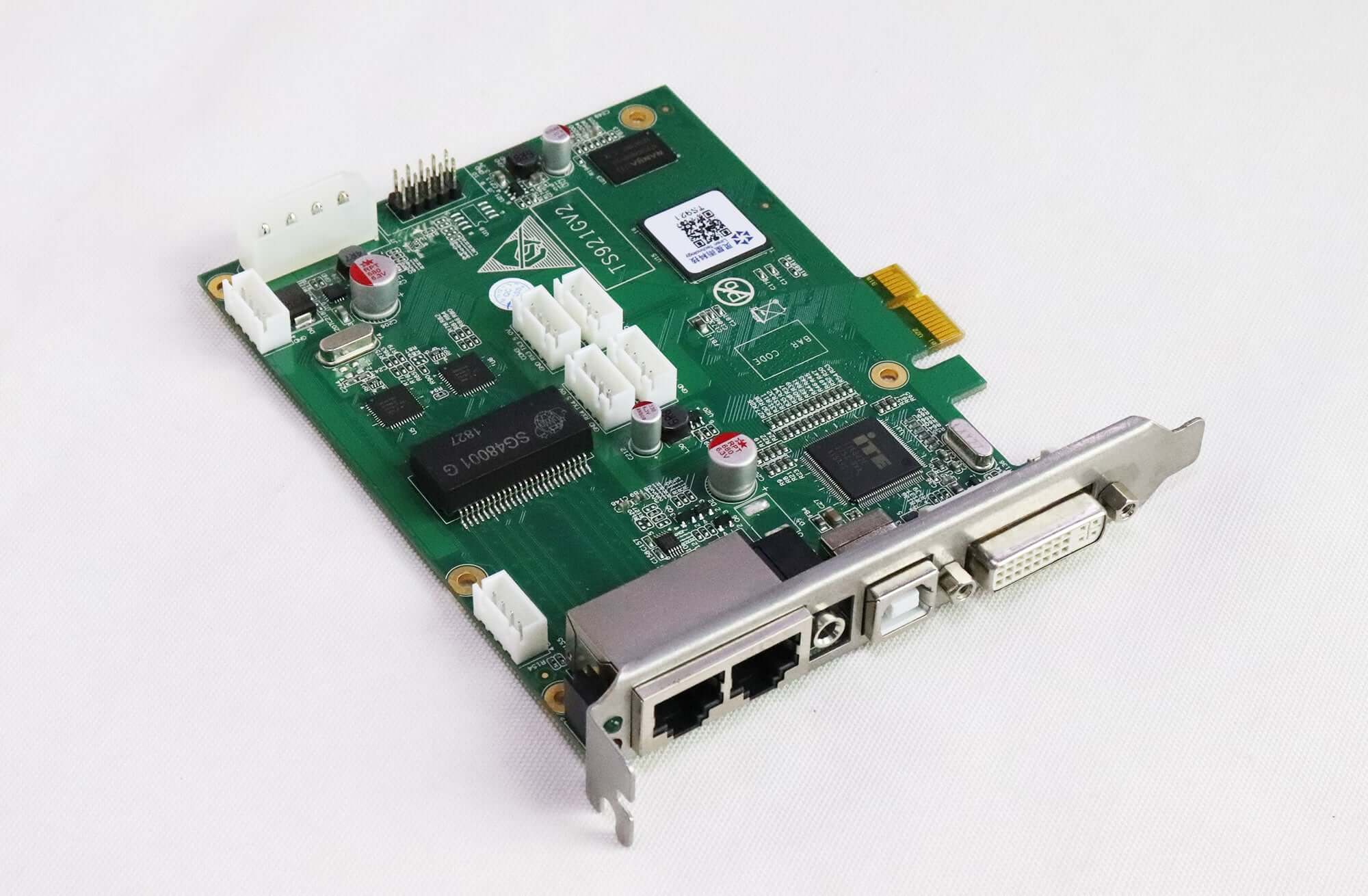

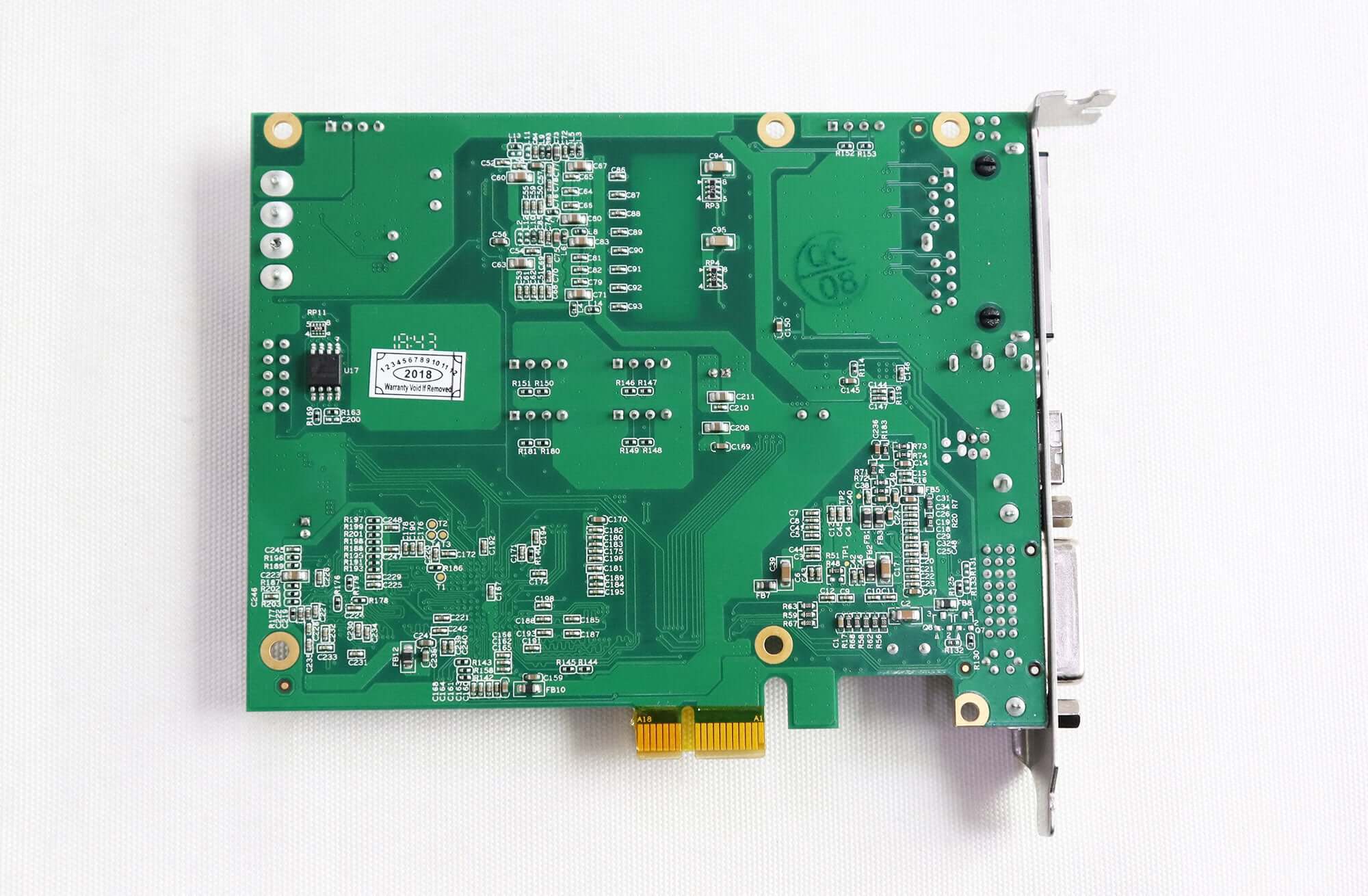

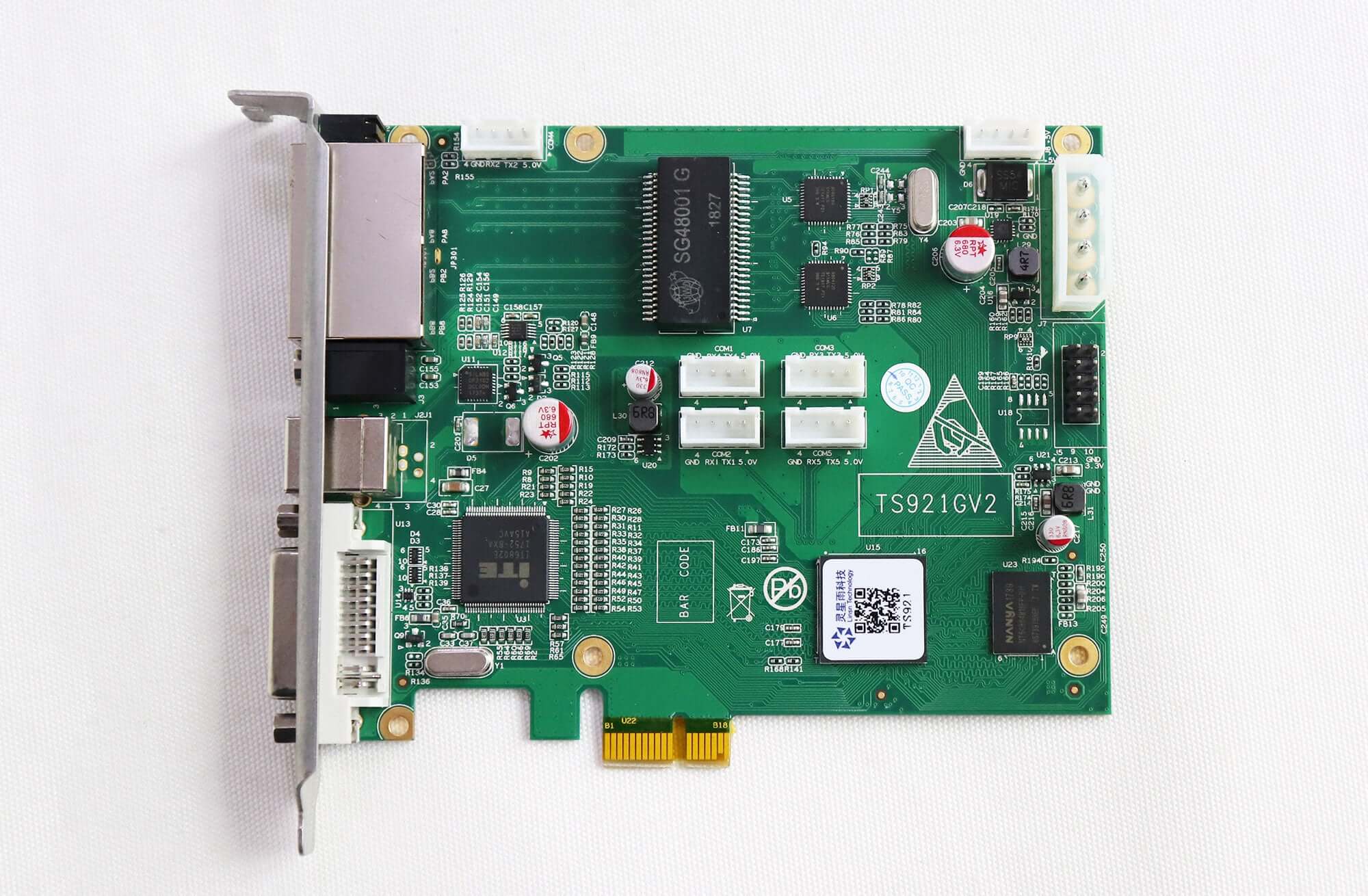

Linsn TS921 LED Sending Card – DVI Input, Dual Outputs
$ 96.00
Linsn TS921 provides DVI video input, audio input, two outputs and a PCI-E 1X interface. It supports RCG readback and RCG/CON broadcasting; confirm source timing and screen loading for the supplied revision.
9997 in stock
Product overview
The Linsn TS921 is an LED sending card with one DVI video input, one audio input and two output ports. It supports RCG configuration readback and RCG/CON file broadcasting for LED screen setup.
Product specifications
| Parameter | Specification |
|---|---|
| Video input | 1 DVI input |
| Source capability | 4K video-source input listed; exact timing not specified in the existing listing |
| Video bit depth | 12-bit, 10-bit and 8-bit inputs |
| Grayscale | 16-bit display support |
| Audio | 1 input |
| Card interface | PCI-E 1X |
| Outputs | 2 ports |
| Listed resolution examples | 2048 × 640 and 1280 × 1024 |
| Configuration functions | RCG readback; RCG and CON file broadcasting |
Input timing and model identification
A listed 4K source capability does not establish that the card can load a complete 4K LED screen. Confirm source timing, receiving-card configuration and the screen pixel map before purchase; the original description does not specify a 4K refresh rate or a total pixel-load figure.
This page identifies the product as TS921, as shown in its product listing and photographs. The earlier title also included L202, but the available description does not establish that TS921 and an L202 media player are equivalent products. Use the board label and revision when requesting a replacement.
Frequently asked questions
1. What video input does TS921 have?
The listed video connection is one DVI input. Confirm the source output and required timing before connecting the controller.
2. Does 4K input support mean a 4K LED screen load?
No. Video-source input and LED output loading are separate specifications. The listing gives 2048 × 640 and 1280 × 1024 examples but does not state a complete 4K output load.
3. Can I read back an RCG file?
Yes. RCG readback, RCG broadcasting and CON broadcasting are listed TS921 configuration functions.
4. Is TS921 the same as the L202 media player?
The available information does not establish equivalence. Confirm the exact TS921 board model, revision and connections rather than choosing by the older combined title.
| Weight | 0.8 kg |
|---|
