Colorlight AX08 AI Media Station – 8-Port LED Player
$ 1,010.00
Colorlight AX08 combines Android 13 playback, wireless casting and synchronous/asynchronous LED sending. Eight Gigabit Ethernet outputs support up to 5.2 million pixels, with two HDMI inputs for external sources.
10000 in stock
Colorlight AX08 AI Media Station
The Colorlight AX08 combines Android 13 media playback with synchronous and asynchronous LED sending. Its eight Gigabit Ethernet outputs support a maximum load of 5.2 million pixels, with a maximum width of 7680 pixels. It is designed for LED presentations in classrooms, meeting rooms, exhibition halls and similar spaces.
Use the HDMI inputs for external sources, play stored media, or share content wirelessly. Multi-layer display and up to 8K decoding allow different presentation sources to be managed from one media station. The maximum decoding resolution, screen loading capacity and output resolution describe different capabilities.
Presentation and playback features
- 8-core processor using an 8 nm process; H.264, H.265, AV1, VP9 and AVS2 video decoding.
- Android 13 with third-party app installation, a 4K user interface and Colorlight Infi-bit grayscale extension.
- Picture-in-picture and picture-by-picture layouts, with annotation over external HDMI and OPS signals.
- Wireless screen casting and reverse control; support for infrared touch frames and electronic whiteboard use, subject to the required activation and peripherals.
- Meeting applications with cameras and microphones; third-party meeting software is required.
- Preset modes for presentations, remote meetings and video playback.
- Local file management and USB-drive playback, including playback from files copied to the device.
- Fanless design and standby operation.
AX08 technical specifications
| Parameter | Specification |
|---|---|
| LED sending outputs | 8 × Gigabit Ethernet |
| Maximum LED load | 5.2 million pixels; maximum width 7680 pixels |
| Operating system | Android 13 |
| Video decoding | Up to 8K; H.264 / H.265 / AV1 / VP9 / AVS2 |
| Memory / storage | 8 GB DDR / 128 GB eMMC |
| HDMI inputs | 2: HDMI 2.0 IN 1, up to 3840 × 2160 at 60 Hz, YUV444; HDMI 1.4 IN 2, up to 3840 × 2160 at 30 Hz, YUV444. Both support HDCP 1.4/2.2. |

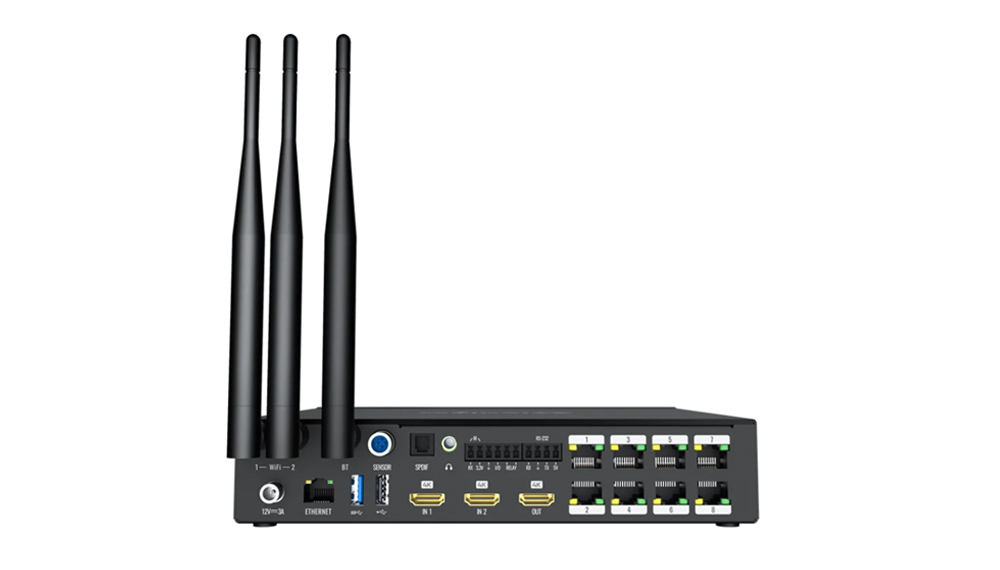

| Display outputs | 1 × HDMI 2.0, supporting 3840 × 2160 at 60 Hz, YUV444; 1 × USB-C DP Alt Mode output |
| Network connection | 1 × Gigabit Ethernet port; WiFi 6, dual-band, AP and STA modes |
| Bluetooth | Bluetooth 5.2 |
| USB peripherals | USB 2.0, USB 3.0 and USB-C connections |
| Audio outputs | 1 × 3.5 mm audio jack; 1 × SPDIF supporting PCM, Dolby and DTS |
| Control connections | RS232; infrared input, I/O and relay connections; sensor port |
| Power supply / consumption | DC 12 V / 3 A; 28 W |
| Device dimensions (W × H × D) | 220 × 188 × 47 mm, excluding antennas and mounting bracket |
| Operating temperature | −20°C to 60°C |
| Operating humidity | 0% RH–85% RH, non-condensing |
Control software and installation options
AX08 supports WebUI, PC PlayerMaster, ColorlightCloud CMS and the mobile LED Assistant. Playlists can include videos, images, text, time, weather and HDMI signals. An infrared/Bluetooth remote, mouse or keyboard can be used for file browsing and document editing, while central control is available through a serial port or network connection.
The unit supports desktop placement or wall mounting. Automatic brightness adjustment requires the optional ambient light sensor. Other sensors are also optional. Check the required casting activation, touch hardware and meeting applications when planning an interactive installation.
Frequently asked questions
How many pixels can the Colorlight AX08 control?
AX08 supports up to 5.2 million pixels across eight Gigabit Ethernet outputs, with a maximum width of 7680 pixels. Check the total pixel count and screen layout together when planning the installation.
Does AX08 support live inputs and stored playback?
Yes. It provides synchronous and asynchronous sending functions, two HDMI inputs and local media playback. Its playlist functions also support video, images, text, time, weather and HDMI signals.
What HDMI input resolutions does AX08 support?
IN 1 is an HDMI 2.0 input supporting 3840 × 2160 at 60 Hz, YUV444. IN 2 is HDMI 1.4 and supports 3840 × 2160 at 30 Hz, YUV444. Both support HDCP 1.4/2.2.
Is multi-screen casting included with AX08?
Single-screen casting is supported by default. Specification V1.6 lists a separate nine-screen wireless casting activation code. Optional 2K USB-A and 4K USB-C casting dongles are also listed.
What is required for AX08 whiteboard and meeting functions?
Whiteboard use requires a separately purchased activation code and suitable touch hardware. Meeting functions require third-party meeting applications and compatible peripherals such as a camera and microphone.
Product images and specification download
Download Specification:
Colorlight AX08 LED Display AI Media Station Specification
| Weight | 3.5 kg |
|---|
