Colorlight X26m 4K LED Controller – 26 Ethernet Outputs
$ 1,902.00
Colorlight X26m offers 4K HDMI/DP input, up to 17.03 million-pixel loading and a choice of 26 Gigabit Ethernet outputs or three 10G fiber outputs. It supports multi-window layouts, USB playback and 128 preset scenes.
1915 in stock

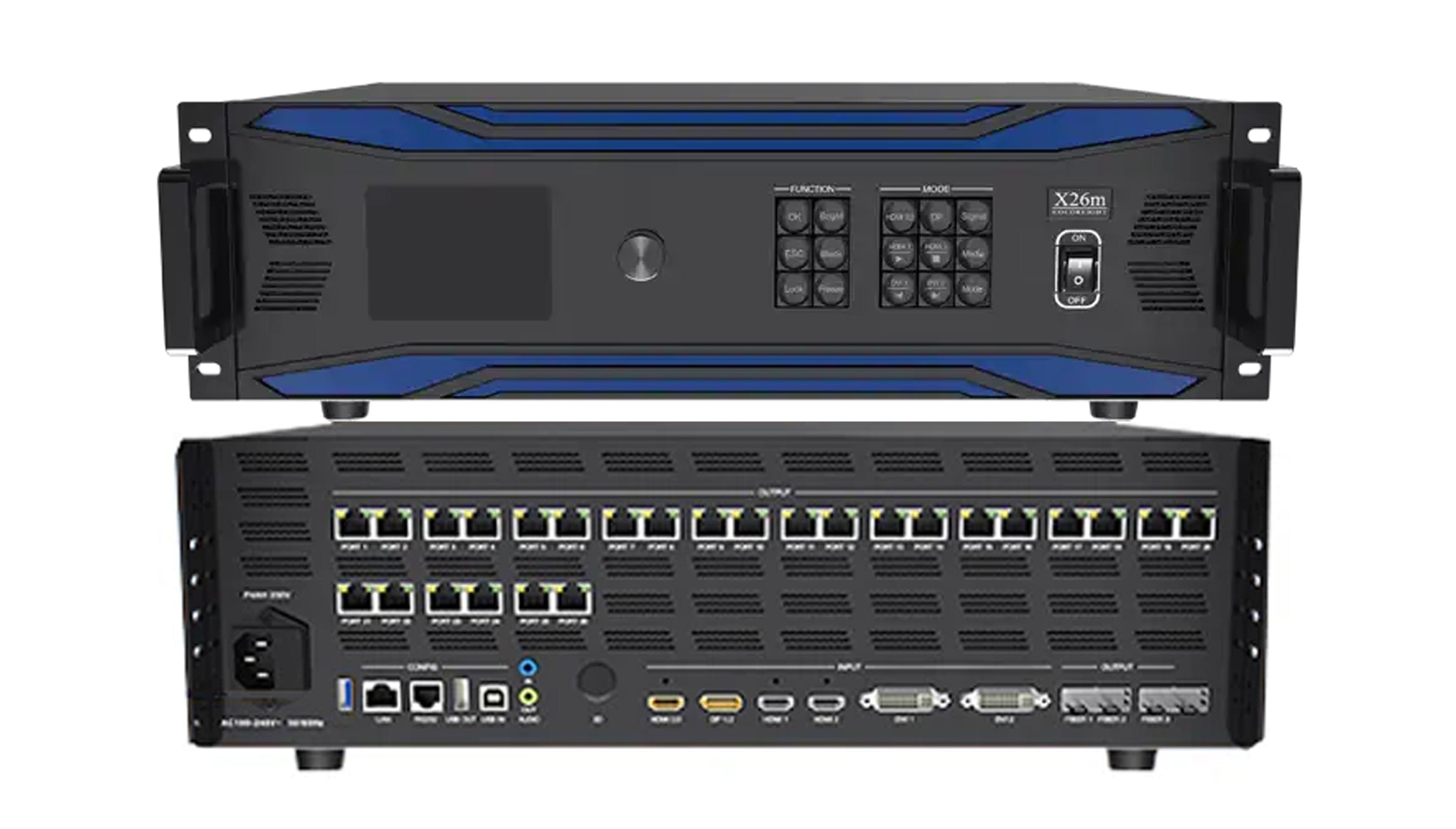

Colorlight X26m LED video controller
Colorlight X26m handles 4K and HD sources for LED walls with a documented maximum capacity of 17.03 million pixels. It provides 26 Gigabit Ethernet outputs and three functional 10G optical outputs, with Ethernet or optical output selected for the installation.
Video sources, layouts and control
Connect a 4K source through HDMI 2.0 or DP 1.2, or use the two HDMI 1.4 and two DVI inputs for HD sources. The controller supports up to six overlapping windows, with resizing, positioning and cropping. Its 128 preset scenes let operators recall saved layouts.
USB drive playback supports video and image files. Genlock can synchronize to internal VSync, an input source or automatic selection based on layers. Precise Color Management requires compatible receiving cards. The specification also lists subtitles, 3×/4× virtual pixel functions and optional Bluetooth remote control.
Technical parameters
| Parameter | Specification |
|---|---|
| Maximum loading | 17.03 million pixels |
| Ethernet outputs | 26 × Gigabit Ethernet |
| Optical outputs | 3 × 10G; select Ethernet or optical output |
| Fiber port mapping | FIBER 1: Ethernet 1–10; FIBER 2: Ethernet 11–20; FIBER 3: Ethernet 21–26 |
| Optical module | Separately purchased 10G single-mode module; dual LC, 1310 nm; documented distance 2 km |
| 4K inputs | 1 × HDMI 2.0 and 1 × DP 1.2; maximum 4096 × 2160 at 60 Hz |
| HD inputs | 2 × HDMI 1.4 and 2 × DVI |
| Windows | Up to 6; minimum window/crop size 64 × 64 |
| Audio | 1 × 3.5 mm input and 1 × 3.5 mm output; HDMI/DP audio decoding |
| Control | USB control and cascading, RS232, LAN and app |
| Scene memory | 128 presets |
| Power supply / rated power | AC 100–240 V, 2.1 A, 50/60 Hz / 80 W |
| Dimensions (W × H × D) | 482.6 × 133.3 × 385.0 mm, without foot pads |
| Net weight | 6.25 kg |
| Operating environment | −20 to 50°C; 0–80% RH, non-condensing |
Plan the pixel allocation for the intended frame rate and output configuration using the full specification. The rightmost fiber port shown on the rear panel is reserved and has no functional purpose. HDMI 2.0 and DP 1.2 do not support HDR input.
Frequently asked questions
Does Colorlight X26m use Ethernet or fiber outputs?
It provides 26 Gigabit Ethernet outputs and three functional 10G fiber outputs. The specification says to choose Ethernet or optical output; fiber ports map to Ethernet groups 1–10, 11–20 and 21–26.
Are the X26m optical modules included?
The specification states that the 10G single-mode optical module must be purchased separately. It specifies dual LC interfaces, 1310 nm wavelength and a 2 km transmission distance. Confirm the supplied accessories when ordering.
Which X26m inputs accept 4K video?
HDMI 2.0 and DP 1.2 accept up to 4096 × 2160 at 60 Hz. Two HDMI 1.4 and two DVI inputs serve HD sources. HDR is not supported on the HDMI 2.0 and DP 1.2 inputs.
Can X26m play media from a USB drive?
Yes. Video and image playback is supported, with NTFS, FAT32 and exFAT file systems. Supported resolutions depend on the media codec; check the PDF before preparing playback files.
Does X26m support 3D LED displays?
The specification lists 3D support, with accessories purchased separately. Confirm the required controller configuration, receiving cards and active 3D glasses for the intended system.
Download Specification:
Colorlight X26m LED Display Video Controller Specification
