Colorlight Z4 Pro 4K LED Controller – 10 Ethernet Ports
$ 2,977.00
Colorlight Z4 Pro is a 4K LED video controller with ten Gigabit Ethernet outputs and up to 6.55 million-pixel capacity. It supports HDMI 2.0, DP 1.2, 12G-SDI, HDR10/HLG and Genlock.
1651 in stock
Colorlight Z4 Pro professional LED video controller
The Colorlight Z4 Pro is a professional LED video controller for 4K source handling, multi-screen processing and synchronized display. HDMI 2.0, DisplayPort 1.2 and 12G-SDI input types support broadcast, live-event and filming workflows, with HDR10/HLG and Genlock available for compatible systems.
Z4 Pro offers up to 6.55 million pixels of loading capacity. Its output options include 10 Gigabit Ethernet ports and one 10 Gigabit fiber ports, with Ethernet-port and controller redundancy support.
Technical specifications
| Parameter | Specification |
|---|---|
| Video input types | HDMI 2.0, DP 1.2, 12G-SDI |
| Maximum single-port input | 4096 × 2160 at 60 Hz |
| Input bit depth | 8-bit / 10-bit |
| Input frame-rate range | 23.98–240 Hz |
| Maximum LED load | 6.55 million pixels |
| Maximum width / height | 16,384 / 8,192 pixels; total loading limit applies |
| Output options | 10 × Gigabit Ethernet; 1 × 10 Gigabit fiber |
| Output frame-rate range | 23.98–240 Hz |
| Multi-screen display | Up to three screens |
| HDR formats | HDR10 / HLG |
| Synchronization | Genlock |
| Redundancy | Ethernet port redundancy and controller redundancy |
| Control interfaces | USB for control and cascading; RS232; LAN for TCP/IP control |
| HDCP support | HDCP 1.4 / 1.3 / 2.3, as listed in Specification V2.0 |
Video processing and color adjustment
- Crop, switch and scale video sources for the LED display.
- Use multi-screen display and single-layer crossfades.
- Adjust hue, saturation, contrast and brightness compensation.
- Control brightness by network-port group and adjust color temperature with independent RGB controls.
- Support 3× and 4× virtual-pixel modes.
- Use a multifunction card for automatic brightness control.
Low-latency operation
Specification V2.0 lists a one-frame minimum under low latency and a zero-frame minimum under lag-free processing. It does not explain the operating conditions for these two statements in that feature list. Confirm the required processing mode, firmware and complete signal chain before relying on a particular latency figure.
Frequently asked questions
How many Ethernet outputs does Z4 Pro have?
Z4 Pro has ten Gigabit Ethernet outputs and one 10 Gigabit fiber output option. Its maximum LED loading capacity is 6.55 million pixels.
Does Colorlight Z4 Pro accept 4K at 60 Hz?
Yes. The listed maximum single-port input is 4096 × 2160 at 60 Hz. Input types include HDMI 2.0, DP 1.2 and 12G-SDI, with 8-bit and 10-bit video support.
Can Z4 Pro display more than one screen?
Its multi-screen function supports up to three screens. Video cropping, scaling, switching and single-layer crossfade are also listed.
Does Z4 Pro provide HDR and Genlock?
Yes. Z4 Pro supports HDR10, HLG and Genlock. Check the source format and receiving-system configuration for the intended workflow.
How can I control or connect a backup Z4 Pro?
The controller provides USB control and cascading, RS232 and LAN TCP/IP control. It also supports Ethernet-port redundancy and controller redundancy; configure the backup topology for the installation.

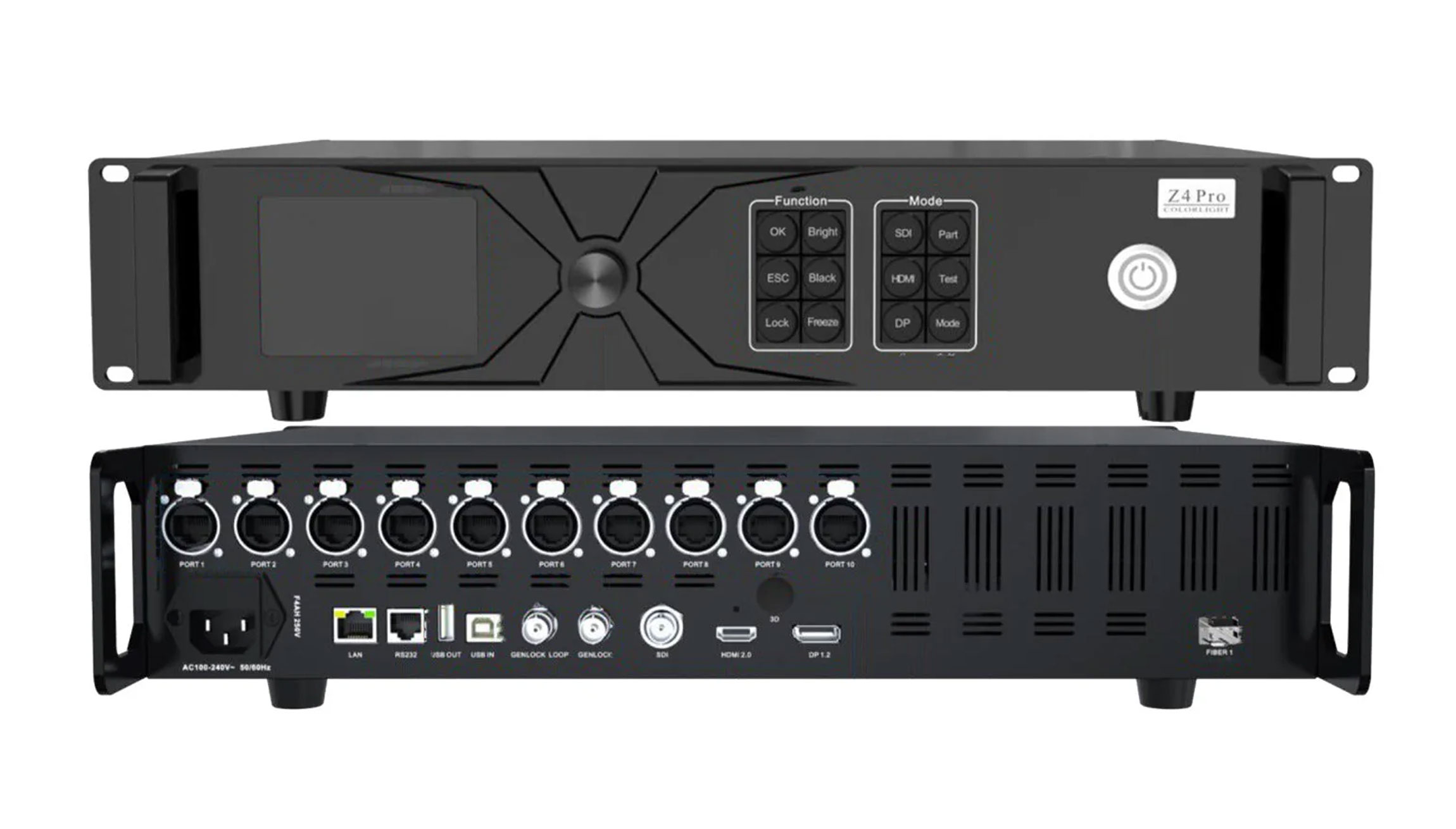

Product image and specification download
Download specification: Colorlight Z4 Pro LED Display Video Controller Specification
