G-Energy JPS300P-A5.0V 5V 60A LED Power Supply
$ 30.00
G-Energy JPS300P-A5.0V LED power supply with 5V output, 0–60A current range and 300W maximum power. Listed input: 100–240Vac, 47–63Hz; self-cooling.
9871 in stock
G-Energy JPS300P-A5.0V LED power supply
The G-Energy JPS300P-A5.0V is a constant-voltage LED video screen power supply with 5V output, a 0–60A output current range and 300W maximum output power. The legacy listing specifies 100–240Vac input and self-cooling; the linked V1.0 PDF dated 2020/06/29 gives a 90–264Vac rated input range. Check the full A5.0V model designation when ordering.
Technical specifications
| Model | JPS300P-A5.0V |
|---|---|
| Output type | Constant voltage (original table: “Constant pressure”) |
| Output voltage | 5V |
| Output current | 0–60A |
| Maximum output power | 300W |
| AC input — legacy page | 100–240Vac, 47–63Hz |
| Ripple and noise — legacy page | ≤200mV |
| Efficiency | ≥88% |
| Power factor | 0.95@230Vac |
| Leakage current | <1mA (VIN:230, as listed) |
| Working temperature | -30°C to +50°C |
| Storage temperature | -40°C to +80°C |
| Cooling | Self-cooling |
| Insulation voltage | I/P–O/P: 3.0KVac; I/P–FG: 1.5KVac; O/P–FG: 0.5KVac |
| Listed safety standards | GB4943, EN60950 |
| Protection functions | Input undervoltage, overload and short circuit |
| Size — original entry | 213 × 85 × 30 (L × W × H); unit not stated in the original list |
| Rated input — PDF | 90–264Vac |
| Precision — PDF | ±5% |
| Ripple and noise — PDF | ≤300mVp-p at 25°C; ≤300mVp-p at -25°C after half an hour at full load, as specified in the PDF |
Match output voltage, load, mounting and terminal arrangement to the LED cabinet. The PDF and legacy listing differ in input range and ripple/noise values; both are identified above. Confirm the applicable unit revision and test conditions.

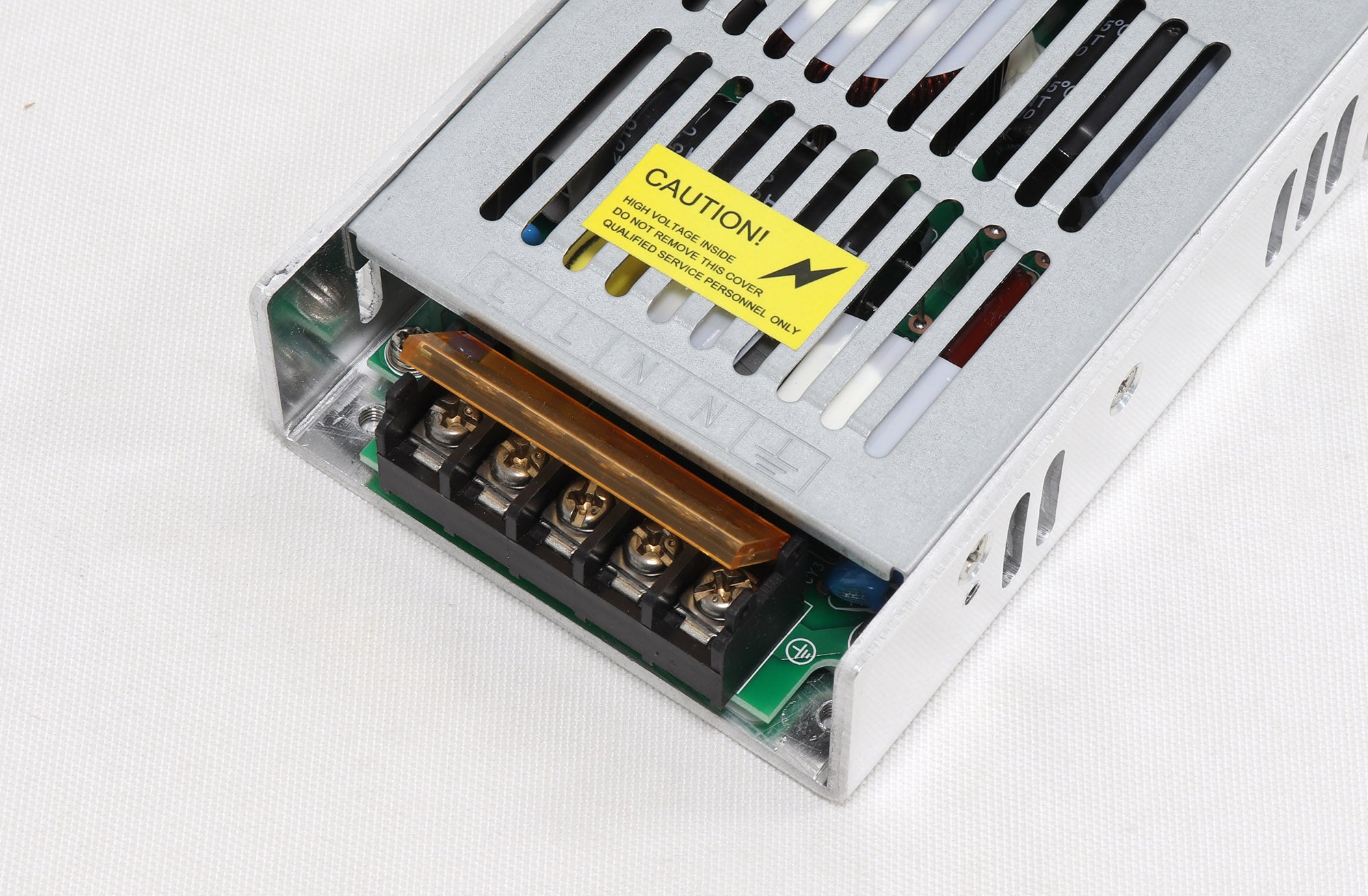

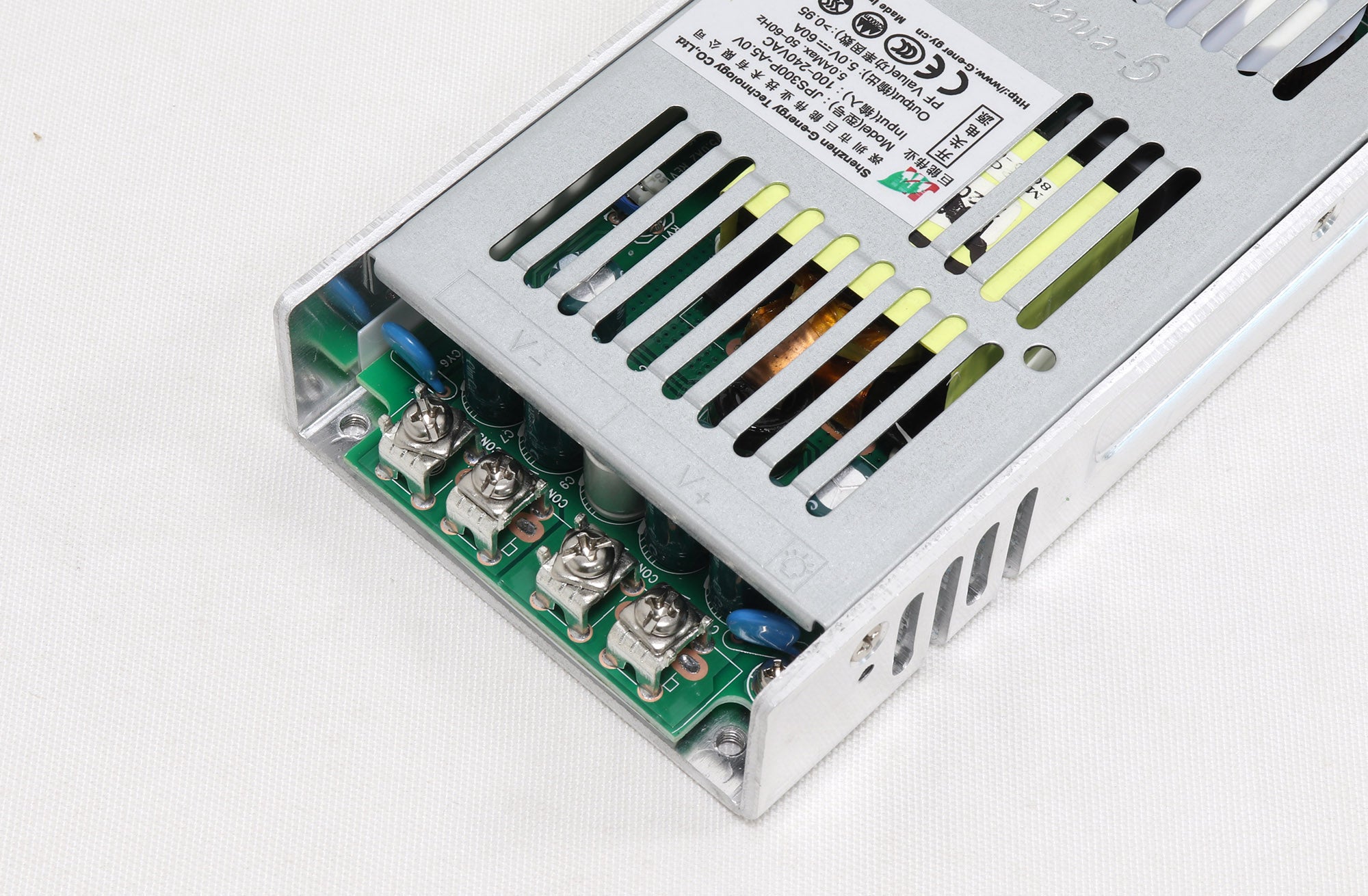

Product image
Specification download
G-Energy JPS300P-A5.0V Specification
Frequently asked questions
What are the JPS300P-A5.0V output ratings?
The existing parameter table lists 5V output, a 0–60A current range and 300W maximum power.
What AC input does it accept?
The legacy page lists 100–240Vac at 47–63Hz; the linked PDF specifies 90–264Vac. Confirm the applicable unit revision.
What efficiency and ripple values are listed?
The legacy table lists efficiency of ≥88% and ripple/noise of ≤200mV. The linked PDF lists ≤300mVp-p under its stated test conditions. These ripple entries differ; confirm the applicable specification.
Where can I check the price or buy the JPS300P-A5.0V?
The current price and stock status are shown above the description. Select the quantity and use Add to cart to review the order total.
Where can I download the specification?
Use the JPS300P-A5.0V specification link above. Confirm the model and document revision before using the ratings for your cabinet.
| Weight | 0.8 kg |
|---|
