Huidu HDP703 LED Video Processor – HDMI, DVI & PIP
$ 240.00
HDP703 LED video processor for HDMI, DVI, VGA and CVBS sources, with optional SDI. Supports PIP/POP, cut/fade switching and four preset groups. Review output-mode and document-version notes before selecting a custom screen resolution.
10000 in stock
HDP703 LED video processor with PIP and source switching
The Huidu HDP703 scales and switches live video for LED screen installations. It accepts digital and analog sources, supports picture-in-picture and provides DVI/VGA video outputs for the display system. It is suitable for stage, rental and exhibition setups using compatible LED sending hardware.
Image control for live displays
Use cut or fade transitions when changing sources, freeze the output while preparing a change, and crop a selected area or restore a full-screen picture. Four user preset groups store settings for repeat use. The specification also describes equal and unequal splicing across multiple processors.
HDP703 technical specifications

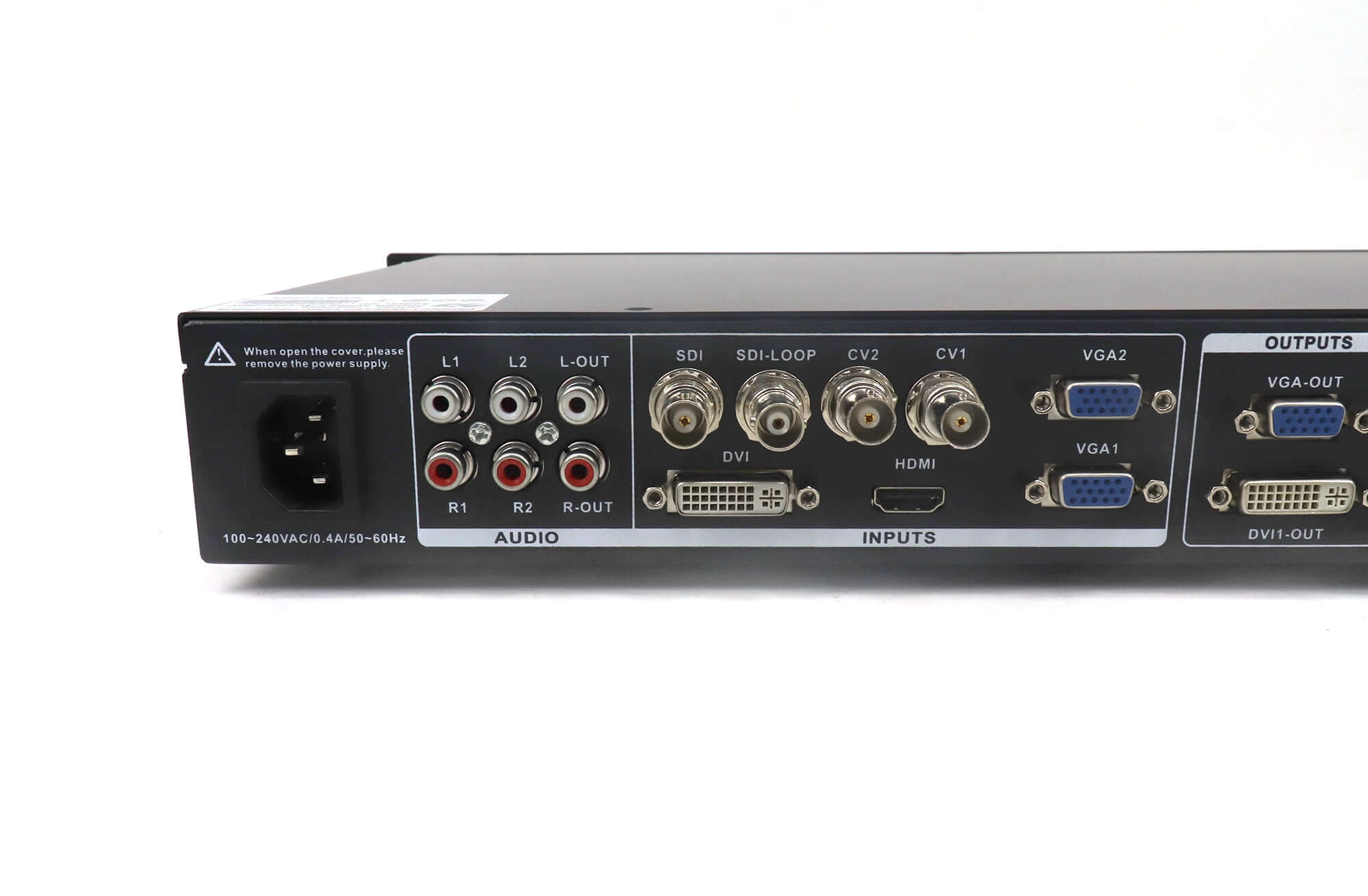

| Standard video inputs | 1 DVI, 1 HDMI, 2 VGA and 2 CVBS |
|---|---|
| Optional input | 1 SDI input, bringing the total to 7 |
| HDMI / DVI input | Up to 1920 × 1200 PC resolution / 1080p HD, per standalone specification |
| VGA input | Up to 1920 × 1200 |
| CVBS input | PAL/NTSC; 480i and 576i |
| Video outputs | 2 DVI and 1 VGA; DVI loop output also described in the specification |
| Listed output modes | Includes 2304 × 1152 at 60 Hz and 3840 × 640 at 60 Hz; see PDF for the full mode list |
| Audio | 3 audio input channels; 1 audio output |
| Picture functions | PIP/POP, cropping, scaling, freeze and chroma key |
| Source switching | Seamless cut or fade; adjustable transition time 0–1.5 seconds |
| Presets | 4 user preset groups |
| AC supply / power | 100–240 VAC, 50/60 Hz; 18 W |
| Dimensions / weight | 253 × 440 × 56 mm as listed (L × W × H); 3.0 kg |
| Working temperature | 0°C to +45°C |
Resolution and document notes: The source lists a 2304 × 1152 at 60 Hz output mode, while its custom-resolution paragraph states 1.3 million pixels. Confirm the required custom canvas for the supplied firmware. The shared HDP703/HDP602 manual has different input counts; the table above uses the HDP703-specific V1.2 document.
Product video

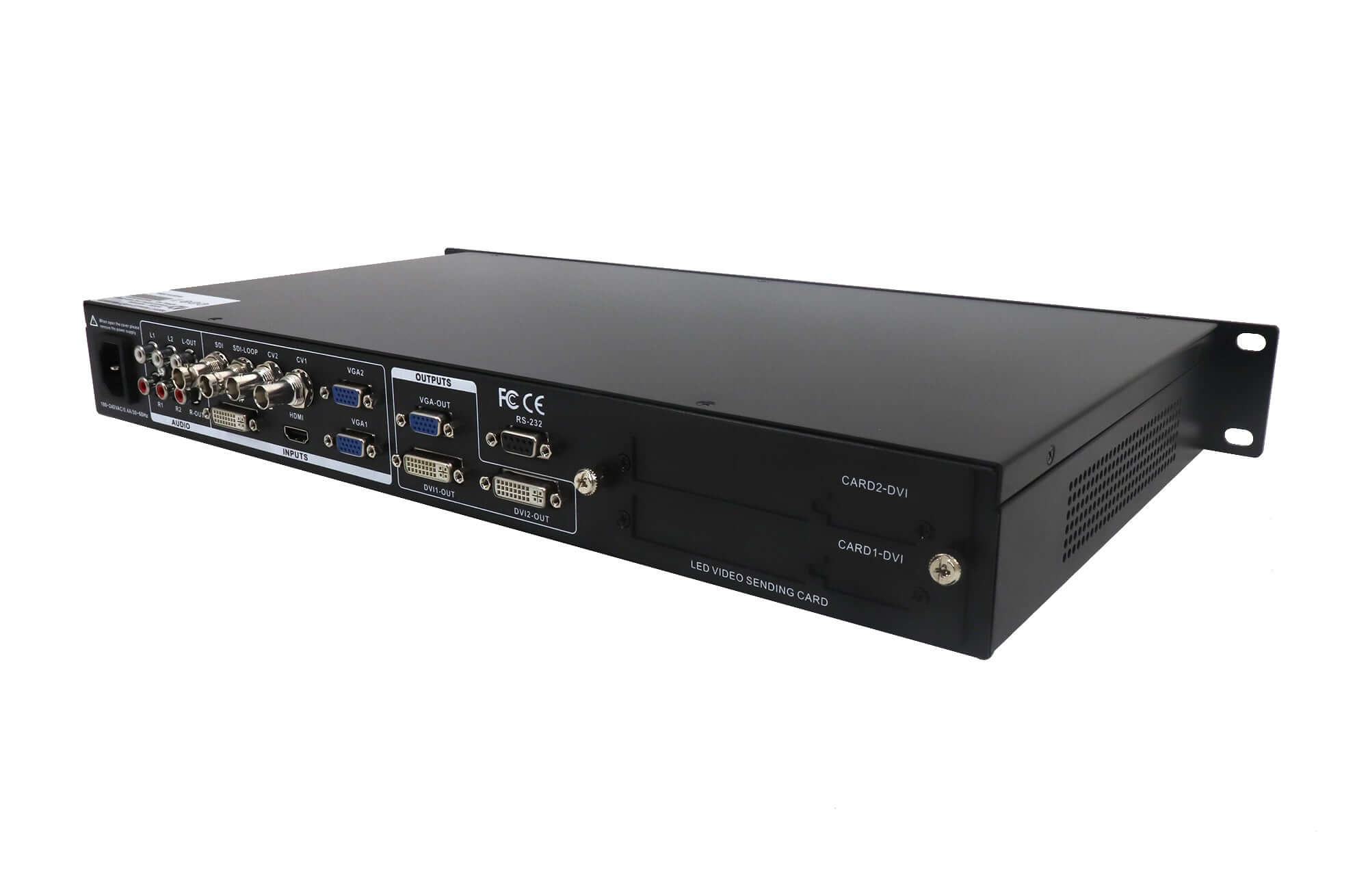

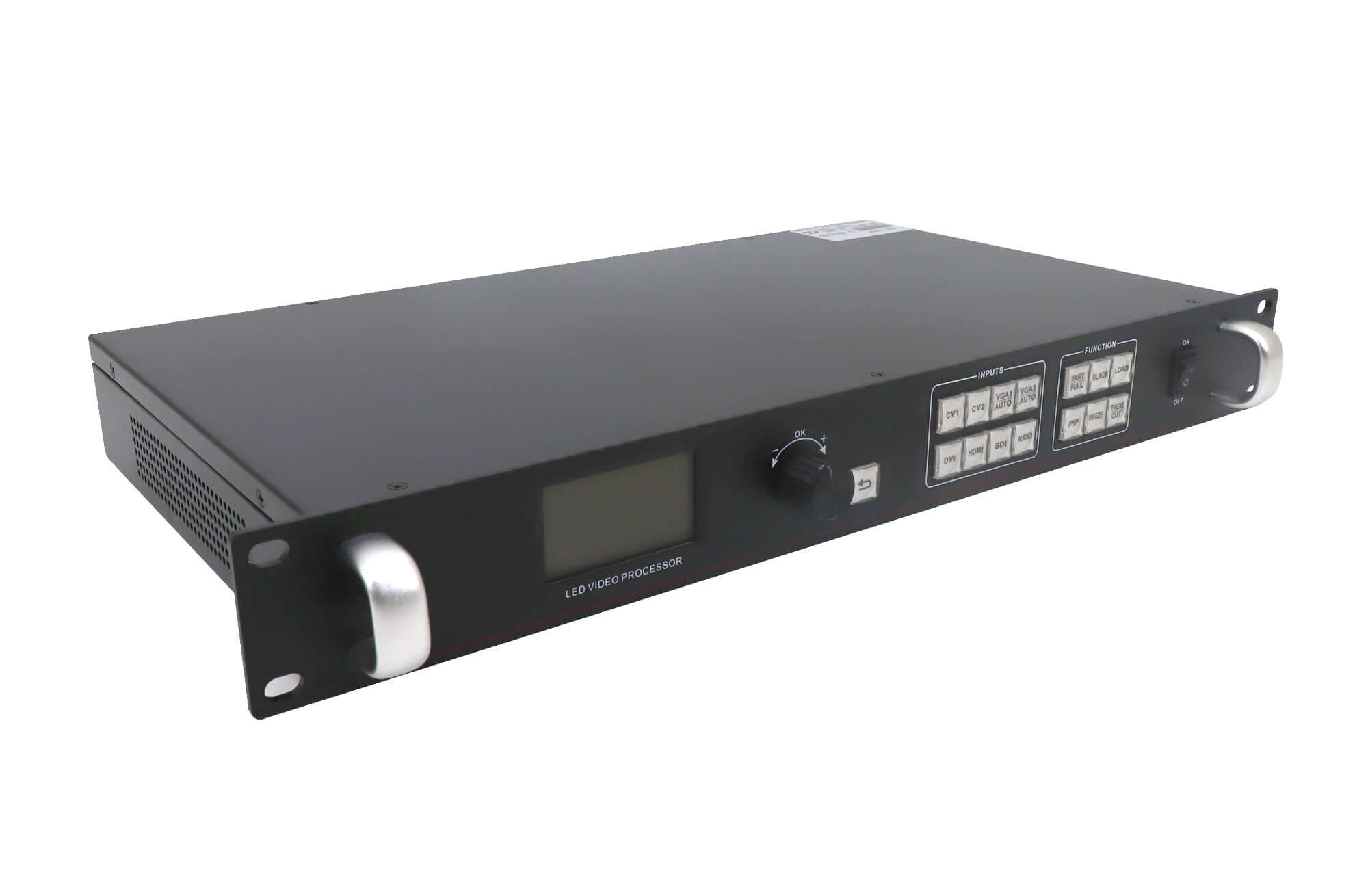

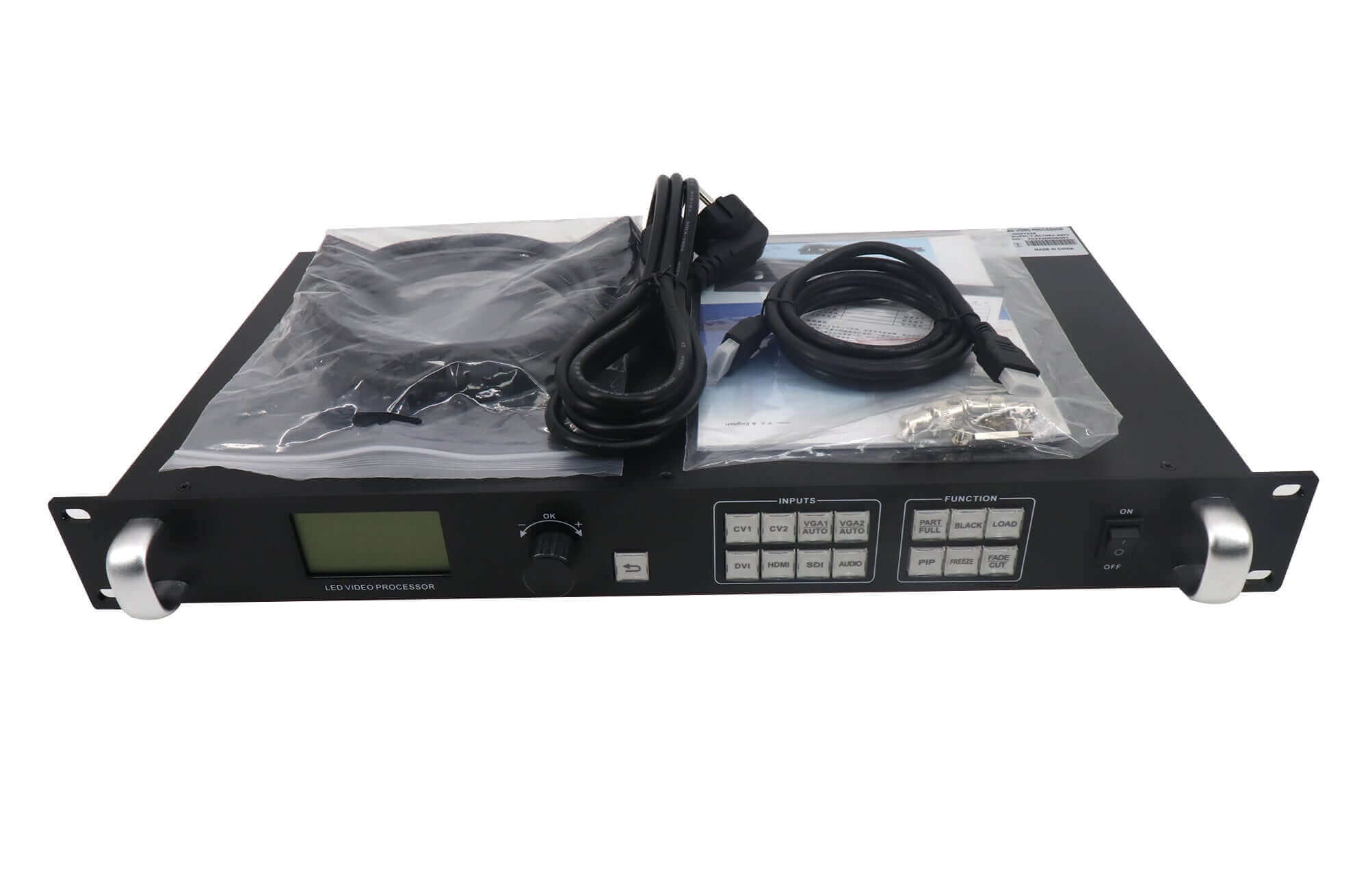

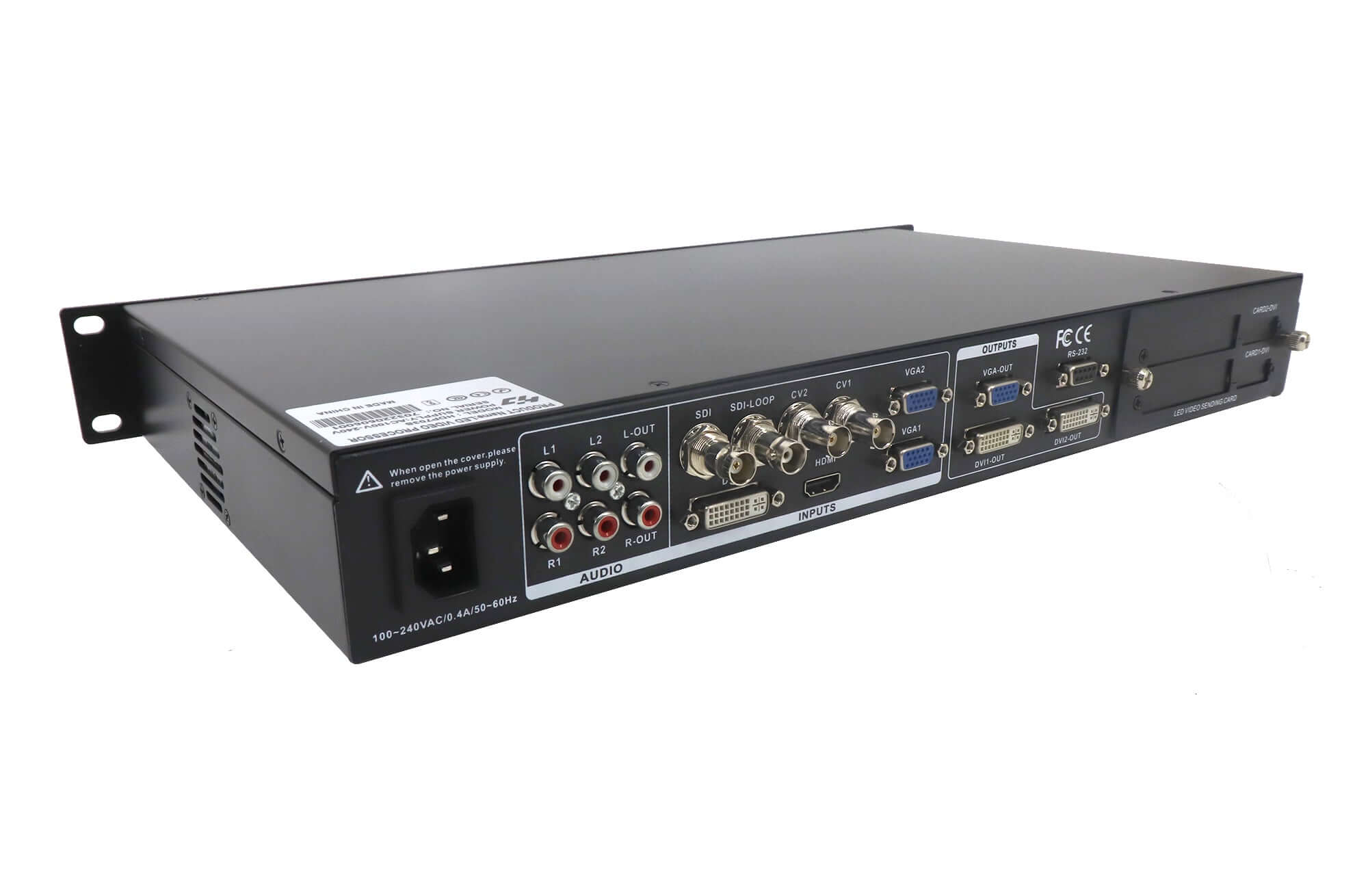

Product images
Frequently asked questions
Does the HDP703 support picture-in-picture?
Yes. The standalone specification supports PIP and POP, including adjustment of the overlay size, position and border. The original description of a single picture does not capture these supported modes.
How many inputs are standard?
The HDP703-specific document lists six standard video inputs: one DVI, one HDMI, two VGA and two CVBS. Optional SDI brings the total to seven. Confirm the fitted SDI option if required.
Is the output capacity 2.65 million pixels?
The original listing gives 2.65 million pixels, and the specification lists 2304 × 1152 at 60 Hz. However, its custom-resolution paragraph states 1.3 million pixels. Confirm a custom canvas against the actual device and firmware instead of applying the largest preset to every mode.
Does it replace an LED sending card?
The processor outputs video through DVI/VGA. Use suitable LED sending and receiving hardware for the screen; the presence of video outputs alone does not provide direct LED module control.
Which PDF should I use for the input count?
Use the HDP703-specific V1.2 specification for the model’s input list. The linked shared HDP703/HDP602 manual contains different channel counts; match its instructions to the actual front and rear panels.
Specification and manual downloads
| Weight | 7 kg |
|---|
