Linsn TS952 Plus LED Sending Box | 4 Ports, 2.6 Million Pixels
$ 311.00
Linsn TS952 Plus LED sending box with four Gigabit Ethernet outputs, up to 2.6 million pixels, HDMI and DVI inputs, and optional sensor-based brightness adjustment.
10000 in stock
Product overview
The Linsn TS952 Plus is an LED sending box with four Gigabit Ethernet outputs and a maximum load of 2.6 million pixels. It accepts DVI or HDMI video and provides a separate audio input. Front-panel LCD and knob controls support local operation, while USB is used for configuration.
Product specifications
| Parameter | Specification |
|---|---|
| Model | TS952 Plus |

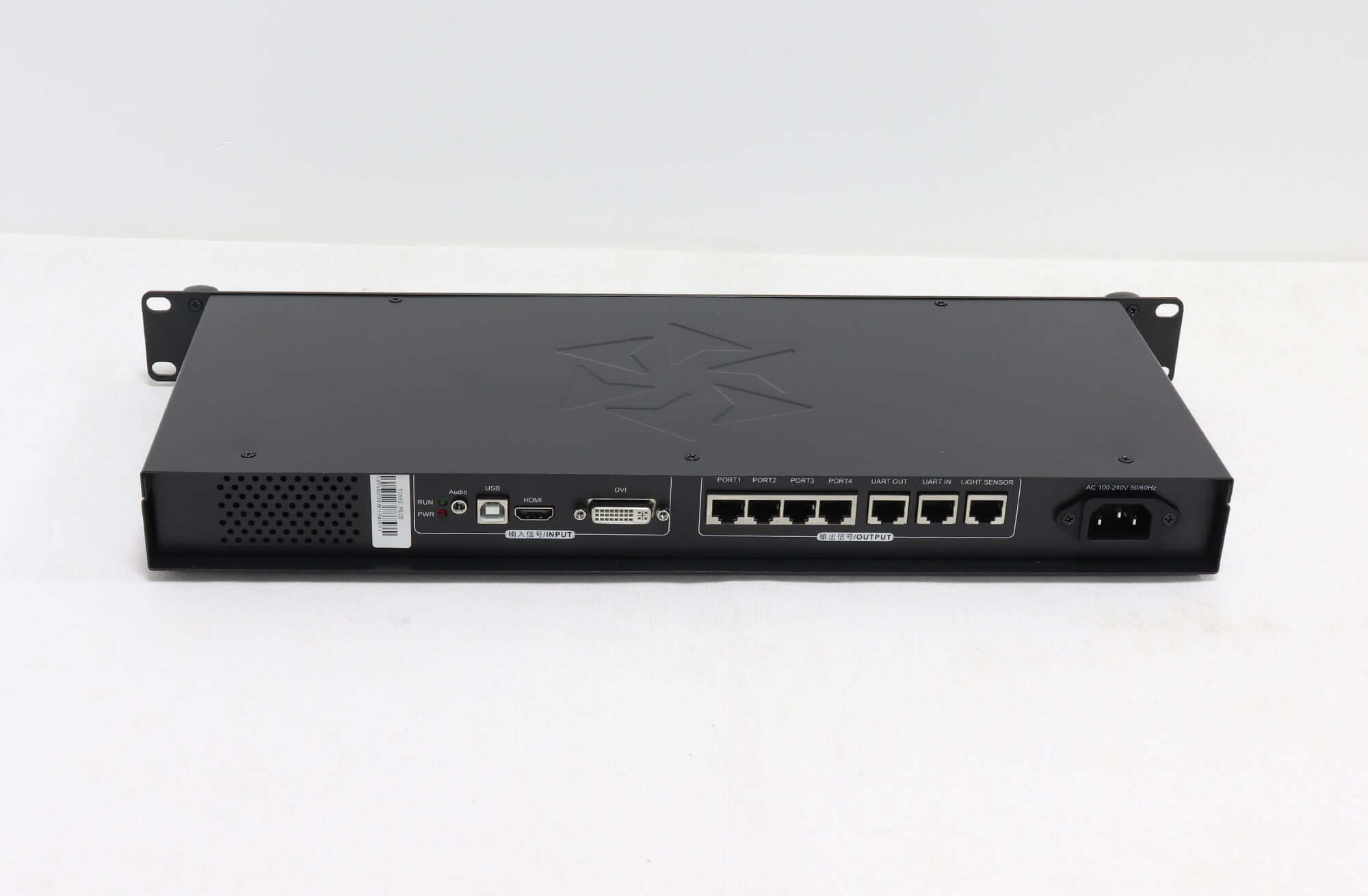

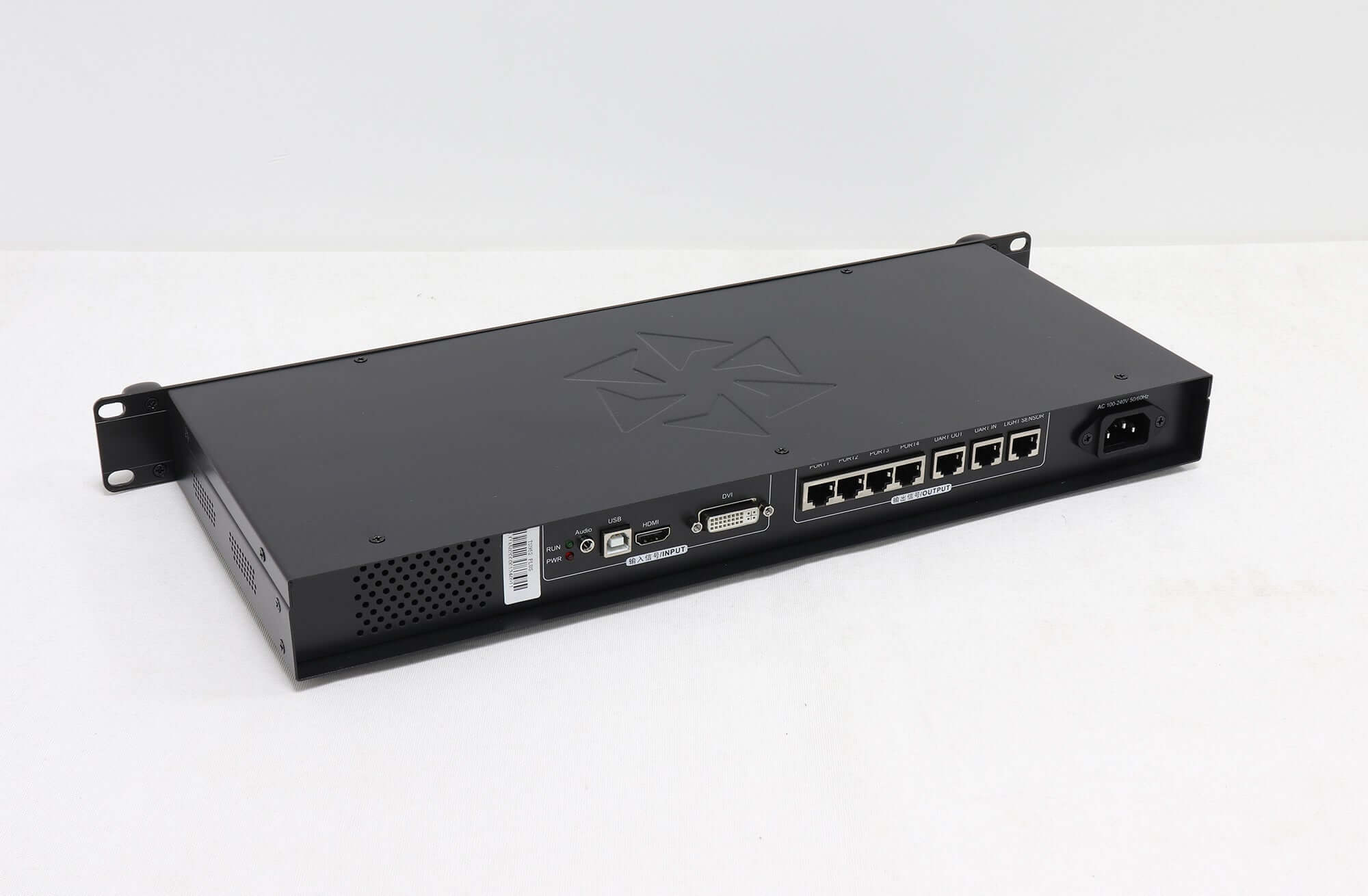

| LED output | 4 Gigabit Ethernet ports |
| Maximum pixel load | 2.6 million pixels |
| Video inputs | 1 × DVI; 1 × HDMI |
| Audio input | 1 × 3.5 mm audio input |
| Listed output resolutions | 2560 × 1024; 1920 × 1200; 2048 × 1152 |
| Configuration and cascade | USB configuration; UART-IN and UART-OUT |
| Brightness control | Automatic adjustment with an additional light sensor |
| AC input | 100–240 V |
| Rated power | 20 W |
| Operating temperature | −20°C to +75°C |
| Operating humidity | 0–95% |
| Weight | 3 kg |
Setup and brightness control
Use the screen’s actual width, height and receiving-card arrangement when planning the output connections. The listed resolutions are examples from the specification; they do not replace checking the complete screen configuration against the total pixel limit.
The TS952 Plus supports RCG file readback and broadcast, CON file broadcast and multiple-controller cascading. These functions help apply screen configuration across an installation. Automatic brightness adjustment requires a connected light sensor; the sensor should be confirmed separately when ordering.
The parameter table is based on the TS952Plus controller manual, version 1.3, September 2018. Confirm the hardware version and required connections when replacing an existing unit.
Frequently asked questions
1. How many pixels can the Linsn TS952 Plus control?
The specified maximum is 2.6 million pixels across four Gigabit Ethernet outputs. The manual lists 2560 × 1024, 1920 × 1200 and 2048 × 1152 as common output resolutions.
2. Does the TS952 Plus accept HDMI and DVI?
Yes. It has one HDMI input and one DVI input, plus a separate 3.5 mm audio input.
3. Can the TS952 Plus adjust LED screen brightness automatically?
Yes, when an additional light sensor is connected. Automatic brightness control is not a substitute for confirming that the required sensor is included in your order.
4. How is the TS952 Plus configured and cascaded?

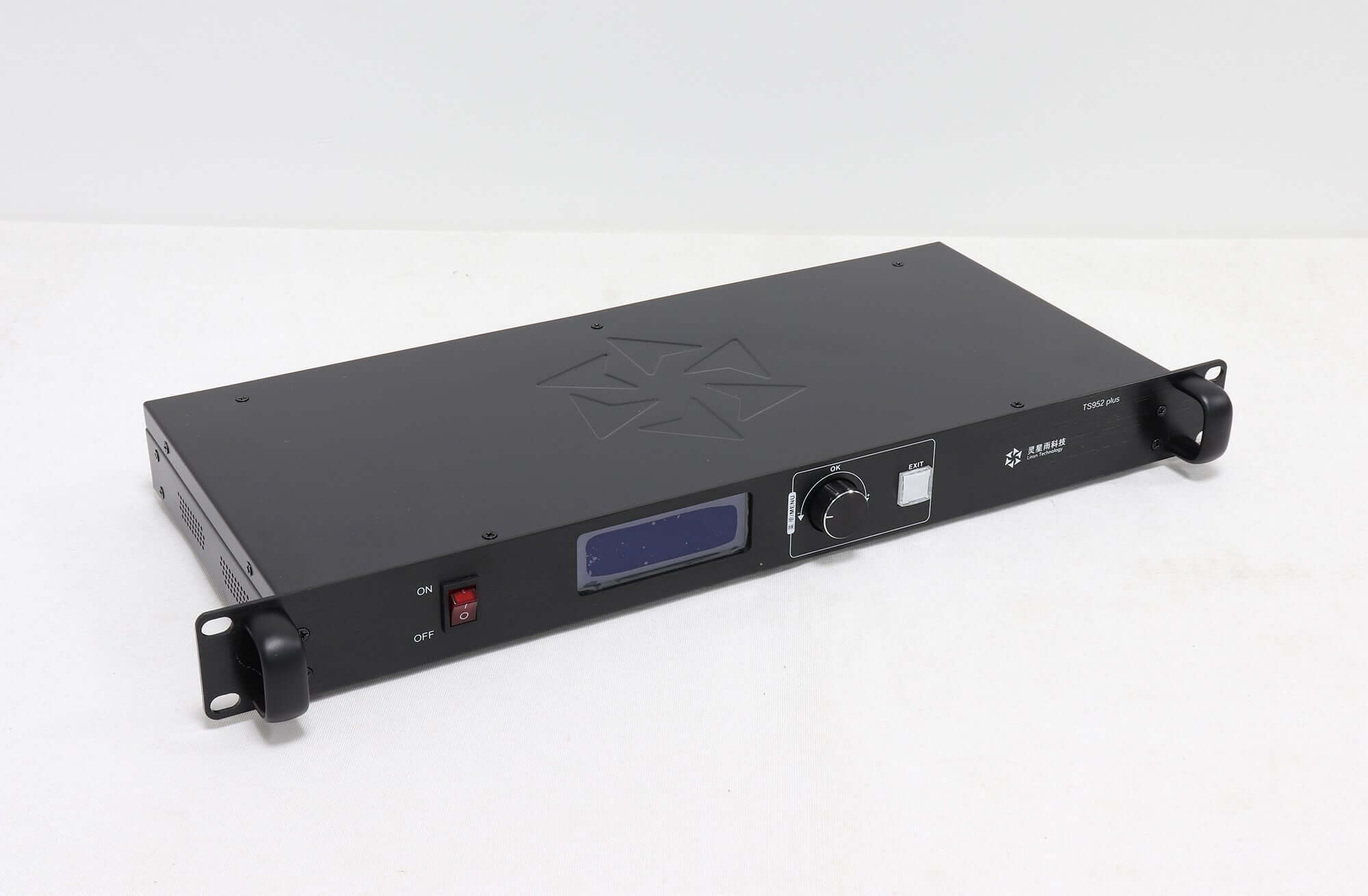

USB is provided for configuration, and UART-IN and UART-OUT connections support cascading multiple controllers. The front panel includes an LCD, a control knob and an exit button.
Download specification
| Weight | 7.5 kg |
|---|
