Mooncell C10 / C12 / C40 / C60 / C120 LED Receiving Cards

Price range: $ 6.60 through $ 13.50

Compact FPGA LED receiving card options for restricted cabinet and light-bar space. The C-series listing describes 2.0 mm-pitch output connectors, conventional driver support, offset/rotation functions and cabinet parameter readback. Select the exact model.

Mooncell C-series FPGA receiving cards

This page groups the Mooncell C10, C12, C40, C60 and C120 FPGA LED receiving cards. Their compact format is described for restricted cabinet and light-bar space. Match the selected card to the module and cabinet design before ordering.

Configuration and cabling

The series listing describes conventional LED driver-chip support, secure upgrades, single-card position offsets, rotation of display content and cabinet parameter readback. It also describes an integrated network transformer and a simplified cascade arrangement.

Original series specification summary

Parameter	Specification
Model options	C10 / C12 / C40 / C60 / C120
Card family	FPGA LED receiving cards
Output connector pitch	2.0 mm
Driver support described	Conventional LED driver chips
Layout functions	Single-card position offsets; display-content rotation
Configuration readback	Cabinet parameters
Signal cable description	2-core Category 5e twisted-pair wiring
Cascade arrangement described	One-in / one-out
Circuit feature	Integrated network transformer

The wiring description is specific to the documented system design. Confirm the exact connector pinout, signal/power arrangement and model specification before making cables. Model numbers alone do not establish pixel capacity, voltage or pin compatibility.

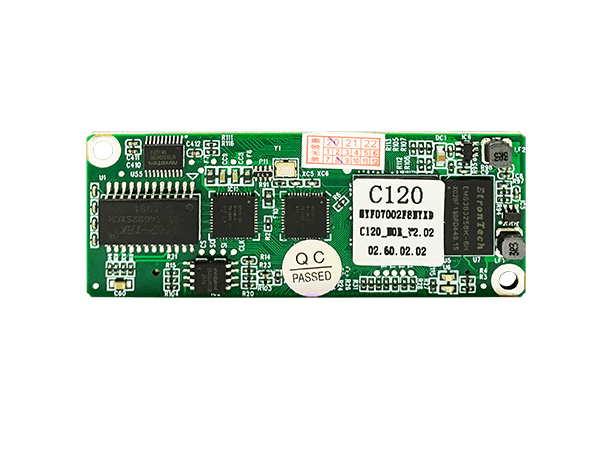

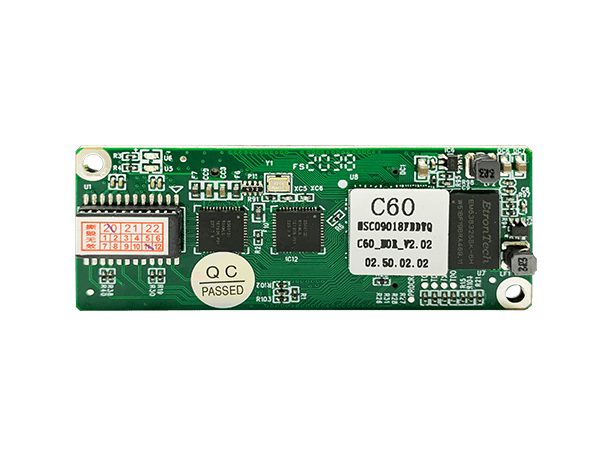

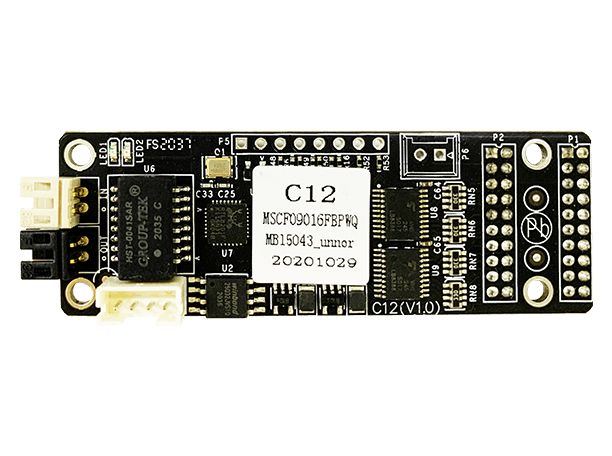

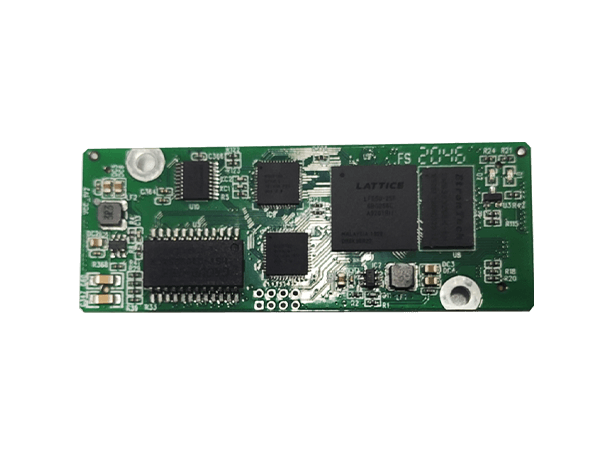

Product images

Specification downloads

Frequently asked questions

1. Which C-series models are listed?

The options are C10, C12, C40, C60 and C120. Each has its own specification PDF.

2. What connector pitch is described?

The original series listing states a 2.0 mm-pitch output connector interface. Confirm the connector and pinout for the selected board.

3. Can these cards support irregular screen layouts?

The listing describes single-card position offsets and rotation of display content, along with cabinet parameter readback.

4. Can I use a normal Ethernet cable without checking the pinout?

Confirm the model wiring first. The original description refers to a specific 2-core Category 5e signal arrangement and integrated signal/power design.

5. What language are the C-series specification PDFs?

The supplied specification links are labeled Chinese. Choose the file for C10, C12, C40, C60 or C120 to match the selected board.
