Mooncell MTB400E LED Sending Box – 4 Ports, 2.6M Pixels
$ 195.33
LED sending enclosure with one DVI and one HDMI input, four Gigabit Ethernet outputs and up to 2.6 million pixels. Supports audio input, USB cascading, backup functions and configuration readback.
999 in stock

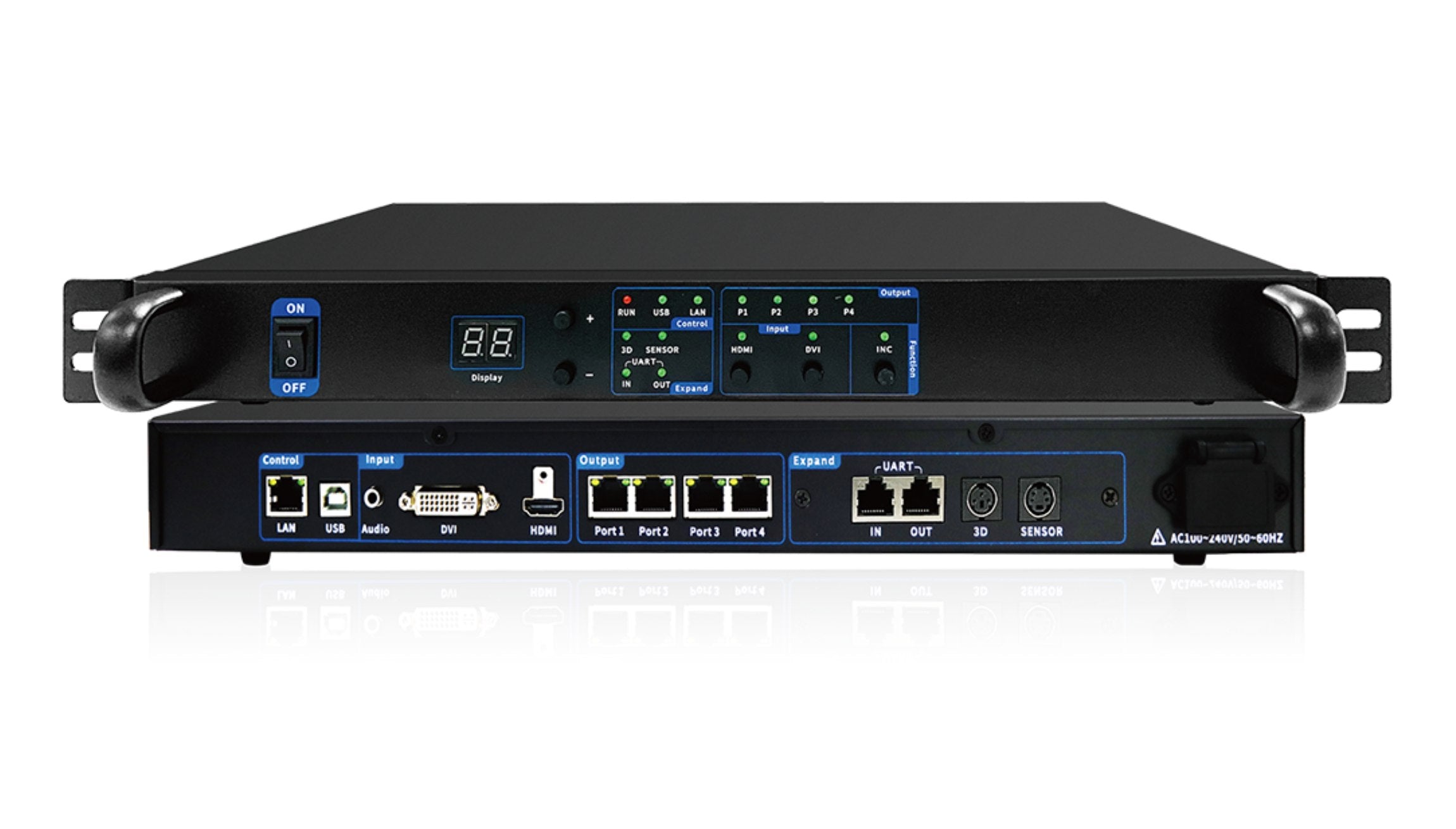

Mooncell MTB400E LED sending box
The Mooncell MTB400E is an LED display sending enclosure with DVI and HDMI video inputs. Four Gigabit Ethernet outputs deliver synchronized display data, with a maximum loading capacity of 2.6 million pixels.
Configuration and backup
USB communication allows multiple sending cards to be cascaded to one computer. Ethernet port loop dual backup and dual master controller backup are supported. Control software can monitor operating parameters and status, read back stored configurations and detect Gigabit network error rates.
MTB400E specifications
| Parameter | Specification |
|---|---|
| Maximum loading capacity | 2.6 million pixels |
| Video inputs | 1 × DVI; 1 × HDMI |
| Audio input | 1 × AUDIO |
| Display outputs | 4 × Gigabit Ethernet |
| USB communication | 1 × USB; cascading connection control |
| Preset resolutions | 1024×768; 1280×1024; 1366×768; 1600×1200; 1920×1080; 2048×1152; 2560×960 |
| Custom resolution and output splicing | Supported |
| Listed input frame rates | 30 Hz; 50 Hz; 60 Hz; 120 Hz |
| Backup | Ethernet port loop dual backup; dual master controller backup |
| Diagnostics | Software status monitoring; configuration readback; Gigabit error-rate detection |
Check the complete LED screen pixel count and output mapping against the total loading limit. The preset resolutions describe signal settings rather than an unrestricted display canvas.
Product images
Specification downloads
Mooncell MTB400E Master Controller Series Video Processor Specification
Frequently asked questions
1. What is the maximum pixel load of MTB400E?
The listed maximum loading capacity is 2.6 million pixels.
2. Does MTB400E accept HDMI and DVI?
Yes. One HDMI video input and one DVI video input are listed, together with an audio input.
3. How many network outputs does it have?
It has four Gigabit Ethernet display outputs.
4. Does MTB400E support backup and configuration readback?
Yes. Ethernet port loop dual backup, dual master controller backup and stored configuration readback are listed.
| Weight | 3.5 kg |
|---|
