NovaStar MFN300-B Multifunction Box
$ 148.00
MFN300-B multifunction box with eight power-switch channels, two sensor ports, timer functions and audio output. Communicates via RS232 or Gigabit Ethernet.
10000 in stock
The NovaStar MFN300-B multifunction box adds power-switch control, sensor connections and audio output to an LED display control system. It communicates through RS232 or Gigabit Ethernet and supports timed control for installations that need a timer or delay function.
MFN300-B specifications
| Item | Specification |
|---|---|
| Communication | RS232 serial port or Gigabit Ethernet |
| Power-switch control | 8 channels |
| Sensor connections | 2 ports for light sensors or supported peripherals such as temperature sensors |
| Brightness adjustment | Automatic adjustment with connected light sensors |
| Temperature detection | Power distribution box temperature |
| Audio | 1 output port |
| Timer | Timer/delayer function |
| Input power | AC 100–240 V, 50/60 Hz |
| Maximum power consumption | 5 W |
| Power-switch rating | AC 250 V / DC 30 V; 3 A rated current |
Connection and sensor planning
V2.0.4 shows the box connected before the first receiving card or after the last receiving card, or connected directly to a computer by serial cable. Follow these diagrams when planning the system. The earlier page wording “between two receiving cards” is not the arrangement described in this specification.
The original listing also mentions humidity detection and temperature/humidity module connection. V2.0.4 confirms temperature detection and sensor ports but does not specify a humidity-measurement function. Confirm the required sensor and system support before selecting this product for humidity monitoring.

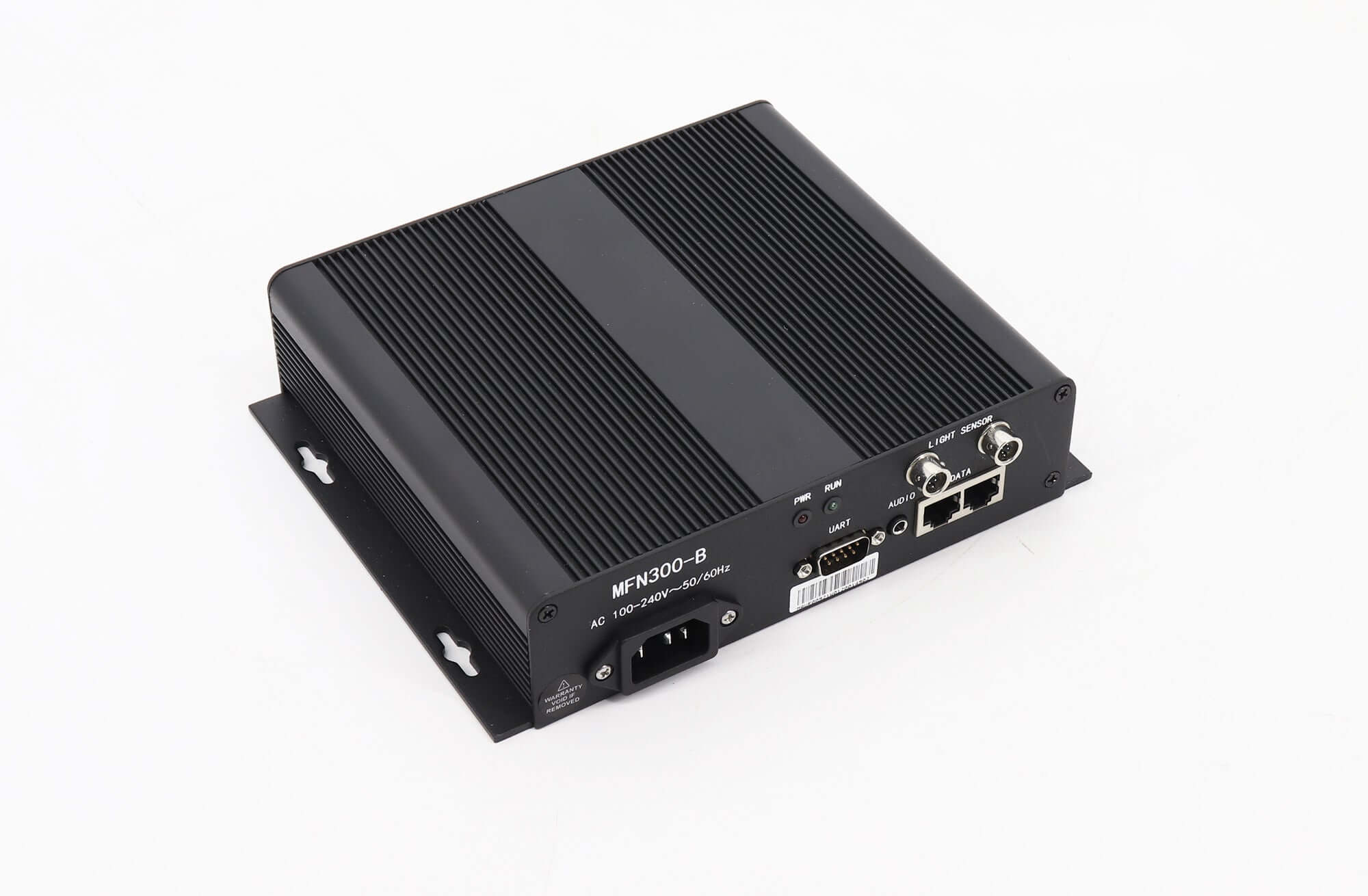

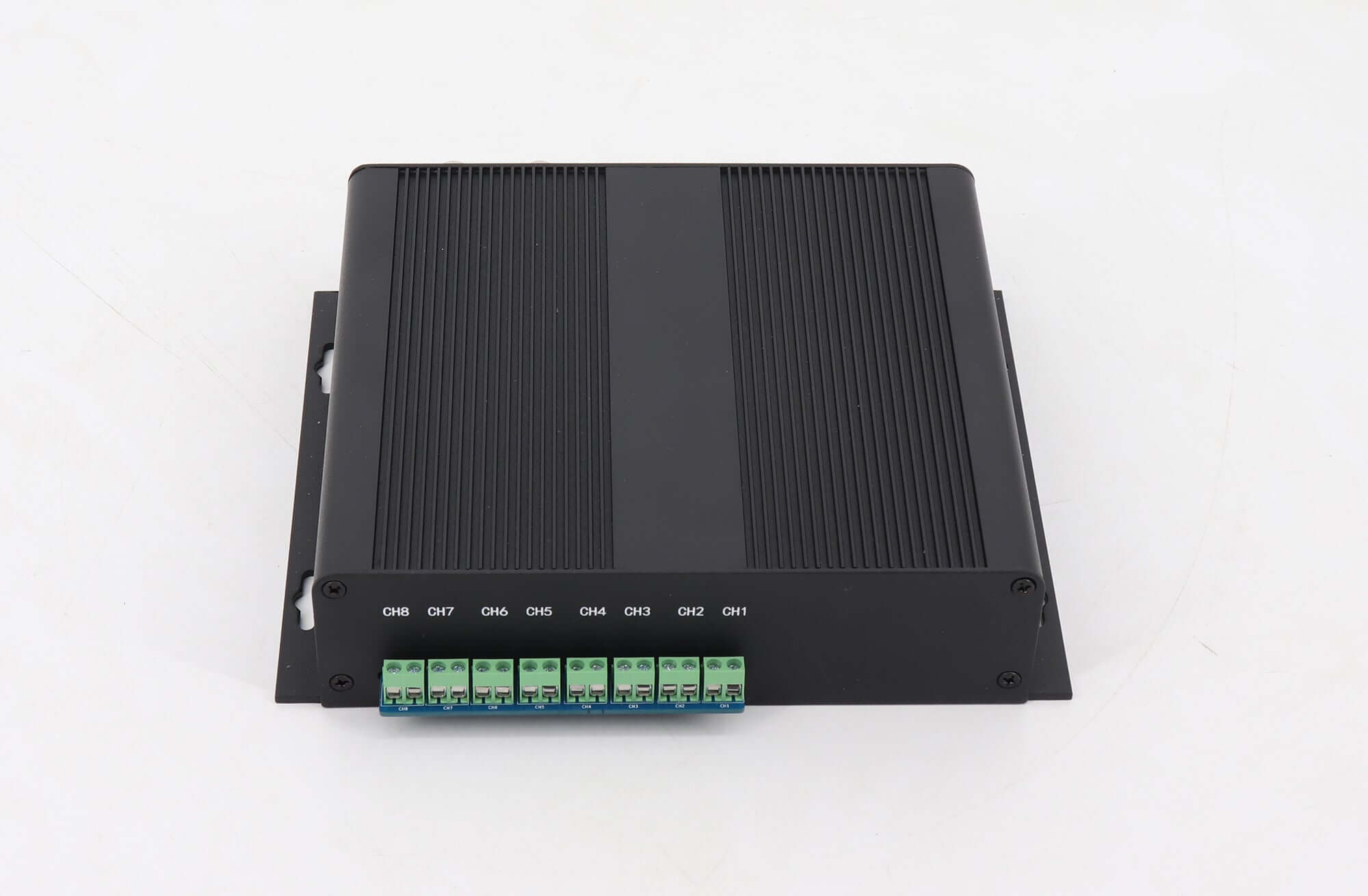

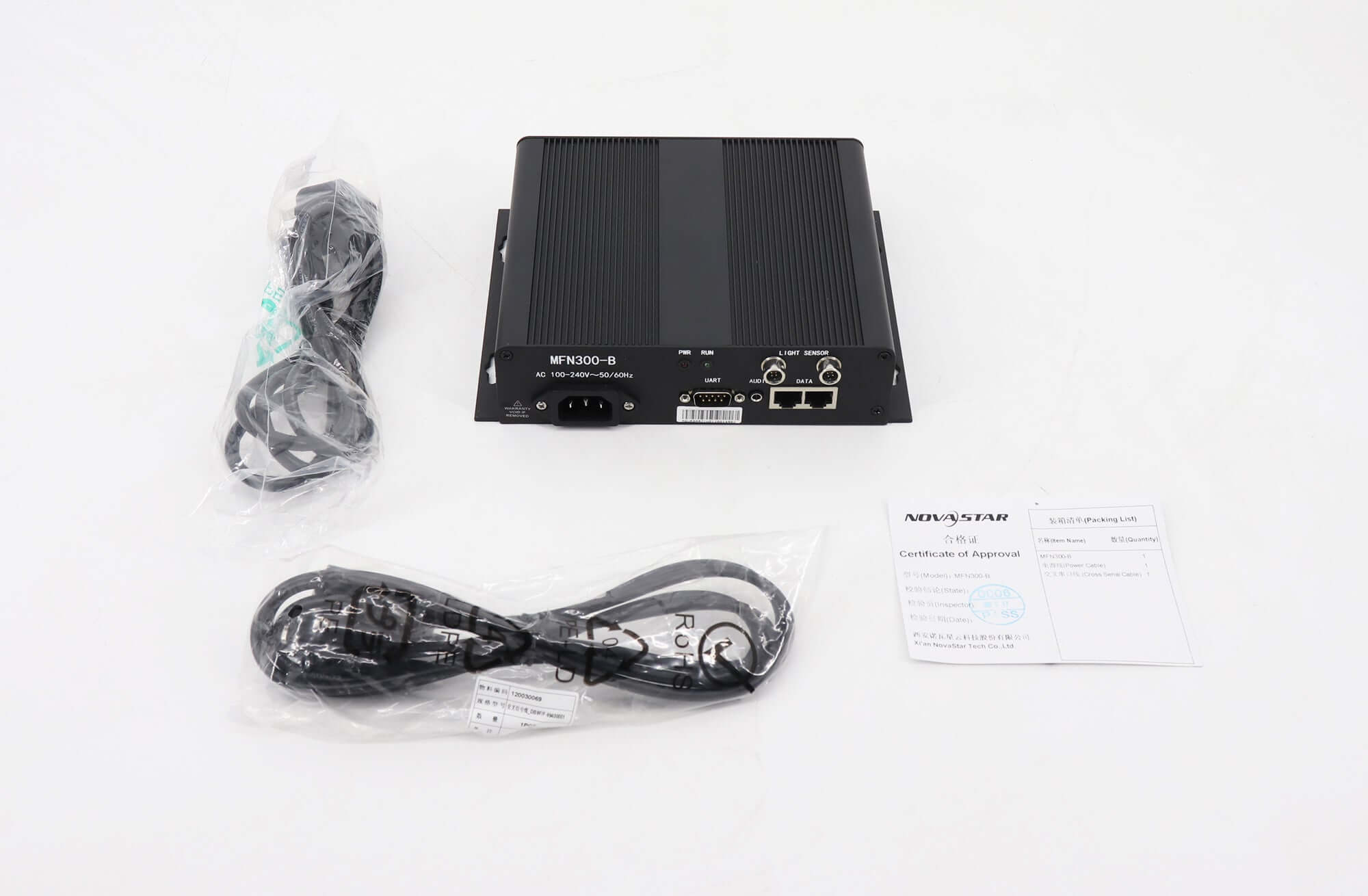

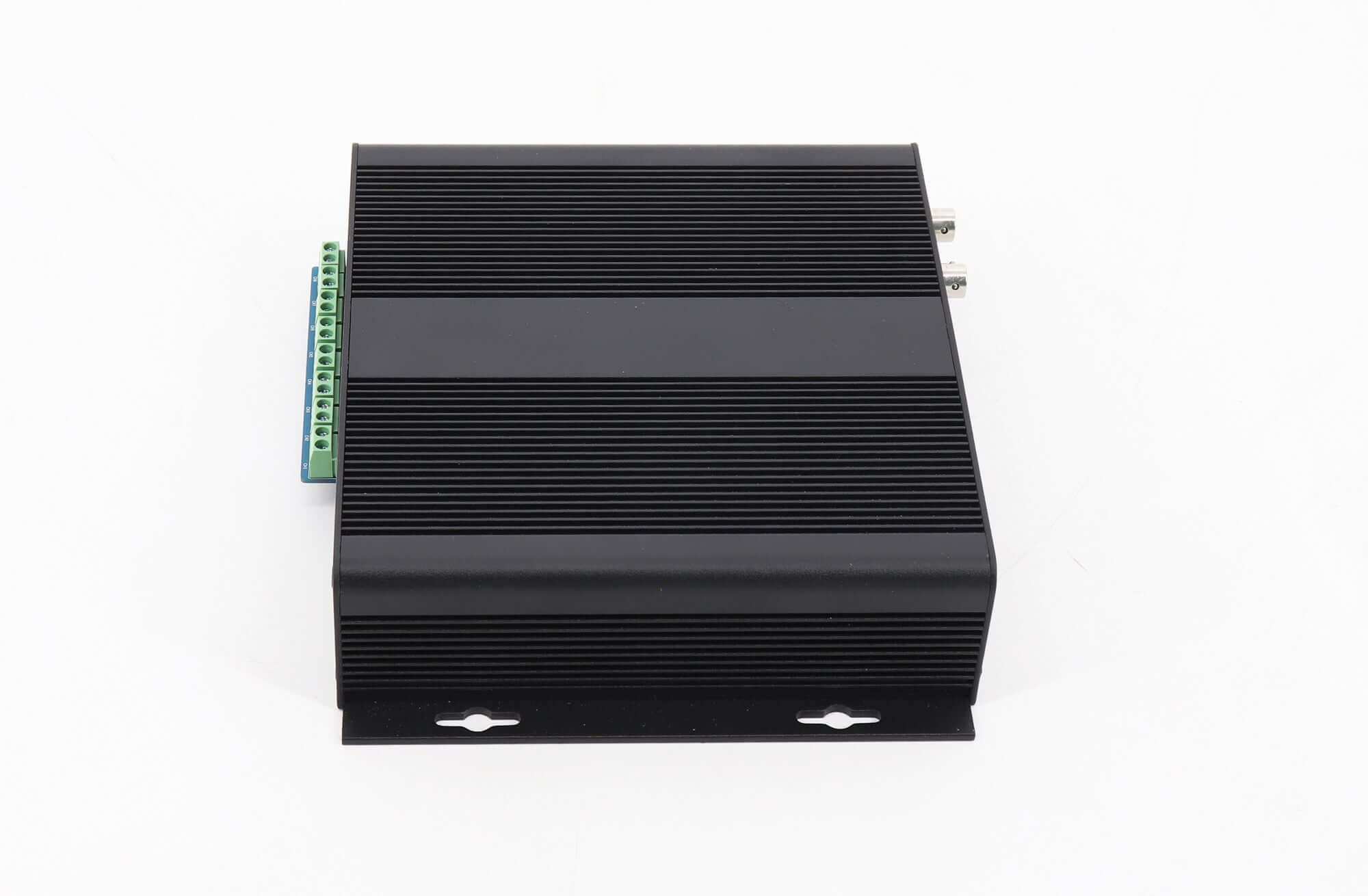

Product images
Specification download
Download the MFN300-B V2.0.4 specification PDF
If the download is unavailable, request the matching V2.0.4 document with your product enquiry.
MFN300-B FAQ
What does the MFN300-B control?
It provides eight channels of power-switch control, along with timer functionality, sensor connections and an audio output.
Where does the MFN300-B connect in the receiving-card chain?
The V2.0.4 diagrams place it before the first receiving card or after the last one. A direct RS232 computer connection is also described.
Can it adjust LED display brightness automatically?
Yes, with suitable light sensors connected. There are two sensor ports; confirm the sensor selection and control-system configuration for the installation.
Does the MFN300-B measure humidity?
The original listing mentions humidity, but V2.0.4 does not establish that capability. Confirm the specific humidity sensor and system support before relying on it for this purpose.
Which document covers the MFN300-B wiring?
The V2.0.4 PDF linked above includes connection diagrams and sensor-port pin definitions. Check the power input and switch ratings separately when planning the cabinet wiring.
| Weight | 1.87 kg |
|---|
