NovaStar MRV360-1 Full-Color LED Receiving Card
$ 33.96
MRV360-1 receiving card with a top-mounted male connector, 256 × 226-pixel listed capacity and MOM storage. Discontinued model; check connector variants and replacement compatibility.
The NovaStar MRV360-1 full-color LED receiving card is the standard MRV360 variant with a male connector on top. It supports Memory on Module (MOM), calibration and configuration readback for LED display maintenance.
Production status: This listing identifies the MRV360-1 as no longer in production. For a replacement enquiry, review the NovaStar MRV560-1, the alternative recommended in the original listing. Confirm the connector, wiring and cabinet configuration before ordering a substitute.
MRV360-1 specifications
| Item | Specification |
|---|---|
| Model | MRV360-1 |
| Connector | Male connector on top |
| Listed single-card resolution | 256 × 226 pixels |
| RGBR data output | 16 groups |
| RGB data output | 20 groups |
| Serial data output | 64 groups |
| MOM storage | Calibration coefficients and LED module information |
| Calibration | Pixel-by-pixel brightness and chromaticity |
| Monitoring | Temperature, Ethernet communication status and power supply voltage detection |
| Listed compliance | EU RoHS and CE-EMC |
MRV360 connector variants
| Model | Specification |
| MRV360－1 | Standard model, male connector on top |
| MRV360－2 | Male connector on bottom |
| MRV360－3 | Female connector on top |
| MRV360－4 | Female connector on bottom |
Match the complete model suffix and connector orientation to the installed board. The shared MRV360 name does not identify the connector arrangement on its own.
Configuration and calibration
The MRV360-1 supports configuration file readback, program copying and pre-stored picture settings. MOM stores the module information and calibration coefficients. Brightness and chromaticity calibration is available for individual LEDs.
High grayscale and high refresh rate operation are listed features, but numerical levels are not specified here. Use the existing cabinet configuration and the matching hardware documentation when assessing a replacement.

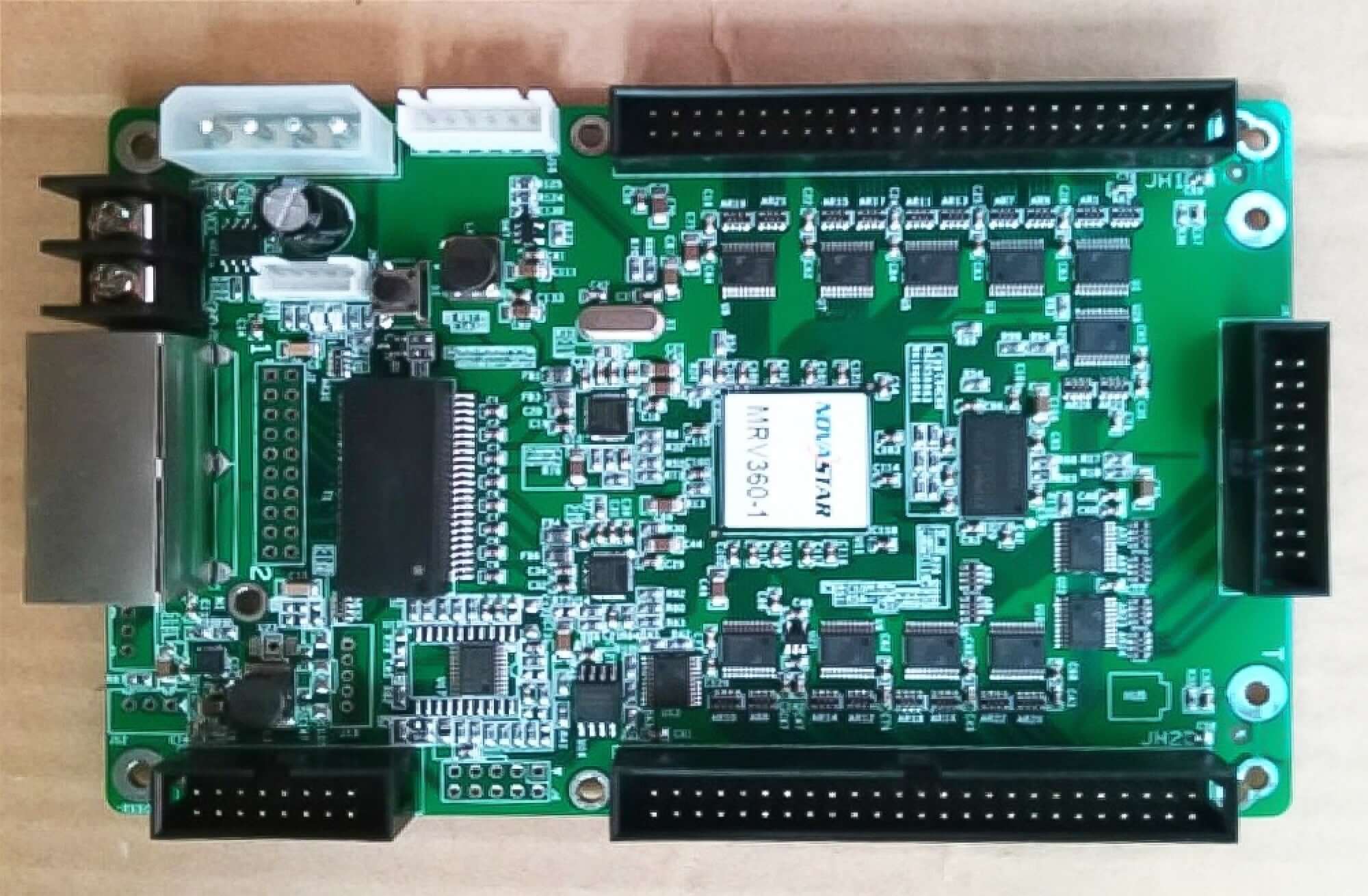

Product images
MRV360-1 FAQ
Is the NovaStar MRV360-1 still in production?
This product listing identifies it as no longer in production. Confirm the availability and condition of any remaining units before arranging a replacement.
What is the difference between MRV360-1, -2, -3 and -4?
MRV360-1 has a male connector on top; MRV360-2 has a male connector on the bottom. MRV360-3 has a female connector on top, and MRV360-4 has a female connector on the bottom.
What resolution does the MRV360-1 support?
The listed single-card resolution is 256 × 226 pixels. Output options include 16 RGBR groups, 20 RGB groups or 64 serial data groups, depending on the configuration.
What information does MOM store?
Memory on Module stores calibration coefficients and LED module information. The card also supports configuration file readback and program copying.
Which card is recommended as an MRV360-1 alternative?
The original listing recommends MRV560-1. Treat this as a replacement candidate: confirm the connector orientation, pin assignment, module wiring and cabinet configuration before installation.
| Weight | 0.35 kg |
|---|
