NovaStar T10 Taurus LED Multimedia Player Card — Discontinued
$ 58.00
The NovaStar T10 is out of production and no longer available from this listing. This legacy reference covers its 650,000-pixel LED loading, USB publishing connections and V1.0.1 storage revision. Confirm the installed board and screen requirements before selecting a replacement.
Out of stock
NovaStar T10 Taurus LED Multimedia Player Card

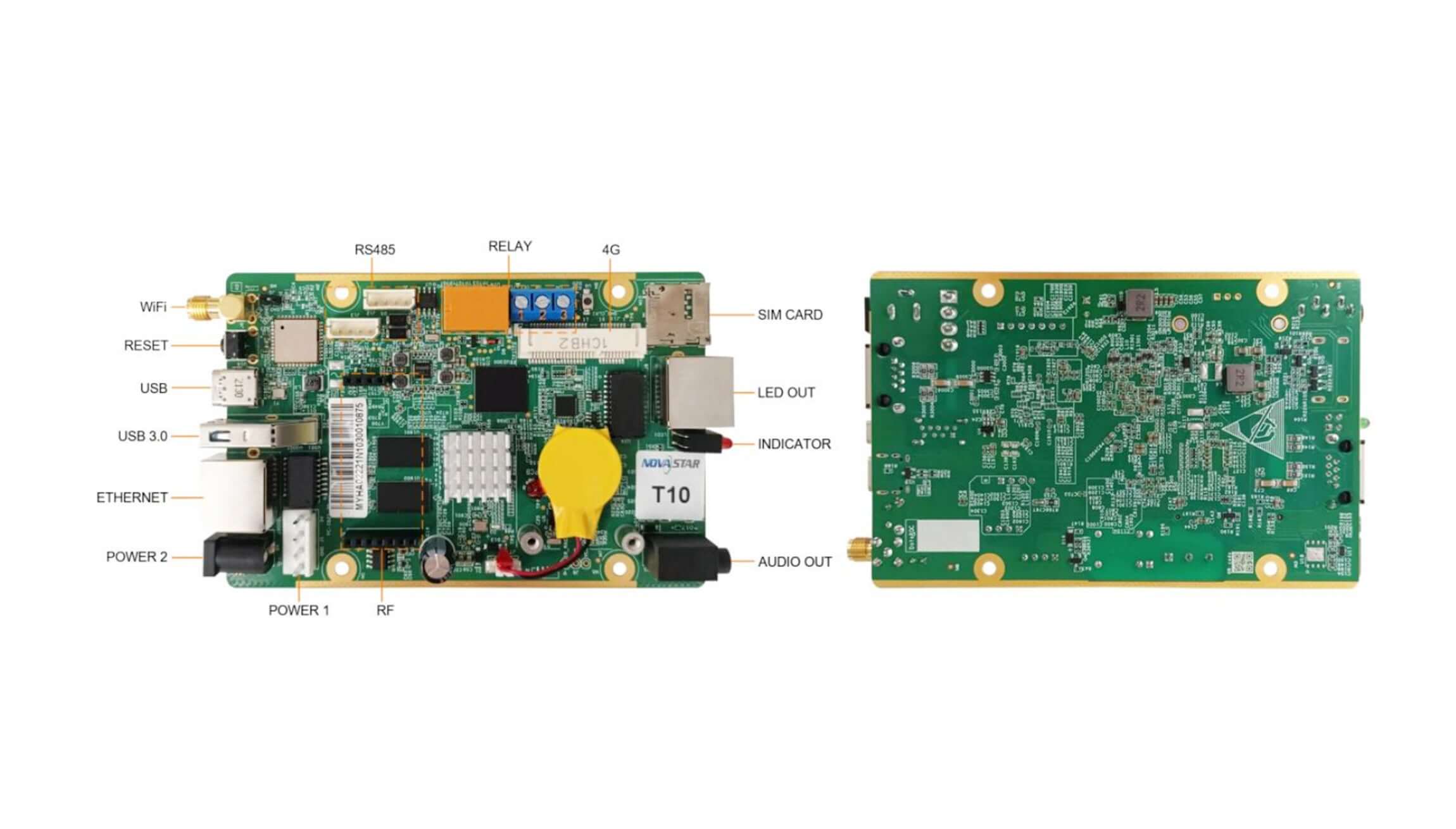

The NovaStar T10 integrates media playback and LED sending on a compact control board. It supports up to 650,000 pixels through one Gigabit LED output, with content publishing and screen control from a computer, mobile phone or tablet. Its separate Fast Ethernet port is for network control, so it should not be confused with the LED OUT connection.
EagerLED’s existing listing states that the T10 is out of production and no longer available. This page retains the specifications for owners checking an installed system and planning a replacement. Confirm the hardware label, power connection and receiving-card configuration before choosing another model.
T10 Specifications and Storage Revision
The reference is NovaStar T10 Specifications V1.0.1, released September 28, 2023. This revision changes internal storage from the earlier 16 GB specification to 32 GB and updates the Wi-Fi AP password description. Check the actual revision when reviewing an older board.
| LED loading | Up to 650,000 pixels; maximum width 4096 pixels or maximum height 3840 pixels within the total load |
|---|---|
| LED output and audio | One Gigabit Ethernet LED OUT; stereo audio output, internal-source audio fixed at 48 kHz |
| Processing and memory | Quad-core 1.3 GHz processor; 1 GB RAM; 32 GB internal storage in V1.0.1 |
| Video workloads | One 4K, two 1080p or four 720p videos as alternative playback workloads; codec limits apply |
| USB Type-A | USB 3.0 for playback and firmware upgrades; Ext4 and FAT32 supported, exFAT and FAT16 unsupported |
| USB Type-C | Connects to the control computer for publishing and screen control |
| Network access | Fast Ethernet and Wi-Fi AP/STA switching; optional 4G module purchased separately |
| Sensors | Two sensor connectors for compatible brightness or temperature/humidity sensors |
| Power | DC 5–12 V input; maximum power consumption 12 W |
| Physical and operating | 132.8 × 79.0 × 18.1 mm; net weight 88.3 g; −20°C to +60°C, 0–80% RH non-condensing |
The maximum width and height are separate limits, not a supported 4096 × 3840 canvas. Video decoding and LED loading also describe different capacities. Calculate the actual screen width × height and keep the load within 650,000 pixels.
Publishing, Wi-Fi and Optional Modules
Wi-Fi AP mode lets a user device connect to the T10 hotspot. STA mode connects the player through a router hotspot. V1.0.1 describes switching between these modes; do not assume simultaneous AP + STA operation. The default AP password is printed on the product’s SSID label.
The board ships without a 4G module. Verify the exact modem, regional network bands, antennas and operator requirements if cellular access is needed. When multiple network paths are available, the stated priority is wired network, then Wi-Fi, then 4G.
For synchronized playback across multiple screens, the document lists NTP timing, GPS timing with a specified 4G module, and RF timing with a specified RF module. Confirm the required module and synchronization method for the project. These timing features do not establish a live HDMI input; none is listed among the T10 connectors.
T10 Compatibility Questions
Can 4K decoding drive a full 4K LED screen?
No. The decoder handles source media, while the LED loading limit is 650,000 pixels. The one-4K, two-1080p and four-720p descriptions are alternative workloads. Test actual codecs, frame rates and bitrates against the decoder table before deployment.
Are the two USB connectors interchangeable?
No. Type-A is documented for USB playback and upgrades; Type-C connects to a control computer. Prepare a supported drive file system and use the port for its stated role.
What should I provide for a replacement check?
Send the model/revision label, screen pixel map, receiving-card model, wiring photos and power details. Include the required publishing method, media workload, sensors and synchronization modules. Request a precise structural drawing for mounting work. The Android 11 system reference does not imply general app installation: V1.0.1 states that third-party applications are unsupported.
Original T10 Specification and Assistance
Download T10 Specifications V1.0.1 (English PDF) for connector, power and decoder details. Contact EagerLED with your T10 replacement requirements, or browse the NovaStar control product range.
