NovaStar VX600S LED Controller – Connections & Setup
$ 1,140.00
Connection and setup reference for the NovaStar controller listed as VX600S. Original document links name VX6s; confirm the actual model and revision before using interface values, firmware or replacement parts.
VX600S controller connections and setup check
This NovaStar controller listing uses the name VX600S. Both original download filenames identify VX6s, so the label on the actual controller must be checked before choosing cables, applying firmware or relying on the parameter table. Share a front-panel photo and a clear view of the rear connectors with EagerLED for a model-specific review.
Input, output and control interfaces
The original information describes seven selectable sources: two 3G-SDI, two HDMI 1.3, two DVI and a USB playback source. The two USB connectors listed in the table serve media and peripheral connections; a playback source count is not the same as a physical connector count.
| Input | ||
| Interface Type | Quantity | Description |
| 3G-SDI | 2 | Maximum support 1920×1080@60Hz resolution video source input, backward compatible |
| USB | 2 | U disk video picture file playback. Connect the mouse. |
| U-AUDIO | 2 | Output audio interface |
| DVI | 2 | The VESA standard supports up to 1920×1200@60Hz input video source input, which is backward compatible. Support HDCP |
| HDMI | 2 | Maximum support 1920×1200@60Hz resolution video source input, backward compatible. Support HDCP. |
| Output | ||
| Ethernet port | 6 | 6-channel network port output interface |
| DVI | 1 | Pre-monitoring interface, can be set to PGM preview. The U disk can be connected to the display for human-computer interaction display. |
| Control interface | ||
| Ethernet | 1 | Connect to PC communication or access the network |
| USB Type-B | Connect to a PC and control it via a PC. USB cascading input | |
| USB Type-A | Used for device cascade output | |
| Parameter | ||
| Power interface | AC100V~240V 50/60Hz | |
| Operating temperature | −20°C to +60°C in the original listing; not confirmed for the supplied hardware. See the revision note below. | |
| Dimension | 1U standard chassis | |
Layout and switching functions listed for this product
- Three windows; the original page also lists one OSD channel, subject to the revision conflict below.
- Maximum video output width of 4096 pixels; 16 user presets.
- Quick and advanced screen configuration, custom input resolution and input-source backup settings.
- TAKE operation and PGM monitoring in switcher mode.
- Screen brightness adjustment, full-screen scaling and linking multiple controllers.
- Synchronization using an HDMI or DVI input source.
- OLED front-panel menus with illuminated controls.
Revision conflict: NovaStar’s VX6s V1.3.1 specification records removal of OSD in V1.2.0 and gives an operating range of 0°C to +45°C. Those details differ from this listing’s original one-channel OSD and −20°C to +60°C claims. The original values are retained for traceability, but cannot be treated as verified VX600S ratings. Match the actual model and revision before installation.
Original controller image
Connections and commissioning questions
Why do the VX600S downloads say VX6s?
The filenames differ from the listing title. That discrepancy does not prove that the two names describe the same hardware. Confirm the front-panel label and document revision with EagerLED before using the downloads.
Which connectors go to the LED receiving cards?

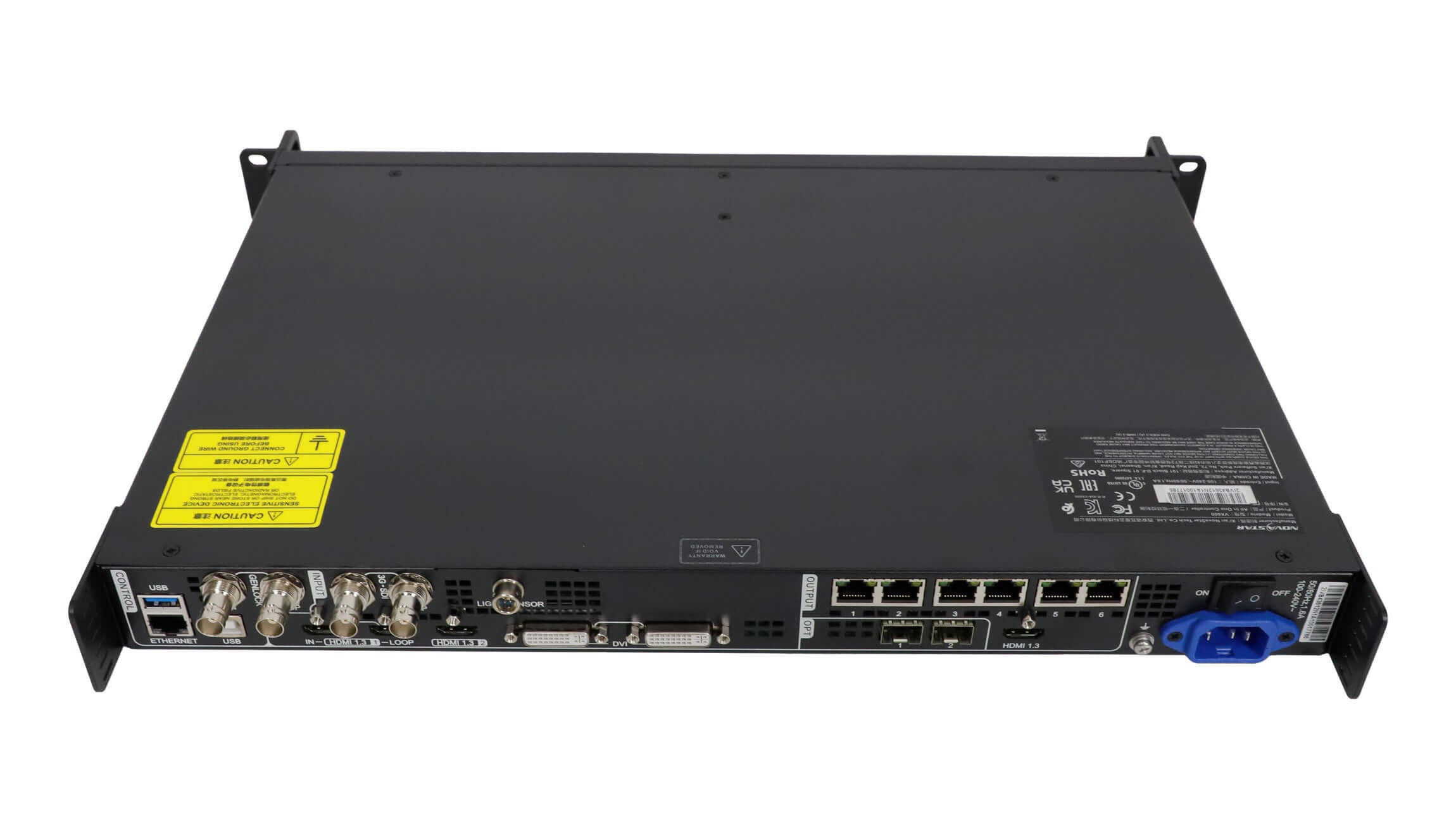

The original table identifies six Ethernet LED outputs and a separate Ethernet control connection. Confirm the rear-panel labels and cabinet wiring so a control port is not confused with an LED output.
What does the DVI monitoring output do?
The listing describes a DVI output for preview or PGM monitoring. Check the monitor timing and the controller’s selected operating mode against the matching manual before commissioning.
Does a maximum width of 4096 pixels define the total screen size?
No. Width alone does not establish the total loading capacity or supported screen height. Supply the actual LED matrix and port distribution for confirmation against the correct controller specification.
Can I install firmware using either linked manual?
A manual filename alone is not sufficient to identify compatible firmware. Verify the device model, hardware revision and installed version, and save the working screen settings before any firmware change.
Original specification and user manual
For a replacement enquiry, include the controller photos, LED pixel dimensions, receiving-card model, required input timing and any preview or backup requirements.
