South Creative NDC500PS4.5 4.5V LED Power Supply
$ 31.50
4.5V LED display power supply with 450W maximum output in the V1.1 specification. The PDF lists 80A at 100–180Vac input or 100A at 181–240Vac input.
10000 in stock
NDC500PS4.5 Power Supply for LED Displays
The South Creative NDC500PS4.5 provides a typical 4.5V DC output for LED cabinets. Its manufacturer specification lists 450W maximum output power, with 80A at 100–180Vac input and 100A at 181–240Vac input. Check the AC input before selecting the cabinet load.
Manufacturer Specifications
Source: the linked NDC500PS4.5 specification V1.1, dated November 10, 2023.
| Parameter | Specification |
|---|---|
| Model | NDC500PS4.5 |
| Input voltage range | 90–264Vac; 220Vac typical |
| Rated input | 100–240Vac |
| Input frequency | 47–63Hz; 50/60Hz typical |
| Output voltage | 4.5V typical; 4.4–4.6V specified range |
| Output at 100–180Vac | 4.5V / 80A |
| Output at 181–240Vac | 4.5V / 100A |
| Maximum output power | 450W |
| Power factor | ≥0.95 at 220Vac, full load |
| Efficiency | 90% typical at 220Vac, full load |
| Dimensions (L × W × H) | 235 × 60 × 30mm |
| Weight (V1.1 PDF) | 732g ±10% |
| Protection | Input undervoltage, output current limiting, short circuit and over-temperature |
Revision and Loading Checks
The earlier product overview used a 500W series description and 686g weight. The linked V1.1 document explicitly lists 450W maximum output and 732g ±10%; confirm the supplied revision when weight or replacement fit matters. Follow the input-voltage and temperature derating curves in the PDF.

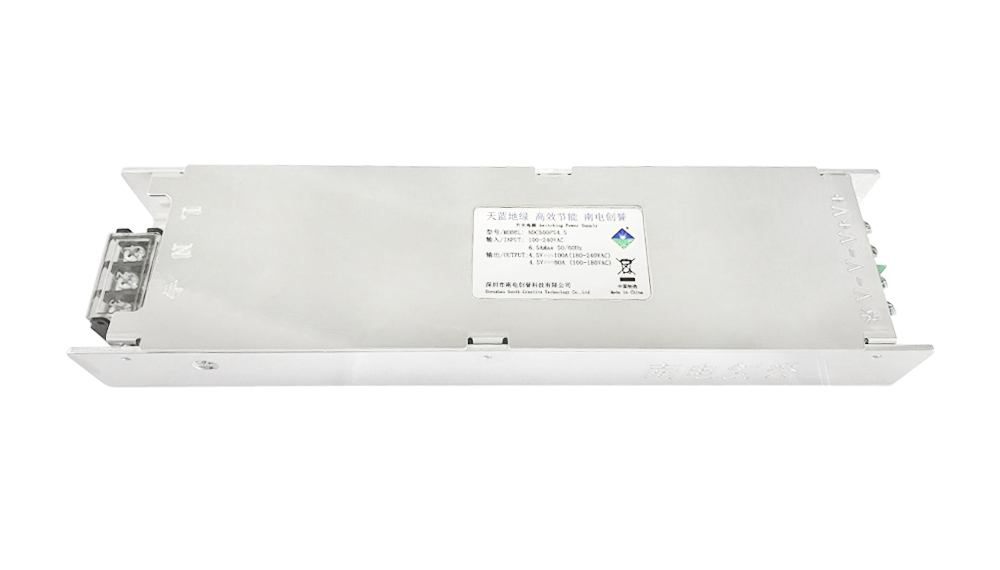

Product Image
Download Specification
South Creative NDC500PS4.5 LED Display Power Supply Specification
Frequently Asked Questions
1. Is the NDC500PS4.5 a 500W power supply?
The linked manufacturer V1.1 specification lists 450W maximum output power. The 500 in the model or series name should not be used as the output power rating.
2. Can it provide 100A on 110V AC?
The PDF cover specifies 4.5V/80A at 100–180Vac and 4.5V/100A at 181–240Vac. A 110Vac supply falls in the 80A range.
3. What is the specified output voltage?
The V1.1 electrical table lists 4.5V typical output with a 4.4–4.6V specified range.
4. What size and weight are listed?
The V1.1 PDF gives 235 × 60 × 30mm dimensions and 732g ±10% weight. The earlier product overview used 686g, so confirm the supplied revision when ordering.
5. Where can I download the NDC500PS4.5 datasheet?
The original PDF link above is retained. It includes the model-specific ratings, protection tables, mounting drawing and derating curves.
| Weight | 3 kg |
|---|
