G-Energy N200V5-A 5V 40A 200W LED Power Supply
$ 6.80
N200V5-A LED display power supply with 5V output, a 0–40A current range and 200W maximum power. Rated input: 200–240Vac. Specification PDF available below.
9916 in stock
G-Energy N200V5-A LED power supply
The G-Energy N200V5-A is listed as a 5V 40A LED display power supply with 200W maximum output. The linked V1.1 specification dated 2012/3/31 confirms +5.0Vdc, a 0–40A current range and 200–240Vac input; the legacy listing gives an input frequency of 47–63Hz. Use the exact N200V5-A model designation when comparing a replacement, as other N200 series models have separate specifications.
Technical specifications
| Model | N200V5-A |
|---|---|
| Output voltage / current — product listing | 5V / 40A |
| Maximum output power | 200W |
| AC input — legacy page | 200–240Vac, 47–63Hz |
| Operating temperature — legacy page | -30°C to +60°C |
| Storage temperature — legacy page | -40°C to +100°C |
| Power factor | 0.50@230Vac |
| Insulation voltage | I/P–O/P: 3.0KVac; I/P–FG: 1.5KVac; O/P–FG: 0.5KVac |
| Leakage current | 0.30mA@230Vac |
| Listed safety standards | GB4943, EN60950 |
| Protection functions | Undervoltage, overload and short circuit |
| Size — original entry | 190 × 84 × 30; unit not stated in the original table |
| Cooling — original entry | “cold”; the original wording does not identify the cooling method clearly. |
| Output precision — PDF | ±2% |
| Ripple and noise — PDF | ≤150mVp-p |
Confirm the applicable unit revision, dimensions and cooling arrangement using the matching specification and unit label before installation.

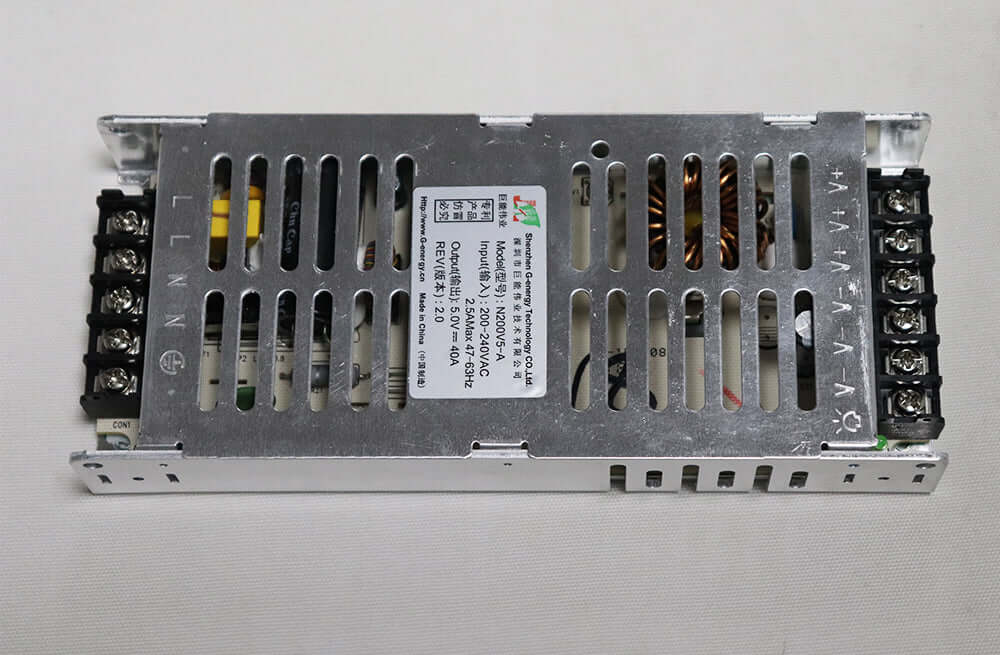

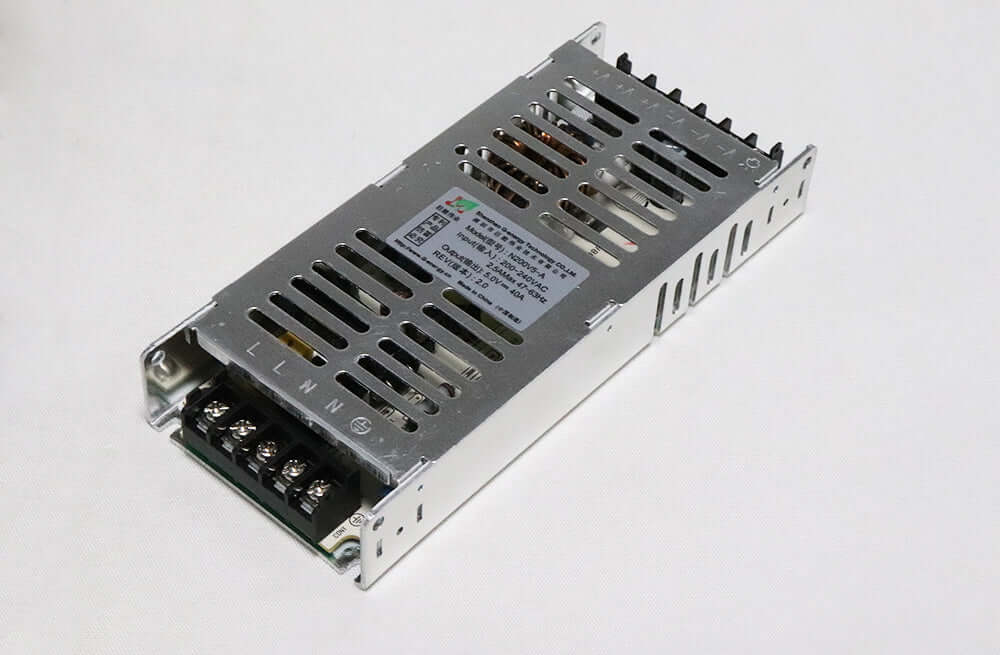

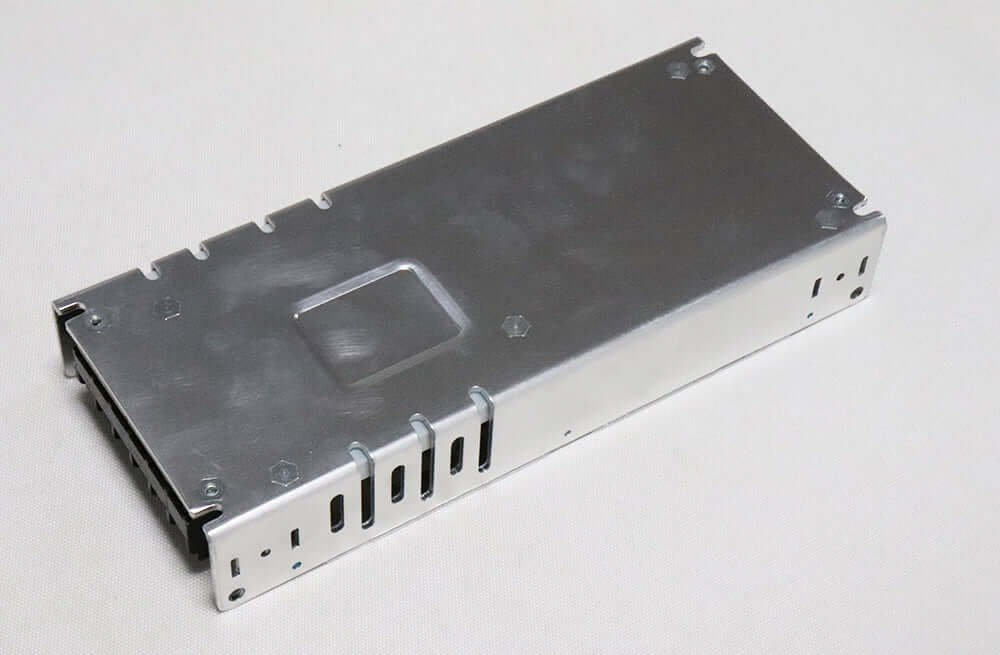

Product image
Specification download
G-Energy N200V5-A Power Specification
Frequently asked questions
What is the N200V5-A output rating?
The product listing identifies a 5V 40A output and 200W maximum power.
What input voltage is listed for this model?
The legacy product page lists 200–240Vac at 47–63Hz. Check the applicable unit revision and specification before connection.
Is the N200V5-A the same as the N200V5-C?
They are different model designations. Check the full model, electrical ratings, dimensions, cooling and terminal layout before replacing one with another.
Where can I find the N200V5-A specification?
The specification download link above opens the retained N200V5-A PDF. Match its model and revision to the supplied unit.
| Weight | 0.6 kg |
|---|
