South Creative NDD200PS5 5V 40A LED Power Supply
$ 18.50
5V, 0–40A LED display power supply with 200W output power. The manufacturer lists 90–264Vac input range, 100–240Vac rated input and ≥89% efficiency at 220Vac, full load.
10000 in stock
NDD200PS5 Power Supply for LED Displays
The South Creative NDD200PS5 is a 5V DC power supply with an output current range of 0–40A. The manufacturer specification lists 200W output power, a 90–264Vac input range and rated input voltage of 100–240Vac.
Electrical Parameters
Source: NDD200PS5 manufacturer specification V1.0, dated June 11, 2018. Review the original PDF below for complete conditions.
| Parameter | Specification |
|---|---|
| Model | NDD200PS5 |
| Input voltage range | 90–264Vac; 220Vac typical |
| Rated input voltage | 100–240Vac |
| Input frequency | 47–63Hz; 50Hz typical |
| Power factor | 0.95 minimum at 220Vac, full load |
| DC output voltage | 5V typical; 4.9–5.1V specified range |
| Output current | 0–40A |
| Output power | 200W |
| Efficiency | ≥89% at 220Vac, full load |
| Protection | Input undervoltage, output current limiting and short circuit |
Replacement and Load Checks
Match output voltage, load current, input conditions and terminal layout before replacing an existing supply. Consult the input and temperature derating curves when sizing the LED cabinet. The current-limit protection point is a protection threshold, rather than a continuous output rating.

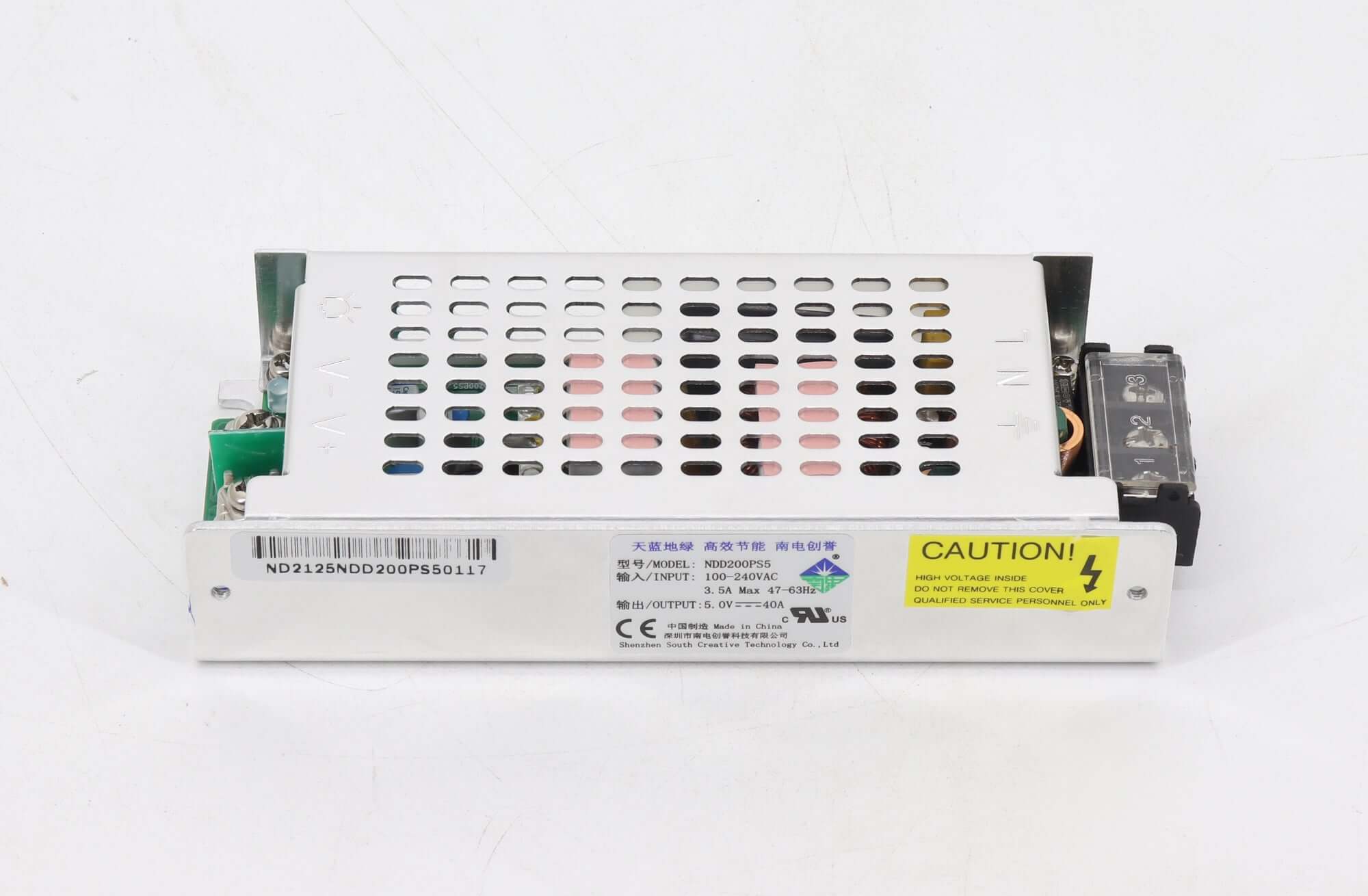

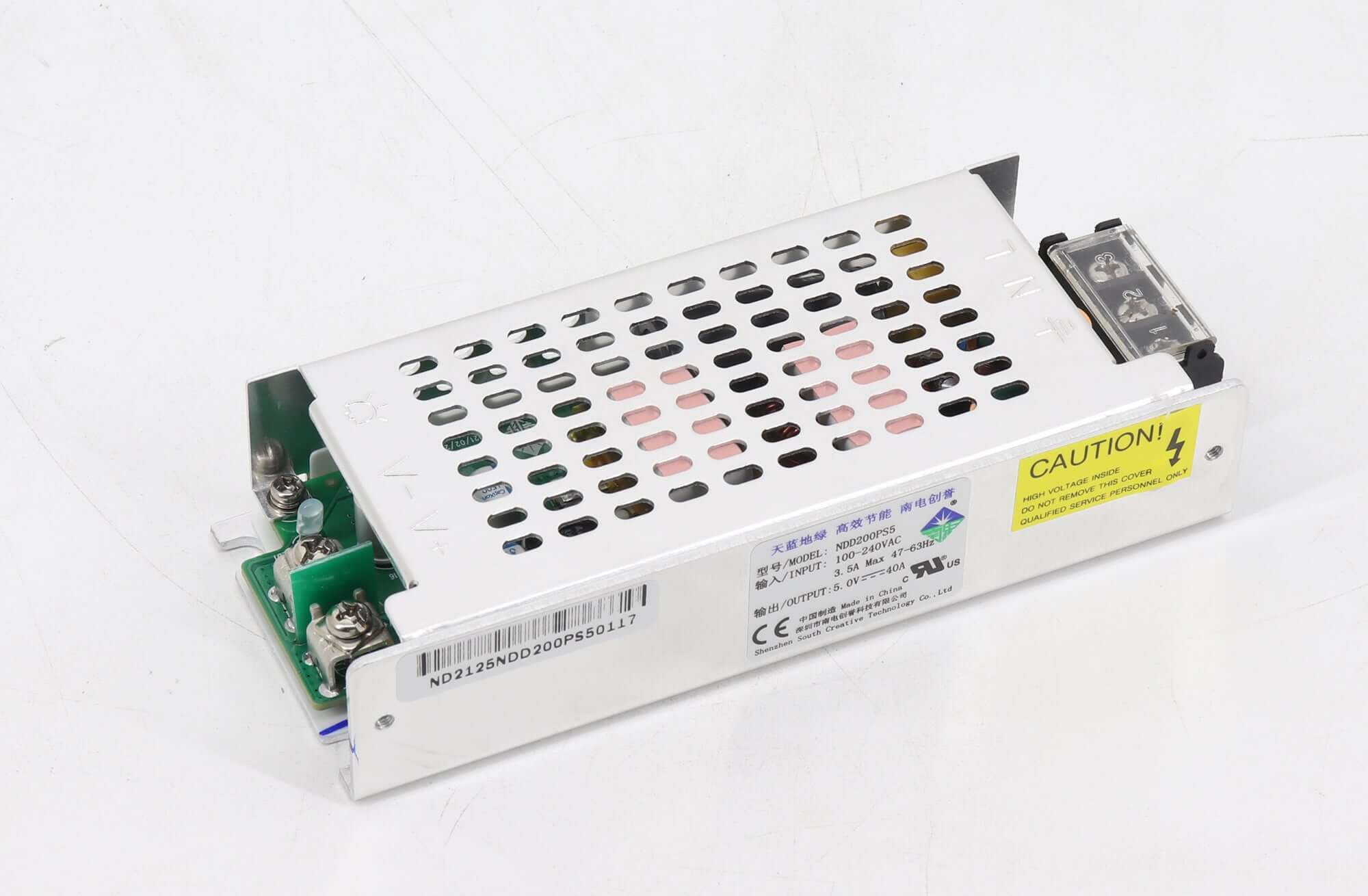

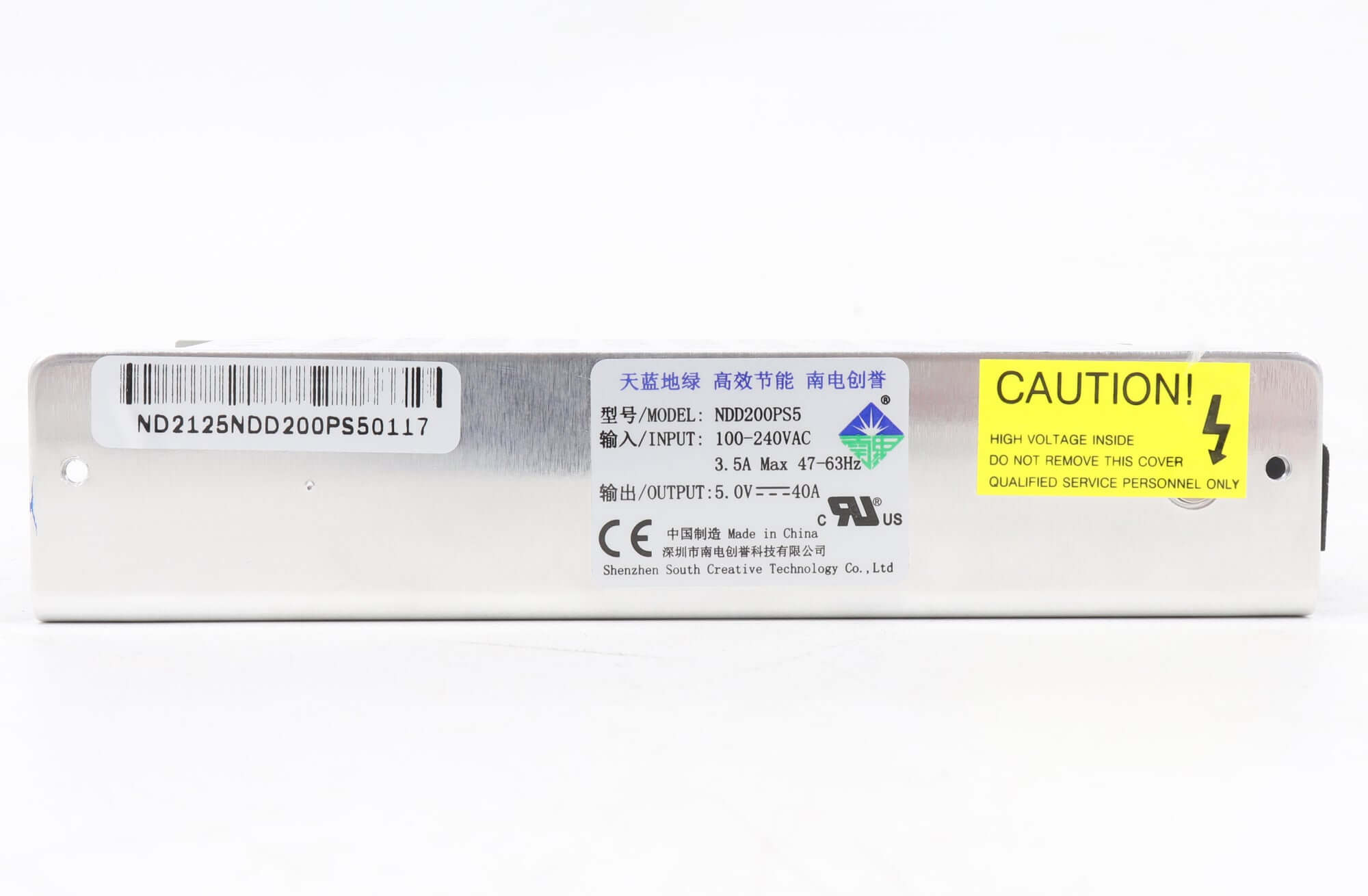

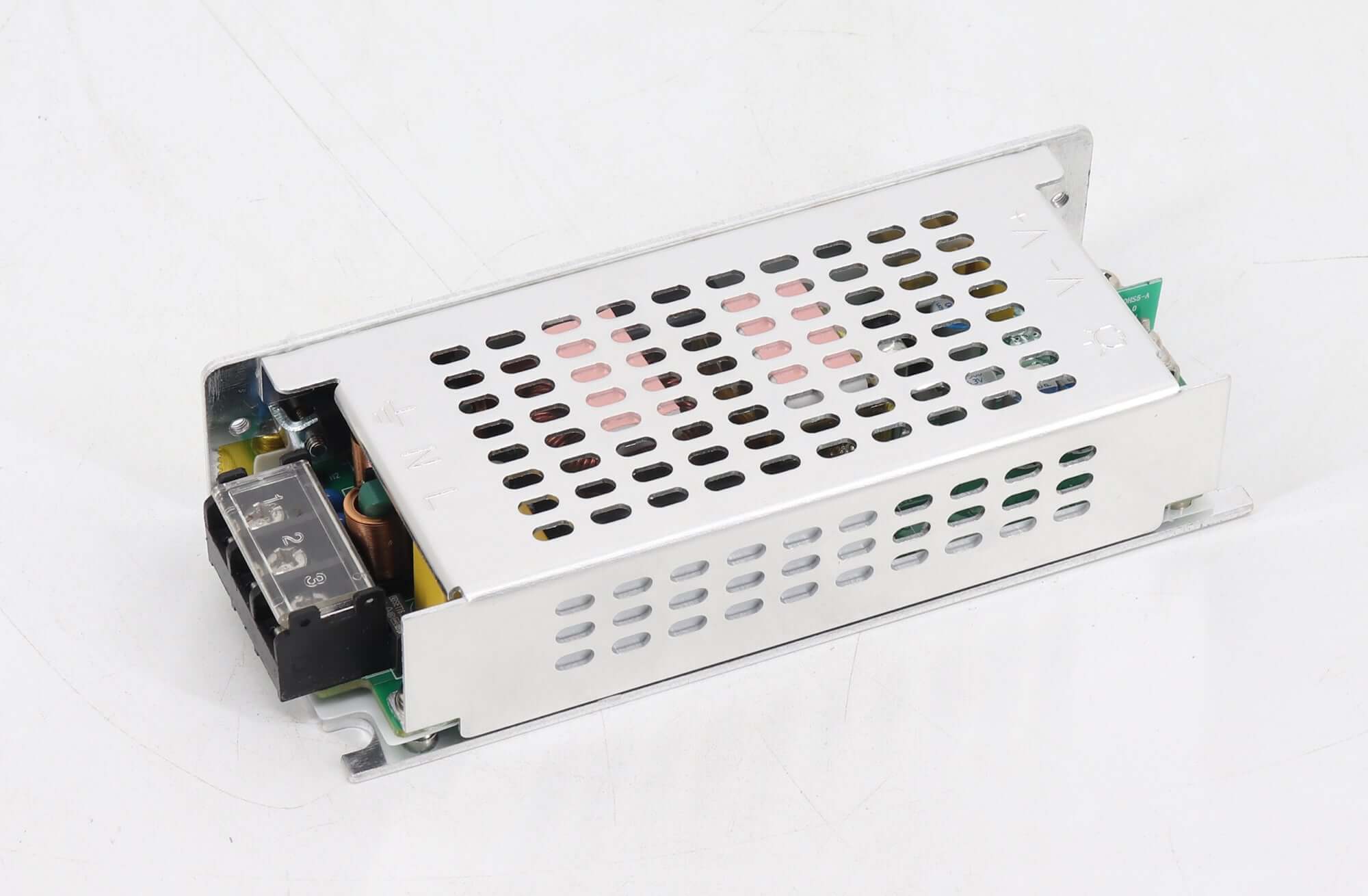

Product Images
Download Specification
South Creative NDD200PS5 LED Display Power Supply Specification
Frequently Asked Questions
1. What output does the NDD200PS5 provide?
The specification lists 5V typical output, 0–40A output current and 200W output power.
2. What is the difference between its input range and rated input?
The manufacturer lists a 90–264Vac input voltage range and 100–240Vac rated input voltage. Follow the PDF’s load and derating conditions.
3. What efficiency is specified for the NDD200PS5?
The output table lists efficiency of at least 89% at 220Vac and full load.
4. Can I use the overcurrent protection threshold as the normal current rating?
No. The documented output current range is 0–40A. A protection threshold should not be used to select the continuous cabinet load.
5. Where can I find the NDD200PS5 datasheet?
The original specification PDF above includes the input and output tables, protection details and installation information.
