South Creative NDE300PS5 5V LED Screen Power Supply
$ 29.60
5V LED display power supply with 100–240Vac input. The manufacturer lists 0–60A at 160–240Vac and 0–50A at 100–160Vac, with 300W output power subject to loading conditions.
9987 in stock
NDE300PS5 5V Power Supply for LED Screens
The South Creative NDE300PS5 provides a typical 5V DC output for LED display systems. Its manufacturer specification lists 100–240Vac input, with output current up to 60A at 160–240Vac and up to 50A at 100–160Vac. Check the AC supply range when sizing a cabinet load.
Electrical Specifications
Source: linked NDE300PS5 manufacturer specification, V1.0, October 31, 2018.
| Parameter | Specification |
|---|---|
| Model | NDE300PS5 |
| AC input | 100–240Vac; 220Vac typical |
| Input frequency | 47–63Hz; 50Hz typical |
| Power factor | 0.95 typical at 220Vac, full load |
| DC output voltage | 5V typical; 4.8–5.2V specified range |
| Output current at 160–240Vac | 0–60A |
| Output current at 100–160Vac | 0–50A |
| Output power listed in PDF | 300W; observe the input-dependent current limits |
| Efficiency | ≥90% at 220Vac, full load |
| Protection | Input undervoltage, output current limiting and short circuit |
Check Input Voltage Before Choosing the Load
A 100–240Vac input range does not mean the same maximum current is available throughout that range. Apply the specification’s input-dependent loading and temperature derating conditions. Check the terminal definitions and installation drawing before replacing an existing cabinet supply.

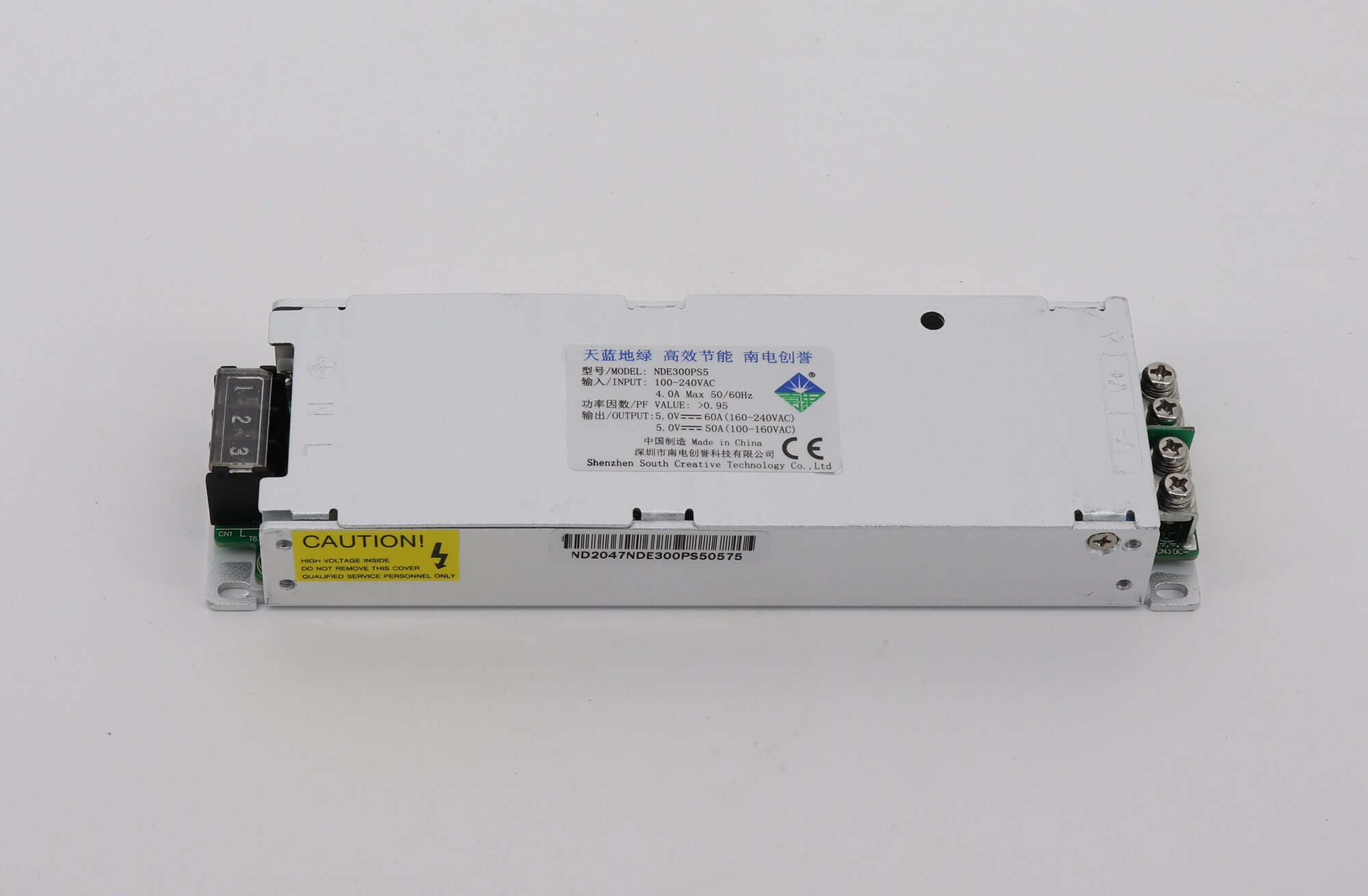

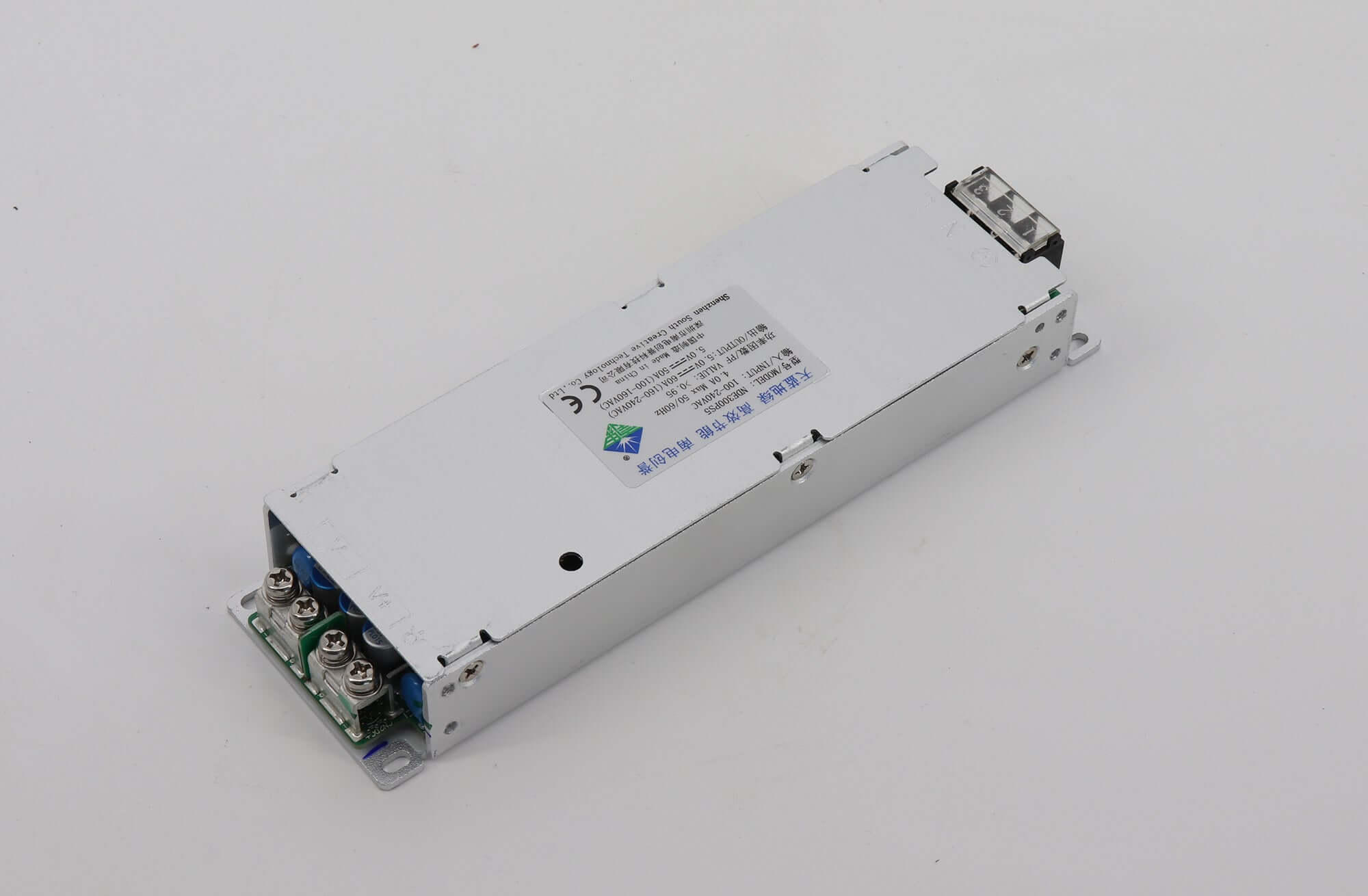

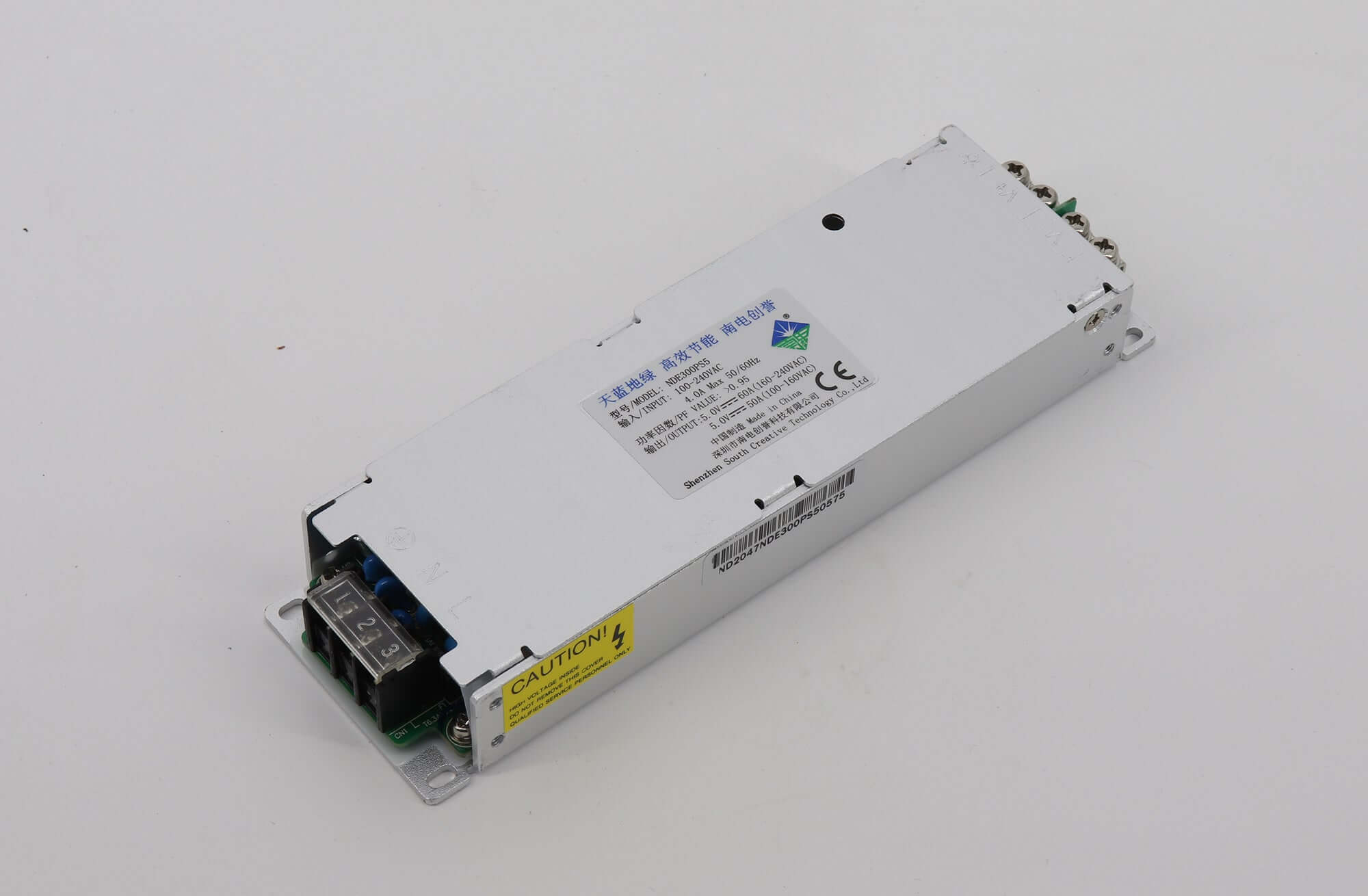

Product Images
Download Specification
South Creative NDE300PS5 LED Screen Power Supply Specification
Frequently Asked Questions
1. What voltage does the NDE300PS5 supply?
The specification lists a typical 5V DC output, with a specified range of 4.8–5.2V.
2. Can the NDE300PS5 deliver 60A on 110V AC?
The PDF lists 0–50A at 100–160Vac and 0–60A at 160–240Vac. Use the lower input-range rating for a 110Vac supply.
3. What output power is listed?
The manufacturer lists 300W output power. Observe the separate input-voltage and temperature derating conditions when choosing the load.
4. What is the specified efficiency?
Efficiency is listed as at least 90% at 220Vac and full load.
5. Where can I find the NDE300PS5 wiring and installation information?
The original specification PDF is linked above and includes the detailed electrical tables, terminal definitions and installation drawing.
