Product overview
Sysolution RC300 is a DC-input power-supply series for vehicle LED displays. The linked V1.0 specification lists 9–36Vdc input, with 12V and 24V typical values. Its RC300D4.2, RC300D4.5 and RC300D5 variants have different DC outputs and maximum output powers.
Product specifications
| Parameter | Specification |
|---|---|
| Series / document | RC300; V1.0 |
| Input voltage | 9–36Vdc; typical 12V / 24V |
| Power-supply switching frequency | 100–120kHz |
| Maximum input current | 35A max |
| Cold-start inrush | Less than 100A |
| RC300D4.2 output / max power | 4.2V; 0–60A; 250W |
| RC300D4.5 output / max power | 4.5V; 0–60A; 270W |
| RC300D5 output / max power | 5.0V; 0–60A; 300W |
| Full-load efficiency by variant | D4.2: ≥87%; D4.5: ≥88%; D5: ≥89% |
| Output-voltage tolerance | ±3% |
| Voltage ranges by variant | D4.2: 4.07–4.33V; D4.5: 4.35–4.65V; D5: 4.85–5.15V |
| Ripple / noise | 200mVp-p max |
| Line / load regulation | ±1% / ±2% |
| Rise time | 0.1–100ms at 12Vdc, full load |
| Hold-up time | ≥10ms at 12Vdc, 80% full load |
| Cooling statements | Original page: built-in DC fan / forced air; PDF p6: natural cooling — confirm version |
| Operating humidity in PDF | 20–90%, non-condensing |
| Storage conditions in PDF | −30°C to +85°C; 10–95%RH |
| Vibration in PDF | 10–500Hz, 5G; 10min/cycle; 60min each X/Y/Z axis |
| Status indication | Green power-status LED; original page / PDF LED indicator entry |
Selection and installation
The electrical table on PDF page 5 distinguishes three variants. The RC300 series name alone does not establish a 300W or 5V supplied unit. Match the exact suffix, DC output and vehicle supply.
The PDF page 6 derating curve shows full output through 40°C and 80% at 60°C. Its conditions table says natural cooling, while the original page says a built-in DC fan with forced-air cooling. Both statements are retained with their sources; confirm the actual version and cooling arrangement.

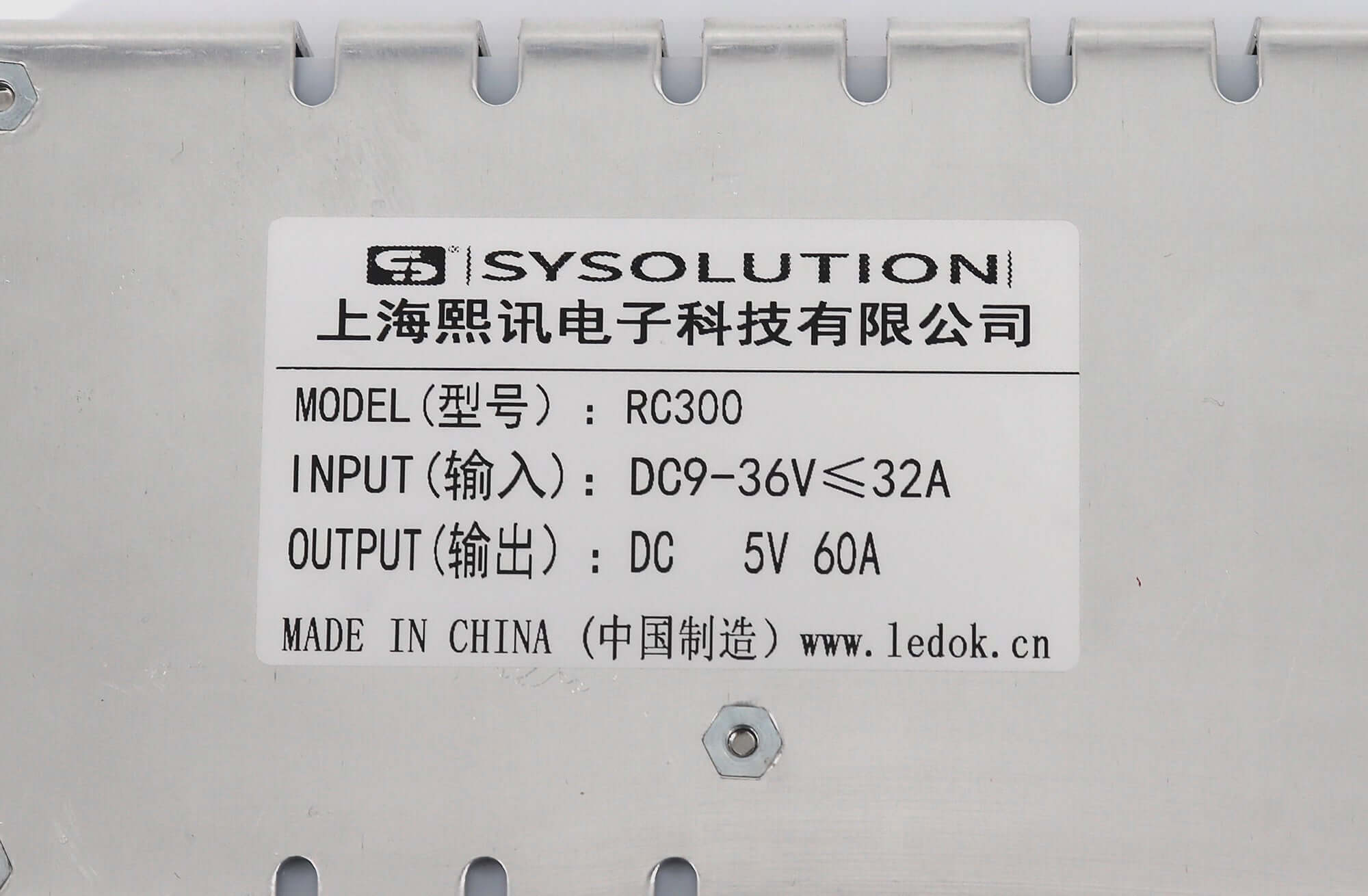

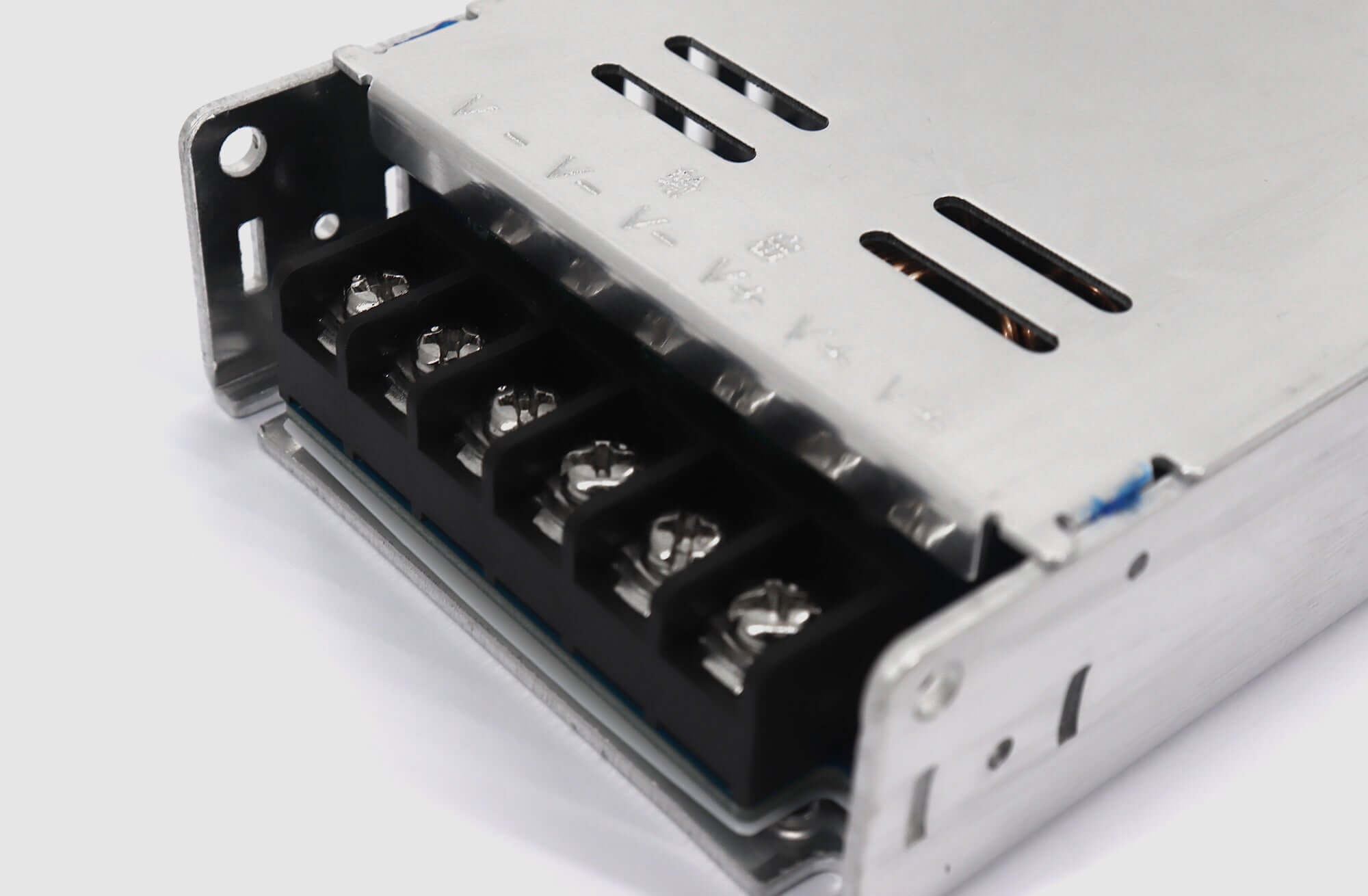

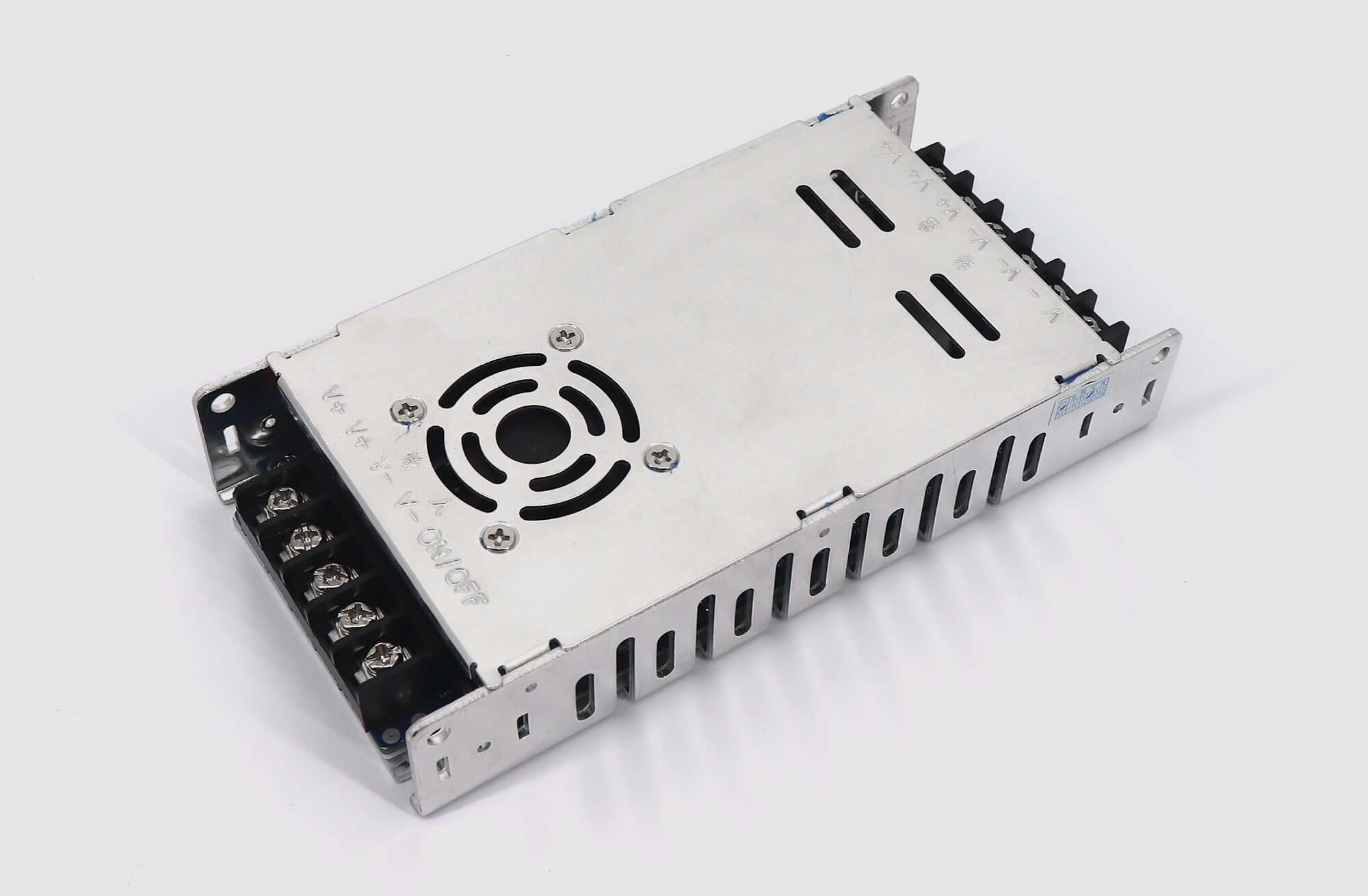

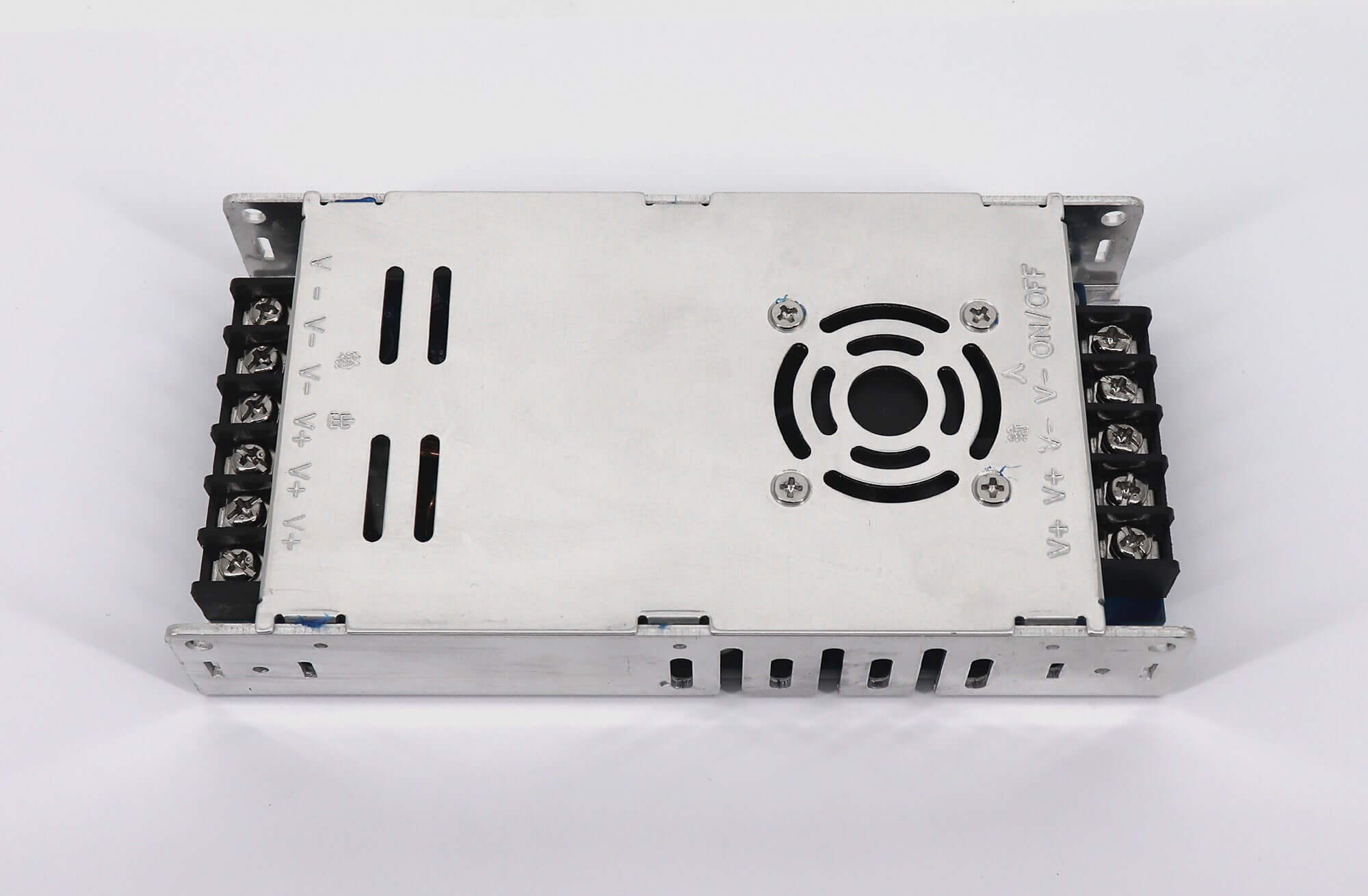

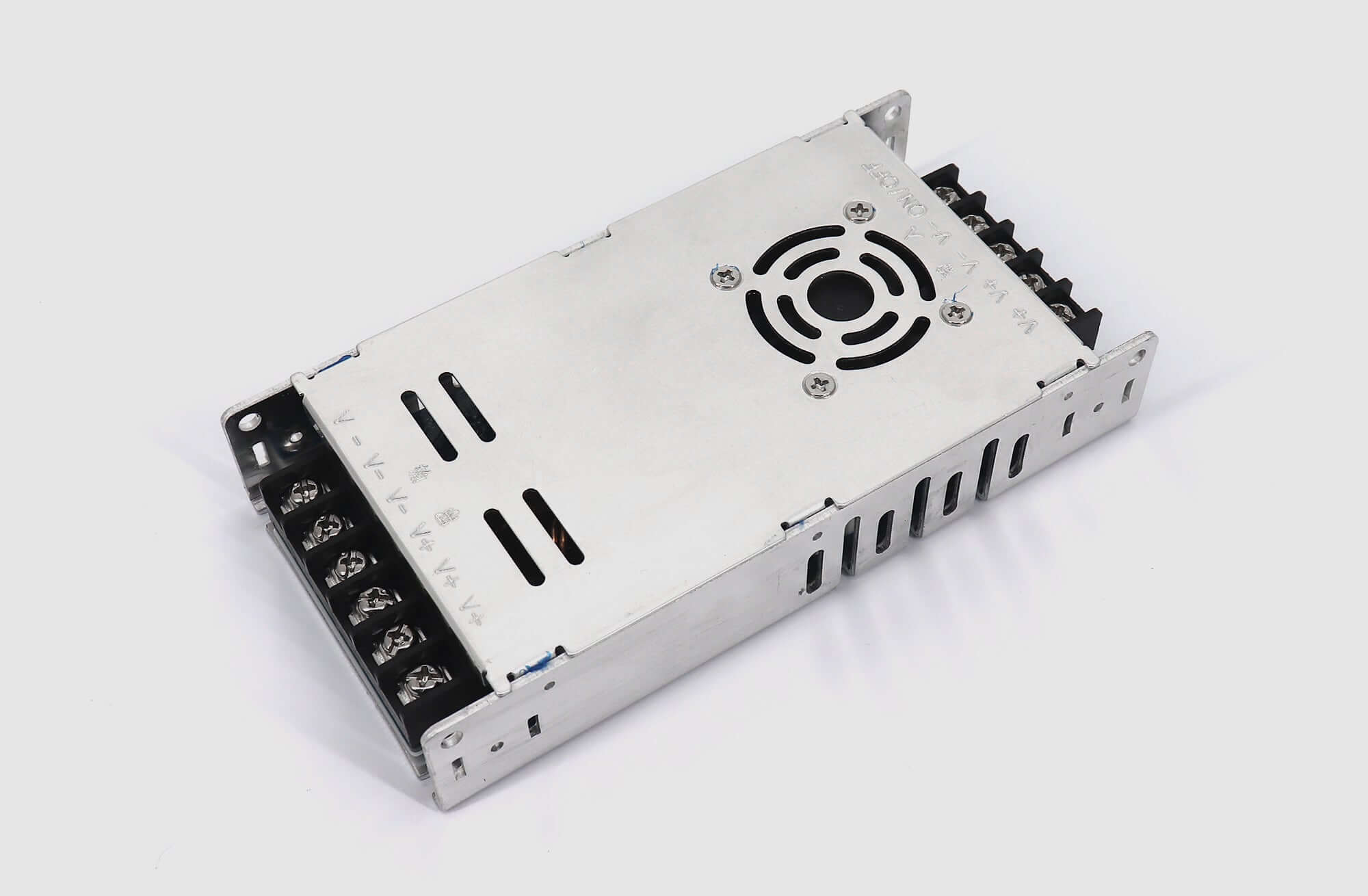

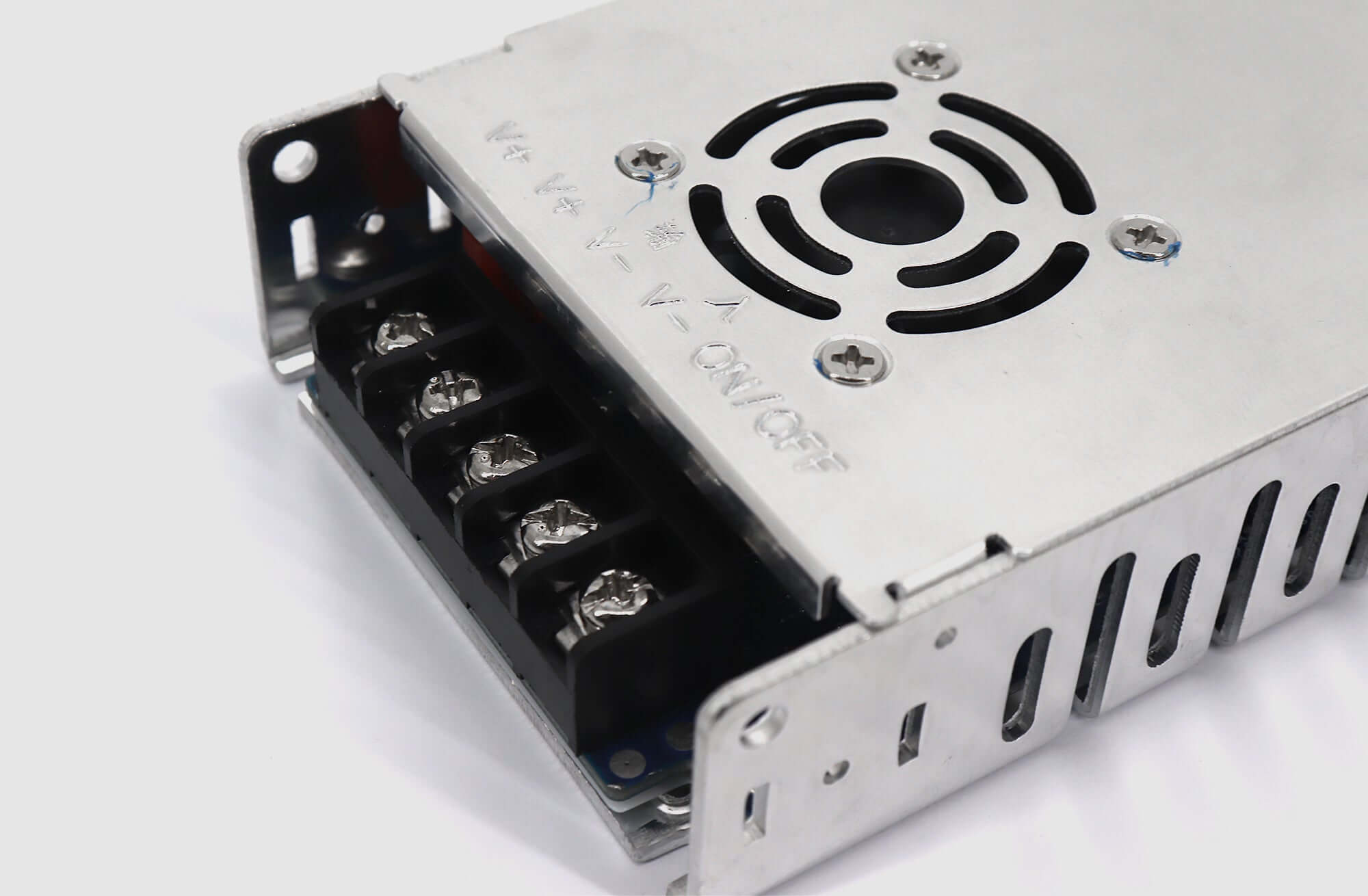

Product images and video

Frequently asked questions
1. Can RC300 use a 12V or 24V vehicle supply?
The linked specification gives 9–36Vdc input and names 12V and 24V as typical values. It is a DC-input series, not an AC-mains supply.
2. Is every RC300 model rated for 300W?
No. PDF page 5 gives RC300D4.2 at 250W maximum, RC300D4.5 at 270W and RC300D5 at 300W. Their output voltages are 4.2V, 4.5V and 5.0V respectively.
3. Does RC300 use fan cooling or natural cooling?
The original product page says built-in DC fan / forced air; PDF page 6 says natural cooling. The supplied hardware and version must be checked rather than treating these as one confirmed arrangement.
4. Can full output be assumed at 60°C?
No. The PDF derating curve falls from full output at 40°C to 80% at 60°C. Use the curve and the confirmed cooling arrangement when selecting the load.
Download specification
Sysolution RC300 Car LED Display Power Supply Specification(Chinese)
