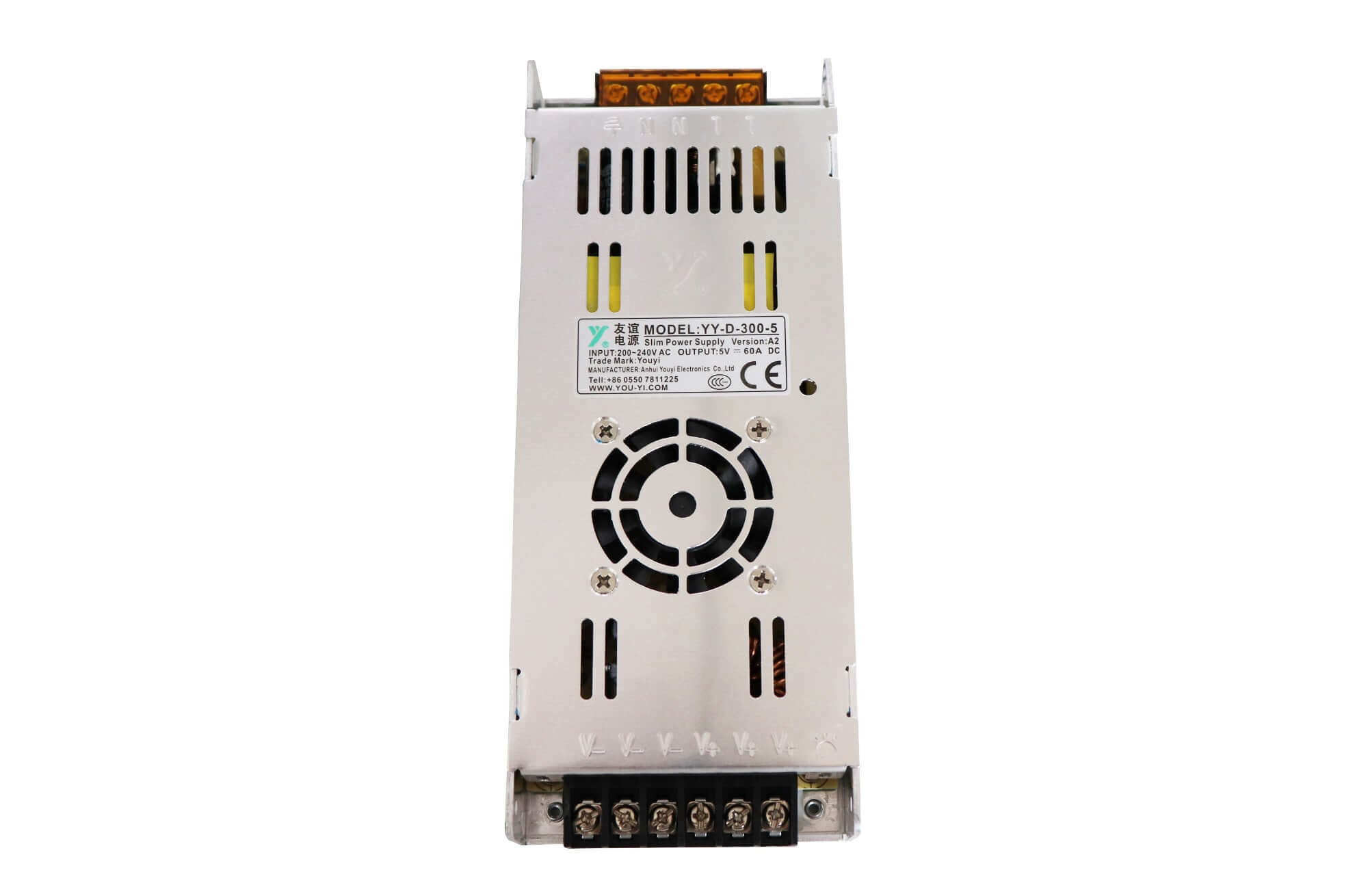

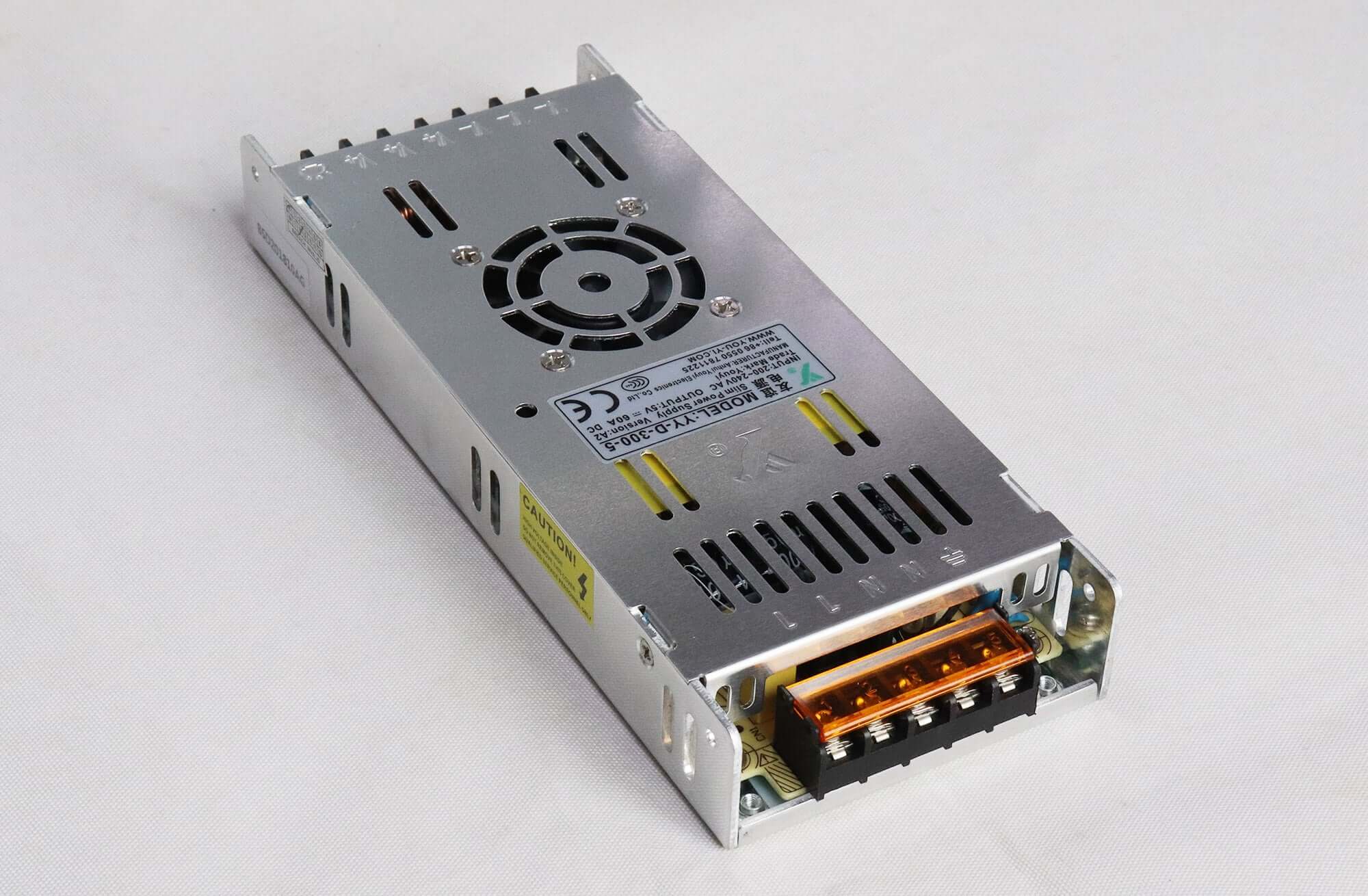

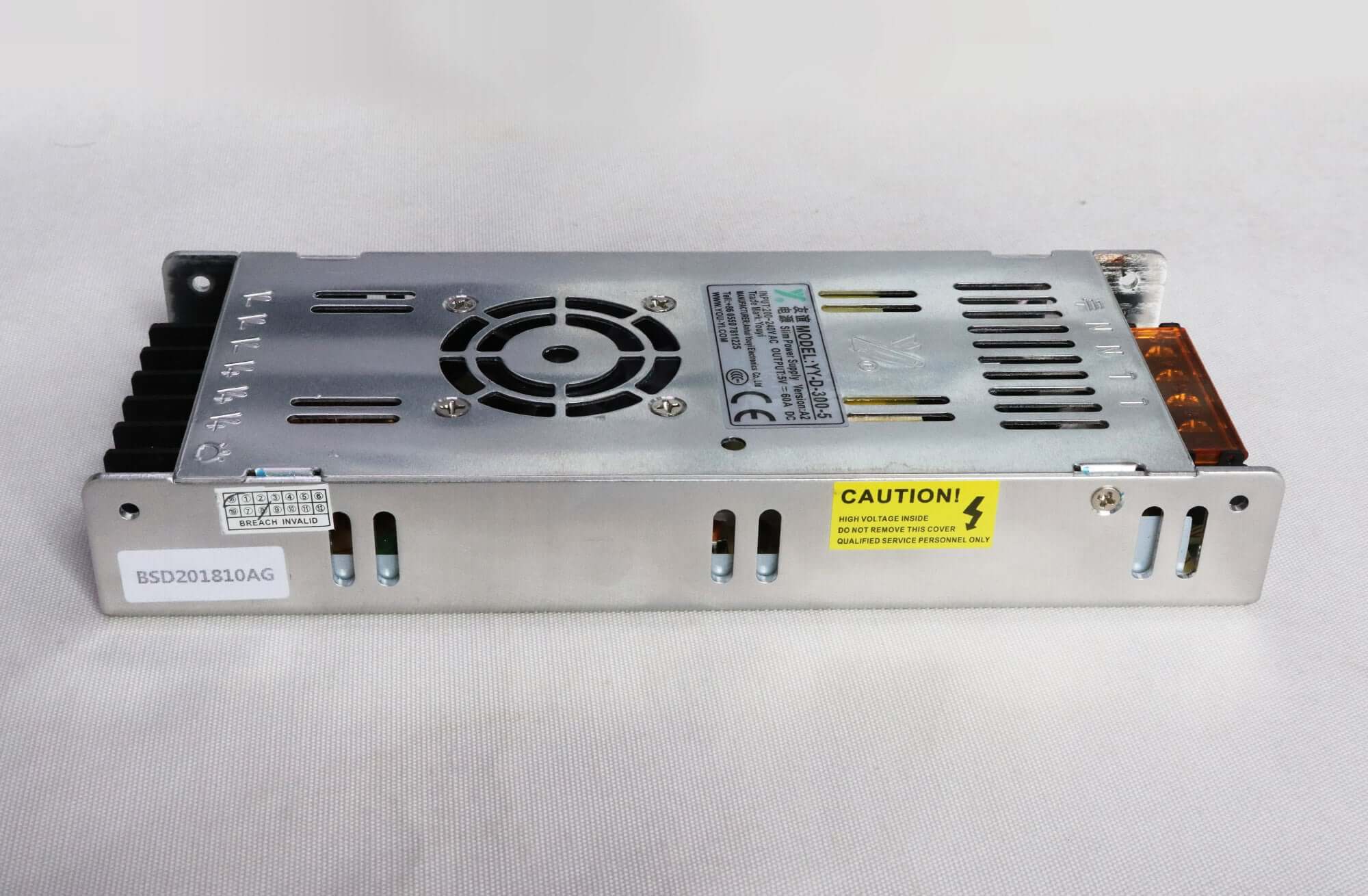

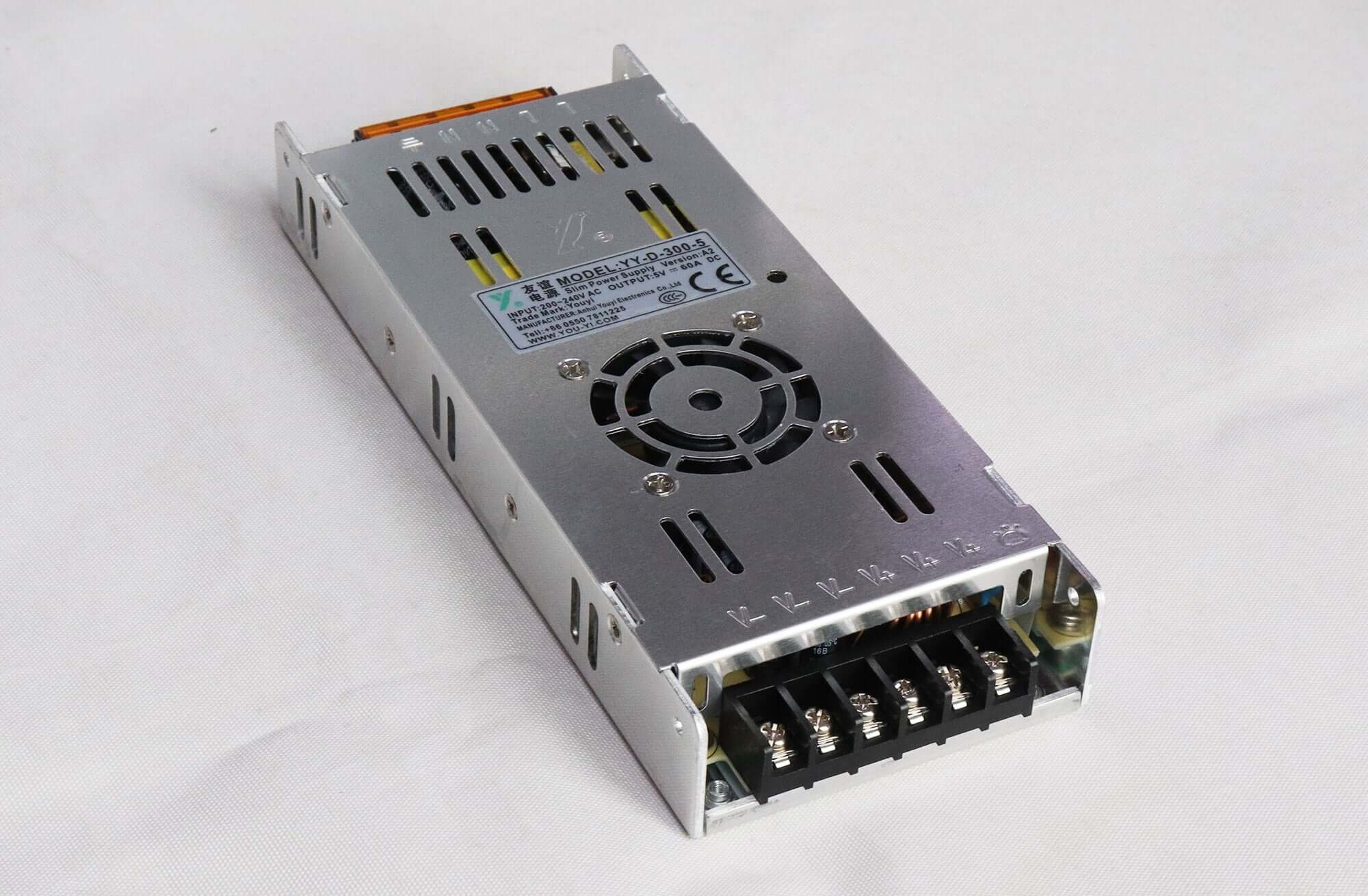

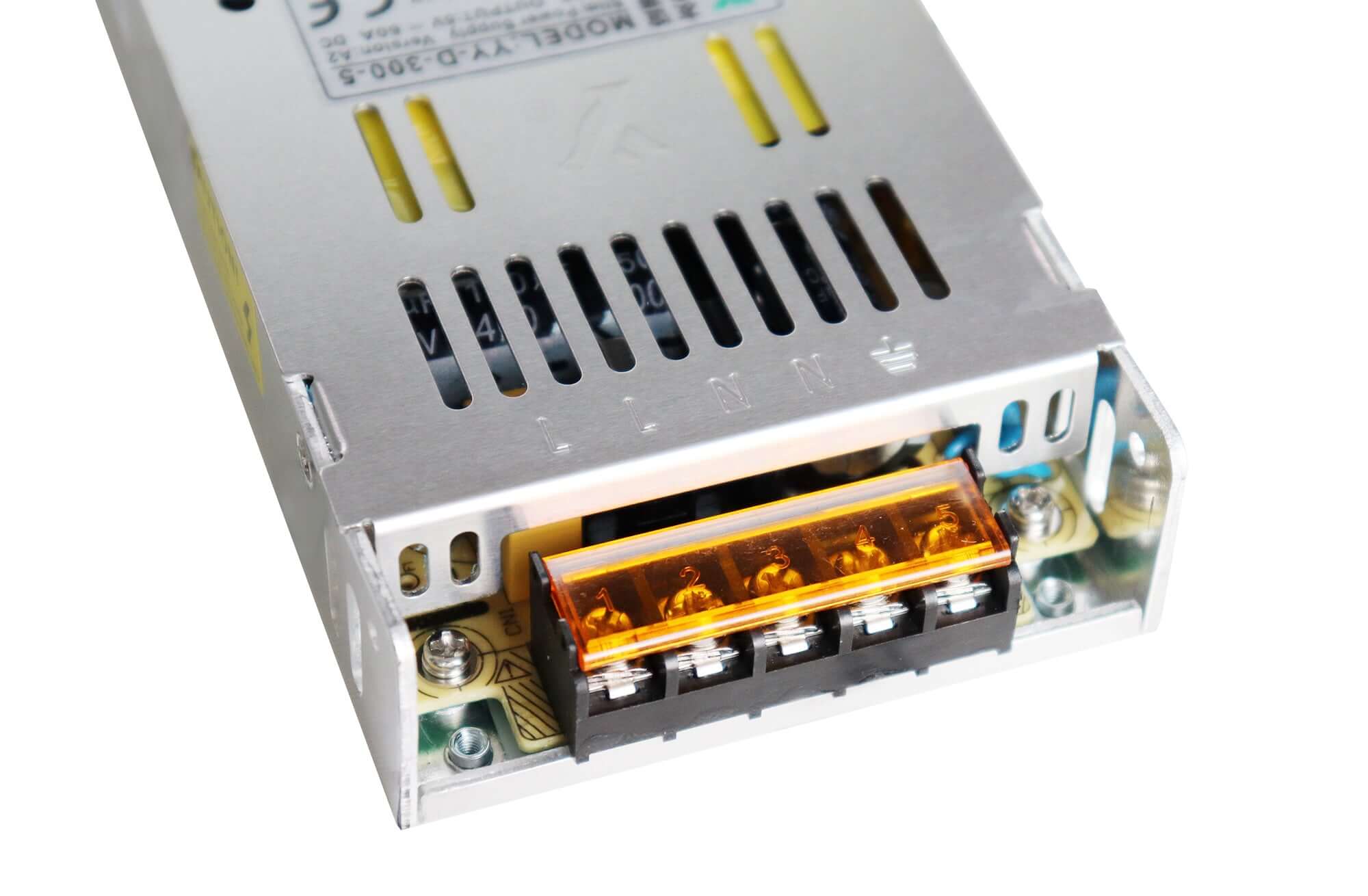

YOU-YI YY-D-300-5 5V60A 300W EMC LED Power Supply

YOU-YI YY-D-300-5 5V60A 300W EMC LED Power Supply

Name: YOU-YI YY-D-300-5 5V60A 300W EMC LED Power Supply
Brand: Eager-LED
SKU: YOU-YI-YY-D-300-5
Price: 13.3 USD
Availability: InStock

$ 13.30

9976 in stock

SKU: YOU-YI-YY-D-300-5 Categories: Eager-LED, LED Power Supply Tags: Eager-LED, Less than $100.00 Brand: Eager-LED

YOU-YI YY-D-300-5 5V60A 300W EMC LED Power Supply Features:

1. Toshiba high voltage MOS tube, with high pressure resistance, and good switching performance.

2. Provide over-voltage protection, over-current protection, over-temperature protection short circuit protection, overload protection. When the protection mechanism is triggered, the power is automatically turned off, and after the fault is removed, the power supply is resumed.

3. Fan can automatically adjust the speed according to the power supply temperature, when the temperature is low or do not turn vulgar, when the temperature is high when the high-speed rotation.

YOU-YI YY-D-300-5 5V60A 300W EMC LED Power Supply Parameter:

Model		YY-D-300-5
Output	Output Voltage	5V
	Max Current	60A
	Current Range	0～60A
	Max Power	300W
	Ripple and noise	100mV
	Voltage adjustment range	±1%
	Voltage tolerance	±0.2%
	Linear adjustment rate	±0.5%
	Load regulation	±2.0%
	Start Time	50mS
	Hold time	20mS
Input	voltage range	200V～240V
	Frequency Range	47Hz～63Hz
	Effectiveness	86%
	Inrush current	≤40A
	Leakage current	≤2.0mA
Protection	Overload	Over Max Power of 110% to 150%
	Over temperature	95℃±5℃
	Cooling mode	Fan forced cooling
Enviroment	Operating temperature	—30℃～+60℃
	Working humidity	20～90%RH,No condensation
	Storage temperature, humidity	—40℃～+80℃,10～95%RH
	Temperature Coefficient	±0.03%/℃（0～50℃）
	Resistant to vibration	10-300MHz,1G,10Minute / period,
	Resistant to vibration	X.Y.Z axis for 60 minutes each.
Safity	Safety Standard	Accord to GB4943、UL60950、EN60950
	EMC Standard	Accord to GB9254、EN55022A
	Pressure resistance	I/P-O/P:3KVAC/3mA/1min
		I/P-FG:1.5KVAC/3mA/1min
		O/P-FG:0.5KVAC/3mA/1min
	Isolation resistance	I/P-O/P:50MΩmin/500VDC
	Certified	CQC/ CE/ CB/ ROHS/CCC
Other	Dimensions	2128530mm

YOU-YI YY-D-300-5 5V60A 300W EMC LED Power Supply

Download Specification:
YOU-YI YY-D-300-5 Power Specification

Weight	0.75 kg
