Colorlight AX06 AI Media Station – 6-Port LED Player
$ 640.00
Colorlight AX06 is a six-port LED media player with Android 13, dual 4K decoding and up to 3.9 million-pixel loading. It supports live HDMI inputs, stored playback and wireless presentations.
10000 in stock

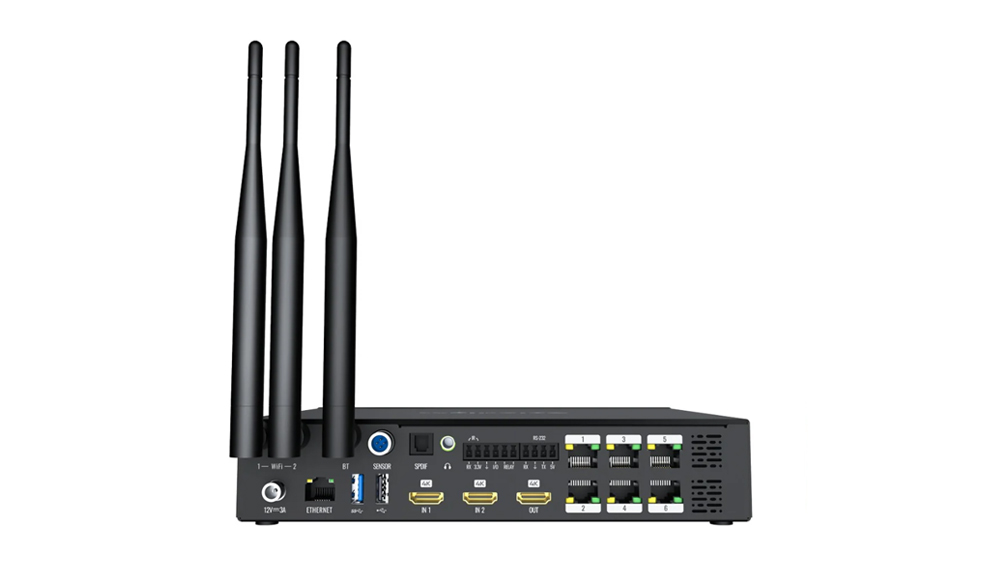

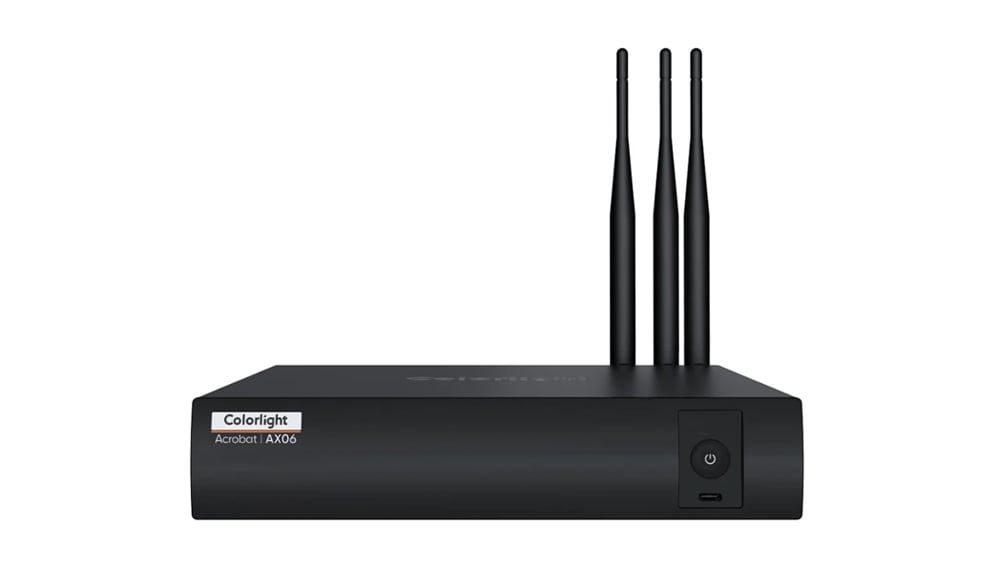

Colorlight AX06 LED media player
Colorlight AX06 is an Android 13 AI media station with six Gigabit Ethernet outputs and a maximum LED loading capacity of 3.9 million pixels. It combines synchronous and asynchronous sending with dual 4K video decoding, allowing an LED display to show live input sources, stored media and wireless presentations.
The AX06 supports multi-layer layouts for meeting rooms, teaching spaces, exhibitions and lecture halls. Two HDMI 1.4 inputs connect external sources, while an HDMI 2.0 output provides a separate display connection. LAN and WiFi access support network and cloud management.
Technical specifications
| Parameter | Specification |
|---|---|
| LED outputs | 6 × Gigabit Ethernet |
| Maximum loading capacity | 3.9 million pixels |
| Maximum width | 7680 pixels |
| Operating system | Android 13; third-party app installation supported |
| Processor | 8-core chip; 8 nm process |
| Video decoding | Up to dual 4K; H.264 / H.265 / AV1 / VP9 / AVS2 |
| HDMI inputs | 2 × HDMI 1.4 |
| HDMI output | 1 × HDMI 2.0 |
| Wireless connectivity | WiFi 6, dual-band, AP and STA modes; Bluetooth 5.2 |
| Peripheral connections | USB 2.0, USB 3.0 and USB-C |
| Audio outputs | 1 × SPDIF for PCM, Dolby and DTS; 1 × 3.5 mm audio jack |
| Network management | Gigabit Ethernet and WiFi |
| Display interface | 4K UI display; Colorlight Infi-bit grayscale extension |
| Memory / storage | 4 GB DDR / 64 GB eMMC |
| Power supply / consumption | DC 12 V / 3 A; 28 W |
| Dimensions (W × H × D) | 220 × 188 × 47 mm, excluding antennas and mounting bracket |
| Operating environment | −20°C to 60°C; 0% RH–85% RH, non-condensing |
Presentation and control features
- Picture-in-picture and picture-by-picture display, including annotation over external OPS and HDMI signals.
- Wireless screen sharing and reverse control, with support for infrared touch frames and whiteboard applications.
- Preset modes for presentations, meetings and video playback.
- USB plug-and-play or stored playback, plus a file manager for internal and USB-drive files.
- Playlists with videos, images, text, time, weather and HDMI signals.
- Infrared/Bluetooth remote operation and file browsing with a mouse or keyboard.
- Control through WebUI, PC PlayerMaster, ColorlightCloud CMS and the mobile LED Assistant; central control through serial port or network.
- Fanless construction, standby operation, and wall-mount or desktop installation.
Meeting use requires third-party meeting apps and suitable peripherals. Automatic LED brightness adjustment requires an optional ambient light sensor. Confirm the required touch hardware, software activation and casting accessories for an interactive installation.
Frequently asked questions
How many Ethernet outputs does the Colorlight AX06 have?
AX06 has six Gigabit Ethernet outputs for LED sending. Its maximum loading capacity is 3.9 million pixels, with a maximum width of 7680 pixels.
Does AX06 support dual 4K decoding?
Yes. AX06 supports up to dual 4K decoding and the H.264, H.265, AV1, VP9 and AVS2 codecs. This decoding capability is separate from its 3.9 million-pixel LED loading capacity.
Can AX06 work with both live video and stored content?
Yes. It supports synchronous and asynchronous sending, two HDMI 1.4 inputs and USB or internal media playback. Picture-in-picture and picture-by-picture layouts are supported.
What memory and storage are specified for AX06?
Specification V1.7 lists 4 GB DDR memory and 64 GB eMMC storage. These are AX06 specifications and should not be replaced with the values of another AX-series model.
Are whiteboard and multiple-screen casting functions standard?
Single-screen casting is supported by default. Specification V1.7 lists a separately purchased sixteen-screen wireless casting activation code and a separate whiteboard activation code. Compatible touch hardware and any required casting dongle must also be checked for the installation.
Product images and specification download
Download Specification:
Colorlight AX06 LED Display AI Media Station Specification
| Weight | 3.5 kg |
|---|
