CZCL A-200FAF-5 Fanless LED Display Power Supply
$ 9.80
CZCL A-200FAF-5 from the 200W fanless LED power supply series. Features 180–264VAC input, 30mm height and short-circuit/overload protection. Chinese specification PDF included.
9980 in stock
CZCL A-200FAF-5 fanless LED power supply
The CZCL A-200FAF-5 belongs to the A-200FAF 200W LED display power supply series. Its fanless design and 30mm height suit LED cabinets with limited installation height. Applications listed for the series include LED screens, indicator panels and LED video walls.
Technical parameters
| Parameter | Specification |
|---|---|
| Model | CZCL A-200FAF-5 |
| Series rating | 200W |
| AC input voltage | 180–264VAC |
| Output versions listed for the series | 2.8V, 3.3V, 3.8V, 4.2V, 4.5V, 5V |
| Height | 30mm |
| Cooling design | Fanless |
| Working temperature | −20 to +70°C |
| Protection | Short circuit and overload |
| Testing | 100% full-load ageing |
| Specification language | Chinese |
Confirm the exact unit output and current rating before ordering. The series output list does not establish a single-unit adjustment range. The stated working temperature range is not a full-load derating curve; use the specification to check load conditions.

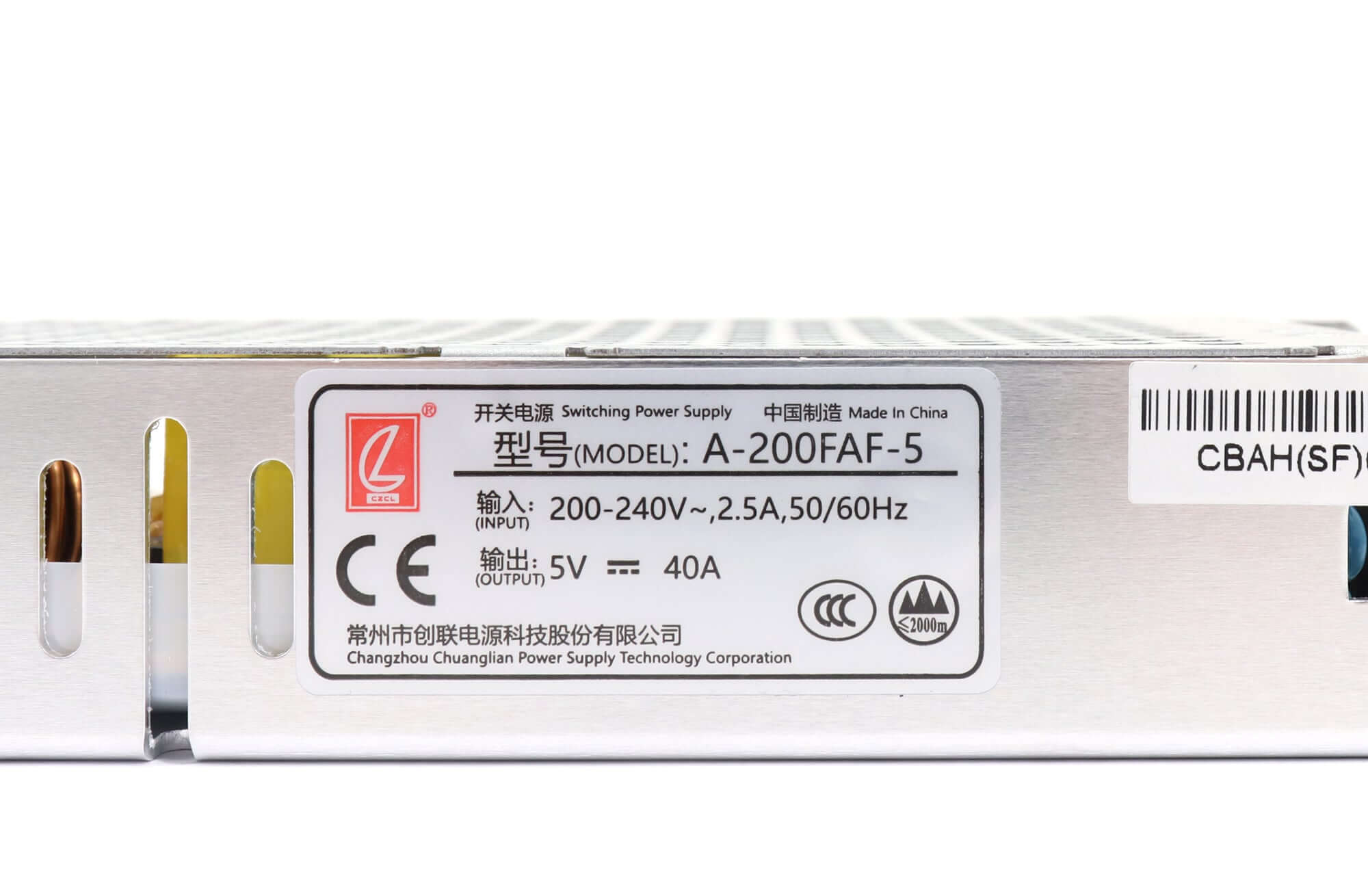

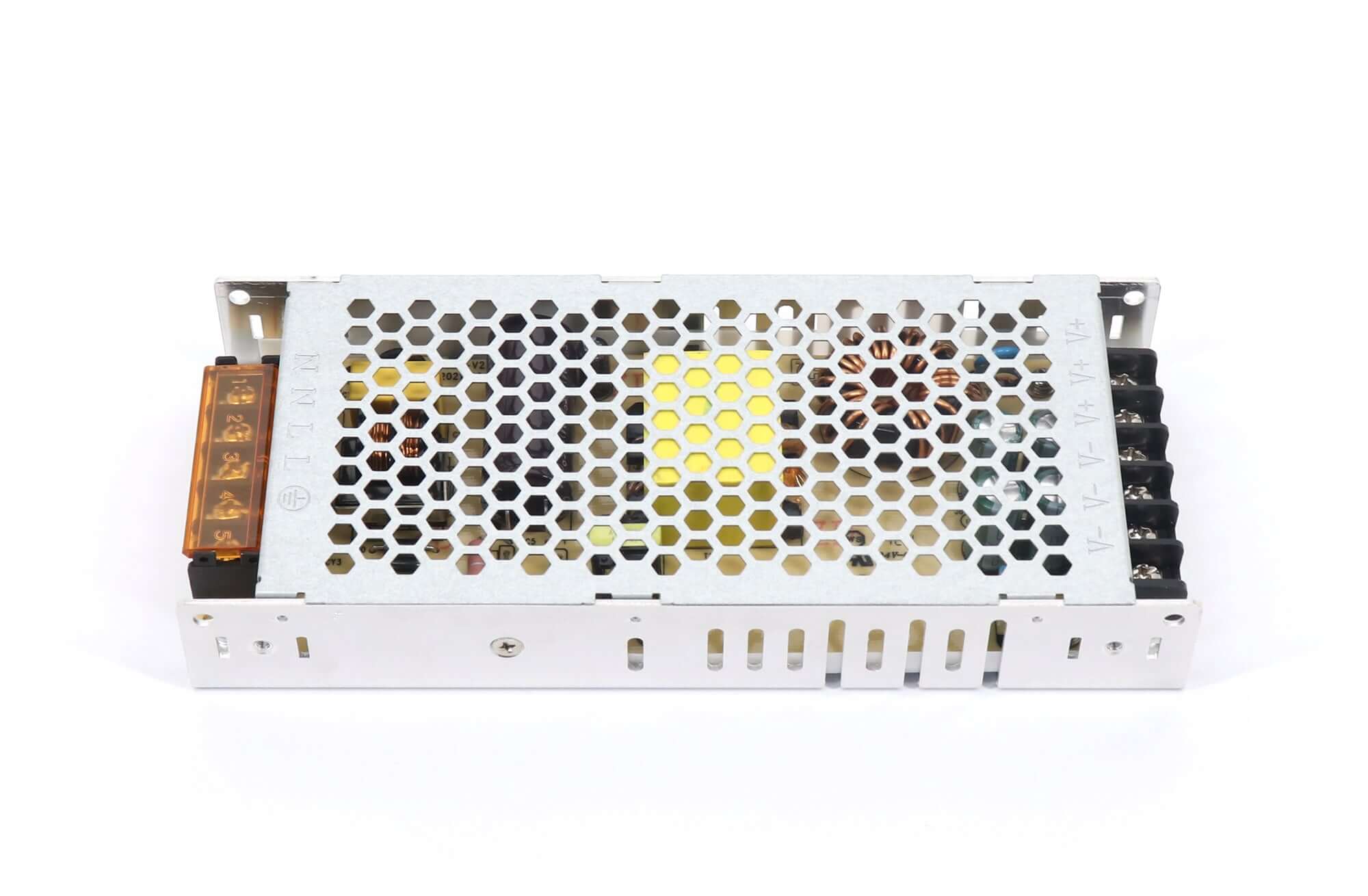

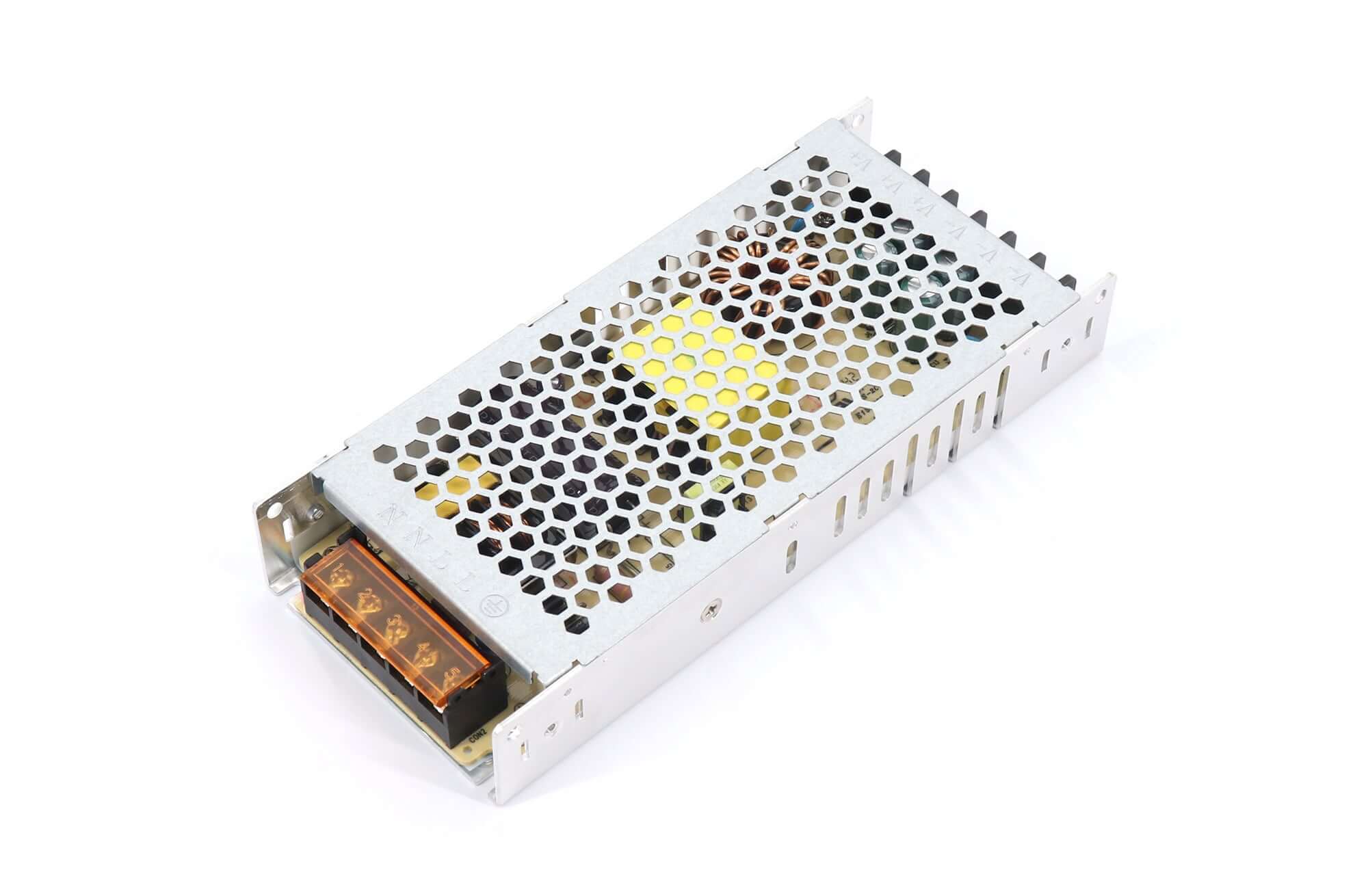

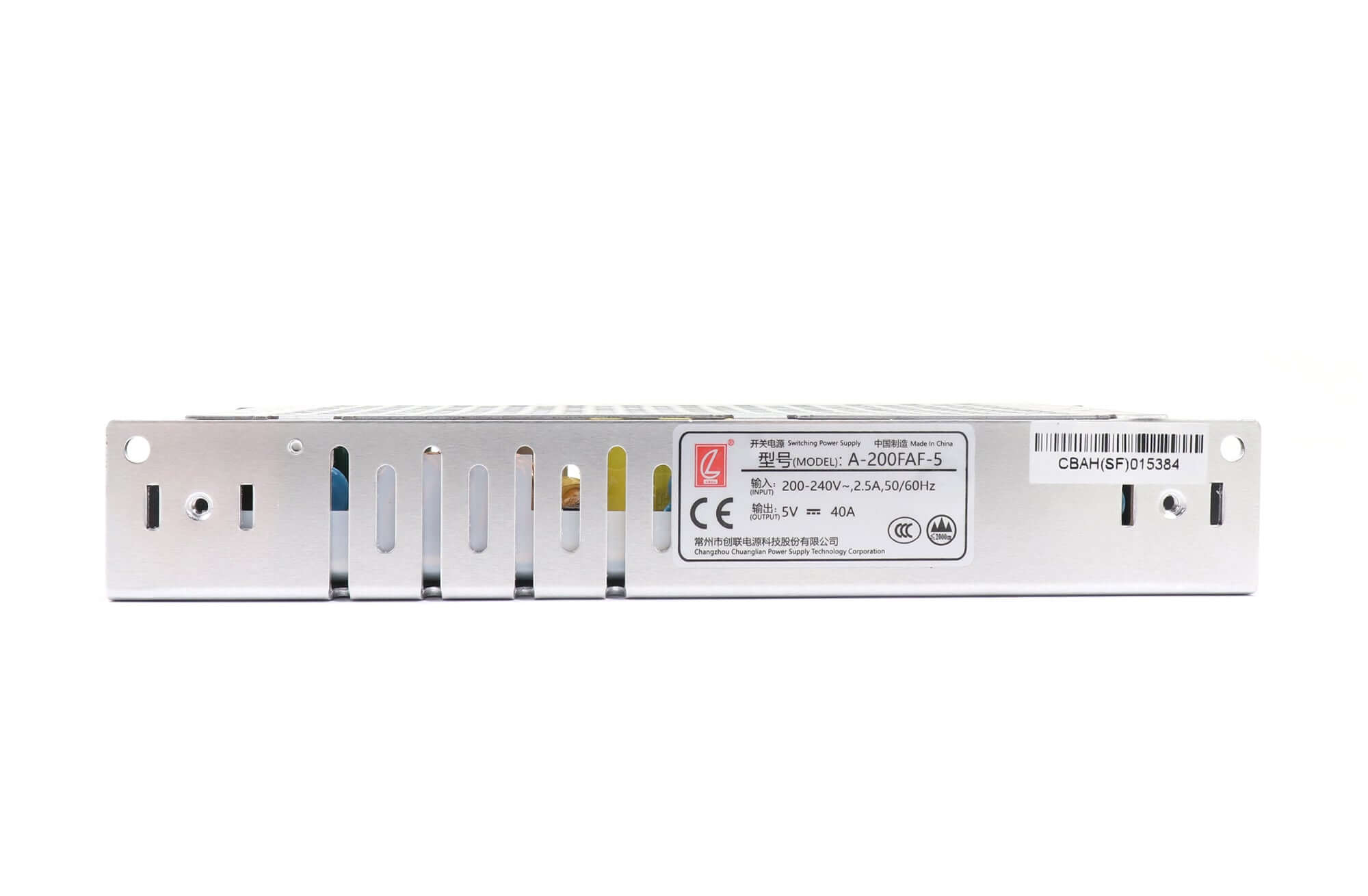

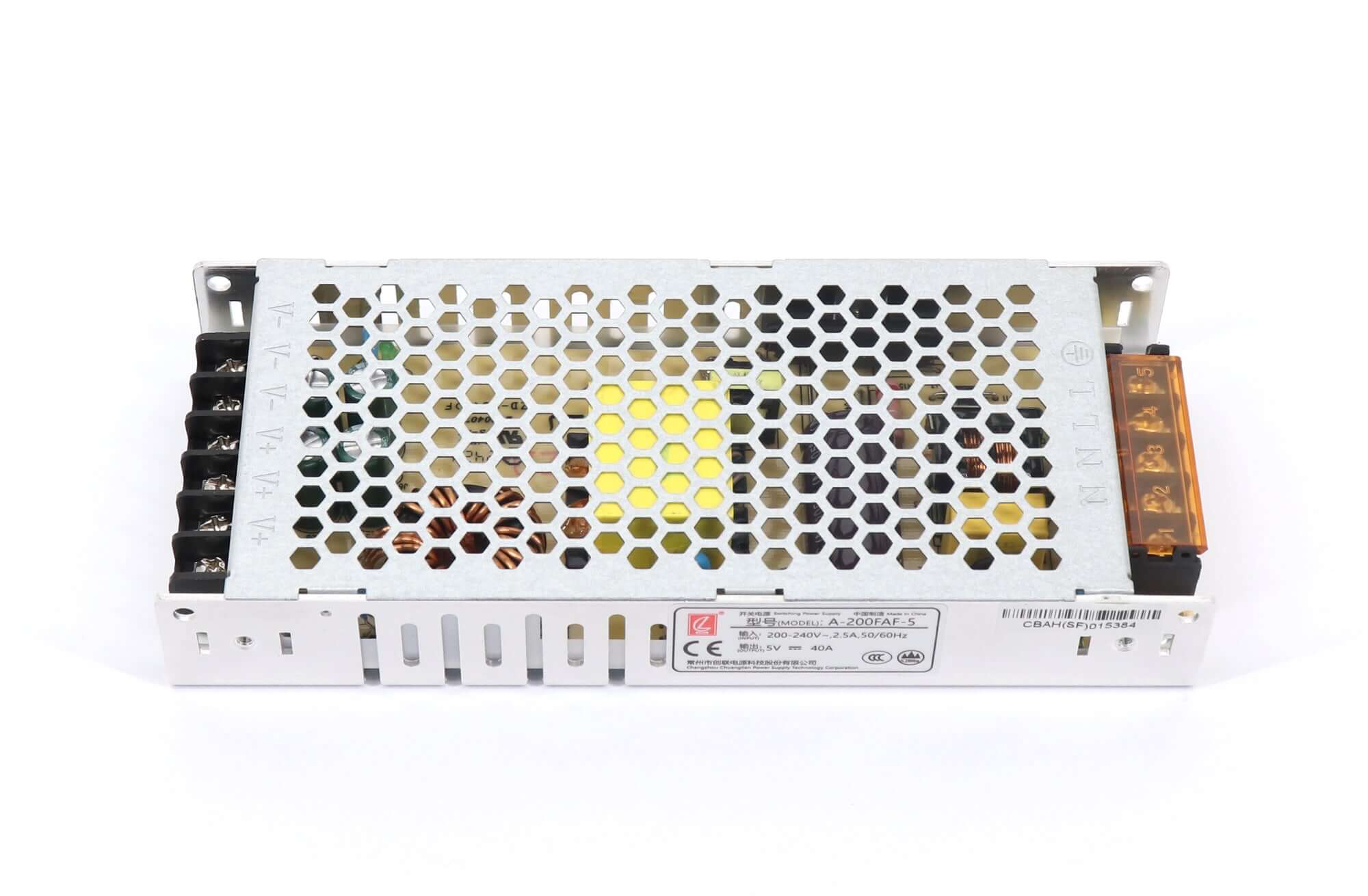

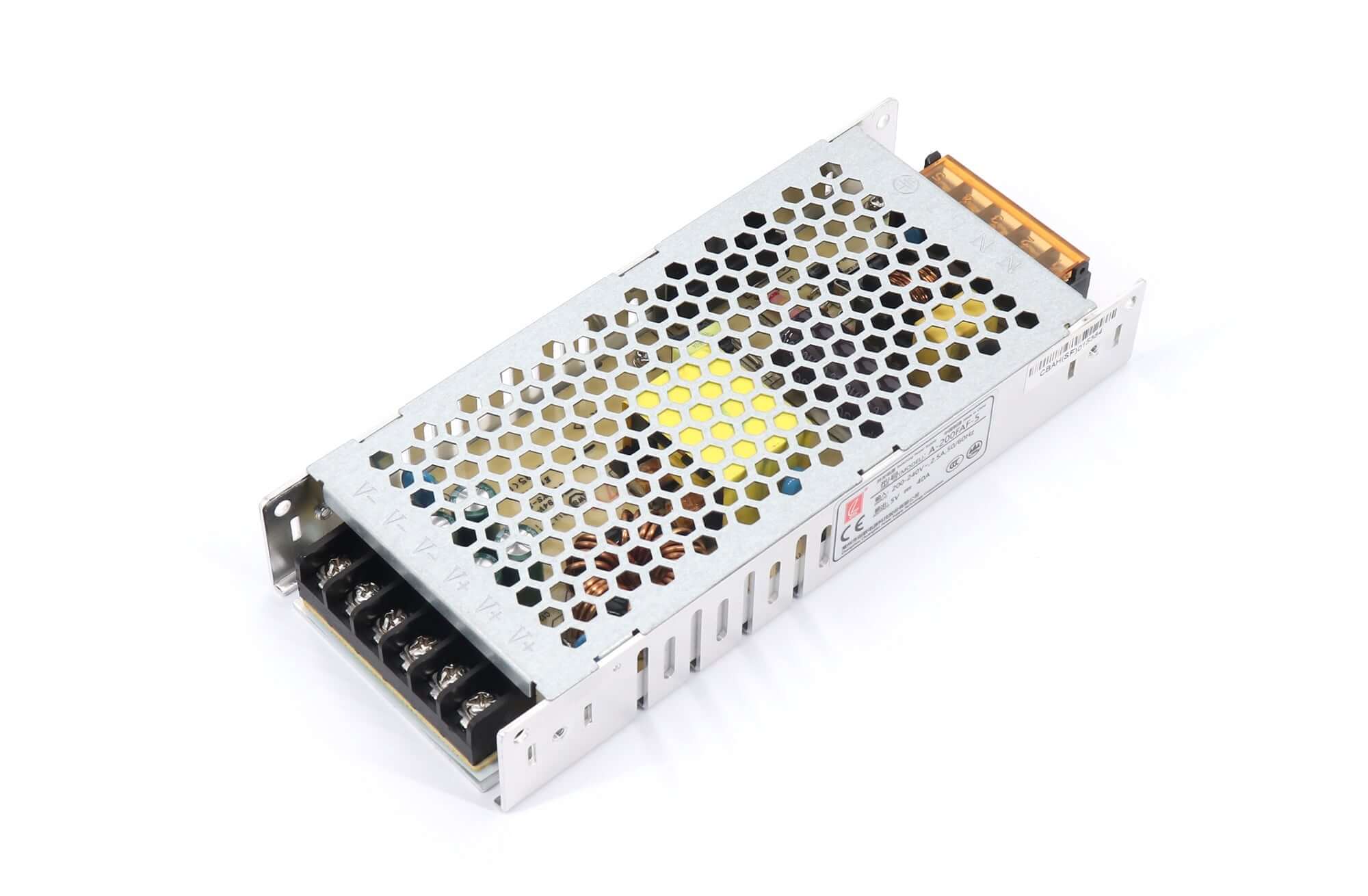

Product images
Specification download
CZCL A-200FAF-5 Power Supply with CE Certificate Specification （Chinese）
Frequently asked questions
Is the A-200FAF-5 fanless?
Yes. The A-200FAF series is described as a fanless LED display power supply.
Can I use it on a 110V AC supply?
The listed AC input is 180–264VAC. A 110V input is outside that stated range.
How high is the A-200FAF housing?
The stated height is 30mm. Confirm the overall length, width and mounting positions in the specification before installation.
Are all listed series voltages available from one unit?
The source lists several output versions for the series. It does not specify that one power supply can be adjusted between all of them.
Where can I find its specification and CE information?
The original Chinese specification PDF is linked above. The original listing describes the product as having a CE certificate; request the applicable certificate if your project requires documentary proof.
| Weight | 0.6 kg |
|---|
