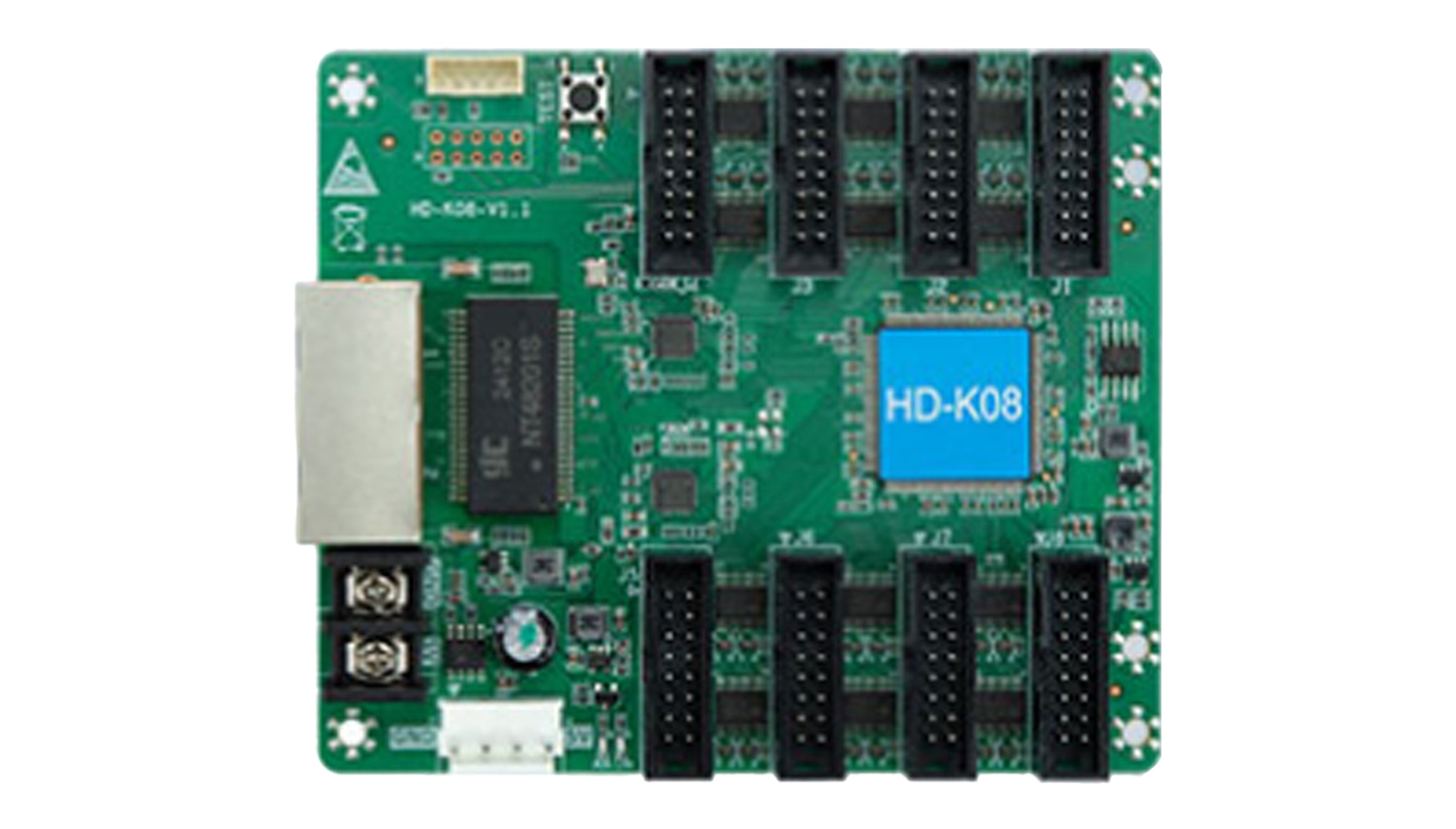

Huidu HD-K08 LED Display Receiving Card
$ 8.00
999 in stock
K08 is an LED display receiving card that supports both synchronous control system and asynchronous control system. It does not require an adapter board. It has 8 standard HUB75E interfaces on the board and has good stability. It supports 16 sets of RGB parallel data.
Parameters
Support sending type：Support similar asynchronous dual -mode playback boxes, asynchronous transmission cards, synchronous transmission cards, and two -in -one video processors.
Support module：Supports all conventional chip modules; supports mainstream PWM chip modules
Scanning method：Supports any scanning method from static to 1/128 scan, supports spot and null point settings
Way of communication：Gigabit network port
Loading capacity：Conventional chip & ShiXin LS chip: 128*512, PWM chip: 256*512; Stay in the empty area without incorporating a carrier;
Multi -card connection：The receiving card can be arbitrarily sorted, nano -second -level synchronization
Gray level：Support 256 ~ 65536 level
Smart settings：Simple a few steps to complete the intelligent settings, the display unit board that can be matched with any wiring method through the screen line settings
Test function：Receive card integration screen test function, test the brightness of the display screen and the flatness of the display module
Communication distance：Over five and six types of network cables within 80 meters
Interface：Two 5V power interfaces, two Gigabit network ports, eight groups of HUB75E interfaces
Input voltage：3.8V-5.5V
Work power：3 watt
Download Specification:
Huidu HD-K08 LED Display Receiving Card Specification
| Weight | 0.3 kg |
|---|
