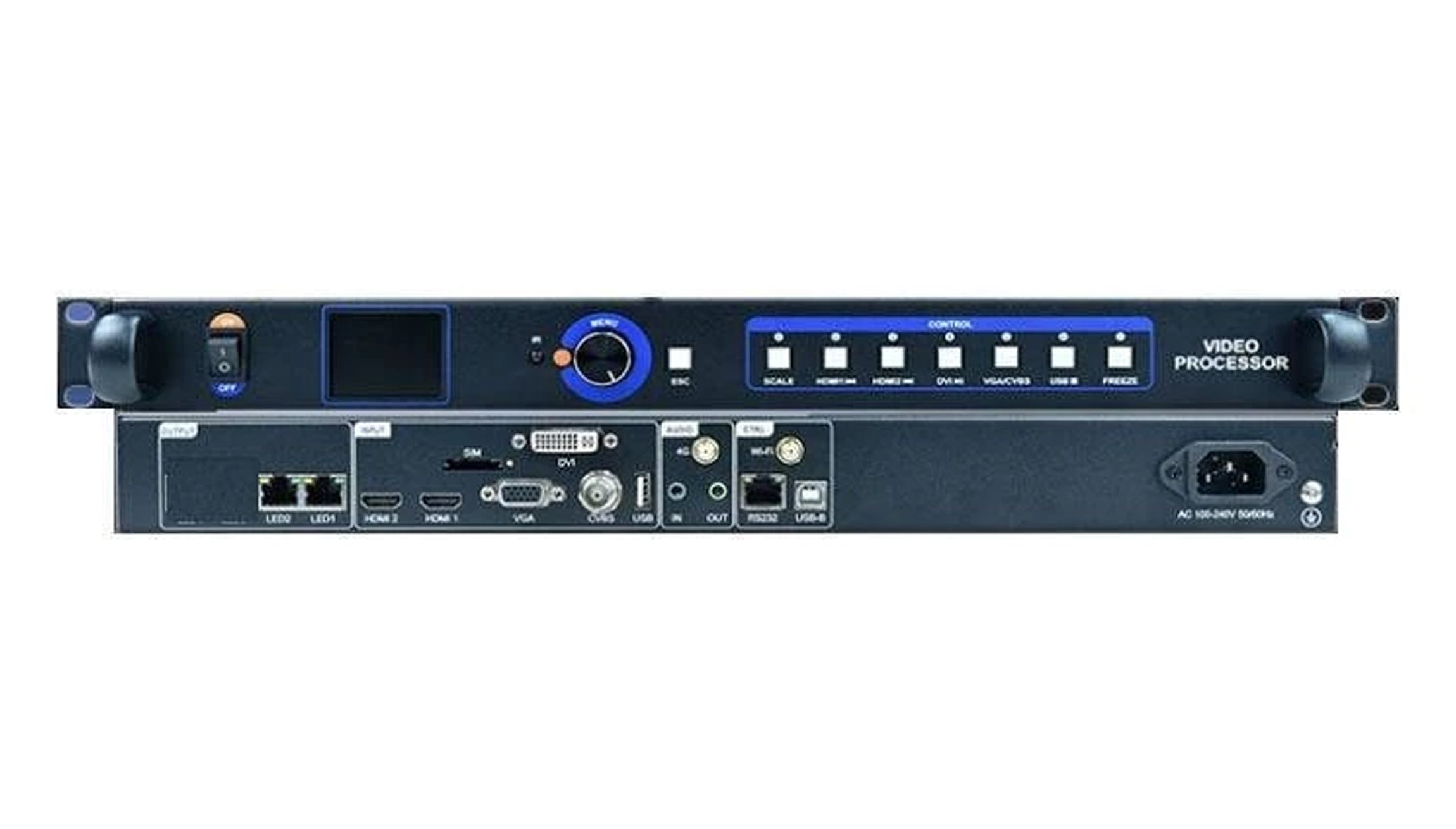

Huidu HD-VP210H LED Video Processor – 2 Ports & USB
$ 89.00
The Huidu HD-VP210H controls up to 1.3 million pixels through two Gigabit outputs. It combines dual HDMI, DVI, VGA and CVBS inputs with USB playback, 16 scene presets, Wi-Fi app control and RS232 integration.
999 in stock
HD-VP210H two-output LED controller
The Huidu HD-VP210H combines video processing, LED sending and USB playback for screens up to 1.3 million pixels. Five live video inputs cover HDMI, DVI, VGA and CVBS sources, while a separate USB media input provides local video and image playback.
Flexible sources and daily operation
Use two HDMI inputs for modern video sources, DVI or VGA for compatible computer outputs, and CVBS for supported analog video. HDMI and VGA accept up to 1080p at 60 Hz; USB playback has a separate 1080p at 30 Hz limit. Audio is supported through HDMI and a 3.5 mm input, with a 3.5 mm output for an amplifier.
The processor supports cropping, scaling, pixel-to-pixel display and non-rectangular loading. Store up to 16 scene presets and adjust brightness or color temperature for the installation. Control is available from the front panel, a supported mobile app over Wi-Fi, or an RS232 central control connection.
HD-VP210H specifications
| LED outputs / capacity | 2 Gigabit ports; 650,000 pixels per port; 1.3 million pixels total |
|---|---|
| Maximum dimensions | 3840 pixels wide or 2500 pixels high, within total loading capacity |
| HDMI inputs | 2 × HDMI 1.4, backward compatible; up to 1920 × 1080p at 60 Hz; audio input supported |
| DVI / VGA / CVBS inputs | 1 × DVI (1080p); 1 × VGA (up to 1920 × 1080p at 60 Hz); 1 × CVBS (480i / 576i) |
| USB playback | 1 × USB 2.0; up to 1920 × 1080 at 30 Hz; media in drive root directory |
| Video files | mp4, avi, mpg, mkv, mov, vob and rmvb; supported encoding must also match the PDF |
| Image files | jpg, jpeg, png and bmp |
| Audio connectors | 1 × TRS 3.5 mm two-channel input and 1 × two-channel output |
| Display functions | Pixel-to-pixel display, non-rectangular loading, source switch, crop, scale, brightness and color-temperature adjustment |
| Presets | 16 scenes with recall |
| Control connections | USB-B computer configuration; Wi-Fi antenna; RJ45 for RS232 central control |
| Wi-Fi modes | Station, AP and Station + AP; mobile app wireless control |
| Optional accessories | Infrared remote and RJ45-to-DB9 cable |
| Power | AC 100–240 V, 50/60 Hz; 14 W |
| Chassis / dimensions / net weight | 1U; 482 × 44 × 240 mm (W × H × D); 2.6 kg |
| Operating conditions | −20 to 55°C; 20–90% RH, non-condensing |
Parameters follow the linked HD-VP210H V1.1 specification. Check the full screen mapping and input timing before selecting a configuration.
Frequently asked questions
Which video inputs are available on the HD-VP210H?
It has two HDMI inputs, one DVI, one VGA and one CVBS, plus a USB media input. HDMI and VGA support up to 1080p at 60 Hz; USB video supports up to 1080p at 30 Hz.
Can the VP210H play content from a USB drive?
Yes. Place compatible video or image files in the drive’s root directory and select USB playback. The supported file extensions are listed in the table; video encoding must also match the specification.
How do I check whether my LED screen fits its capacity?
Check the full pixel count, the pixels assigned to each output and the width and height. The unit supports 1.3 million pixels total, 650,000 per port, a maximum width of 3840 pixels or maximum height of 2500 pixels. The width and height maxima are not a single supported canvas size.
Can I operate it from a phone or central controller?
The specification supports mobile app control through Wi-Fi Station, AP and combined Station + AP modes. RS232 protocol control is also supported through the RJ45 control interface; the RJ45-to-DB9 cable is optional.
How many scenes can I save, and is a remote included?
The controller supports 16 scene presets with recall. Infrared remote control is optional, so confirm it in the order configuration. Front-panel controls remain available for local operation.
Download specifications
Huidu HD-VP210H three-in-one video processor specification (PDF)
